Summary of Contents for Ironton 57520

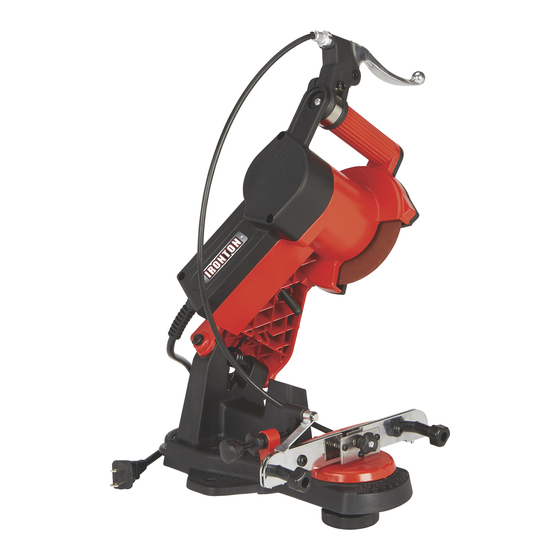

- Page 1 Electric Chainsaw Sharpener Owner’s Manual WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item #57520 READ & SAVE THESE INSTRUCTIONS...
- Page 2 Thank you very much for choosing an Ironton™ product! For future reference, please complete the owner’s record below: Serial Number/Lot Date Code: ________________________________ Purchase Date: ____________________________________________ Save the receipt, warranty, and this manual. It is important that you read the entire manual to become familiar with this product before you begin using it.
-
Page 3: Table Of Contents
Table of Contents Intended Use ............................4 Technical Specifications ........................4 Important Safety Information ....................... 4 Specific Operation Warnings ....................... 6 Grounding .............................. 6 Extension Cords ............................ 7 Main Parts of Sharpener ........................8 Assembly Instructions .......................... 8 Before Each Use ............................ 9 Operating Instructions .......................... -
Page 4: Intended Use
Intended Use The Ironton Electric Chainsaw Sharpener is designed to sharpen most types of chainsaw chains. Technical Specifications Property Specification Electrical Rating 120VAC / 60Hz / 85W Motor No Load Speed 4,200 RPM 1/4″ and 3/8″ Saw Chain Pitch 7/8″... - Page 5 Do not allow the product to come into contact with an electrical source. The tool is not insulated and contact will cause electrical shock. Keep children and bystanders away from the work area while operating the tool. Do not allow children to handle the product.
-
Page 6: Specific Operation Warnings
children. Inspect the tool for good working condition prior to storage and before re-use. Use only accessories that are recommended by the manufacturer for use with your product. Accessories that may be suitable for one product may create a risk of injury when used with another tool. -
Page 7: Extension Cords
unit is equipped with an electrical cord that has an equipment grounding conductor and a grounding plug. The plug MUST be plugged into a matching receptacle that is properly installed and grounded in accordance with ALL local codes and ordinances. ... -
Page 8: Main Parts Of Sharpener
USE A PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage, resulting in loss of power and cause overheating. -
Page 9: Before Each Use
1. Position the sharpener on the mounting surface so that the mounting stop butts up against the vertical edge of the surface. 2. Using the base as a template, mark locations of mounting holes. 3. Drill pilot holes appropriate for the proper hardware (sold separately) at the marked locations. 4. - Page 10 Direction of feed. Feed work into a blade or cutter against the direction of rotation of the blade or cutter only. FOR GRINDING DISC Do not exceed rated speed. Always wear the proper personal protective equipment including eyewear, ear protection, and facemasks.
- Page 11 d. Plug in the sharpener and turn it on. e. Allow the sharpener to come up to full speed. f. Squeeze the vise handle and pull down on the handle until the grinding wheel makes contact with and sharpens the cutting edge. g.
-
Page 12: After Each Use
3. Place the grinding wheel on the arbor, then thread the outer flange onto the spindle. Wrench tighten only enough so that the wheel is securely held on the spindle. 4. Replace the grinding wheel cover. After Each Use Wipe external surfaces of the tool with a clean cloth. -
Page 13: Troubleshooting
Troubleshooting Use the table below to troubleshoot problems before contacting service personnel or your local dealer. If the problem continues after troubleshooting, call your local dealer for assistance. Failure Possible Cause Corrective Action Cord not connected. Check that cord is plugged in. Check power at outlet. -
Page 14: Parts Diagram
Parts Diagram Page 14 of 18... -
Page 15: Parts List
Parts List Reference Part Description Quantity Screw Grinding Wheel Cover Outer Flange Grinding Wheel Inner Flange Screw Screw Motor Cover Depth Adjustment Lock Nut Depth Adjustment Knob Power Switch Main Handle Vise Handle Back Motor Cover Anti-Vibration Ring Motor Power Cord Circuit Panel Motor Housing Screw... -
Page 16: Replacement Parts
Replacement Parts For replacement parts and technical questions, please call Customer Service at 1-800-222-5381. Not all product components are available for replacement. The illustrations provided are a convenient reference to the location and position of parts in the assembly sequence. ... -
Page 17: Limited Warranty
Northern Tool and Equipment Company, Inc. ("We'' or ''Us'') warrants to the original purchaser only (''You'' or ''Your'') that the Ironton product purchased will be free from material defects in both materials and workmanship, normal wear and tear excepted, for a period of 90 days from date of purchase. - Page 18 Distributed by: Northern Tool & Equipment Company, Inc. Burnsville, Minnesota 55306 www.northerntool.com Made in China. Page 18 of 18...
