Summary of Contents for Ironton 61476
- Page 1 35-Piece Rotary Tool Kit Owner’s Manual WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item #61476 READ & SAVE THESE INSTRUCTIONS...
- Page 2 Thank you very much for choosing an Ironton™ product! For future reference, please complete the owner’s record below: Serial Number/Lot Date Code: ________________________________ Purchase Date: ____________________________________________ Save the receipt, warranty, and this manual. It is important that you read the entire manual to become familiar with this product before you begin using it.
-
Page 3: Table Of Contents
Table of Contents Intended Use ............................4 Packaging Contents ..........................4 Technical Specifications ........................4 Important Safety Information ....................... 4 Specific Operation Warnings ....................... 6 Grounding .............................. 6 Extension Cords ............................ 8 Main Parts of Rotary Tool Kit ....................... 9 Before Each Use ............................ -
Page 4: Intended Use

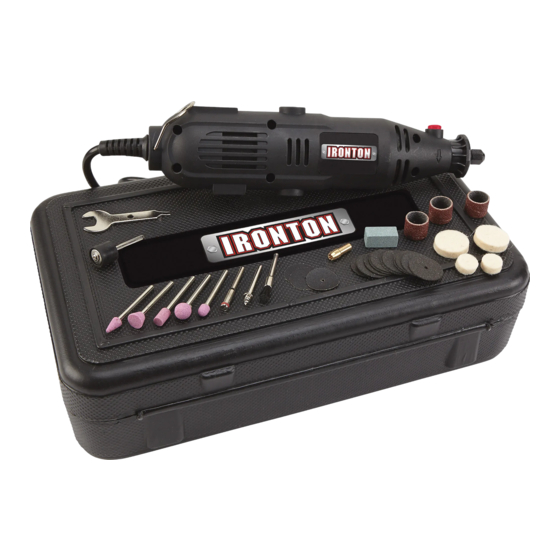

Intended Use The Ironton 35-Piece Rotary Tool Kit has a 1.1 Amp motor with a no-load speed of 10,000 to 32,000 RPM. This variable speed tool cuts, saws, grinds, polishes, and sharpens. It’s designed for use on metal, wood, plastic, glass, ceramic, stone, and more. It includes a 35-piece accessory set. The entire kit is stored in a plastic case. - Page 5 this equipment for a purpose for which it was not intended. Industrial or commercial applications must follow OSHA requirements. ⚠WARNING WORK AREA SAFETY Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well-lit. Cluttered, wet, or dark work areas can result in injury.
-
Page 6: Specific Operation Warnings
⚠CAUTION ROTARY TOOL KIT USE AND CARE Do not force the rotary tool. Products are safer and do a better job when used in the manner for which they are designed. Plan your work, and use the correct product for the job. ... - Page 7 unit is equipped with an electrical cord that has an equipment grounding conductor and a grounding plug. The plug MUST be plugged into a matching receptacle that is properly installed and grounded in accordance with ALL local codes and ordinances. ...
-
Page 8: Extension Cords
Extension Cords ⚠WARNING USE A PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage, resulting in loss of power and cause overheating. -
Page 9: Main Parts Of Rotary Tool Kit
Main Parts of Rotary Tool Kit Reference Subassembly Spring Chuck Securing Ring Spindle Lock Carbon Brush Cap Speed Dial On/Off Switch Manual Stand Before Each Use ⚠WARNING Always remove the plug from the power source before installing. Verify the chuck is tight. ... - Page 10 Assembling Abrasive Discs and Grinding Stones to Accessory Shaft 1 1. Mount the selected disc onto the accessory shaft 1, as illustrated. Ensure the two washers are correctly placed. 2. Do not over-tighten the screw. Assembling Abrasive Bands to Accessory Shaft 2 1.
-
Page 11: After Each Use
After Each Use ⚠WARNING Store the rotary tool in a dry and clean place. Keep the tool away from children. Maintenance ⚠WARNING Do not use solvents to clean the tool. Inspect the chuck and remove any dirt or debris. Maintain the rotary tool by adopting a program of conscientious repair and maintenance in accordance with the following recommended procedures. -
Page 12: Troubleshooting
Troubleshooting Use the table below to troubleshoot problems before contacting service personnel or your local dealer. If the problem continues after troubleshooting, call your local dealer for assistance. Failure Possible Cause Corrective Action 1. Check that cord is plugged in. 2. -
Page 13: Parts Diagram
Parts Diagram Parts List Part Number Part Description Quantity Collet nut Collet Base Bearing Rotor Stator Carbon brush Left body Switch Trimming circuit board Lock board Speed control switch Screw Screw Right body Spindle lock button Spring piece Cap body Cord sleeve Cord Plug... -
Page 14: Replacement Parts
Replacement Parts For replacement parts and technical questions, please call Customer Service at 1-800-222-5381. Not all product components are available for replacement. The illustrations provided are a convenient reference to the location and position of parts in the assembly sequence. ... -
Page 15: Limited Warranty
Northern Tool and Equipment Company, Inc. ("We'' or ''Us'') warrants to the original purchaser only (''You'' or ''Your'') that the Ironton product purchased will be free from material defects in both materials and workmanship, normal wear and tear excepted, for a period of one year from date of purchase. - Page 16 Distributed by: Northern Tool & Equipment Company, Inc. Burnsville, Minnesota 55306 www.northerntool.com Made in China Page 16 of 16...
