Summary of Contents for Ironton 46257

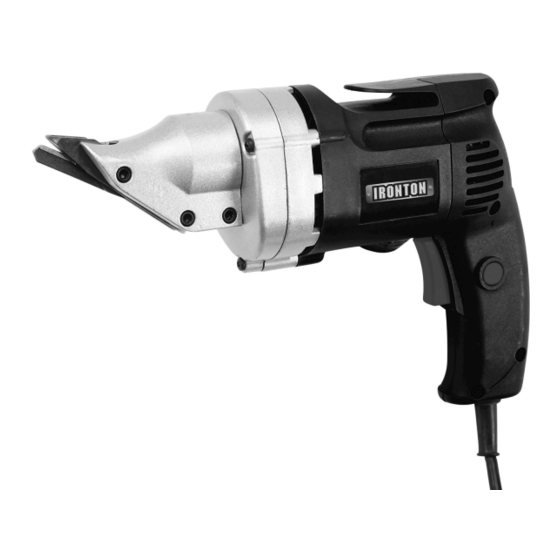

- Page 1 14-GAUGE ELECTRIC SHEAR OWNER’S MANUAL WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item#: 46257...
-
Page 2: Intended Use
Thank you very much for choosing an IRONTON product! For future reference, please complete the owner’s record below: Model: _______________ Purchase Date: _______________ Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it. -
Page 3: Electrical Safety
ELECTRICAL SAFETY • Power tool plugs must match the outlet. Never modify the plug in any way. Double insulated tools are equipped with a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet. - Page 4 TOOL USE AND CARE • Secure the work piece. Use clamp or other practical way to hold the work piece to a stable platform. Holding the work piece by hand or against your body is unstable and may lead to loss of control.
-
Page 5: Extension Cords
SERVICE • Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. • Service your power tool periodically. When cleaning a tool, be careful not to disassemble any portion of the tool since internal wires may be misplaced or pinched. - Page 6 WARNING: Hold tool by insulated gripping surfaces when performing an operation where cutting tools may contact hidden wiring or its own cord. Contact with a “live” wire will make exposed metal parts of the tool “live” and shock the operator! •...
-
Page 7: Unpacking And Contents
1. Trigger Switch 2. Belt Clip 3. Lock-On Button 4. Cutting Head FIG 1 UNPACKING AND CONTENTS IMPORTANT: Due to modern mass production techniques, it is unlikely the tool is faulty or that a part is missing. If you find anything wrong, do not operate the tool until the parts have been replaced or the fault has been rectified. -
Page 8: Operation
OPERATION WARNING: To reduce the risk of serious personal injury, read and follow all important safety warning and instructions before using this tool. WARNING: Always be sure the tool is disconnected from the power source before making any adjustments or setting up prior to cutting. Failure to disconnect or unplug the tool may cause accidental starting, resulting in serious personal injury. - Page 9 4. Clean, replace or sharpen the blades as required. Replace blades as a set only. 5. Reassemble by repositioning the blades and bushings as illustrated. Replace the Head Bolts and tighten them securely. 6. Test the product to be sure that it is working properly. 7.
- Page 10 DIAGRAM AND PARTS LIST Page of 12...
-
Page 11: Parts List
PARTS LIST Part # Description Part # Description Cutting H ead F ront B earing 1 Tool Housing Cutting H ead F ront B ushing 1 Rear Motor Bushing ... -
Page 12: Two Year Warranty
TWO-YEAR WARRANTY This product is warranted free from defects in material and workmanship for 2 years after date of purchase. This limited warranty does not cover normal wear and tear or damage from neglect or accident. The original purchaser is covered by this warranty and it is not transferable. Prior to returning your tool to store location of purchase, please call our Toll-Free Help Line for possible solutions.
