OpenEye CM-722I User Manual

2mp outdoor ir ip bullet camera
Hide thumbs Also See for CM-722I:
Table of Contents

Advertisement

Quick Links

Camera
CM-722I
CM-722AI
CM-722VF
2MP Outdoor IR IP Bullet Camera
Accessories
CA-510G
CA-510W
CA-510C
CA-510P25
CA-510P50
User Manual
CA-510PML
CA-510PMS
CA-510PA25
CA-510PA50
www.openeye.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM-722I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for OpenEye CM-722I

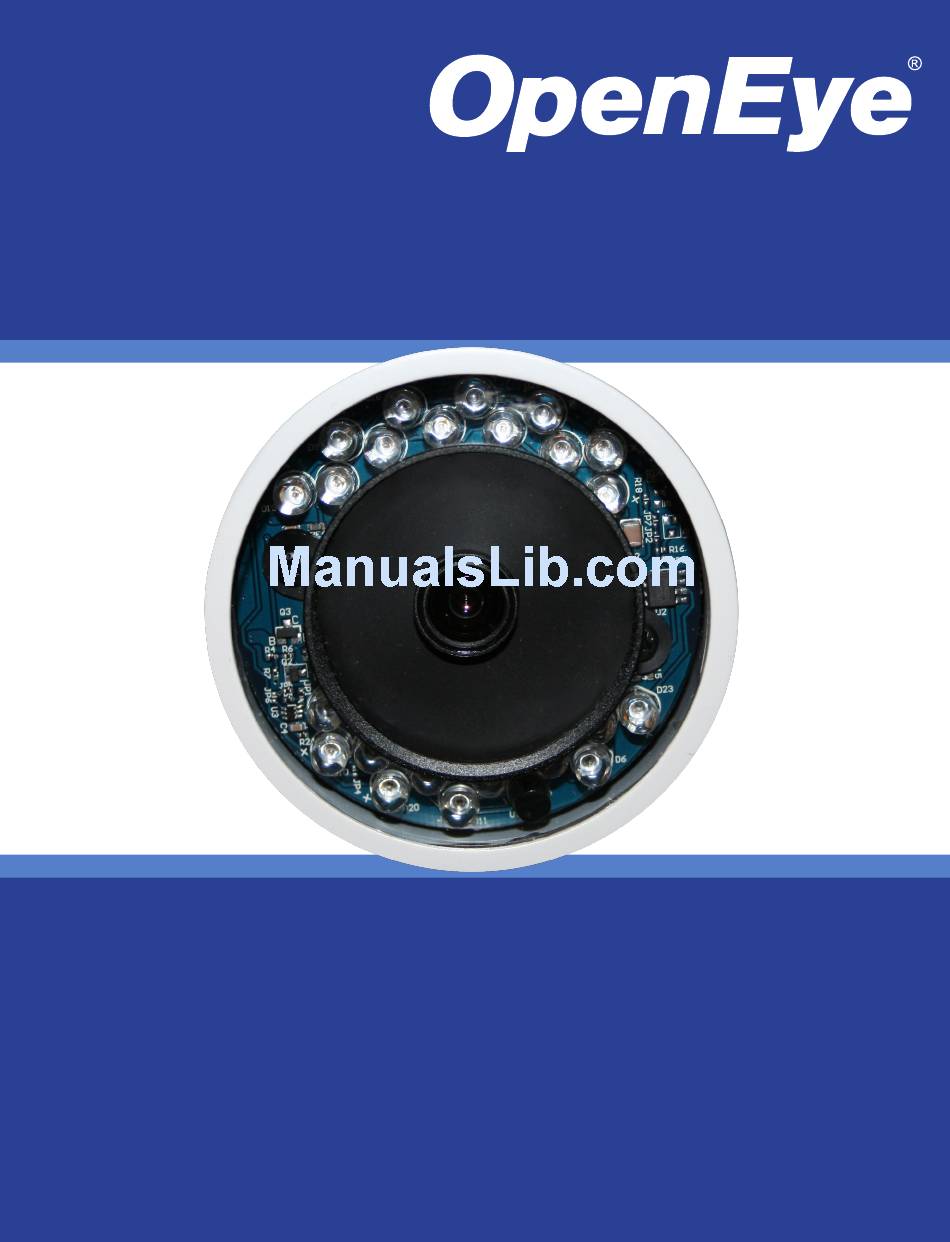

  • Page 1 2MP Outdoor IR IP Bullet Camera User Manual Camera Accessories CM-722I CA-510G CA-510PML CM-722AI CA-510W CA-510PMS CM-722VF CA-510C CA-510PA25 CA-510P25 CA-510PA50 CA-510P50 www.openeye.net...
  • Page 2 The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this information remains with recipient. In no event shall OPENEYE be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever...
  • Page 3: Important Safeguards

    Important Safeguards Read Instructions Read all of the safety and operating instructions before using the product. Retain Instructions Save these instructions for future reference. Attachments / Accessories Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty. Installation Do not place or mount this product in or on an unstable or improperly supported location.
  • Page 4 Installation and Storage  Install electricity wiring carefully. Please note that input electricity to the unit is at tolerance of DC 12V/AC 24V ± 10%. The camera is capable of surge protection; ensure AC power model unit is grounded appropriately against damage by heavy current or electric shock.
  • Page 5 Warning DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. Caution C A U T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
  • Page 6: Table Of Contents

    Ethernet Cable Connection ..................17 Ceiling Installation ......................18 Lens Adjustment ......................19 Setup and Configuration ............... 20 OpenEye Network Camera manager ................20 Installation ......................... 20 Starting Network Camera Manager ................20 Camera Configuration ....................21 Device Addressing ....................21 Finding Network Devices ..................
  • Page 7 Live ......................26 Setup ....................... 27 System Setting ......................27 Camera Name ......................27 IP Address ........................ 28 Get IP an Address Automatically (DHCP) ............28 Use Static IP Address ..................29 IPv6 Address Configuration ................29 User Setup ........................ 30 Admin Password ....................
  • Page 8 Network Advanced ....................39 QoS ........................39 SNMP Settings ..................... 40 UPnP (Universal Plug N’ Play) ................40 Network Security ...................... 41 HTTP ........................41 IP Filtering ......................41 IEEE 802.1XSEAP-TLS ..................41 Alarm Application ...................... 42 Tampering and Network Failure Detection ............... 43 Mail, HTTP and FTP Setup ..................
  • Page 9: Introduction

    IR cut filter for true day/night operation, allowing the camera to record high-resolution images at 0 Lux. The CM-722I is equipped with all the standard features of the CM-722 line, while the CM- 722AI includes a motorized lens and the CM-722VF includes a varifocal lens.
  • Page 10: Getting Started

    Before proceeding, please check that the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. Power Terminal CM-722 Series Camera (Cable included) Block M4 Inner Hex Self Tapping Screws...
  • Page 11: Camera Overview

    Before installing or connecting the camera, please refer to this section, including an overview of the all-in-one cable for reference. Dimensions  Length – 10.5 inches (84 mm)  Width – 2.75 inches (69.9 mm)  Height – 3.25 inches (82.55 mm)
  • Page 12: Connections

    Connections Item Definition Remarks Network (with PoE) RJ-45 connector w/ LED Power (3-pin Terminal AC 24V-1 DC (-) Block) Reserved Power connection AC 24V-2 DC (+) Alarm I/O ALM_DI- ALM_DI+ Alarm connection ALM_DO- ALM_DO+ Audio I/O Pink Line In/Mic In Two-way audio transmission Green...
  • Page 13: Micro Sd Card Slot And Reset Button

    Micro SD Card Slot and Reset Button Use these photos to reach the Micro SD card slot, reboot button, and factory default button. Unscrew the camera housing to remove front cover. Micro SD card slot...
  • Page 14 Factory default button Reboot Button 31051AD...
  • Page 15: Installing The Desiccant

    Installing the Desiccant To prevent condensation on the glass cover of the CM-722, OpenEye recommends placing the desiccant in the camera before installation and replacing the desiccant each time the front cover is opened. Unfasten the screw on the camera housing and remove the front cover Carefully tear open the aluminum desiccant envelope and remove the desiccant.
  • Page 16: Installation

    Ethernet Cable Connection OpenEye recommends using Category 5 Ethernet cable to connect the camera to your network. For the best transmission quality, the cable length should not exceed 328 feet (100 meters). Connect a network cable to the camera using the RJ45 input and connect the other end of the cable to your network switch or recorder.
  • Page 17: Ceiling Installation

    CM-722 cameras are equipped with a seal inside the housing to prevent moisture from entering. If you have any concerns about moisture entering the housing or wall through the cable egress , OpenEye recommends sealing the opening at the wall and at the base of the camera with silicone...
  • Page 18: Lens Adjustment

    Unscrew the camera housing to remove front housing. Connect the power, audio, and alarm wires to their corresponding connectors. (Refer to the pin definition table.) Access the camera browser in order to view images. Adjust the zoom/focus ring screw on the lens to set the desired zoom and focal length.
  • Page 19: Setup And Configuration

    IP addresses, manage users, configure video settings, and update firmware on multiple cameras at once. The Network Camera Manager software is pre-installed on all OpenEye Recorders, and included on the software CD with all OpenEye IP cameras. It is also available for download on the OpenEye website. Installation...
  • Page 20: Camera Configuration

    Device Addressing The functions on the Device Addressing tab allow you to find, configure, and view network cameras. Click Find Devices on the Device Addressing tab. To narrow your search by Camera Model, Project, or Camera Name, select your desired criteria from the appropriate lists. 31051AD...
  • Page 21: Viewing A Network Camera

    Enter the Username and Password for the camera. The username and password are case sensitive. It is strongly recommended that the password be changed after the initial setup to prevent unauthorized access. The default username and password for OpenEye IP cameras are as follows. Username – Admin Password – 1234 The viewer software is now opened in Internet Explorer.
  • Page 22: Connecting To The Camera

    Connecting to the Camera Locate the camera on the IP Finder list. Double-click the camera to open the Viewer software in your web browser. Click Browse in the pop-up window. Log in to the camera with the appropriate User Name and Password. The default User name is admin and the default Password is1234.
  • Page 23: Connecting Over The Internet

    There are some challenges with connecting to OpenEye IP cameras over WAN (internet) connections because the camera streams video over RTSP. RTSP is an excellent protocol for media and is now used on many IP cameras (including OpenEye) as the default streaming option.
  • Page 24: Viewer Software

    To access the setup menu, you need to install the viewer software on your PC or recorder. The viewer software will install automatically the first time you connect to the camera. If your internet browser doesn’t install the viewer software, check the security settings or ActiveX controls and plug-in settings.
  • Page 25: Live

    Full Screen – This will display the live feed in full screen. Snapshot – Click the button, and a JPEG snapshot will automatically be saved in the appointed place. The default location is: C:\. If you are using Windows Vista or 7, you will need to change the Snapshot location.
  • Page 26: System Setting

    The Setup menu includes System Settings, Picture Setup, and Streaming Settings. The Setup menu displays limited setup options. For a complete list of setup options, see the Advanced section. Camera Name Host Name – The Host Name is used to identify the camera on your system.
  • Page 27: Ip Address

    Every network device has a unique Media Access Control (MAC) address that can be used for identification. The MAC address is located on the bottom of each camera, and on the box label (OpenEye Network Camera Manager also displays the MAC address for identification). Record your...
  • Page 28: Use Static Ip Address

    Click Apply to confirm the new setting. When using static IP address to log in to the IP Camera, you can access it either through OpenEye IP Finder software or type the IP address directly in the address bar of your Internet Explorer.
  • Page 29: User Setup

    User Setup Manage the password for the Administrator account. To change the administrator password: Type a new Administrator Password, and then type again to confirm the password. Click Save. The user name and passwords are limited to 16 characters with no spaces permitted. There is a maximum of twenty user accounts.
  • Page 30: Modify User

    Use the Camera Tab section to modify picture settings for the camera. The sample image will change as you modify the picture settings. These settings can drastically affect the camera image. OpenEye suggests that these settings are only modified by a CCTV professional, or at the instruction or a technical support representative.
  • Page 31: Exposure

    Min Shutter Speed – Choose a pre-determined shutter speed. Manual Mode – Changing the shutter mode to manual will allow you to select the minimum shutter speed that the camera will use. This can drastically change the amount of light entering the camera.
  • Page 32: Picture Adjustment

    Each of the Picture Adjustment settings is set to the recommended default. Brightness – Adjust the image’s brightness on the camera. The Backlight value is adjustable from 0 (dim) ~ +20 (brightest). Sharpness – Increasing the sharpness level can make the image looked sharper;...
  • Page 33: Add Detection Window

    Use the Motion Detection dropdown to select a motion detection preset. Click Add. The selected motion detection square will be red. Arrange and size the motion detection window as desired. Click Save. Click to select the desired motion detection window. Click Delete.
  • Page 34: Streaming Settings

    Video Resolution The camera provides eight codec options under video resolution (two single streaming options, two sets of dual streaming options, two sets of tri- streaming options, and two sets of quad-streaming options):  H.264 Only  MJPEG Only  H.264 + H.264 ...
  • Page 35: Video Orientation

    OpenEye recommends setting the GOP to be approximately twice the frame rate (e.g.: if the frame rate is 10 IPS, then set the GOP to 20). ...
  • Page 36: Video Frame Rate

    Video Frame Rate Setting the camera to transmit fewer frames can save bandwidth. Use the Frame Rate Control screen to adjust the frame rate of each stream. Each of the MJPEG and H.264 streams can have a separate frame rate setting from 1 to 30 frames per second.
  • Page 37: Video Compression

    Video Compression You can select an MJPEG / H.264 compression mode on the video compression page appropriate for your application. You can also select to display compression inflation on the Live Screen. MJPEG compression settings include:  High compression, low bitrate, low quality ...
  • Page 38: Advanced

    Network Setup The Network Setup settings will automatically be set at the recommended default after the camera connection is made. DDNS (Dynamic Domain Name Service) is a service that allows a connection to an IP address using a hostname (URL) address instead of a numeric IP address. Most Internet Service Providers use Dynamic IP Addressing that frequently changes the public IP address of your internet connection;...
  • Page 39: Snmp Settings

    With Simple Network Management Protocol (SNMP) enabled, the camera can be monitored and managed remotely with a network management system. Contact your network administrator if you are not familiar with SNMP setup.  Enable UPnP – When enabled, the camera will appear in My Network Places on Windows computers running UPnP on the same network.
  • Page 40: Network Security

    Network Security The camera can send alarm messages to a specific Hypertext Transfer Protocol (HTTP) site when motion is detected or when the sensor input is activated. You can assign alarm messages to up to two HTTP sites. IP Filtering allows you limit access to your IP cameras by IP address. You can “Allow” or “Deny”...
  • Page 41: Alarm Application

    Alarm Application The alarms menu is where alarm connections are configured. Alarm Switch – Designate when the alarm will be active; Off, On, or By Schedule. Alarm Type – Designate if the alarm is normally open or normally closed.  NOH –...
  • Page 42: Tampering And Network Failure Detection

    Tampering and Network Failure Detection Tampering Alarm – Turn the Tampering Alarm On, Off, or On By Schedule. Tampering Duration – Designate the amount of time (in seconds) that tampering must occur in order for a Tampering Alarm to activate. Triggered Action –...
  • Page 43: Mail, Http And Ftp Setup

    SD Card All OpenEye IP cameras include an integrated microSD™ card slot that can be used to record video or images. The card slot is compatible with a microSD™ card up to 16GB. Load Device Information – Displays the storage total size and free space information of the included microSD™...
  • Page 44: Network Share

    Network Share Network Share is a network protocol that runs a variety of different system platforms, allowing for file sharing between computers operating on Windows and computers operating on Unix. This serves as an additional storage type. Configuration requires the host IP address, share name, and credentials. Once configured, cameras can record events to the network share.
  • Page 45: Recording Schedule

    Recording Schedule The recording schedule allows you to set up scheduled recording to the microSD™ card or to Network Sharing. This section allows you to define recording schedules for the camera. For continuous recording: Select type of Recording Storage.  microSD card™: save recorded data to the microSD™...
  • Page 46 This section allows you to establish schedules to use in other section. To create a schedule: Select a Schedule set (1-10). Check the desired week day check boxes. Select Day or Night. Designate a Start Time and Duration. Click Save. 31051AD...
  • Page 47: Interval Recording

    Interval recording allows you to record in consistent intervals and save the files for later viewing. Turn Interval Recording On or Off. Designate the Time Interval (seconds). Designate the Trigger Action using the appropriate checkbox, and then use the dropdown menus to further manage the Trigger Action. Type a file name, and then choose how the file name is multiplied for multiple files.
  • Page 48: Maintenance

    Maintenance On the Maintenance page you can export the cameras current configuration, or import the configuration for a camera. Use the factory default page to reset the IP Camera to factory default settings if necessary. Do not import configuration files from different models of cameras. Export Configuration: Check the appropriate boxes for information that you want exported.
  • Page 49: Software

    Software Make sure the software upgrade file is available before starting the software upgrade. Click Browse and find the upgrade file. Do not change the file name, or the system will fail to find the file. Select the file name from the list under Step 2. Click Upgrade.
  • Page 50: Streaming Setting

    Audio Audio Input Grain – sets the amplification that the camera applies to the incoming audio before transmitting. Audio Output Delay – Sets a delay in the audio transmission. This is used when there is significant lag in video transmission to help sync the audio and video. Volume –...
  • Page 51: Specifications

    CM-722I CM-722AI CM-722VF Model Maximum Resolution 1080p (2 MP) 1/2.7” CMOS Image Sensor Video Compression H.264 / MJPEG 15 IPS @ 1080P [1920 x 1080 / 2MP] 30 IPS @ 1280 x 1024 (1.3MP) 30 IPS @ 720P [1280 x 720 / 1MP]...
  • Page 52 Model CM-722I CM-722AI CM-722VF Heater Operational ON -7°C ~ OFF 3°C Threshold Active / Passive Cooling Passive 8 W Max 20W Max 12W Max 24W Max (Heater ON) Power Consumption (Heater ON) Rated Amperage 0.84A (24vAC) 1A (24vAC) Input Voltage...
  • Page 53: Set Up Internet Security

    If the installation of ActiveX Control is blocked, you will need to either set the Internet Security Level to the default setting, or change the ActiveX controls and plug-ins setting. Setting Internet Security Level to Default Open Internet Explorer. Click the Tools tab in the menu bar. Click Internet Options.
  • Page 54: Adjusting Activex Controls And Plug-Ins

    Adjusting ActiveX Controls and Plug-ins Open Internet Explorer. Click the Tools tab in the menu bar. Click Internet Options. Click Custom Level. The Security Settings window will pop up. Under ActiveX Controls and Plug Ins, set all items to Enable or Prompt. Items may vary according to your version of Internet Explorer.
  • Page 55 © 2015 OpenEye All rights reserved. No part of this publication may be reproduced by any means without written permission from OpenEye. The information in this publication is believed to be accurate in all respects. However, OpenEye cannot assume responsibility for any consequences resulting from the use thereof.

This manual is also suitable for:

Cm-722aiCm-722vf
