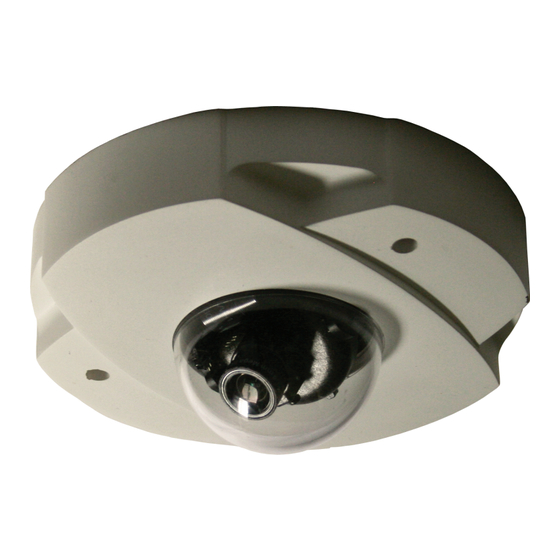

Summary of Contents for OpenEye CM-711

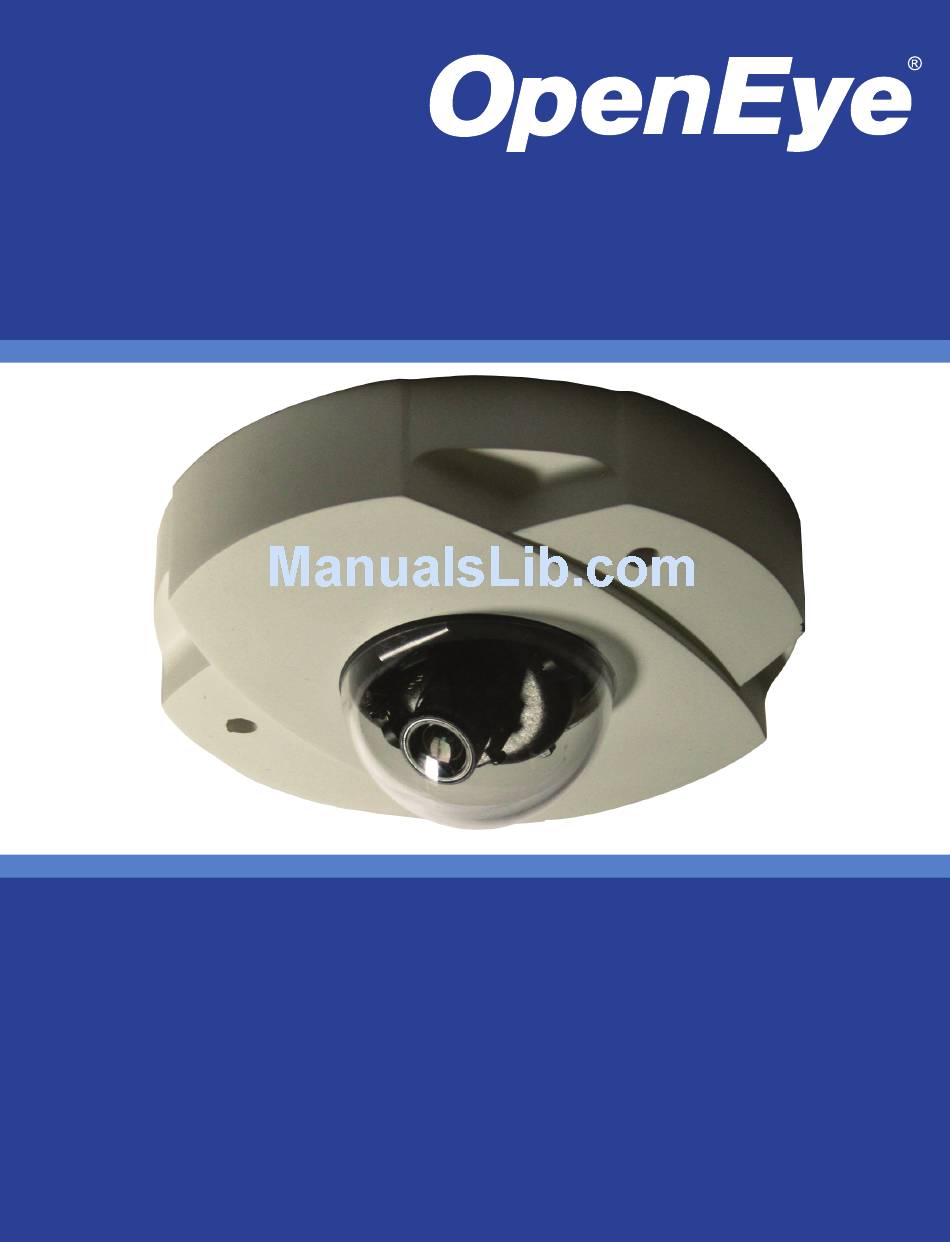

- Page 1 Tamper Resistant IP Mini Dome User Manual Camera Accessories CM-711 CA-510G CA-510PML CM-611 CA-510W CA-510PMS CA-510C CA-510PA25 CA-510P25 CA-510PA50 CA-510P50 www.openeye.net...
- Page 3 The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this information remains with recipient. In no event shall OPENEYE be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever...
-
Page 4: Important Safeguards
Important Safeguards Read Instructions Read all of the safety and operating instructions before using the product. Retain Instructions Save these instructions for future reference. Attachments / Accessories Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty. Installation Do not place or mount this product in or on an unstable or improperly supported location. - Page 5 Installation and Storage • Do not install the camera in areas of extreme temperatures in excess of the allowable range. (14°F~ 122°F / -10°C ~ 50°C) • Avoid installing in humid or dusty places. The relative humidity must be below 90%. •...
- Page 6 Warning DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. Caution C A U T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
-
Page 7: Table Of Contents
Camera Overview ..........................11 Dome Diagram ..........................11 Dimensions ........................... 12 Connections ..........................13 Indoor Camera (CM-611) ......................13 Outdoor Camera (CM-711) ...................... 13 Locate Camera ............................14 OpenEye Network Camera manager ....................14 Installation ............................. 14 Starting Network Camera Manager ....................14 Device Addressing ........................ - Page 8 Mail ............................27 FTP ............................28 Motion Detection ........................29 Storage Management ......................33 Recording ..........................34 Snapshot ..........................35 View Log File ........................... 36 View User Information ......................37 View User Login Information ....................37 View User Privilege ......................37 View Parameters ........................
-
Page 9: Introduction
Power over Ethernet • 2MP (1080p HD) • Quad streaming • Built-in microphone with one-way audio (CM-611 only) • Weatherproof dongle network cable (CM-711 only) • Weatherproof IP66 housing (CM-711 only) • Security Torx screws to prevent unauthorized tampering 31113AB... -
Page 10: Getting Started
Before proceeding, please check that the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. CM-611 or CM-711 w/cable Self Tapping Screws Plastic Anchors Rubber Washers... -
Page 11: Camera Overview
CAMERA OVERVIEW Before installing or connecting the dome camera, please refer to this section and complete preparations for dome setup and all switch settings. Dome Diagram Reset Button Restore camera settings to default settings Lens Rotate the lens left/right to adjust the focus Focus Fixed Screw Loosen the screw to adjust the lens Tilt Fixed Screw... -
Page 12: Dimensions
Dimensions 1.75” (44.45 mm) 4.625” (117.5 mm) Ø 1.75” (44.45 mm) • Diameter – 110.21mm (4.3 inches) • Height – 47.66mm (1.87inches) -
Page 13: Connections
LED flashes to indicate network activity. Outdoor Camera (CM-711) The CM-711Outdoor IP camera uses Power over Ethernet (PoE) to power the camera. The only connection on the camera is the RJ45 Ethernet dongle located on the rear of the camera. -
Page 14: Locate Camera
LOCATE CAMERA OPENEYE NETWORK CAMERA MANAGER Use the included Network Camera Manager software to easily find your network cameras for initial setup. The OpenEye IP Finder software is included on the CD with all OpenEye IP devices. Installation You can install Network Camera Manager on any personal computer (PC) or laptop using the software CD included with your OpenEye IP camera or by downloading the program from openeye.net. -
Page 15: Device Addressing
Device Addressing The functions on the Device Addressing tab allow you to find, configure, and view network cameras. Finding Network Devices Click Find Devices on the Device Addressing tab. To narrow your search by Camera Model, Project, or Camera Name, select your desired criteria from the appropriate lists. -
Page 16: Setup & Configuration
SETUP & CONFIGURATION CONNECTING TO THE CAMERA Locate the camera on the IP Finder list. Double-click the camera to open the Viewer software in your web browser. Log in to the camera with the appropriate User Name and Password. Note The default User name is Admin and the default Password is1234. -
Page 17: Connecting A Stream
OpenEye IP cameras using third party software like VLC media player (http://www.videolan.org). To connect the camera you may need to provide the stream URL. All OpenEye IP cameras are capable of delivering two RTSP streams, as well as streaming MJPEG over HTTP. -
Page 18: Connecting Over The Internet
There are some challenges with connecting to OpenEye IP cameras over WAN (internet) connections because the camera streams video over RTSP. RTSP is an excellent protocol for media and is now used on many IP cameras (including OpenEye) as the default streaming option. -
Page 19: Viewer Software
VIEWER SOFTWARE To access the setup menu, you need to install the viewer software on your PC or DVR. The viewer software will install automatically the first time you connect to the camera. If your internet browser doesn’t install the viewer software, check the security settings or ActiveX controls and plug-in settings. -
Page 20: Home
Home Screen Size Adjustment – Click the screen size buttons to adjust image display size x1/2 and full screen. Digital Zoom Control – In full screen mode, right-click to activate digital zoom and use the scroll wheel to zoom in/out. Talk –... -
Page 21: System
System Note The System tab is only accessible by the Administrator. System Host Name – The Host Name is used to identify the camera on your system. If camera based Motion Detection is enabled and is set to send alarm message by Mail/FTP, the host name entered here will display in the alarm message. -
Page 22: Security
Security Admin Password To change the administrator password, type a new password in the Admin Password box and confirm below. Note The maximum length of the password is 14 characters. The following characters are valid: A-Z, a-z, 0-9, !#$%&’-.@^_~. -
Page 23: Add User
Camera control – Allows the User to change camera parameters on the Camera tab. Click Add. Note The CM-611 and CM-711 IP Cameras do not utilize the talk function Delete user Select the user name on the User Name list Click Delete to remove the user. -
Page 24: Network
Every network device has a unique Media Access Control (MAC) address that can be used for identification. The MAC address is located on the bottom of each camera, and on the box label (OpenEye IP Finder also displays the MAC address for identification). Record your camera’s MAC address for identification... -
Page 25: Use Fixed Ip Address
Click Save to confirm the new setting. When using static IP address to log in to the IP Camera, you can access it either through OpenEye IP Finder software or type the IP address directly in the Address bar of your internet browser. -
Page 26: Ddns
DDNS DDNS (Dynamic Domain Name Service) is a service that allows a connection to an IP address using a hostname (URL) address instead of a numeric IP address. Most Internet Service Providers use Dynamic IP Addressing that frequently changes the public IP address of your internet connection;... -
Page 27: Mail
Mail The camera can send an e-mail via Simple Mail Transfer Protocol (SMTP) when motion is detected. SMTP is a protocol for sending e-mail messages between servers. SMTP is a relatively simple, text-based protocol, where one or more recipients of a message are specified and the message text is transferred. -
Page 28: Ftp
The camera can send alarm message to a specific File Transfer Protocol (FTP) site when motion is detected. You can assign alarm message to up to two FTP sites. Enter the FTP details, which include server, server port, user name, password and remote folder, in the appropriate boxes. -
Page 29: Motion Detection
Motion Detection Motion Detection allows the camera to detect motion and trigger alarms when the motion level in the detected area exceeds the determined sensitivity threshold value. In the Motion Detection page, there is a motion detection window (red box) displayed on the Live View Pane. - Page 30 When motion detection is activated, the Motion pop-up window will open. When motion is detected, the signals will be displayed on the Motion window as shown below. Motion Detection Turn motion detection on or off. The default setting is Off. Motion Detection Setting •...
- Page 31 Triggered Action You can specify which actions the camera should take when motion is detected. • Send Alarm Message by FTP/E-Mail – Select to send an alarm message to a configured FTP and/or E-Mail address when motion is detected. When sending to email, the alarm notification is text only.
- Page 32 File Name – Enter a file name in the box, ex. image.jpg. The uploaded image’s file name format can be set in this section. Please select the one that meets your requirements. • Add date/time suffix File name: imageYYMMDD_HHNNSS_XX.jpg Y: Year, M: Month, D: Day H: Hour, N: Minute, S: Second X: Sequence Number •...
-
Page 33: Storage Management
Storage Management The CM-611 and CM-711 have an integrated microSD™ card that can be used to record video or images. The card slot is compatible with a microSD™ card up to 16GB. Device Information – Displays the storage total size and free space information of the included microSD™... -
Page 34: Recording
Recording The recording schedule allows you to set up scheduled recording to the microSD™ card. Recording Schedule – The camera can be set up to record continuously until the card is full (or overwrite old data, see the Storage Management section). The camera can also be set up to record only during a scheduled time. -
Page 35: Snapshot
Snapshot The camera supports a JPEG snapshot function. You can specify a storage location for the snapshot images. The default location is: C:\. Note If you are using Windows Vista or 7, you will need to change the Snapshot location. Windows UAC does not allow internet programs to write directly to C:\ for security reasons. -
Page 36: View Log File
View Log File Click View Log File to view the system log file. The content of the file provides useful information about configuration and connections. -
Page 37: View User Information
View User Information The Administrator can view each user’s login information and privileges on the View User Information page. View User Login Information All users for the camera are listed under User information. The example below show that the Admin password is 1234 and there is one user named User with the password 4321. View User Privilege Select a user account from the list and click get user privacy to view the permissions for the user account. -
Page 38: View Parameters
View Parameters Click View Parameters to view the system parameter settings. -
Page 39: Factory Default
Factory Default Use the factory default page to reset the IP Camera to factory default settings if necessary. Set Default Click Set Default to reset the IP camera to the factory default settings. The system will restart after 30 seconds. Note The camera’s IP address will be restored to the default IP address. -
Page 40: Software Version
Software Version The Software Version page displays the current software version. -
Page 41: Software Upgrade
Software Upgrade Upgrading the Camera Viewer Software Note Make sure the new firmware file is available before starting a software upgrade. Do not change the file name, or the system will not be able to update to the new firmware. Click Browse and select the firmware file. -
Page 42: Maintenance
Maintenance Export the current configuration of the camera, or import the configuration for a camera. Note Do not import configuration files from different models of cameras. -
Page 43: Video And Audio Streaming Settings
Video and Audio Streaming Settings On the Streaming tab, you can configure specific video resolution, video compression mode, video protocol and audio transmission mode. Video Format Select the desired video resolution for the camera on the Video Format page. The DVR will record video based on the resolution selected here. -
Page 44: Video Rotate Type
Video Rotate Type You can change the orientation of the video output if necessary. • Normal transmits the image as the camera sees it. • Flip transmits the image backwards and upside down. • Mirror transmits a mirror image. • 180 degree transmits the image upside down. -
Page 45: Video Compression
Video Compression You can select an MJPEG/H.264 compression mode on the video compression page appropriate for your application. You can also select to display compression information on the Home page. MJPEG compression settings include: • high compression, low bitrate, low quality •... -
Page 46: Video Ocx Protocol
Video OCX Protocol On the Video OCX protocol page, you can select different protocols for streaming media over the network. In the case of multicast networking, you can select the Multicast mode. Video OCX protocol setting options include: • RTP over UDP •... -
Page 47: Multicast Mode
Select a mode according to your data delivery requirements. If you are transmitting over the internet using a router and port forwarding, you will need to use RTP over RTSP (UDP). You will also need to forward the RTSP port to the camera (see the network setup page to find the RTSP port). -
Page 48: Frame Rate Control
Frame Rate Control Setting the camera to transmit fewer frames can save bandwidth. Use the Frame Rate Control to adjust the camera’s frame settings if necessary. -
Page 49: Video Mask
Video Mask You can use the video mask page to define a privacy mask to keep users from viewing parts of the image. You can add two privacy masks and choose a color to obscure the live view from users. 31113AB... -
Page 50: Audio
Audio On the Audio page, you can select an audio transmission mode and audio bit rate. Audio is only available on the CM-611. Note Audio monitoring and recording laws vary from location to location. It is highly recommended that you consult your local, state and federal laws to verify that you are in compliance before implementing audio recording. -
Page 51: Camera
Camera Exposure The exposure is the amount of light received by the image sensor and is determined by the width of lens diaphragm opening (iris adjustment), the amount of exposure by the sensor (shutter speed) and other exposure parameters. Full Auto Mode •... -
Page 52: White Balance
White Balance A camera needs to find reference color temperature, which is a way of measuring the quality of a light source, for calculating all the other colors. The unit for measuring this ratio is in degree Kelvin (K). Users can select one of the White Balance Control modes according to the operating environment. -
Page 53: Saturation
Saturation Adjust the saturation of color components in an image through the Saturation function, which is adjustable from -6 ~ +19. Adjust the hue of color components in an image with the Hue function, which is adjustable from -12 ~ +13. TV System Select the video format that matches the present video system. -
Page 54: Specifications
SPECIFICATIONS CAMERA SPECIFICATIONS Model CM-611 (Indoor) CM-711 (Outdoor) Image Sensor 1/2.7" CMOS IP Rating IP66 Type / Format H.264 / MJPEG Wide Dynamic Range Digital Wide Dynamic Range Minimum Illumination 0.6 Lux @ 50IRE, 0.1 Lux @ 30IRE Day / Night... -
Page 55: Ip Specifications
IP SPECIFICATIONS Model CM-611 (Indoor) CM-711 (Outdoor) Video Compression H.264 / MJPEG H.264+H.264 Dual Streaming H.264 + MJPEG Audio In Not Supported Audio Out None Alarm In Alarm Out User Account 31113AB... - Page 56 All rights reserved. No part of this publication may be reproduced by any means without written permission from OpenEye. The information in this publication is believed to be accurate in all respects. However, OpenEye cannot assume responsibility for any consequences resulting from the use thereof.
