Summary of Contents for OpenEye CM-710

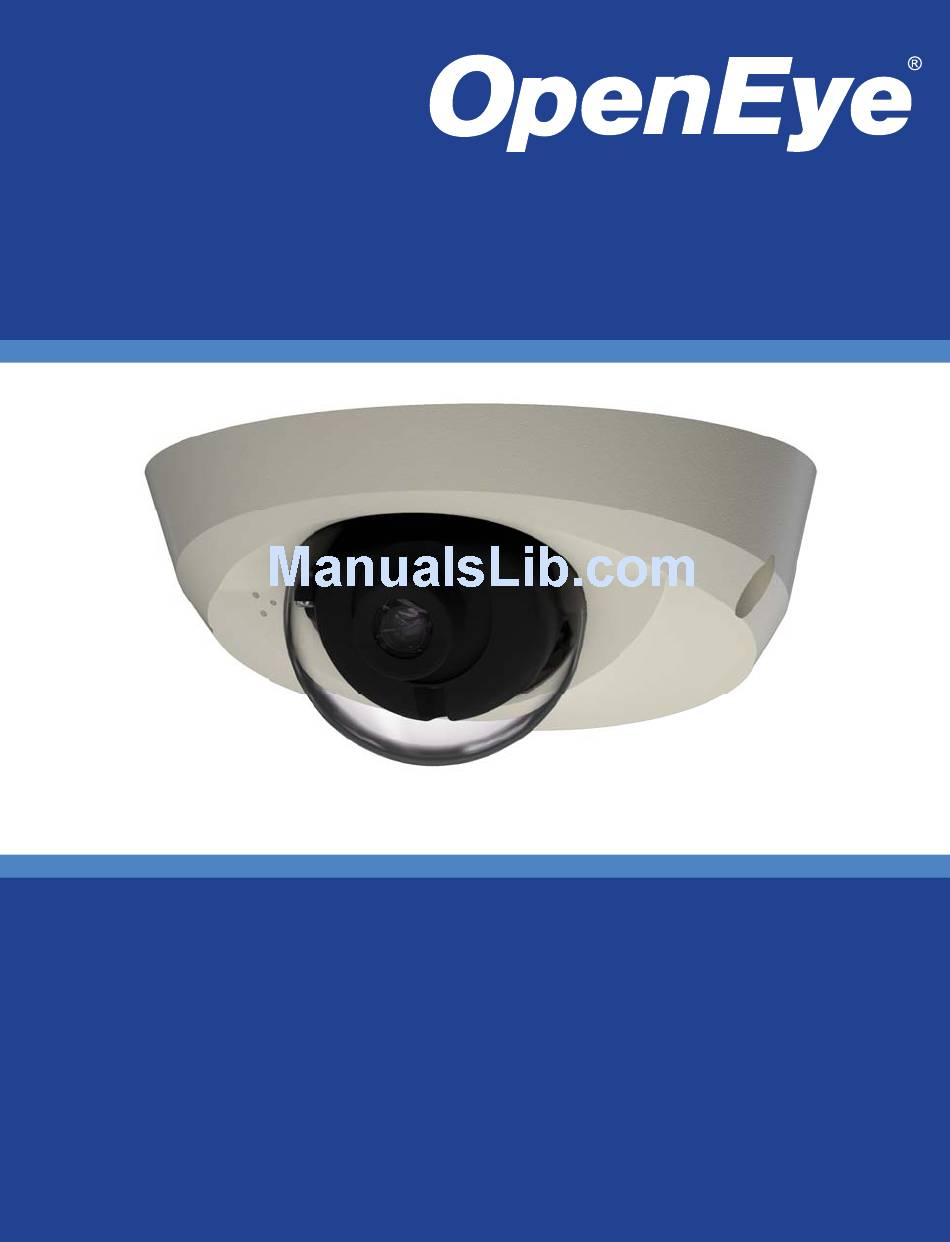

- Page 1 Tamper Resistant IP Mini Dome User Manual Camera CM-710 CM-610 www.openeye.net...
- Page 3 The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this information remains with recipient. In no event shall OPENEYE be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever...
-
Page 4: Important Safeguards
Important Safeguards Read Instructions Read all of the safety and operating instructions before using the product. Retain Instructions Save these instructions for future reference. Attachments / Accessories Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty. Installation Do not place or mount this product in or on an unstable or improperly supported location. - Page 5 Installation and Storage • Install electricity wiring carefully. Please note that input electricity to the unit is at tolerance of DC 12V/AC 24V ± 10%. The camera is capable of surge protection; ensure AC power model unit is grounded appropriately against damage by heavy current or electric shock.
- Page 6 Warning DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. Caution C A U T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
-
Page 7: Standard Warranty
OpenEye will warrant all otherwise out of warranty replacement parts and repairs for 90 days from the date of OpenEye shipment. The above warranty is the sole warranty made by OpenEye and is in lieu of all other warranties by OpenEye express and implied, including without limitation the warranties of merchantability and fitness for a particular purpose. -
Page 8: Table Of Contents
Dome Diagram ......................13 Dimensions ....................... 14 Connections ......................15 Indoor Camera (CM-610) ..................15 Outdoor Camera (CM-710) .................. 15 Camera Finder ..................16 OpenEye IP Finder ....................... 16 Finding IP Cameras ....................16 Default Username and Password ................ 16 Changing the Network Type .................. - Page 9 Network ........................ 25 Get IP address automatically (DHCP) ............. 25 Use fixed IP address ..................26 DDNS ........................27 Mail ........................28 FTP ........................29 Motion Detection ....................30 Storage Management ................... 34 Recording ......................35 Snapshot ......................36 View Log File ......................37 View User Information ..................
- Page 10 Contrast ........................ 52 Saturation ......................53 Hue ........................53 TV System ......................53 Logout ........................53 Specifications ..................54 Camera Specifications ....................54 IP Specifications ......................55...
-
Page 11: Introduction
INTRODUCTION OVERVIEW The CM-610 and CM-710 Tamper Resistant IP Mini Dome cameras are capable of providing real time streaming video with smooth image quality. The IP Mini Dome cameras offer a superior H.264 codec for a high resolution digital broadcast and can be used in a variety of installations including shops, stores, banks, parking lots, factories and for building surveillance. -
Page 12: Getting Started
Before proceeding, please check that the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. CM-610 or CM-710 w/cable Self Tapping Screws Plastic Anchors Rubber Washers (CM-... -
Page 13: Camera Overview
CAMERA OVERVIEW Before installing or connecting the dome camera, please refer to this section and complete preparations for dome setup and all switch settings. Dome Diagram Reset Button Restore camera settings to default settings Lens Rotate the lens left/right to adjust the focus Focus Fixed Screw Loosen the screw to adjust the lens Tilt Fixed Screw... -
Page 14: Dimensions
Dimensions • Diameter – 110.21mm (4.3 inches) • Height – 47.66mm (1.87inches) -
Page 15: Connections
Outdoor Camera (CM-710) The CM-710 Outdoor IP camera uses Power over Ethernet (PoE) to power the camera. The only connection on the camera is the RJ45 Ethernet dongle located on the rear of the camera. Run the Ethernet cable through the Waterproof RJ45 Screw-On Plug. Then connect one end of the Ethernet cable to the RJ45 dongle, tightening the sealing nut of the Waterproof RJ45 Screw-On Plug completely. -
Page 16: Camera Finder
OPENEYE IP FINDER Use the included IP Finder software to easily find your network cameras for initial setup. The OpenEye IP Finder software is included on the CD with all OpenEye IP devices. Finding IP Cameras Open the Software CD on the recorder. -
Page 17: Changing The Network Type
Changing the Network Type You can change the network type from Static IP to DHCP easily from the list of connected IP devices. To change the network type to DCHP: On the list of connected IP devices locate the desired camera and record the MAC address, Right-click the camera row and select Network Setup. -
Page 18: Setup & Configuration
SETUP & CONFIGURATION CONNECTING TO THE CAMERA Locate the camera on the IP Finder list. Double-click the camera to open the Viewer software in your web browser. Log in to the camera with the appropriate User Name and Password. Note The default User name is Admin and the default Password is1234. -
Page 19: Viewer Software
VIEWER SOFTWARE To access the setup menu, you need to install the viewer software on your PC or DVR. The viewer software will install automatically the first time you connect to the camera. If your internet browser doesn’t install the viewer software, check the security settings or ActiveX controls and plug-in settings. -
Page 21: Home
Home Screen Size Adjustment – Click the screen size buttons to adjust image display size x1/2 and full screen. Digital Zoom Control – In full screen mode, right-click to activate digital zoom and use the scroll wheel to zoom in/out. Talk –... -
Page 22: System
System Note The System tab is only accessible by the Administrator. System Host Name – The Host Name is used to identify the camera on your system. If camera based Motion Detection is enabled and is set to send alarm message by Mail/FTP, the host name entered here will display in the alarm message. -
Page 23: Security
Security Admin Password To change the administrator password, type a new password in the Admin Password box and confirm below. Note The maximum length of the password is 14 characters. The following characters are valid: A-Z, a-z, 0-9, !#$%&’-.@^_~. 30103AC... -
Page 24: Add User
Click Add. Note The CM-610 and CM-710 IP Cameras do not utilize the talk function Delete user Select the user name on the User Name list Click Delete to remove the user. -
Page 25: Network
Every network device has a unique Media Access Control (MAC) address that can be used for identification. The MAC address is located on the bottom of each camera, and on the box label (OpenEye IP Finder also displays the MAC address for identification). Record your camera’s MAC address for identification in the future. -
Page 26: Use Fixed Ip Address
Click Save to confirm the new setting. When using static IP address to log in to the IP Camera, you can access it either through OpenEye IP Finder software or type the IP address directly in the Address bar of your internet browser. -
Page 27: Ddns
DDNS DDNS (Dynamic Domain Name Service) is a service that allows a connection to an IP address using a hostname (URL) address instead of a numeric IP address. Most Internet Service Providers use Dynamic IP Addressing that frequently changes the public IP address of your internet connection;... -
Page 28: Mail
Mail The camera can send an e-mail via Simple Mail Transfer Protocol (SMTP) when motion is detected. SMTP is a protocol for sending e-mail messages between servers. SMTP is a relatively simple, text-based protocol, where one or more recipients of a message are specified and the message text is transferred. -
Page 29: Ftp
The camera can send alarm message to a specific File Transfer Protocol (FTP) site when motion is detected. You can assign alarm message to up to two FTP sites. Enter the FTP details, which include server, server port, user name, password and remote folder, in the appropriate boxes. -
Page 30: Motion Detection
Motion Detection Motion Detection allows the camera to detect motion and trigger alarms when the motion level in the detected area exceeds the determined sensitivity threshold value. In the Motion Detection page, there is a motion detection window (red box) displayed on the Live View Pane. - Page 31 When motion detection is activated, the Motion pop-up window will open. When motion is detected, the signals will be displayed on the Motion window as shown below. Motion Detection Turn motion detection on or off. The default setting is Off. Motion Detection Setting •...
- Page 32 Triggered Action You can specify which actions the camera should take when motion is detected. • Send Alarm Message by FTP/E-Mail – Select to send an alarm message to a configured FTP and/or E-Mail address when motion is detected. When sending to email, the alarm notification is text only.
- Page 33 File Name – Enter a file name in the box, ex. image.jpg. The uploaded image’s file name format can be set in this section. Please select the one that meets your requirements. • Add date/time suffix File name: imageYYMMDD_HHNNSS_XX.jpg Y: Year, M: Month, D: Day H: Hour, N: Minute, S: Second X: Sequence Number •...
-
Page 34: Storage Management
Storage Management The CM-610 and CM-710 have an integrated microSD™ card that can be used to record video or images. The card slot is compatible with a microSD™ card up to 4GB. Device Information – Displays the storage total size and free space information of the included microSD™... -
Page 35: Recording
Recording The recording schedule allows you to set up scheduled recording to the microSD™ card. Recording Schedule – The camera can be set up to record continuously until the card is full (or overwrite old data, see the Storage Management section). The camera can also be set up to record only during a scheduled time. -
Page 36: Snapshot
Snapshot The camera supports a JPEG snapshot function. You can specify a storage location for the snapshot images. The default location is: C:\. Note If you are using Windows Vista or 7, you will need to change the Snapshot location. Windows UAC does not allow internet programs to write directly to C:\ for security reasons. -
Page 37: View Log File
View Log File Click View Log File to view the system log file. The content of the file provides useful information about configuration and connections. 30103AC... -
Page 38: View User Information
View User Information The Administrator can view each user’s login information and privileges on the View User Information page. View User Login Information All users for the camera are listed under User information. The example below show that the Admin password is 1234 and there is one user named User with the password 4321. View User Privilege Select a user account from the list and click get user privacy to view the permissions for the user account. -
Page 39: View Parameters
View Parameters Click View Parameters to view the system parameter settings. 30103AC... -
Page 40: Factory Default
Factory Default Use the factory default page to reset the IP Camera to factory default settings if necessary. Set Default Click Set Default to reset the IP camera to the factory default settings. The system will restart after 30 seconds. Note The camera’s IP address will be restored to the default IP address. -
Page 41: Software Version
Software Version The Software Version page displays the current software version. 30103AC... -
Page 42: Software Upgrade
Software Upgrade Upgrading the Camera Viewer Software Note Make sure the new firmware file is available before starting a software upgrade. Do not change the file name, or the system will not be able to update to the new firmware. Click Browse and select the firmware file. -
Page 43: Maintenance
Maintenance Export the current configuration of the camera, or import the configuration for a camera. Note Do not import configuration files from different models of cameras. 30103AC... -
Page 44: Video And Audio Streaming Settings
Video and Audio Streaming Settings On the Streaming tab, you can configure specific video resolution, video compression mode, video protocol and audio transmission mode. Video Format Select the desired video resolution for the camera on the Video Format page. The DVR will record video based on the resolution selected here. -
Page 45: Video Rotate Type
Video Rotate Type You can change the orientation of the video output if necessary. • Normal transmits the image as the camera sees it. • Flip transmits the image backwards and upside down. • Mirror transmits a mirror image. • 180 degree transmits the image upside down. -
Page 46: Video Compression
Video Compression You can select an MJPEG/H.264 compression mode on the video compression page appropriate for your application. You can also select to display compression information on the Home page. MJPEG compression settings include: • high compression, low bitrate, low quality •... -
Page 47: Video Ocx Protocol
Video OCX Protocol On the Video OCX protocol page, you can select different protocols for streaming media over the network. In the case of multicast networking, you can select the Multicast mode. Video OCX protocol setting options include: • • RTP over UDP RTSP over HTTP •... -
Page 48: Frame Rate Control
Frame Rate Control Setting the camera to transmit fewer frames can save bandwidth. Use the Frame Rate Control to adjust the camera’s frame settings if necessary. -
Page 49: Video Mask
Video Mask You can use the video mask page to define a privacy mask to keep users from viewing parts of the image. You can add two privacy masks and choose a color to obscure the live view from users. 30103AC... -
Page 50: Audio
Audio On the Audio page, you can select an audio transmission mode and audio bit rate. Audio is only available on the CM-610. Note Audio monitoring and recording laws vary from location to location. It is highly recommended that you consult your local, state and federal laws to verify that you are in compliance before implementing audio recording. -
Page 51: Camera
Camera Exposure The exposure is the amount of light received by the image sensor and is determined by the width of lens diaphragm opening (iris adjustment), the amount of exposure by the sensor (shutter speed) and other exposure parameters. Full Auto Mode •... -
Page 52: White Balance
White Balance A camera needs to find reference color temperature, which is a way of measuring the quality of a light source, for calculating all the other colors. The unit for measuring this ratio is in degree Kelvin (K). Users can select one of the White Balance Control modes according to the operating environment. -
Page 53: Saturation
Saturation Adjust the saturation of color components in an image through the Saturation function, which is adjustable from -6 ~ +19. Adjust the hue of color components in an image with the Hue function, which is adjustable from -12 ~ +13. TV System Select the video format that matches the present video system. -
Page 54: Specifications
SPECIFICATIONS CAMERA SPECIFICATIONS Model CM-610 (Indoor) CM-710 (Outdoor) Image Sensor 1/2.7" OmniVision Progressive CMOS Imaging DSP Ambrella IP Rating IP66 Type / Format H.264 / MJPEG Wide Dynamic Range Minimum Illumination 0.2 Lux @ F1.2 Day / Night Yes (Digital Day Night) -
Page 55: Ip Specifications
IP SPECIFICATIONS Video Compression H.264 / MJPEG Dual Streaming H.264 + MJPEG or H.264+H.264 Audio In Mic (CM-610 only) Audio Out None Alarm In None Alarm Out None User Account 30103AC... - Page 57 All rights reserved. No part of this publication may be reproduced by any means without written permission from OpenEye. The information in this publication is believed to be accurate in all respects. However, OpenEye cannot assume responsibility for any consequences resulting from the use thereof.
