Summary of Contents for OpenEye CM-816

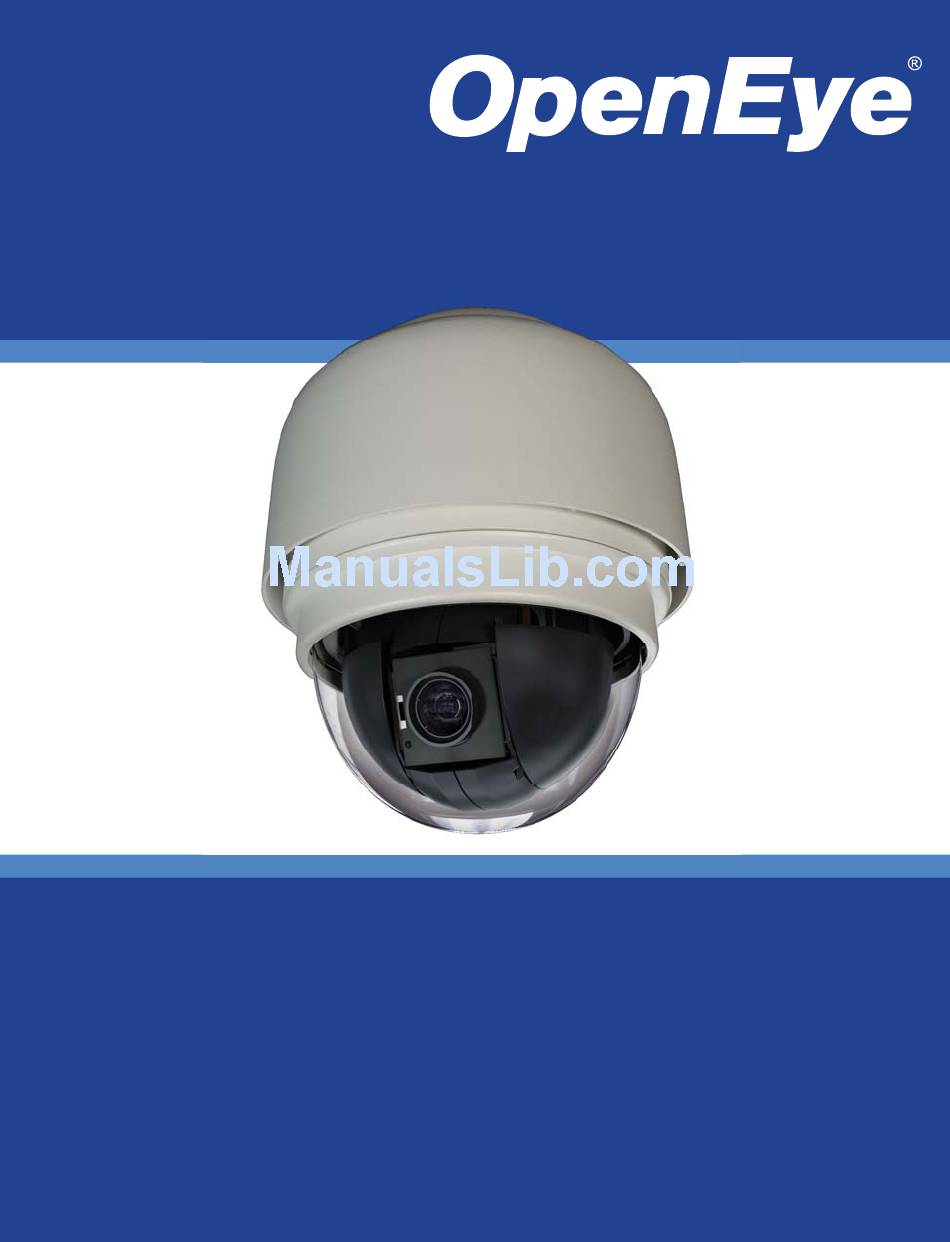

- Page 1 Outdoor PTZ IP Camera User Manual Camera Accessories CM-816 CA-510G CA-510PML CA-510W CA-510PMS CA-510C CA-510PA25 CA-510P25 CA-510PA50 CA-510P50 www.openeye.net...
- Page 2 No part of this documentation may be reproduced in any means, electronic or mechanical, for any purpose, except as expressed in the Software License Agreement. OpenEye shall not be liable for technical or editorial errors or omissions contained herein. The information in this document is subject to change without notice.
-
Page 3: Important Safeguards
Important Safeguards Read Instructions Read all of the safety and operating instructions before using the product. Retain Instructions Save these instructions for future reference. Attachments / Accessories Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty. - Page 4 Installation and Storage Install electricity wiring carefully. Please note that input electricity to the unit is at tolerance of DC 12V/AC 24V ± 10%. The camera is capable of surge protection; ensure AC power model unit is grounded appropriately against damage by heavy current or electric shock.
- Page 5 Caution C A U T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
-
Page 6: Table Of Contents
Wall Mounting with Wall Mount Bracket ............23 Wall Mounting with Corner Mount ..............25 Pole Mounting ....................26 Locate Camera ......................27 OpenEye Network Camera manager ..............27 Installation ......................27 Starting Network Camera Manager ..............27 Device Addressing .................... 28 Finding Network Devices................ - Page 7 Connecting to the Camera ..................29 Administrator/User Privileges ................29 Connecting a Stream ..................30 Connecting Over the Internet ................31 Viewer Software ....................32 Viewer Tabs ...................... 32 Home ........................ 33 System ......................35 System ......................35 Security ......................37 Admin Password ..................
- Page 8 Maintenance ....................62 Video and Audio Streaming Settings ..............63 Video Format ....................63 Video Resolution ..................64 Text Overlay Settings................64 Video Rotate Type ................... 65 GOP Settings ................... 65 H.264 Profile .................... 65 Video Compression ..................66 Video OCX Protocol ..................67 Multicast Mode ..................
- Page 9 Camera — Misc1 ....................84 Camera — Misc2 ....................86 Camera — Default .................... 87 Logout ........................87 Specifications ......................88 Camera Specifications ..................88 PTZ Specifications ....................90 IP Specifications ............. Error! Bookmark not defined.
-
Page 10: Introduction
The CM-816 IP camera can transmit video in H.264 and MJPEG, up to 2MP (1080p) high definition video. The 816 is capable of quad and dual streaming both codecs at various resolutions. The camera’s IR cut filter and wide dynamic rage imaging make it perfect for installations with difficult lighting conditions. -
Page 11: Getting Started
Before proceeding, please check that the box contains the items listed here. If any item is missing or has defects, do not install or operate the product and contact your dealer for assistance. 1 M3 Standard Screw 1 M3 Security Screw 1 M5 Standard Screw Dome Body 1 M5 Security Screw... -
Page 12: Dome Setup And Cable Connection
Before installing or connecting the dome camera, please refer to this section and complete preparations for dome setup and all switch settings. Preparations for Dome Setup The following installation procedure is for the outdoor dome equipped with the sunshield housing. Please follow the steps below to complete dome housing installation. Unpack the dome package and take out the dome body. - Page 13 Remove the protective cover and PE sheet. Apply some lubricant on the cover’s waterproof gasket. This helps make the installation process smoother. Attach the dome cover to the camera body. Note that the tiny protrusion on the cover must align with one of the four holes on the camera body.
- Page 14 Using both hands, gently press the dome cover. DO NOT press the dome itself as this may cause damage to the dome or camera. Screw the dome cover and body together. 30875AE...
-
Page 15: Dome Camera Setup
Dome Camera Setup Please refer to the following figure for connection and switch locations and definitions. Alarm input/output connections Reboot Power connection Audio connection RJ-45 connector SD card Do not change the settings on the camera’s settings switches. Leave the switches at the factory default settings. -
Page 16: Dome Cable Definition And Requirements
For operation, the IP dome camera requires a network cable to carry the video signals to the remote viewing site and a power cable to power the dome. For operation, the CM-816 IP camera requires 24V AC power to the dome. Power Wire Length Specifications... -
Page 17: Power Connection
The ‘notches’ on the left side of the graphic above correspond to notches in the green plastic of the power connector. Be careful not to pull the cables improperly during installation. OpenEye suggests that you fasten the cables after installation is complete. -
Page 18: 12-Pin Alarm Input/Output Connection
Using the 12-pin connector, installers can connect 4 digital alarm inputs and 2 digital alarm outputs. The alarm pins are serviceable for connecting alarm input and output devices such as sensors, sirens, or flashing lights to the surveillance system. For the definition of each pin, refer to the list below. -
Page 19: Dome Installation
Depending on your installation environment, the dome can be installed on the ceiling, on a wall, or a pole. The following section illustrates installation methods and procedures for installing the dome and mounting accessories. The dome dimensions are Ø172 x 228.71mm (6.77 x 9.0 inches) and Ø191.97 x 282.11mm (7.5 x 11.1 inches) with the sunshield. -
Page 20: Optional Accessories
Dome Camera Accessories Transparent/Smoke Cover Part Number: CA-510-DT Mounting Accessories Wall Mount Bracket (w/ Anti Drop) Part Number: CA-510W Long Wall Mount Bracket (w/ Anti Drop) Part Number: CA-510WL 50 cm Pole Part Number: CA-510P50 25 cm Pole Part Number: CA-510P25 Corner Mounting Plate Part Number: CA-510C Small Pole Mount... -
Page 21: Ceiling Mounting With Pole
Ceiling Mounting with Pole The pole is available in two lengths: 25 cm and 30 cm. Items Needed: Tools Needed: Dome Camera Drill Ceiling Pole Accessory Screwdriver Waterproof Gasket (supplied) Screws and Anchors appropriate for the mounting surface (not supplied) Installation Steps: Ensure that the ceiling can support the weight of the dome camera and the... -
Page 22: Wall Mounting With Wall Mount Bracket
Wall Mounting with Wall Mount Bracket Items Needed: Tools Needed: Dome Camera Drill Wall Mount Bracket or Long Screwdriver Wall Mount Bracket Waterproof Gasket (supplied) Screws and Anchors appropriate for the mounting surface (not supplied) Installation: Cut a cable access hole on the wall. - Page 23 Attach the wall mount bracket to the wall with the appropriate screws and screw anchors (not provided). Attach the waterproof gasket to the wall mount bracket. Thread the cables through the top holder and attach the dome to the wall mount bracket with the supplied screws and washers.
-
Page 24: Wall Mounting With Corner Mount
Wall Mounting with Corner Mount The corner mount must be used in conjunction with the wall mount bracket. Items Needed: Tools Needed: Dome Camera Drill Wall Mount Bracket Accessory Screwdriver Corner Mounting Plate Waterproof Gasket (supplied) ... -
Page 25: Pole Mounting
Pole Mounting The dome can be mounted on a pole with the small or large direct mounting accessory and a wall mount bracket. Items Needed: Tools Needed: Dome Camera Stainless Steel Strap Cutter Wall Mount Bracket Accessory Screwdriver ... -
Page 26: Locate Camera
Use the included Network Camera Manager software to easily find your network cameras for initial setup. The OpenEye IP Finder software is included on the CD with all OpenEye IP devices. Installation You can install Network Camera Manager on any personal computer (PC) or laptop using the software CD included with your OpenEye IP camera or by downloading the program from openeye.net. -
Page 27: Device Addressing
Device Addressing The functions on the Device Addressing tab allow you to find, configure, and view network cameras. Click Find Devices on the Device Addressing tab. To narrow your search by Camera Model, Project, or Camera Name, select your desired criteria from the appropriate lists. -
Page 28: Setup & Configuration
Log in to the camera with the appropriate User Name and Password. The default User name is Admin and the default Password is 1234. The username and password are case sensitive. OpenEye recommends you change the Admin password for security reasons. -
Page 29: Connecting A Stream
OpenEye IP cameras using third party software like VLC media player (http://www.videolan.org). To connect the camera you may need to provide the stream URL. All OpenEye IP cameras are capable of delivering two RTSP streams, as well as streaming MJPEG over HTTP. -
Page 30: Connecting Over The Internet
However, RTSP is not suitable for transmission between two locations that are behind different routers. In this case, the client (for example, the OpenEye HVR or NVR server software) connects to the camera, then requests a stream. The camera uses that... -
Page 31: Viewer Software
To access the setup menu, you need to install the viewer software on your PC or DVR. The viewer software will install automatically the first time you connect to the camera. If your internet browser doesn’t install the viewer software, check the security settings or ActiveX controls and plug-in settings. -
Page 32: Home
Home Screen Size Adjustment Image display size can be adjusted to x1/2 and full screen via the related buttons. To switch between the normal view mode and full screen view mode, users can also move the cursor to the live video pane and right-clink to display the screen options. Click Normal View or Fullscreen to set the image display mode. - Page 33 function is only available to users who have been granted this privilege by the Administrator. Snapshot Click the Snapshot button, and a JPEG snapshots will automatically be saved in the designated location on the local workstation. The default place of saving snapshots is: C:\.
-
Page 34: System
System The System tab is only accessible by the Administrator. Host Name The Host Name is used to identify the camera on your system. If camera based Motion Detection is enabled and is set to send alarm message by Mail/FTP, the host name entered here will display in the alarm message. - Page 35 Enable Daylight Savings Time Select to enable daylight savings time, then select the offset, start date and end date. In North America the typical offset is one hour (01:00:00); the start is the second Sunday in March at 2AM (02:00:00), and the end is the first Sunday in November at 2AM (02:00:00).
-
Page 36: Security
Admin Password To change the administrator password, type a new password in the Admin Password box and confirm below. The maximum length of the password is 14 characters. The following characters are valid: A-Z, a-z, 0-9, !#$%&’-.@^_~. 30875AE... -
Page 37: Add User
Add User The user name and passwords are limited to 16 characters. There is a maximum of twenty user accounts Type the new User name and Password Select the appropriate check boxes to give the user Camera Control, Talk and Listen permissions. -
Page 38: Network
Each camera has a unique Media Access Control (MAC) address, which can be used to identify the camera on the network. Record the IP Camera’s MAC address, which can be found using the OpenEye IP Finder application and on the label of the camera, for identification in the future. - Page 39 When using static IP address to log in to the IP Camera, you can access it either through OpenEye IP Finder software or type the IP address directly in the address bar of your Internet Explorer. General IP address – The IP Address is necessary for network identification.
-
Page 40: Qos (Quality Of Service)
QoS (Quality of Service) Quality of Service allows you to prioritize network traffic services of the camera’s functions. The QoS function utilizes the Differentiated Services prioritized using Codepoint values (DSCP). Routers and switches on the network must be QoS or DSCP capable, and have these settings enabled for this function to operate on your network. -
Page 41: Upnp (Universal Plug And Play)
UPnP (Universal Plug and Play) Enable UPnP: When enabled the camera will appear in My Network Places on Windows computers running UPnP on the same network. Enable UPnP Port Forwarding: When enabled the camera will attempt to open the web server port on the router automatically. -
Page 42: Ddns
DDNS (Dynamic Domain Name Service) is a service that allows a connection to an IP address using a hostname (URL) address instead of a numeric IP address. Most Internet Service Providers use Dynamic IP Addressing that frequently changes the public IP address of your internet connection; this means when connecting to the camera over the internet you need to know if your IP address has changed. -
Page 43: Mail
The camera can send an e-mail via Simple Mail Transfer Protocol (SMTP) when motion is detected or when the sensor input is activated. SMTP is a protocol for sending e-mail messages between servers. SMTP is a relatively simple, text-based protocol, where one or more recipients of a message are specified and the message text is transferred. -
Page 44: Ftp
The camera can send alarm messages to a specific File Transfer Protocol (FTP) site when motion is detected or when the sensor input is activated. You can assign alarm messages to up to two FTP sites. Enter the FTP details, which include server, server port, user name, password and remote folder, in the appropriate boxes and click Save when finished. -
Page 45: Http
The camera can send alarm messages to a specific Hypertext Transfer Protocol (HTTP) site when motion is detected or when the sensor input is activated. You can assign alarm messages to up to two HTTP sites. Enter the HTTP details, which include server, user name and password, in the appropriate boxes and click Save when finished. -
Page 46: Application
The CM-816 supports 4 digital alarm inputs and 2 digital alarm outputs. Make sure the alarm connections are properly wired before starting to configure alarm related settings on the Application screen. Refer to the pin definition table below for alarm system wiring. -
Page 47: Alarm Pin Selection
Select an alarm pin from the Alarm Pin Selection box and click Edit to start alarm programming. -
Page 48: Alarm Pin Status Settings
Alarm Setting Alarm Switch – Enable or disable the alarm function. Alarm Type – Select an alarm type (Normal Close or Normal Open) that corresponds with the alarm application. Trigger Action (Multi-Option) Specify alarm actions that will take place when the alarm is triggered. ... - Page 49 PTZ Function – Assign a PTZ function (Preset, Tour, Auto Scan or Pattern) for the camera to perform when this alarm is activated. If Preset is selected, you will be prompted to enter a Dwell Time (1~256). This is the time in seconds that the camera will remain at that Preset location, and then it will return to the location that it was pointing at the time the alarm occurred.
-
Page 50: Motion Detection
Motion Detection allows the camera to detect motion and trigger alarms when motion in the detected area exceeds the determined sensitivity threshold value. On the Motion Detection page, there is a motion detection window (red box) displayed on the Live View Pane. The Motion Detection window defines the motion detection area. To change the size of the Motion Detection window, drag the edge of the frame to resize. - Page 51 When motion detection is activated, the Motion pop-up window will open. When motion is detected, the signals will be displayed on the Motion window as shown below Motion Detection Turn motion detection on or off. The default setting is Off. Motion Detection Setting In the Motion window the red line provides a motion detection threshold indication;...
- Page 52 Triggered Action Once motion detection has been fine tuned, the Triggered Action can be configured if you want the camera to take one of these actions upon sensing motion. Enable Alarm Output – Select to trigger the alarm output on the camera on motion detection.
-
Page 53: Storage Management
Storage Management allows you to view information about an inserted Micro SD/SDHC card (up to 32GB), format the SD card, adjust cleanup settings, and download or delete files stored on the SD card. Device Information – When a compatible Micro SD/SDHC card is inserted into the camera, information about the card will be displayed in this section. -
Page 54: Recording
Recording List - Each file recorded to the Micro SD/SDHC card will be listed in the Recording List. The maximum file is 60MB per file. The letters A/M/R appear at the beginning of each file, denoting the type of recording. A for alarm; M for motion; and R for regular recording. ... -
Page 55: Activating Micro Sd/Sdhc Card Recording
The recording schedule allows you to set up scheduled recording to a local Micro SD/SDHC card. Activating Micro SD/SDHC Card Recording To set up continuous micro SD/SDHC card recording: Select Always to continually record until the card is full. To set the camera to overwrite old data, see the instructions for Disk Cleanup Setting earlier in this section. -
Page 56: Snapshot
The CM-816 camera supports JPEG snapshot function. You can specify a storage location for the snapshots. The default setting is: C:\. If you are using Windows Vista or 7, you will need to change the Snapshot location. Windows UAC does not allow internet programs to write directly to C:\ for security reasons. -
Page 57: Information
The Information page to contains the System Log, User Information, and Parameter List. System Log Click System Log to view the system log file. The content of the file provides useful information about configuration and connections. -
Page 58: View User Information
The Administrator can view each user’s login information and privileges on the View User Information page All the users in the network are listed under User information. The example below shows that the Admin password is 1234. View User Privilege Select a user account from the list and click get user privacy to view the permissions for the user account. -
Page 59: Parameter List
Click Parameter List to view the system parameter settings. -
Page 60: Software Upgrade
Programs. Locate the Camera Viewer software on the Currently installed programs list and click Remove to uninstall the previous software version. Open the internet browser again and log in to the CM-816. The system will automatically download the new version of the Camera Viewer software. -
Page 61: Maintenance
On the Maintenance page you can export the cameras current configuration, or import the configuration for a camera. Use the factory default page to reset the IP Camera to factory default settings if necessary. Do not import configuration files from different models of cameras. Set Default –To reset the IP camera to the factory default settings, including the default IP address, click Set Default. -
Page 62: Video And Audio Streaming Settings
Video and Audio Streaming Settings On the Streaming tab, the Administrator can configure specific video resolution, video compression mode, video protocol, audio transmission mode, etc. Select the desired video resolution for the camera on the Video Format page. The recorder will record video based on the resolution selected here. 30875AE... -
Page 63: Video Resolution
Video Resolution The camera provides four codec options under video resolution (two single streaming options and two sets of dual streaming options): MJPEG only H.264 only MJPEG + H.264 H.264 + H.264 Once a codec option is selected, multiple resolutions are available for each stream. MJPEG Resolutions* H.264 Resolutions* 1920x1080... -
Page 64: Video Rotate Type
Video Rotate Type You can change the orientation of the video output if necessary. Normal Video – This is the default rotation designed for a normal setup with the camera mounted with the dome facing down. Flip Video – This option will vertically flip the video image (without the intervention of another device this may cause the reversal of perceived left and right when viewing the image). -
Page 65: Video Compression
You can select an MJPEG/H.264 compression mode on the video compression page appropriate for your application. You can also select to display compression information on the Home page. MJPEG Compression settings include: high compression, low bit rate, low quality ... -
Page 66: Video Ocx Protocol
Video OCX Protocol On the Video OCX protocol page, you can select different protocols for streaming media over the network. In the case of multicast networking, you can select the Multicast mode. Video OCX protocol setting options include: RTP over UDP ... -
Page 67: Frame Rate Control
Setting the camera to transmit fewer frames can save bandwidth. Each of the MJPEG and H.264 streams can have a separate frame rate setting from 1 to 30 frames per second. Higher frame rate will increase video smoothness, as well as file size and bandwidth usage. -
Page 68: Audio
On the audio page, the Administrator can select an audio transmission mode and audio bit rate. Audio monitoring and recording laws vary from location to location. It is highly recommended that you consult your local, state, and federal laws to verify that you are in compliance before implementing audio recording. -
Page 69: Bit Rate
Bit Rate Selectable audio transmission bit rate include: 16 kbps (G.726) 40 kbps (G.726) 24 kbps (G.726) uLAW (G.711) 32 kbps (G.726) ALAW (G.711). Both uLAW and ALAW signify 64 kbps but in different compression formats. Higher bit rate will provide higher audio quality and require more bandwidth. -
Page 70: Ptz Settings
Use the PTZ tab to program Presets, Patterns, Auto Scans and Tours via PTZ controls. Additionally, various camera settings including Auto Exposure (AE), White Balance (WB), Back Light Compensation (BLC), Sharpness, Exposure Compensation, etc. also can be set here. Preset Up to 256 Presets can be programmed for the camera. -
Page 71: Preset Go
To move the camera view to a specified Preset position: Select the Preset Point from the list under Preset Go. The camera will move to the target position. Pattern The camera supports up to eight patterns. To create a Pattern: Select a path number from the Pattern Path list. -
Page 72: Pattern Run
Select the specified Pattern from the Pattern Path list and click Run. To view the camera in full screen mode, move the pointer onto the live view pane, right- click and select Fullscreen. To stop running a Pattern, move the cursor to the live view pane and use the PTZ controls to move the camera in any direction. -
Page 73: Auto Scan Setting
To create an Auto Scan path: Select a path number from the Auto Scan Path list. Move the pointerr to the live view pane, and move the camera to a desired view as the Start Point of an Auto Scan Path. Click the “Set”... -
Page 74: Tour
Tour The camera supports up to eight Tours; each Tour supports up to 64 Presets. Before setting this function, you must pre-define at least two Presets. 30875AE... -
Page 75: Tour Set
On the Tour screen, click Edit to open the Tour Set options. Select the number of the new tour from the Tour Line list at the top of the screen. Select each Preset to add to the tour. Enter the Dwell Time (0~127 seconds) and Speed (0~14) for each Preset. Click Save when finished. -
Page 76: Home
Home Set up the Home function to ensure constant monitoring. If the camera idles for a period of time, the selected function will be activated automatically and return the camera to the home function setting. The Home function allows constant and accurate monitoring to prevent the camera from idling or missing events. - Page 77 The camera’s Tilt Range is adjustable. The minimum tilt angle can be set between -10° and 10°. The maximum tilt angle can be set between 170° and 190°. Enter the desired min. and max. tilt angle into the corresponding fields respectively and click Set to save the tilt angle settings.
-
Page 78: Privacy Mask Settings
The Privacy Mask function helps avoid any intrusive monitoring. When you create a mask, OpenEye recommends that you set it at least twice as big (height and width) as the masked object. The camera will assume the center of the selected view as a starting point. -
Page 79: Mask Setting
Activate/Disable Privacy Mask Function Set to On/Off to activate or disable the Privacy Mask function and click Set. Activate/Disable Transparency Mask Set the transparency of the Privacy Mask if necessary. Color Setting Select the desired color from the Color list for the specified Privacy Mask and click Set. Mask Number Specify the number of the programmed Privacy Mask in the corresponding field. -
Page 80: Camera - Exposure
Camera — Exposure On the Exposure screen you can select Full Auto mode or adjust the parameters manually for optimized video output in accordance with the operating environment. Shutter Priority When Shutter Priority is selected the shutter speed takes control of exposure. Shutter speed range is 1/60 ~ 1/10000. -
Page 81: Camera - White Balance
Camera — White Balance A camera uses a reference color temperature, which is a way of measuring the quality of a light source, to calculate all the other colors. The unit for measuring this ratio is degrees Kelvin (K). You can select the White Balance Control according to the operating environment. - Page 82 Auto Mode In Auto mode, white balance works within its color temperature range and calculates the best-fit white balance. Indoor/outdoor Mode Select for indoor or outdoor mode. ATW Mode (Auto Tracing White Balance) The Dome Camera takes out the signals in a screen in the range from 2000 K to 10000 Manual Mode In Manual mode, you can change the White Balance value manually by a specifying the R gain and B gain;...
-
Page 83: Camera — Misc1
Camera — Misc1 In Camera—Misc1, you can set various camera parameters including Backlight Compensation, Sharpness, Exposures Compensation, Image Freeze, Image Flip, Digital Zoom, Speed by Zoom and ICR Function. BLC – Activate or disable the Backlight Compensation function (On/Off). ... - Page 84 Flip – Track an object continuously when it passes under the camera by setting Flip to Mechanical (M.E.) mode or Digital Flip (Image) mode. M.E. Mode – M.E. is a standard mechanical operation. As the camera tilts to the maximum angle, it will pan 180°, and then continue tilting to keep tracking objects.
-
Page 85: Camera — Misc2
Camera — Misc2 In Camera—Misc2, you can set up various functions such Auto Calibration, Wide Dynamic Range, 2D Noise Reduction and TV System. WDR – Wide Dynamic Range is especially effective in an environment with extreme contrast. Auto Calibration – Auto Calibration function automatically calibrates the camera when the deviation of dome pivot is detected. -
Page 86: Camera — Default
Camera — Default Click Set Default to reset the camera back to factory default settings. Click the Logout tab to open the login window and log in with a different user name and password. 30875AE... - Page 87 Model CM-816 Rev C Maximum 1080p (2MP) Resolution 1/2.8” Sony Progressive CMOS Image Sensor Video H.264 / MJPEG Compression 30 IPS @ 1080P [1920 x 1080 / 2MP] 30 IPS @ 1280 x 1024 / 1.3MP 30 IPS @ 720P [1280 x 720 / 1MP]...
- Page 88 Backlight Compensation Auto Gain Control IP Rating IP66 (Outdoor) Operating Temperature -40ºF ~ 122ºF (-40ºC ~ 50ºC) Heater Heater Operation ON: -7ºC ~ OFF: 3ºC Threshold Active/Passive Cooling Active (Fan) Power Consumption 59W Max (Heater On) Rated Amperage 2.38A Input Voltage 24vAC / PoE+ (802.3at) PoE Class 4 (Heater requires 24vAC)
- Page 89 Control Type PTZ control via network only Zoom Factor Presets Preset Accuracy ±.0225º Preset Speed 5º ~ 400º / sec Pattern Tour (Group) Auto Scan Privacy Mask Home Function Preset, Pattern, Tour, Auto-scan Auto Flip Image / Mechanical Focus Mode Auto / Manual...
- Page 90 All rights reserved. No part of this publication may be reproduced by any means without written permission from OpenEye. The information in this publication is believed to be accurate in all respects. However, OpenEye cannot assume responsibility for any consequences resulting from the use thereof.
