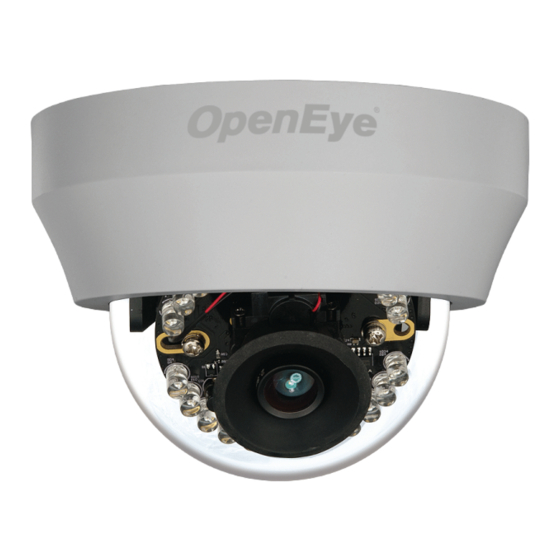

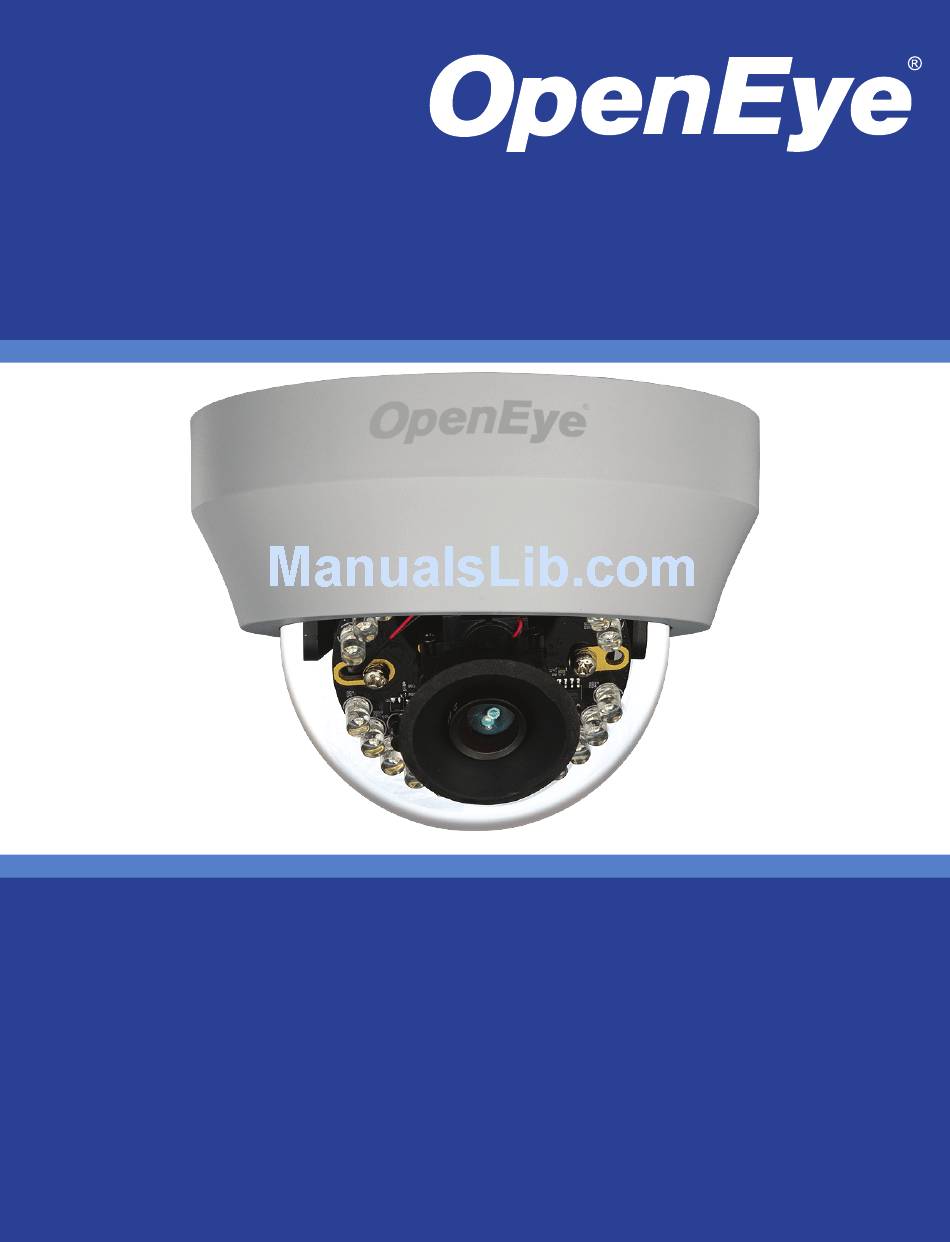

- Page 1 Indoor / Outdoor High Definition IP Dome Camera User Manual Camera Accessories OE-C6412-R CA-510G CA-510PML OE-C6412-RT CA-510W CA-510PMS OE-C7412-R CA-510C CA-510PA25 CA-510P25 CA-510PA50 CA-510P50 www.openeye.net...
- Page 2 The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this information remains with recipient. In no event shall OPENEYE be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever...
-
Page 3: Important Safeguards
Important Safeguards Read Instructions Read all of the safety and operating instructions before using the product. Retain Instructions Save these instructions for future reference. Attachments / Accessories Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty. Installation Do not place or mount this product in or on an unstable or improperly supported location. - Page 4 Installation and Storage Do not install the camera in areas of extreme temperatures in excess of the allowable range. (14°F~ 122°F / -10°C ~ 50°C) Avoid installing in humid or dusty places. The relative humidity must be below 90%. ...
- Page 5 Warning DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. Caution C A U T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
-
Page 6: Table Of Contents
Introduction .................... 10 Overview ........................10 Product Features ...................... 10 Getting Started ..................11 Box Contents ........................ 11 Camera Overview ......................12 Dimensions ....................... 12 Connections ......................13 Reset Button ......................14 Network Camera manager Software ................15 Installation ......................... 15 Starting Network Camera Manager ................ - Page 7 Delete User ......................26 Modify User ......................27 File Location ......................27 Picture Setup ........................ 27 Camera Tab ......................27 Exposure ......................28 White Balance ...................... 28 Picture Adjustment ....................29 Motion Detection ....................... 29 Add Detection Window ..................30 Delete Motion Detection Window .................
- Page 8 Interval Recording ....................44 Maintenance ......................45 Configuration ......................45 Factory Default ..................... 45 Software ........................46 Picture Setting ......................46 Video Mask ....................... 46 Hot Spot ........................46 Text Overlay ......................46 Streaming Setting ......................47 Audio ......................... 47 Logout .....................
-
Page 9: Introduction
IP video in a feature-rich, compact package. These cameras are lightweight and compact with a 3-axis gimbal for a large degree of rotation. Designed for quick and seamless integration with OpenEye network and hybrid recording solutions, this PoE camera includes features such as 1080p resolution, H.264 video compression, and triple stream transmission. -
Page 10: Getting Started
Before proceeding, please check that the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. Camera Self Tapping Screws Plastic Anchors Quick Start Guide Software CD 32700AD... -
Page 11: Camera Overview
Before installing or connecting the dome camera, please refer to this section and complete preparations for dome setup and all switch settings. Dimensions Diameter – 110.21mm (4.3 inches) Height – 47.66mm (1.87inches) -
Page 12: Connections
Connections The Indoor Tamper Resistant IP Dome Cameras use Power over Ethernet (PoE) to power the cameras. The only connection on the camera is the RJ45 Ethernet connector located on the rear of the camera. Connect one end of the Ethernet cable to the RJ45 port on the camera and the other end to power sourcing equipment (PSE) like a hub or router. -
Page 13: Reset Button
Push the reset button to return the camera to factory default settings. -
Page 14: Network Camera Manager Software
IP addresses, manage users, configure video settings, and update firmware on multiple cameras at once. The Network Camera Manager software is pre-installed on all OpenEye Recorders, and included on the software CD with all OpenEye IP cameras. It is also available for download on the OpenEye website. Installation... -
Page 15: Starting Network Camera Manager
After installing the program on your PC or laptop, open the program to begin configuring your cameras. To access Network Camera Manager on an OpenEye recorder, you must operate the recorder in Windows Mode. In the Live Screen, click Exit. -
Page 16: Camera Configuration
Device Addressing The functions on the Device Addressing tab allow you to find, configure, and view network cameras. Click Find Devices on the Device Addressing tab. To narrow your search by Camera Model, Project, or Camera Name, select your desired criteria from the appropriate lists. 32700AD... -
Page 17: Viewing A Network Camera
Enter the Username and Password for the camera. The username and password are case sensitive. It is strongly recommended that the password be changed after the initial setup to prevent unauthorized access. The default username and password for OpenEye IP cameras are as follows. Username – admin Password – 1234 The viewer software is now opened in Internet Explorer. -
Page 18: Setup & Configuration
Connecting to the Camera Locate the camera on the IP Finder list. Double-click the camera to open the Viewer software in your web browser. Click Browse in the pop-up window. Log in to the camera with the appropriate User Name and Password. The default User name is admin and the default Password is1234. -
Page 19: Connecting Over The Internet
There are some challenges with connecting to OpenEye IP cameras over WAN (internet) connections because the camera streams video over RTSP. RTSP is an excellent protocol for media and is now used on many IP cameras (including OpenEye) as the default streaming option. -
Page 20: Viewer Software
To access the setup menu, you need to install the viewer software on your PC or recorder. The viewer software will install automatically the first time you connect to the camera. If your internet browser doesn’t install the viewer software, check the security settings or ActiveX controls and plug-in settings. -
Page 21: Live
Full Screen – This will display the live feed in full screen. Snapshot – Click the button, and a JPEG snapshot will automatically be saved in the appointed place. The default location is: C:\. If you are using Windows Vista or 7, you will need to change the Snapshot location. -
Page 22: System Setting
The Setup menu includes System Settings, Picture Setup, and Streaming Settings. The Setup menu displays limited setup options. For a complete list of setup options, see the Advanced section. Camera Name Host Name – The Host Name is used to identify the camera on your system. -
Page 23: Ip Address
Every network device has a unique Media Access Control (MAC) address that can be used for identification. The MAC address is located on the bottom of each camera, and on the box label (OpenEye Network Camera Manager also displays the MAC address for identification). Record your camera’s MAC... -
Page 24: Use Static Ip Address
Click Apply to confirm the new setting. When using static IP address to log in to the IP Camera, you can access it either through OpenEye IP Finder software or type the IP address directly in the address bar of your Internet Explorer. -
Page 25: Ipv6 Address Configuration
IPv6 Address Configuration To enable IPv6 select Enable IPv6 and click Save. See your network administrator if you are unsure of your network configuration. User Setup Manage the password for the Administrator account. To change the administrator password: Type a new Administrator Password, and then type again to confirm the password. -
Page 26: Modify User
Use the Camera Tab section to modify picture settings for the camera. The sample image will change as you modify the picture settings. These settings can drastically affect the camera image. OpenEye suggests that these settings are only modified by a CCTV professional, or at the instruction or a technical support representative. -
Page 27: Exposure
Min Shutter Speed – Choose a pre-determined shutter speed. Manual Mode – Changing the shutter mode to manual will allow you to select the minimum shutter speed that the camera will use. This can drastically change the amount of light entering the camera. Click Set to save your changes. -
Page 28: Picture Adjustment
Each of the Picture Adjustment settings is set to the recommended default. Brightness – Adjust the image’s brightness on the camera. The Backlight value is adjustable from 0 (dim) ~ +20 (brightest). Sharpness – Increasing the sharpness level can make the image looked sharper;... -
Page 29: Add Detection Window
Use the Motion Detection dropdown to select a motion detection preset. Click Add. The selected motion detection square will be red. Arrange and size the motion detection window as desired. Click Save. Click to select the desired motion detection window. Click Delete. -
Page 30: Streaming Settings
Video Resolution The camera provides eight codec options under video resolution (two single streaming options, two sets of dual streaming options, two sets of tri-streaming options, and two sets of quad-streaming options): H.264 Only MJPEG Only H.264 + H.264 ... -
Page 31: Video Orientation
OpenEye recommends setting the GOP to be approximately twice the frame rate (e.g.: if the frame rate is 10 IPS, then set the GOP to 20). ... -
Page 32: Video Frame Rate
Video Frame Rate Setting the camera to transmit fewer frames can save bandwidth. Use the Frame Rate Control screen to adjust the frame rate of each stream. Each of the MJPEG and H.264 streams can have a separate frame rate setting from 1 to 30 frames per second. -
Page 33: Video Compression
Video Compression You can select an MJPEG / H.264 compression mode on the video compression page appropriate for your application. You can also select to display compression inflation on the Live Screen. MJPEG compression settings include: High compression, low bitrate, low quality ... -
Page 34: Advanced
Network Setup The Network Setup settings will automatically be set at the recommended default after the camera connection is made. DDNS (Dynamic Domain Name Service) is a service that allows a connection to an IP address using a hostname (URL) address instead of a numeric IP address. Most Internet Service Providers use Dynamic IP Addressing that frequently changes the public IP address of your internet connection;... -
Page 35: Snmp Settings
With Simple Network Management Protocol (SNMP) enabled, the camera can be monitored and managed remotely with a network management system. Contact your network administrator if you are not familiar with SNMP setup. Enable UPnP – When enabled, the camera will appear in My Network Places on Windows computers running UPnP on the same network. -
Page 36: Network Security
Network Security The camera can send alarm messages to a specific Hypertext Transfer Protocol (HTTP) site when motion is detected or when the sensor input is activated. You can assign alarm messages to up to two HTTP sites. IP Filtering allows you limit access to your IP cameras by IP address. You can “Allow” or “Deny”... -
Page 37: Alarm Application
Alarm Application The alarms menu is where alarm connections are configured. Alarm Switch – Designate when the alarm will be active; Off, On, or By Schedule. Alarm Type – Designate if the alarm is normally open or normally closed. NOH –... -
Page 38: Tampering And Network Failure Detection
Tampering and Network Failure Detection Tampering Alarm – Turn the Tampering Alarm On, Off, or On By Schedule. Tampering Duration – Designate the amount of time (in seconds) that tampering must occur in order for a Tampering Alarm to activate. Triggered Action –... -
Page 39: Mail, Http And Ftp Setup
SD Card All OpenEye IP cameras include an integrated microSD™ card slot that can be used to record video or images. The card slot is compatible with a microSD™ card up to 16GB. Load Device Information – Displays the storage total size and free space information of the included microSD™... -
Page 40: Network Share
Network Share Network Share is a network protocol that runs a variety of different system platforms, allowing for file sharing between computers operating on Windows and computers operating on Unix. This serves as an additional storage type. Configuration requires the host IP address, share name, and credentials. Once configured, cameras can record events to the network share. -
Page 41: Recording Schedule
Recording Schedule The recording schedule allows you to set up scheduled recording to the microSD™ card or to Network Sharing. This section allows you to define recording schedules for the camera. For continuous recording: Select type of Recording Storage. microSD card™: save recorded data to the microSD™... - Page 42 This section allows you to establish schedules to use in other section. To create a schedule: Select a Schedule set (1-10). Check the desired week day check boxes. Select Day or Night. Designate a Start Time and Duration. Click Save. 32700AD...
-
Page 43: Interval Recording
Interval recording allows you to record in consistent intervals and save the files for later viewing. Turn Interval Recording On or Off. Designate the Time Interval (seconds). Designate the Trigger Action using the appropriate checkbox, and then use the dropdown menus to further manage the Trigger Action. Type a file name, and then choose how the file name is multiplied for multiple files. -
Page 44: Maintenance
Maintenance On the Maintenance page you can export the cameras current configuration, or import the configuration for a camera. Use the factory default page to reset the IP Camera to factory default settings if necessary. Do not import configuration files from different models of cameras. Export Configuration: Check the appropriate boxes for information that you want exported. -
Page 45: Software
Software Make sure the software upgrade file is available before starting the software upgrade. Click Browse and find the upgrade file. Do not change the file name, or the system will fail to find the file. Select the file name from the list under Step 2. Click Upgrade. -
Page 46: Streaming Setting
Audio Audio Input Grain – sets the amplification that the camera applies to the incoming audio before transmitting. Audio Output Delay – Sets a delay in the audio transmission. This is used when there is significant lag in video transmission to help sync the audio and video. Volume –... -
Page 47: Specifications
Model OE-C6412-R OE-C6412-RT OE-7412-FR Maximum Resolution 1080p (2MP) Sony 1/2.8” CMOS Image Sensor Video Compression H.264 / MJPEG 30 IPS @ 1080P [1920 x 1080 / 2MP] 30 IPS @ 1280 x 1024 (1.3MP) Frame Rate 30 IPS @ 720P [1280 x 720 / 1MP]... - Page 48 Model OE-C6412-R OE-C6412-RT OE-7412-FR Backlight Compensation Auto Gain Control IP Rating N/A (Indoor) IP66 (Outdoor) Operating Temperature 14°F (-10°C) ~ 122°F (50°C) Active / Passive Passive Cooling Power Consumption 5.8W Max Input Voltage 802.3af (PoE Only) PoE Class IR Range...
- Page 49 All rights reserved. No part of this publication may be reproduced by any means without written permission from OpenEye. The information in this publication is believed to be accurate in all respects. However, OpenEye cannot assume responsibility for any consequences resulting from the use thereof.
