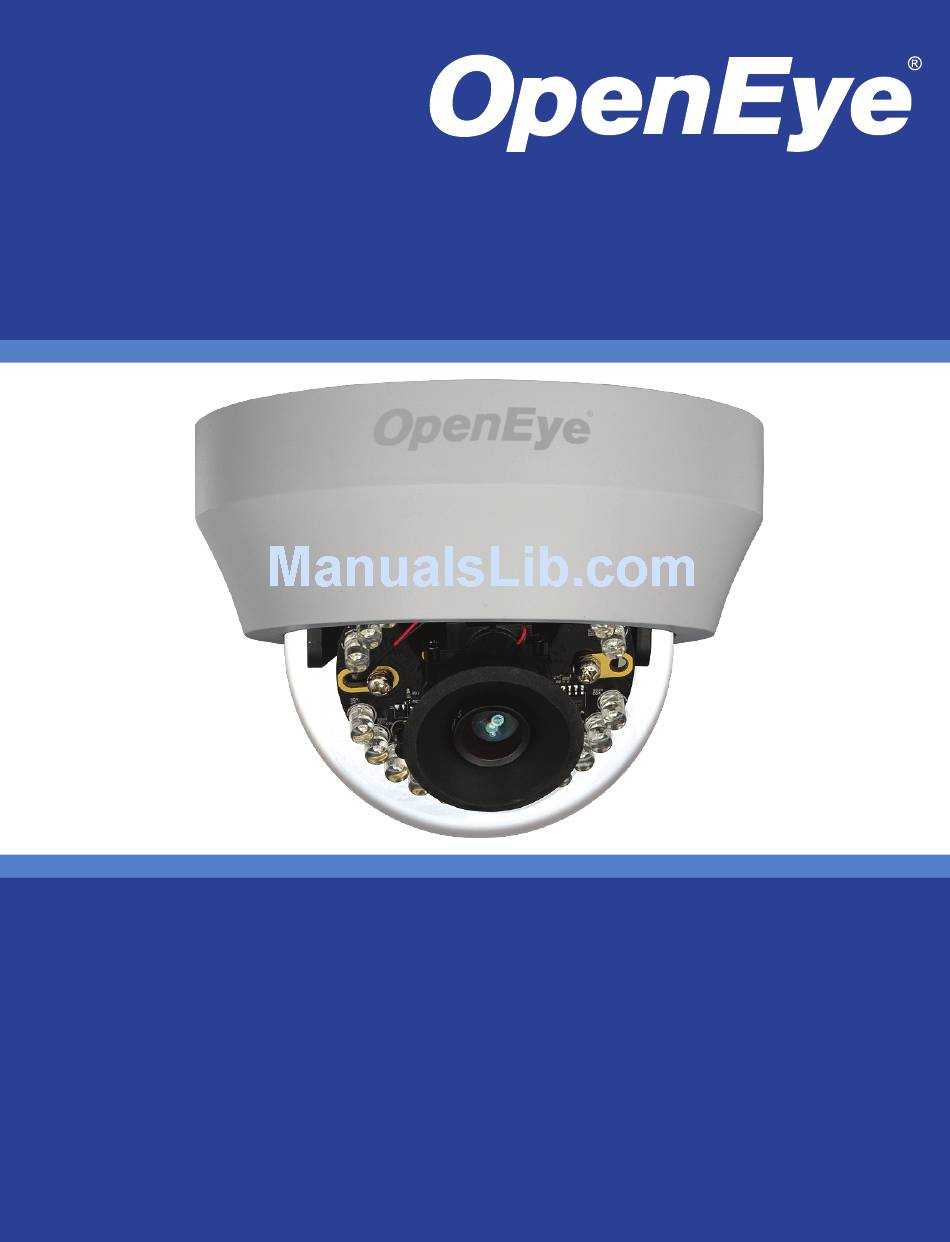

- Page 1 Indoor IP Dome Camera User Manual Camera Accessories OE-C6412-R CA-510G CA-510PML CA-510W CA-510PMS CA-510C CA-510PA25 CA-510P25 CA-510PA50 CA-510P50 www.openeye.net...
- Page 3 The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this information remains with recipient. In no event shall OPENEYE be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever...
-
Page 4: Important Safeguards
Important Safeguards Read Instructions Read all of the safety and operating instructions before using the product. Retain Instructions Save these instructions for future reference. Attachments / Accessories Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty. Installation Do not place or mount this product in or on an unstable or improperly supported location. - Page 5 Installation and Storage • Do not install the camera in areas of extreme temperatures in excess of the allowable range. (14°F~ 122°F / -10°C ~ 50°C) • Avoid installing in humid or dusty places. The relative humidity must be below 90%. •...
- Page 6 Warning DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. Caution C A U T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
-
Page 7: Table Of Contents
Connections ......................13 Reset Button ......................14 Alarm I/O Diagram ....................14 Locate Camera ..................15 OpenEye Network Camera manager ................15 Installation ......................... 15 Starting Network Camera Manager ................15 Device Addressing ....................16 Finding Network Devices ..................16 Setup &... - Page 8 Use Fixed IP Address ..................27 QoS (Quality of Service) .................. 28 SNMP....................... 28 UPnP (Universal Plug and Play) ..............29 DDNS ........................30 Mail ........................31 FTP ........................32 HTTP ........................33 Motion Detection ....................34 Storage Management ................... 38 Recording ......................
- Page 9 Digital Zoom ......................58 IR Function ......................59 D-WDR Function ....................59 Noise Reduction ....................59 TV System ......................59 Logout ........................59 Digital Zoom ......................60 3DNR/2DNR ......................60 Digital Stabilization ....................60 Logout ........................60 Specifications ..................61 Camera Specifications ....................
-
Page 10: Introduction
INTRODUCTION OVERVIEW The OE-C6412-R is a 2 megapixel indoor IP camera that provides users with crisp IP video in a feature-rich, compact package. The OE-C6412-R is lightweight and compact with a 3-axis gimbal for a large degree of rotation. Designed for quick and seamless integration with OpenEye network and hybrid recording solutions, this PoE camera includes features such as 1080p resolution, H.264... -
Page 11: Getting Started
GETTING STARTED BOX CONTENTS Before proceeding, please check that the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. Camera Self Tapping Screws Plastic Anchors Quick Start Guide 32700AA... -
Page 12: Camera Overview
CAMERA OVERVIEW Before installing or connecting the dome camera, please refer to this section and complete preparations for dome setup and all switch settings. Dimensions 4.625” (117.5 mm) Ø 3.125” (79.38 mm) • Diameter – 110.21mm (4.3 inches) • Height – 47.66mm (1.87inches) -
Page 13: Connections
Connections The Indoor Tamper Resistant IP Dome Cameras use Power over Ethernet (PoE) to power the cameras. The only connection on the camera is the RJ45 Ethernet connector located on the rear of the camera. Connect one end of the Ethernet cable to the RJ45 port on the camera and the other end to power sourcing equipment (PSE) like a hub or router. -
Page 14: Reset Button
Reset Button Push the reset button to return the camera to factory default settings. Alarm I/O Diagram Alarm In (-) Alarm Connection Alarm In (+) Alarm Out (-) Alarm Out (+) Alarm Out (L) Line Out Alarm Out (R) Audio In Line In... -
Page 15: Locate Camera
LOCATE CAMERA OPENEYE NETWORK CAMERA MANAGER Use the included Network Camera Manager software to easily find your network cameras for initial setup. The OpenEye IP Finder software is included on the CD with all OpenEye IP devices. Installation You can install Network Camera Manager on any personal computer (PC) or laptop using the software CD included with your OpenEye IP camera or by downloading the program from openeye.net. -
Page 16: Device Addressing
Device Addressing The functions on the Device Addressing tab allow you to find, configure, and view network cameras. Finding Network Devices Click Find Devices on the Device Addressing tab. To narrow your search by Camera Model, Project, or Camera Name, select your desired criteria from the appropriate lists. -
Page 17: Setup & Configuration
SETUP & CONFIGURATION CONNECTING TO THE CAMERA Locate the camera on the IP Finder list. Double-click the camera to open the Viewer software in your web browser. Log in to the camera with the appropriate User Name and Password. Note The default User name is Admin and the default Password is1234. -
Page 18: Connecting A Stream
OpenEye IP cameras using third party software like VLC media player (http://www.videolan.org). To connect the camera you may need to provide the stream URL. All OpenEye IP cameras are capable of delivering two RTSP streams, as well as streaming MJPEG over HTTP. -
Page 19: Connecting Over The Internet
There are some challenges with connecting to OpenEye IP cameras over WAN (internet) connections because the camera streams video over RTSP. RTSP is an excellent protocol for media and is now used on many IP cameras (including OpenEye) as the default streaming option. -
Page 20: Viewer Software
VIEWER SOFTWARE To access the setup menu, you need to install the viewer software on your PC or recorder. The viewer software will install automatically the first time you connect to the camera. If your internet browser doesn’t install the viewer software, check the security settings or ActiveX controls and plug-in settings. -
Page 21: Home
Home Screen Size Adjustment – Click the screen size buttons to adjust image display size x1/2 and full screen. Digital Zoom Control – In full screen mode, right-click to activate digital zoom and use the scroll wheel to zoom in/out. Talk –... - Page 22 Snapshot – Click the button, and a JPEG snapshot will automatically be saved in the appointed place. The default location is: C:\. Note If you are using Windows Vista or 7, you will need to change the Snapshot location. Windows UAC does not allow internet programs to write directly to C:\ for security reasons.
-
Page 23: System
System Note The System tab is only accessible by the Administrator. System Host Name – The Host Name is used to identify the camera on your system. If camera based Motion Detection is enabled and is set to send alarm message by Mail/FTP, the host name entered here will display in the alarm message. -
Page 24: Security
Security Admin Password To change the administrator password, type a new password in the Admin Password box and confirm below. Note The maximum length of the password is 14 characters. The following characters are valid: A-Z, a-z, 0-9, !#$%&’-.@^_~. -
Page 25: Add User
Add User The user name and passwords are limited to 16 characters. There is a maximum of twenty user accounts Type the new User name and Password Select the appropriate check boxes to give the user Camera Control, Talk and Listen permissions. -
Page 26: Network
Every network device has a unique Media Access Control (MAC) address that can be used for identification. The MAC address is located on the bottom of each camera, and on the box label (OpenEye Network Camera Manager also displays the MAC address for identification). Record your camera’s MAC... -
Page 27: Use Fixed Ip Address
Click Save to confirm the new setting. When using static IP address to log in to the IP Camera, you can access it either through OpenEye IP Finder software or type the IP address directly in the address bar of your Internet Explorer. -
Page 28: Qos (Quality Of Service)
QoS (Quality of Service) Quality of Service allows you to prioritize network traffic services of the camera’s functions. The QoS function utilizes the Differentiated Services prioritized using Codepoint values (DSCP). Note Routers and switches on the network must be QoS or DSCP capable, and have these settings enabled for this function to operate on your network. -
Page 29: Upnp (Universal Plug And Play)
UPnP (Universal Plug and Play) • Enable UPnP: When enabled the camera will appear in My Network Places on Windows computers running UPnP on the same network. • Enable UPnP Port Forwarding: When enabled the camera will attempt to open the web server port on the router automatically. -
Page 30: Ddns
DDNS DDNS (Dynamic Domain Name Service) is a service that allows a connection to an IP address using a hostname (URL) address instead of a numeric IP address. Most Internet Service Providers use Dynamic IP Addressing that frequently changes the public IP address of your internet connection;... -
Page 31: Mail
Mail The camera can send an e-mail via Simple Mail Transfer Protocol (SMTP) when motion is detected. SMTP is a protocol for sending e-mail messages between servers. SMTP is a relatively simple, text-based protocol, where one or more recipients of a message are specified and the message text is transferred. -
Page 32: Ftp
The camera can send alarm message to a specific File Transfer Protocol (FTP) site when motion is detected. You can assign alarm message to up to two FTP sites. Type the FTP details, including server, server port, user name, password and remote folder, in the appropriate boxes. -
Page 33: Http
HTTP The camera can send alarm messages to a specific Hypertext Transfer Protocol (HTTP) site when motion is detected or when the sensor input is activated. You can assign alarm messages to up to two HTTP sites. Type the HTTP details, including server, user name and password, in the appropriate fields. -
Page 34: Motion Detection
Motion Detection Motion Detection allows the camera to detect motion and trigger alarms when the motion level in the detected area exceeds the determined sensitivity threshold value. In the Motion Detection page, there is a motion detection window (red box) displayed on the Live View Pane. - Page 35 When motion detection is activated, the Motion pop-up window will open. When motion is detected, the signals will be displayed on the Motion window as shown below. Motion Detection Turn motion detection on or off. The default setting is Off. Motion Detection Setting •...
- Page 36 Triggered Action You can specify which actions the camera should take when motion is detected. • Send Alarm Message by FTP/E-Mail – Select to send an alarm message to a configured FTP and/or E-Mail address when motion is detected. When sending to email, the alarm notification is text only.
- Page 37 File Name – Enter a file name in the box, ex. image.jpg. The uploaded image’s file name format can be set in this section. Please select the one that meets your requirements. • Add date/time suffix File name: imageYYMMDD_HHNNSS_XX.jpg Y: Year, M: Month, D: Day H: Hour, N: Minute, S: Second X: Sequence Number •...
-
Page 38: Storage Management
Storage Management All OpenEye Tamper Resistant IP Mini Dome cameras include an integrated microSD™ card that can be used to record video or images. The card slot is compatible with a microSD™ card up to 16GB. Device Information – Displays the storage total size and free space information of the included microSD™... -
Page 39: Recording
Recording The recording schedule allows you to set up scheduled recording to the microSD™ card. To set up continuous recording: Select Always to continually record until the card is full. To set the camera to overwrite old data, see the instructions for Disk Cleanup Setting earlier in this section. -
Page 40: File Location
File Location The camera supports a JPEG snapshot function. You can specify a storage location for snapshot images. The default location is: C:\. Note If you are using Windows Vista, 7, or 8, you will need to change the Snapshot location. -
Page 41: Information
Information The Information page contains the System Log, User Information, and Parameter List. System Log Click System Log to view the system log file. The content of the file provides useful information about configuration and connections. 32700AA... -
Page 42: User Login Information
User Login Information All users for the camera are listed under User information. The example below show that the Admin password is 1234 and there is one user named User with the password 4321. View User Privilege Select a user account from the list and click get user privacy to view the permissions for the user account. -
Page 43: Parameter List
Parameter List Click Parameter List to view the system parameter settings. 32700AA... -
Page 44: Software Upgrade
Software Upgrade Upgrading the Camera Viewer Software Note Make sure the software upgrade file is available before starting the software upgrade. Click Browse and find the upgrade file. Note Do not change the file name, or the system will fail to find the file. Select the file name from the list under Step 2. -
Page 45: Maintenance
Maintenance On the Maintenance page you can export the cameras current configuration, or import the configuration for a camera. Use the factory default page to reset the IP Camera to factory default settings if necessary. Note Do not import configuration files from different models of cameras. Full Restore –To reset the IP camera to the factory default settings, including the default IP address, click Set Default. -
Page 46: Video And Audio Streaming Settings
Video and Audio Streaming Settings On the Streaming tab, the Administrator can configure specific video resolution, video compression mode, video protocol, audio transmission mode, etc. Video Format Select the desired video resolution for the camera on the Video Format page. The recorder will record video based on the resolution selected here. -
Page 47: Video Resolution
Video Resolution The camera provides four codec options under video resolution (two single streaming options and two sets of dual streaming options): • MJPEG only • H.264 only • MJPEG + H.264 • H.264 + H.264 Once a codec option is selected, multiple resolutions are available for each stream. MJPEG Resolutions* H.264 Resolutions* 1920x1080... -
Page 48: Video Rotate Type
Video Rotate Type You can change the orientation of the video output if necessary. Normal Video – This is the default rotation designed for a normal setup with the camera mounted with the dome facing down. Flip Video – This option will vertically flip the video image (without the intervention of another device this may cause the reversal of perceived left and right when viewing the image). -
Page 49: Video Compression
Video Compression You can select an MJPEG/H.264 compression mode on the video compression page appropriate for your application. You can also select to display compression information on the Home page. MJPEG compression settings include: • high compression, low bitrate, low quality •... -
Page 50: Hot Spot
Hot Spot The Hot Spot feature allows you to transmit different parts of the camera image on separate streams. Each stream is displaying a portion of the image at the full size of a regular image. This is useful for focusing on details in different areas of a single camera view. -
Page 51: Video Ocx Protocol
Video OCX Protocol On the Video OCX protocol page, you can select different protocols for streaming media over the network. In the case of multicast networking, you can select the Multicast mode. Video OCX protocol setting options include:RTP over UDP •... -
Page 52: Frame Rate Control
Frame Rate Control Setting the camera to transmit fewer frames can save bandwidth. Use the Frame Rate Control screen to adjust the frame rate of each stream. Each of the MJPEG and H.264 streams can have a separate frame rate setting from 1 to 30 frames per second. -
Page 53: Video Mask
Video Mask You can use the video mask page to define a privacy mask to keep users from viewing parts of the image. You can enable up to five privacy masks and choose a color to obscure the live view from users. -
Page 54: Audio
Audio On the Audio page, you can select an audio transmission mode and audio bit rate. Note Audio monitoring and recording laws vary from location to location. It is highly recommended that you consult your local, state and federal laws to verify that you are in compliance before implementing audio recording. -
Page 55: Bit Rate
Bit Rate Selectable audio transmission bit rates include the following: 16 kbps (G.726) 40 kbps (G.726) 24 kbps (G.726) uLAW (G.711) 32 kbps (G.726) ALAW (G.711) Both uLAW and ALAW signify 64 kbps, but in different compression formats. A higher bit rate will provide higher audio quality and require more bandwidth. -
Page 56: Camera
Camera Exposure The exposure is the amount of light received by the image sensor and is determined by the width of lens diaphragm opening (iris adjustment), the amount of exposure by the sensor (shutter speed) and other exposure parameters. When you have made your changes, click Set in the Exposure section. -
Page 57: White Balance
White Balance A camera needs to find reference color temperature, which is a way of measuring the quality of a light source, for calculating all the other colors. The unit for measuring this ratio is in degree Kelvin (K). Users can select one of the White Balance Control modes according to the operating environment. -
Page 58: Picture Adjustment
Picture Adjustment Adjust your image quality in the Picture Adjustment section. When you have made an alteration to any of the following settings, click Set to save your changes. Brightness Adjust the image’s brightness on the camera. The Backlight value is adjustable from -12 (dim) ~ +15 (brightest). -
Page 59: Ir Function
IR Function Set your IR functions according to your needs. Day/Night Function Choose between Auto, Night, Day, Light Sensor, Light On, Light Off, and Smart settings. IR Light Compensation Enable or disable the camera to compensate for the IR illuminators. D-WDR Function Digital Wide Dynamic Range can even out lighting differences between areas of extreme light and extreme shade. -
Page 60: Digital Zoom
Digital Zoom You can choose to transmit an enlarged image from your camera, from x2 ~ x8. Click Set when you have made your choice. 3DNR/2DNR These options allow you to adjust your noise reduction (Low, Middle, High, or Off). Digital Stabilization Enable Digital Stabilization to allow the camera to compensate for conditions in which it may move, such as when mounted on a pole. -
Page 61: Specifications
SPECIFICATIONS CAMERA SPECIFICATIONS Model OE-C6412-R Indoor / Outdoor Indoor Image Sensor 1/2.8” CMOS IP Rating Type / Format H.264 / MJPEG Wide Dynamic Range Digital WDR Minimum Illumination 0.0 Lux with IR LEDs engaged Day / Night True Day / Night... -
Page 62: Ip Specifications
Model OE-C6412-R Input Voltage 12vDC / 24vAC / PoE Weight 0.73 lbs (330 g) Dimensions Ø4.625" (117.5 mm) x H: 3.125” (79.375 mm) Housing / Dome White / Clear Cover IP SPECIFICATIONS Model OE-C6412-R Video Compression H.264 / MJPEG Multi Streaming... - Page 63 All rights reserved. No part of this publication may be reproduced by any means without written permission from OpenEye. The information in this publication is believed to be accurate in all respects. However, OpenEye cannot assume responsibility for any consequences resulting from the use thereof.
