CHAPTER 5: THE VARIO HORN

ROTATING THE VARIO HORN

The UPJunior has a VariO horn that can be easily rotated to
deliver either wide or narrow coverage, whether the loud-
speaker is oriented vertically or horizontally. The VariO horn
is factory installed with a wide coverage of 80º horizontal x
50º vertical (when the loudspeaker is oriented vertically). The
horn can be rotated to provide a narrow, targeted coverage
of 50º horizontal x 80º vertical (when the loudspeaker is ori-
ented vertically).

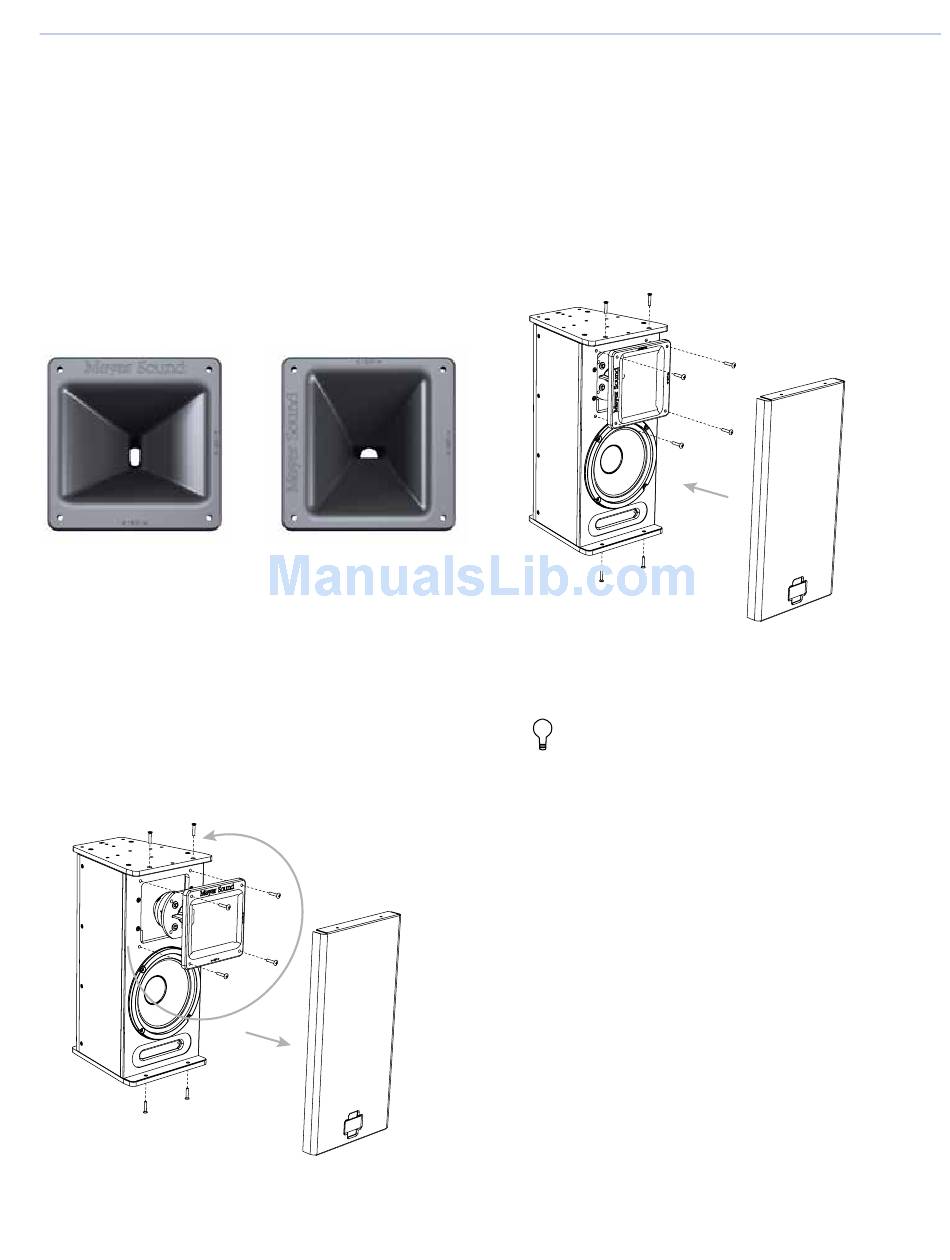

VariO Horn at 80°H x 50°V (Left) and 50°H x 80°V (Right)
To rotate the UPJunior's VariO horn from wide coverage to
narrow coverage:
1. Remove the four 10-32 x 5/8" screws from the grille
cover (two from the top and two from the bottom).
2. Carefully remove the grille cover.
3. Remove the four 10-32 x 1" flange screws from the horn.
4. Carefully remove the horn from the cabinet, making sure
not to place any stress on its wiring.
5. Rotate the horn 90º clockwise, so its orientation is
80º x 50º, with the horn's wide flange situated near the
sides of the cabinet instead of the top and bottom.
6. Place the horn back in the cabinet (it should fit comfort-
ably snug) and secure it with the four 10-32 x 1" flange
screws.
7. Reattach the grille cover and secure it with the four 10-
32 x 5/8" screws.
TIP: To rotate the Meyer Sound logo on the
UPJunior grille frame, pull up on the logo, rotate
it to the desired position, and release.
