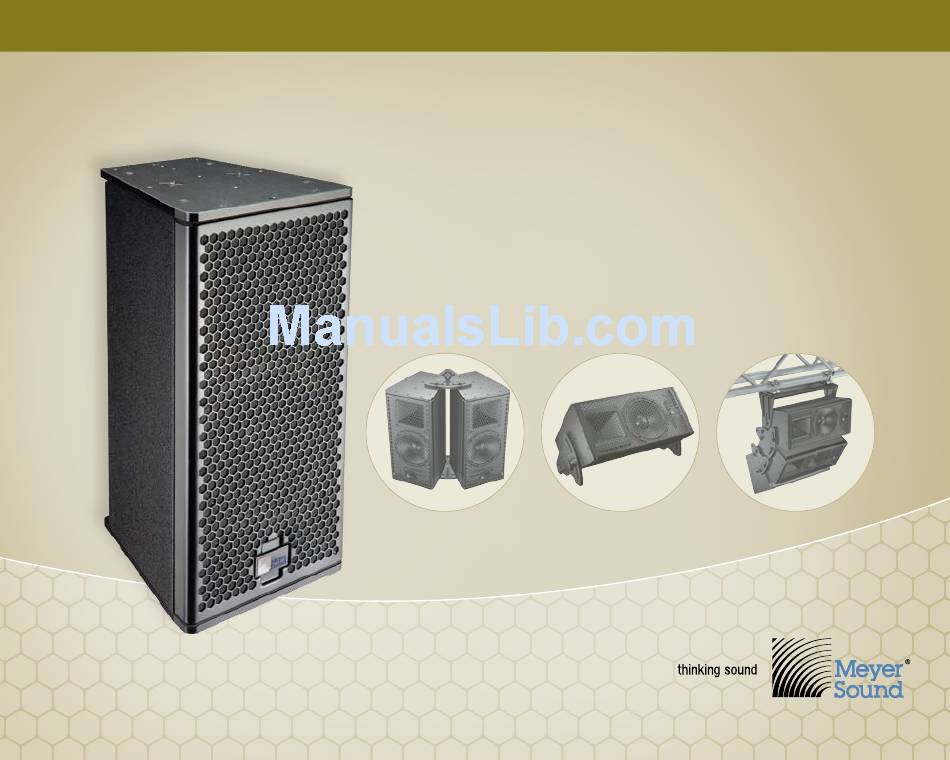

- Page 1 ULTRASERIES audio show control system corporate AV small theatres houses of worship ballrooms sidefill frontfill UPJunior ultracompact VariO loudspeaker...

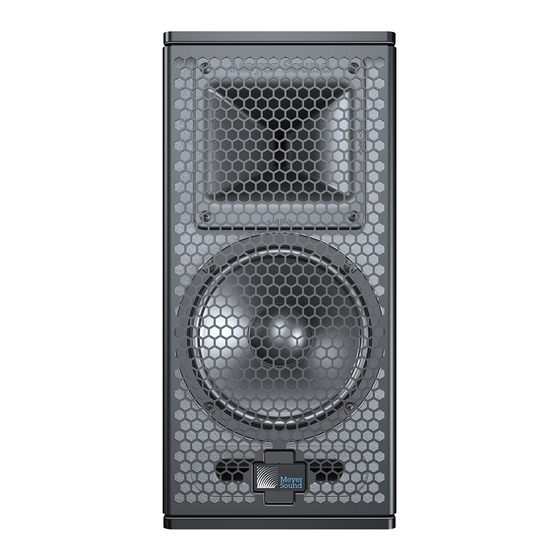

- Page 2 UPJunior UltraCompact VariO loudspeaker The self-powered UPJunior combines clear, powerful sound with a rotatable horn, a very small footprint, and a full spectrum of mounting and rigging options to provide a utility loudspeaker that’s ready to go anywhere you need it.
- Page 3 UPJunior works well with the UMS-1P or M1D-Sub ultracompact subwoofers. In applications requiring greater low-frequency support, the 600-HP high-power subwoofer can be used. It’s a sizable list of capabilities for a small speaker. But that’s UPJunior: the small loudspeaker that makes a big difference.
- Page 4 UPJunior Meyer Sound’s VariO horn can be easily rotated in the field by removing only eight screws. The ability to reconfigure UPJunior’s coverage lets users get the best coverage in nearly any situation. COMPONENTS UPJunior is a two-way system employing components designed and manufactured by Meyer Sound in Berkeley, Calif.
- Page 5 Limiter activity is easy to monitor with high-color limit LEDs on UPJunior’s rear panel. The optional RMS remote monitoring system module continuously reports the status of all key system parameters from a remote computer running Windows OS.
- Page 6 The MAAM-UPJunior has holes for accepting eyebolts or a shackle for maximum flexibility in mounting and rigging, and allows the separation between two cabinets in an array to be set to any angle from 10 to 80 degrees. The MAAM-UPJunior is also used when laying the cabinet horizontally for use as a stage monitor.
- Page 7 MUB-UPJunior U-bracket The MUB-UPJunior U-bracket can be used for mounting UPJunior on floors, walls, ceilings, or truss. UPJunior can be easily mounted on a ceiling or floor with the MUB-UPJunior for applications such as under-balcony coverage. ultracompact VariO loudspeaker The MUB-UPJunior allows...
- Page 8 UPJunior cabinets can be easily pole-mounted using a third-party adapter. Pole mounting a single UPJunior onto a UMS-1P ultracompact subwoofer is as simple as fitting an MPS-UMS pole stand into the integral pole mount receptacle in the UMS-1P, then mounting a UPJunior (with third-party adapter) onto it. MYA-UPJunior...
- Page 9 MEYER SOUND’S ULTRASERIES LOUDSPEAKERS UPJunior is a member of Meyer Sound’s UltraSeries. The UltraSeries is where it all began for Meyer Sound with the introduction of the UM-1 UltraMonitor, followed shortly thereafter by the UPA-1. The UPA-1 was a milestone in sound reinforcement, leading to its being honored as an inaugural inductee into the TECnology Hall of Fame.
-
Page 10: Specifications
2 Measured free field with 1/3-octave frequency resolution at 4 meters. 3 Measured with music referred to 1 meter. 4 The UPJunior horn can be rotated to provide an 80° x 50° coverage pattern in either the horizontal or vertical plane. -
Page 11: Current Draw
AC POWER AC power connector PowerCon with looping output Voltage selection Automatic Safety agency rated operating voltage 100 V AC – 240 V AC, 50/60 Hz Turn on/turn off points 90 V AC – 264 V AC, 50/60 Hz CURRENT DRAW Idle current 0.448 A rms (115 V AC), 0.285 A rms (230 V AC), 0.497 A rms (100 V AC) Max. long-term continuous current (>10 sec) 2.55 A rms (115 V AC), 1.55 A rms (230 V AC), 2.75 A rms (100 V AC) Burst current (<1 sec) - Page 12 UPJunior, UPJ-1P, UPA-1P, UPM-1P, UltraSeries, RMS, VariO, Intelligent AC, and all alphanumeric product designations are trademarks of Meyer Sound. Meyer Sound, QuickFly and the Meyer Sound wave logo are registered in the United States Patent and Trademark Office. All third-party trademarks mentioned herein are the property of their respective owners.
