TIP: To create optimum coverage in a vertical
array, the splay between UPJunior loudspeak-
ers should be 30° when the VariO horns are in the
80°H x 50°V position (this yields a vertical coverage
of 80°). Angles of less than 30° between the loud-
speakers can lead to too much interaction between
the loudspeakers, while angles of greater than 30°
may result in holes in the coverage.
Floor Monitoring with the MAAM-UPJunior
The MAAM-UPJunior array adapter can be used for posi-
tioning the UPJunior as a floor monitor, with the front adjust-
ment slot being used to adjust the angle of the loudspeaker.

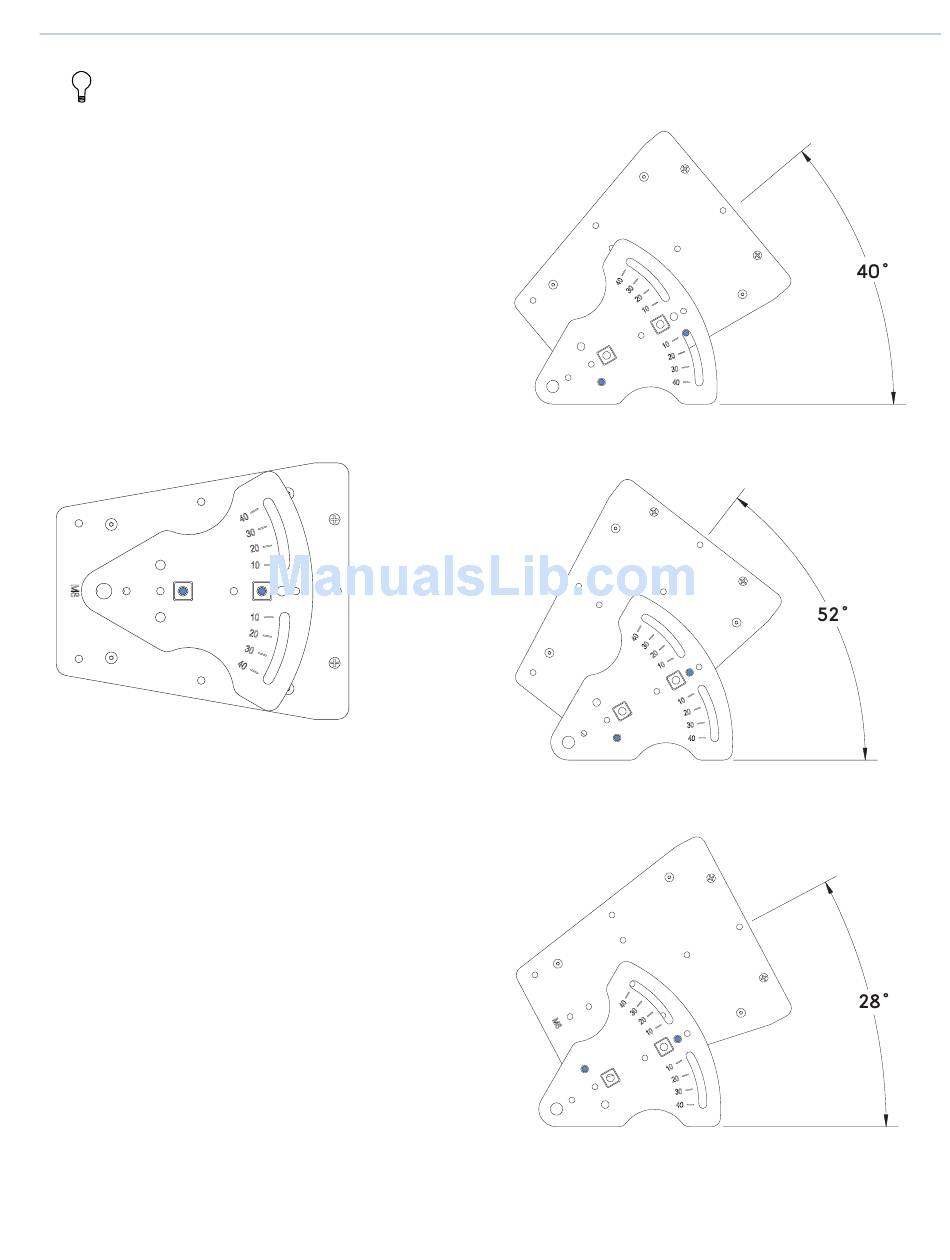

The following illustrations show the stowed position for
when the UPJunior is not in use (Figure 2), as well as some
of the more common angle configurations.
Figure 2: MAAM-UPJunior with UPJunior Stowed
MAAM-UPJunior with UPJunior at 40 Degrees
MAAM-UPJunior with UPJunior at 52 Degrees
MAAM-UPJunior with UPJunior at 28 Degrees
