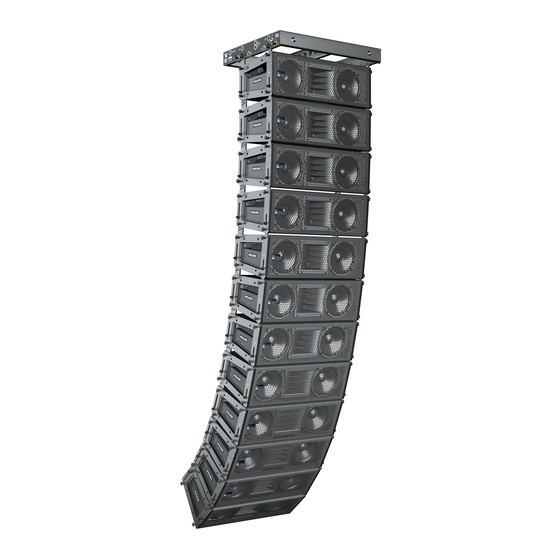

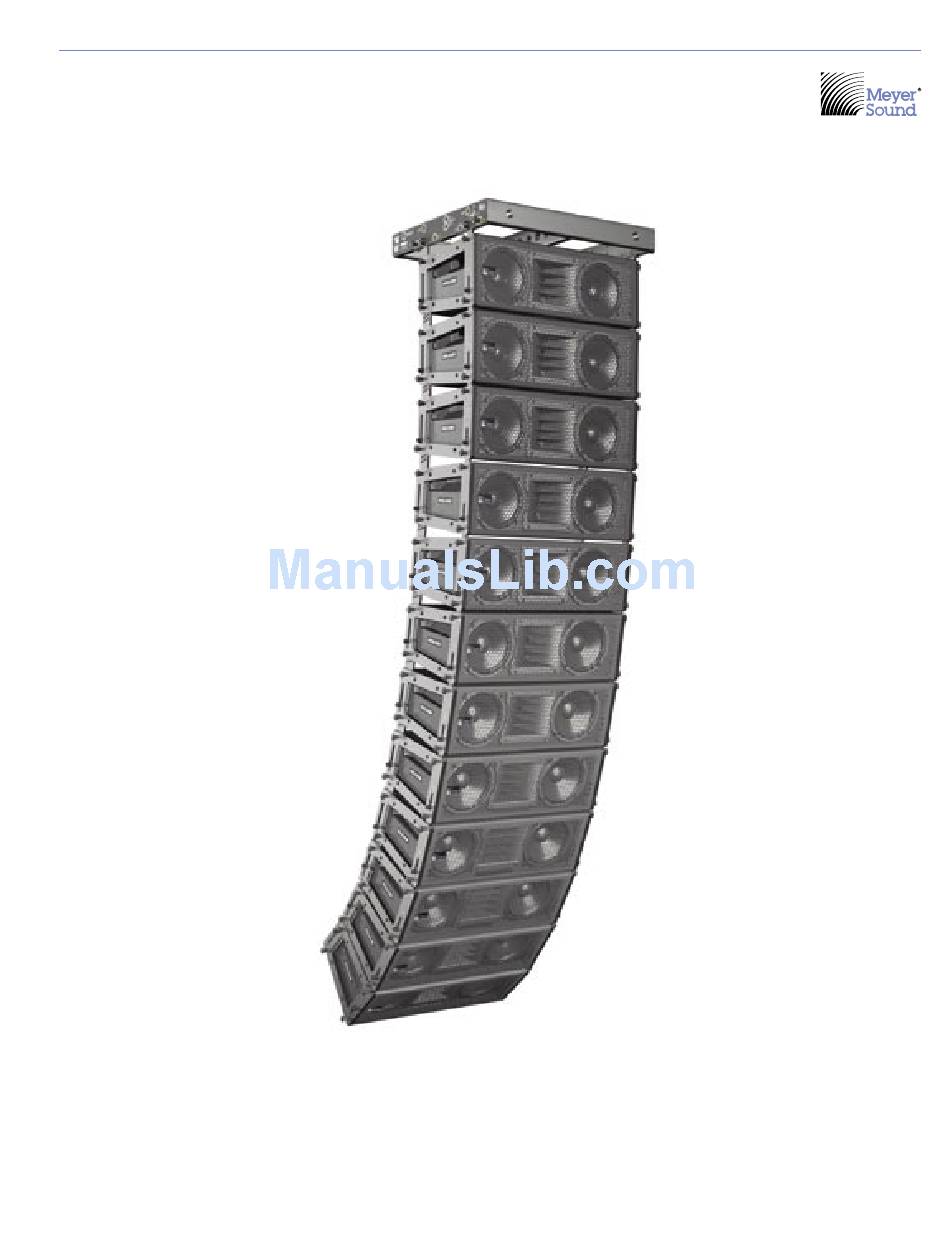

- Page 1 OPERATING INSTRUCTIONS M’elodie UltraCompact High-Power ™ Curvilinear Array Loudspeaker Keep these important operating instructions. Check www.meyersound.com for updates.
- Page 2 The contents of this manual are furnished for informational purposes only, are subject to change without notice, and should not be construed as a commitment by Meyer Sound Laboratories Inc. Meyer Sound assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual.
-
Page 3: Important Safety Instructions
11. Only use attachments/accessories specified by Meyer Sound. 12. Use only with the caster rails or rigging specified by Meyer Sound, or sold with the loudspeaker. Handles are for carrying only. 13. Unplug this loudspeaker during lightning storms or when unused for long periods of time. -
Page 4: Safety Summary
Do not install the loudspeaker in wet or humid locations without using weather protection equipment from Meyer Sound. Do not allow water or any foreign object to get inside the loudspeaker. Do not put objects containing liquid on or near the unit. -
Page 5: Table Of Contents
Low-Frequency Design Strategies Optimizing and Equalizing the Array High-Frequency Equalization Strategies Low-Frequency Strategies Using M’elodie as Sidefill or Downfill with MICA™ Curvilinear Arrays Using Meyer Sound Processors to Drive and Optimize the Array Using Digital Signal Processors Using M’elodie with Subwoofers... - Page 6 Using M’elodie with the 700-HP Subwoofer Using M’elodie with the 600-HP Subwoofer CHAPTER 6: System Design and Integration tools Meyer Sound MAPP Online Pro™ 3 Measurement System ® Source Independent Measurement Technique Applications CHAPTER 7: QuickFly M’elodie GuideALinks Front GuideALinks The MG-M’elodie Multipurpose Grid...
-
Page 7: Introduction
Chapter 4: RMS™ Remote Monitoring System introduces the RMS communication module, which is installed in the M’elodie amplifier to make use of Meyer Sound’s RMS remote monitoring system. Chapter 5: Line Arrays and System Integration will walk you through the integration of M’elodie in mid-high or full-... - Page 8 INTRODUCTION...
-
Page 9: Chapter 1: Introducing The M'elodie Loudspeaker
M’elodie as downfill to a MICA array. In fact, M’elodie can be a key component of a total Meyer Sound system solution. M’elodie is available in custom color finishes, allowing it to blend in with any environment. -
Page 10: Truck-Smart And Rig-Ready
M’elodie is fitted standard with Meyer Sound’s exclusive RMS interface, allowing you to monitor and troubleshoot an entire RMS-equipped Meyer Sound system remotely from your PC notebook or desktop system. -
Page 11: Total System Approach
M’elodie integrates seamlessly with other Meyer Sound products. With compatible acoustical and performance characteristics and dedicated QuickFly rigging hardware, M’elodie, MICA, MILO, and other Meyer Sound self- powered loudspeakers can provide you with everything you need to design and implement systems for optimum performance in venues of any size or shape. - Page 12 CHAPTER 1 Figure 1.7. The 600-HP high-power subwoofer M’elodie is supported by Meyer Sound’s MAPP Online Pro acoustical prediction program and the Galileo™ loudspeaker management system. Once a M’elodie system is designed and installed, its performance can be confirmed using a SIM 3 audio analyzer system.
-
Page 13: Chapter 2: Power Requirements
M’elodies looped to the same power plug. TIP: A cable-mount gray loop out connec- tor is provided with M’elodie loudspeakers to make loop-out cables. Additional short looping cables are available from Meyer Sound. CHAPTER 2 RMS3 Firmware S y s t e m... -
Page 14: Power Connector Wiring Conventions
CHAPTER 2 The blue connector serves as the input for all the units looped in that circuit and it is rated to 20 amps maximum. Please make sure never to exceed 20 amps on any single connector. Please refer to Table 2.1. Table 2.1: Maximum looping capabilities for M’elodie Circuit Breaker/ 115 V AC... -
Page 15: Current Requirements
Verify that the voltage is within the proper range. If the problem persists, please contact Meyer Sound or an authorized service center. If voltage drops below the low boundary of either safe operating range (brownout), M’elodie uses stored energy to continue functioning briefly, and shuts down only if voltage... -
Page 16: Electrical Safety Issues
In the unlikely event that the cir- cuit breakers on the loudspeaker’s user panel trip (the white center buttons pop out), disconnect the AC power cable. Do not reset the breakers with the AC connected. Contact Meyer Sound for repair information. CAUTION: The M’elodie loudspeaker re- quires a ground connection. -
Page 17: Chapter 3: Amplification And Audio
10. The source device should have an output impedance of 100 ohms or less. This is also true when connecting M’elodie loudspeakers in parallel (loop out) with other self-powered Meyer Sound loudspeakers (e.g., MICA, 700-HP, 600-HP, or 650-P). NOTE: Meyer Sound’s Galileo™... -
Page 18: Amplification And Protection Circuitry
Appendix C. AMPLIFICATION AND PROTECTION CIRCUITRY M’elodie is powered by Meyer Sound MP-1/M’elodie ampli- fier modules in a three-channel amplifier configuration with a total power of 1275 watts (2550 watts peak). The MP-1/ M’elodie amplifier utilizes complementary-power MOSFET... -
Page 19: Cooling System
AC power is removed to allow the heatsink to cool down. If the M’elodie loudspeaker shuts down again after cooling and reapplying AC power, con- tact Meyer Sound for repair information. CAUTION: The heatsink can reach temperatures of up to 95° C (203° F) during extreme, high-level operation for extented periods of time. - Page 20 CHAPTER 3...
-
Page 21: Chapter 4: Rms Remote Monitoring System
CHAPTER 4: RMS REMOTE MONITORING SYSTEM RMS is a real-time monitoring system that connects Meyer Sound self-powered loudspeakers with a Windows-based PC at the sound mix position or other location. Optional RMS software delivers extensive status and system perfor- mance data from every installed loudspeaker. M’elodie is RMS-ready and fitted standard with an RMS communica- tion board installed in its user panel. -
Page 22: Service Led (Red)
LED indicates that the loudspeaker has had a local RMS hardware failure. In this case, the RMS communication board may be damaged and you should contact Meyer Sound Technical support. Service Button Pressing the Service Button will display an icon on the corresponding loudspeaker display on the RMS screen. -
Page 23: Chapter 5: Line Arrays And System Integration
High Frequencies For high frequencies, M’elodie uses a very precise Constant Q horn — developed using Meyer Sound’s anechoic chamber — which provides a consistent beamwidth of coverage in the horizontal plane. In the horizontal pattern of an array of M’elodies, these horns work to produce a wide 100-degree coverage;... -
Page 24: Designing A Line Array System
CHAPTER 5 125 Hz 250 Hz Figure 5.1. MAPP Online Pro predictions of 6-, 12-, and 18-cabinet M’elodie line arrays at 125 Hz (top) and 250 Hz shows how directionality increases with length of array. Designing a Line Array System Designing and deploying a line array system will typically have the following objectives: ■... -
Page 25: Low-Frequency Design Strategies
Low-Frequency Design Strategies While wave guides provide isolated control over various mid- to high-frequency coverage areas, the low-frequency section of a M’elodie array still requires mutual coupling — with equal amplitude and phase — to achieve better directionality. Low-frequency directionality is less dependent on the array’s relative splay angles and more dependent on the number of elements of the array. -
Page 26: Using M'elodie As Sidefill Or Downfill With Mica™ Curvilinear Arrays
CHAPTER 5 The block diagram below (Figure 5.3) shows one method of driving this example array, along with subwoofers (not in the MAPP Online Pro predictions). CAUTION: This example is not meant to be used as a template for your own system designs. -
Page 27: Using Meyer Sound Processors To Drive And Optimize The Array
■ Low-pass and high-pass filters with minimal phase shift that can effectively integrate subwoofers with M’elodie arrays. ■ Robust output line drivers that easily drive Meyer Sound self-powered systems over long cable runs. The LD-3 air attenuation compensating line driver Figure 5.4. -
Page 28: Using M'elodie With Subwoofers
M’elodie loudspeaker array(s). Meyer Sound subwoofers such as 700-HP, 600-HP, and 650-P can achieve frequency response down to the 30 to 36 Hz range, extending the system response appreciably and increasing the acoustic power of the system in the lowest frequencies. -
Page 29: Chapter 6: System Design And Integration Tools
CHAPTER 6: SYSTEM DESIGN AND INTEGRATION TOOLS Meyer Sound offers two comprehensive tools to assist you with the acoustical and functional requirements of system design and optimization. This chapter introduces you to MAPP Online Pro, Meyer Sound’s powerful online acoustical prediction tool, and SIM 3, a robust instrumentation package for system measurement, analysis, and more. -
Page 30: Sim 3 Measurement System
MAPP Online Pro client software is upgraded continually in order to add new Meyer Sound products to the database and enhance user features. Most upgrades are downloaded automatically when logging on to a MAPP Online Pro session. -
Page 31: Chapter 7: Quickfly Rigging
CHAPTER 7: QUICKFLY RIGGING M’elodie loudspeakers feature Meyer Sound’s QuickFly rigging system with rugged, reliable and simple components. QuickFly facilitates deploying the loudspeakers in a variety of applications. M’elodie is designed to be rigged using professional components, and its custom front and rear GuideALinks rigidly couple the individual M’elodie enclosures for flying, stacking,... -
Page 32: The Mg-M'elodie Multipurpose Grid
CHAPTER 7 The rear GuideALinks permit 12 splay angles between 0 and 11 degrees in 1-degree increments. The GuideALink has four rows each with 3 columns. The splay angle between cabinets increases by one degree as the GuideAlink is pinned in adjacent positions from front to back and top to bottom. -
Page 33: Using The Mg-M'elodie For Ground-Stacking
LOAD RATINGS MAXIMUM DOWN-TILT GROUND STACK DO NOT EXCEED -5º STOW FRONT LINK 1550 lbs 1116 lbs +/- 60 DEG. 702 kg 506 kg GRID TILT (25 M’elodie) (18 M’elodie) GROUND STACK CAUTION: DO NOT EXCEED LOAD RATING REAR LINK PRECAUTION: NO EXCEDER LIMITE DE CARGA ATTENTION: N'EXCEDEZ PAS L'ESTIMATION DE CHARGE VORSICHT: UBERSTEIGEN SIE NICHT LAST BEWERTUNG... -
Page 34: Mcf-M'elodie Caster Frame
CHAPTER 7 Figure 7.9. 600-HP and M’elodie in the same flown array CAUTION: For complete information on load ratings and how to set up the Transition Frame please use the MG-M’elodie Assembly Guide (part number 05.152.034.01) available on www.meyersound.com. Figure 7.10. 600-HP and M’elodie in the same ground-stacked array MCF-M’ELODIE CASTER FRAME The MCF-M’elodie Caster Frame (Figure 7.11) allows you to transport stacks of up to five M’elodie enclosures. - Page 35 CAUTION: Do not exceed five M’elodie cabinets high to avoid tipping over the stack. CAUTION: Avoid moving the M’elodie stack in the front-to-back direction of the loudspeakers (the long side); always move the stack sideways to avoid tipping it over. Figure 7.13.
- Page 36 CHAPTER 7 Figure 7.15. Transporting M’elodie enclosures with the MG-M’elodie installed on the top of the stack CAUTION: When using the MCF-M’elodie caster frame to ground-stack M’elodie loudspeakers, make sure all four caster wheels are blocked to prevent the stack from rolling away. Other rigging accessories, as well as a range of rugged protective transport covers, are available.
-
Page 37: Appendix A: Optional Rain Hood
APPENDIX A: OPTIONAL RAIN HOOD In weather-protected versions, a rain hood is included to safeguard the user panel and connectors from the elements. INSTALLING THE M’ELODIE QUICK-CLIP RAIN HOOD 1. Check the rain hood to assure that the gasket material is firmly attached along all the inner edges. -
Page 38: Appendix B: Optional Veam Multipin Connector
RMS connections please refer to the Meyer Sound document VEAM Cable Wiring Reference (PN 06.033.113). In addition, Meyer Sound offers the VIM-4 (VEAM interface module) with four VEAM connectors in the front and a single-phase IEC 309 32-amp connector in the rear to distribute power, audio, and RMS to M’elodie loudspeaker... -
Page 39: Appendix C: M'elodie Specifications And Dimensional Drawings
APPENDIX C: M'ELODIE SPECIFICATIONS AND DIMENSIONAL DRAWINGS ACOUSTICAL Note: The low-frequency power response of the system will increase according to the length of the array. Operating frequency range 70 Hz - 18 kHz Note: Recommended maximum operating frequency range. Response depends upon loading conditions and room acoustics. - Page 40 APPENDIX C AUDIO INPUT Type Differential, electronically balanced Max. common mode range ±15 V DC, clamped to earth for voltage transient protection Connectors Female XLR input with male XLR loop output or VEAM all-in-one connector (integrates AC, audio, and network) Input impedance 10 kΩ...
- Page 41 PHYSICAL Enclosure Premium birch plywood Finish Black textured Protective grille Powder-coated, hex-stamped steel, black mesh Rigging QuickFly rigging with four captive GuideALinks in the bottom corners of two aluminum and steel end frames, secured with quick-release pins Dimensions 28.54 w x 9.19 h x 12.75 d (724.84 mm x 233.31 mm x 323.85 mm) Weight Weight 62 lbs (28.12 kg) 26.48...
- Page 42 APPENDIX C...
- Page 44 Meyer Sound Laboratories Inc. 2832 San Pablo Avenue Berkeley, CA 94702 www.meyersound.com © 2006 T: +1 510 486.1166 Meyer Sound Laboratories Inc. F: +1 510 486.8356 05.152.005.01 A...
