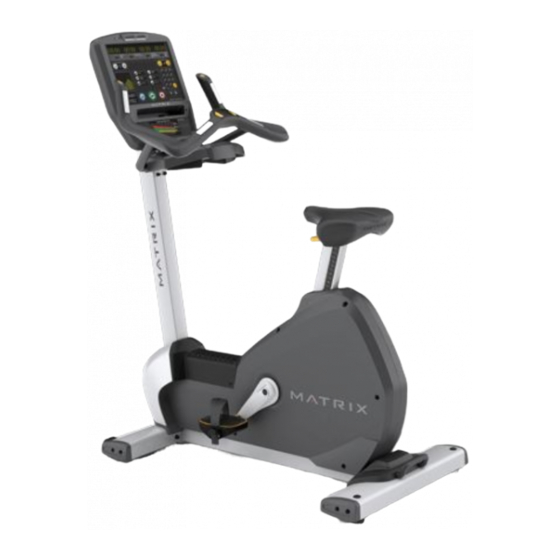

Matrix U5x-05 Service Manual
  1. Manuals
  2. Brands
  3. Matrix Manuals
  4. Exercise Bike
  5. U5x-05
  6. Service manual

Matrix U5x-05 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
U 5 x - 0 5 B I K E
S E R V I C E M A N U A l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U5x-05 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matrix U5x-05

Summary of Contents for Matrix U5x-05

  • Page 1 U 5 x - 0 5 B I K E S E R V I C E M A N U A l...

  • Page 2: Table Of Contents

    TABlE of CoNTENTS CHAPTER 1: SERIAl NUMBER loCATIoN ..............CHAPTER 2: IMPoRTANT SAfETy INSTRUCTIoNS Read and Save These Instructions ................3 Electrical Requirements .................... 4 CHAPTER 3: PREVENTATIVE MAINTENANCE Recommended Cleaning Tips ................... 5 Check for Damaged Parts ..................5 Care and Maintenance Instructions ................
  • Page 3 Drive Axle Set Replacement ................... 49 9.20 Testing the Bike ....................... 53 CHAPTER 10: BIKE SPECIfICATIoNS AND ASSEMBly gUIDE 10.1 U5x-05 Bike Specifications ..................54 10.2 Assembly Instructions ....................55 10.3 Adjusting the Pedal Straps and Seat ................. 61 10.4 Leveling the Bike ......................

  • Page 4: Chapter 1: Serial Number Location

    CHAPTER 1: SERIAl NUMBER loCATIoN 1.1 SERIAl NUMBER loCATIoN fRAME SERIAl NUMBER loCATIoN...
  • Page 5 CHAPTER 1: SERIAl NUMBER loCATIoN 1.1 SERIAl NUMBER loCATIoN console serial number location SN # PlACEMENT...

  • Page 6: Chapter 2: Important Safety Instructions

    To ensure proper use of the Matrix U5x-05 Bike, make sure that all users read this manual. Remind the users that before undertaking CAUTIoN! any changes or modifications to this equipment any fitness program, they should obtain complete physical could void the product warranty.

  • Page 7: Electrical Requirements

    110 V UNITS All Matrix 3x, 5x, 7xe and 7xi 110 V bikes require the use of a 100-125 V, 60 Hz and a 15 A “Dedicated Circuit”, with a non-looped (isolated) neutral/ground for power. This outlet should be a NEMA 5-15R and have the same configuration as the plug.

  • Page 8: Chapter 3: Preventative Maintenance

    3.2 CHECK foR DAMAgED PARTS Do NoT use any equipment that is damaged or has worn or broken parts. Use only replacement parts supplied by Matrix Fitness Systems. MAINTAIN lABElS AND NAMEPlATES. Do not remove labels for any reason. They contain important information. If unreadable or missing, contact Matrix Fitness Systems for a replacement.

  • Page 9: Care And Maintenance Instructions

    3.3 CARE AND MAINTENANCE INSTRUCTIoNS In order to maximize life span, and minimize down time, all MATRIX equipment requires regular cleaning, and maintenance items performed on a scheduled basis. This section contains detailed instructions on how to perform these items and the frequency of which they should be done.

  • Page 10: Chapter 4: Console Overlay And Workout Description

    CHAPTER 4: CoNSolE oVERlAy AND WoRKoUT DESCRIPTIoN 4.1 CoNSolE DESCRIPTIoN WorKout KeYs: Simple program view and selection buttons. Go: One touch Start. uP / DoWn leVel: Easy information and level selection. uP / DoWn time: Easy information and time adjustment. stoP: Ends workout and shows workout summary data.

  • Page 11: Workout Setup Steps - Manual

    CHAPTER 4: CoNSolE oVERlAy AND WoRKoUT DESCRIPTIoN 4.2 WoRKoUT SETUP STEPS - MANUAl 4.4 WoRKoUT SETUP STEPS - lEVEl BASED rollinG Hills - Press to immediately begin a workout. Workout, resistance - The Rolling Hills program is a level based program that automatically adjusts the resistance level to simulate level, and time will automatically go to default settings.

  • Page 12: Workout Setup Steps - Fitness Test

    CHAPTER 4: CoNSolE oVERlAy AND WoRKoUT DESCRIPTIoN 4.5 WoRKoUT SETUP STEPS - fITNESS TEST Fitness test -The Cooper Fitness Test measures cardiovascular fitness and proves an estimated sub-maximal VO2 result. It is based on power output according to ACSM standards and was developed by the Cooper Institute© (www.cooperinstitute.org). User RPMs must remain between 60-80 RPM during the test.

  • Page 13: Workout Setup Steps - Target Heart Rate

    4.7 WoRKoUT SETUP STEPS - CoNSTANT WATTS tarGet Heart rate constant Watts - The Matrix U5x-04 Bike comes with - Constant Watts is a unique program standard digital contact heart rate sensors and are POLAR telemetry that allows you to vary your cadence or RPM and the bike's compatible.

  • Page 14: Chapter 5: Manager Mode

    CHAPTER 5: MANAgER MoDE 5.1 USINg MANAgER MoDE The Manager's Custom Mode allows the club owner to customize the bike for the club. 1) To enter Manager Mode, press and hold down the UP and DOWN LEVEL keys. Continue to hold down these two keys until the display reads Manager Mode and hit ENTER (Figure A).

  • Page 15: Chapter 6: Engineering Mode

    Speed Units Mile Mile or Kilometer Set for Mile or Kilometer. Machine Type U5x-05 H5x-05, U5x-05, The Hybrid bike console should be set to U5x-05. R5x-05, H5x-04, U5x-04, R5x-04, E5x-02, E5x-03 Power Save Time 30 Seconds 30-60 Seconds Power saving time for the self powered frame.

  • Page 16: Chapter 7: Service Mode

    CHAPTER 7: SERVICE MoDE 7.1 USINg SERVICE MoDE To enter Service Mode, hold the LEVEL UP and DOWN keys for 3-5 seconds until Manager Mode appears on the middle LED display. Press the LEVEL UP or DOWN key to scroll to Service Mode. Press ENTER to go into Service Mode. CoDE DEfAUlT oPTIoNS...

  • Page 17: Chapter 8: Troubleshooting

    CHAPTER 8: TRoUBlESHooTINg 8.1 ElECTRICAl DIAgRAMS...
  • Page 18 CHAPTER 8: TRoUBlESHooTINg 8.1 ElECTRICAl DIAgRAMS - CoNTINUED...
  • Page 19 CHAPTER 8: TRoUBlESHooTINg 8.1 ElECTRICAl DIAgRAMS - CoNTINUED MCB PoWER WIRE DIgITAl CoMMUNICATIoN WIRE...
  • Page 20 CHAPTER 8: TRoUBlESHooTINg 8.1 ElECTRICAl DIAgRAMS - CoNTINUED PUlSE SENSoR WIRE - RIgHT PUlSE SENSoR WIRE - lEfT...
  • Page 21 CHAPTER 8: TRoUBlESHooTINg 8.1 ElECTRICAl DIAgRAMS - CoNTINUED PUlSE ExTENDED WIRE...

  • Page 22: Lcb Led Indicators

    CHAPTER 8: TRoUBlESHooTINg 8.2 lCB lED INDICAToRS Status LED ============================ ============================= LED1: Console Power Supply. (Light: LCB give the power for console) LED4: Boost Controller LED5: Battery Charge Control.(Light : Battery just charge) LED6: Battery Connection Reverse Protection. Light: reverse LED7: MCU-B LCB Working Status.

  • Page 23: Troubleshooting - Error 04A0 / 0440

    CHAPTER 8: TRoUBlESHooTINg 8.3 TRoUBlESHooTINg - ERRoR 04A0 / 0440 ERRoR CoDE 04A0 / 0440 1) SyMPToM: 04A0 – UCB communication disconnected. 0440 – Timeout receive packet (LCB can not receive any data for 50 seconds). 2) SolUTIoN: If the display is giving a 04A0 error, check the LCB LED10 status. - LED10 blinking: Turn off power and after 3 seconds, turn on power again.

  • Page 24: Troubleshooting - Error 04B0

    CHAPTER 8: TRoUBlESHooTINg 8.4 TRoUBlESHooTINg - ERRoR 04B0 ERRoR CoDE 04B0 1) SyMPToM: 04B0 – LCB communication disconnected. 2) SolUTIoN: 1) If the display is giving a 04B0 error, check the LCB LED10 status. - LED10 blinking: Turn off power and after 3 seconds, turn on power again. If the console shows the 04A0 error, skip to Step 2. - LED10 off: Check the connection of the digital communication wire at the UCB and LCB (Figure A &...

  • Page 25: Troubleshooting - Error 0248

    CHAPTER 8: TRoUBlESHooTINg 8.5 TRoUBlESHooTINg - ERRoR 0248 ERRoR CoDE 0248 1) SyMPToM: 0248 - Battery disconnection or fail. (When power is on, LCB battery voltage is less than 6 VAC). 2) SolUTIoN: 1) Please check the battery wire connection between the battery and LCB (Figure A). 2) Check the battery voltage (Figure B), if it is less than 6 V, please plug in the power cord to charge battery for 1 hour.

  • Page 26: Troubleshooting - Error 0247

    CHAPTER 8: TRoUBlESHooTINg 8.6 TRoUBlESHooTINg - ERRoR 0247 ERRoR CoDE 0247 1) SyMPToM: 0247 - MCU fail. 2) SolUTIoN: 1) Replace LCB. 8.7 TRoUBlESHooTINg - ERRoR 02B4 / 03A8 / 02AB / 0441 ERRoR CoDE 02B4 / 03A8 / 02AB / 0441 1) SyMPToM: 02B4 –...

  • Page 27: Troubleshooting - Error 01Ac / 01Af

    CHAPTER 8: TRoUBlESHooTINg 8.8 TRoUBlESHooTINg - ERRoR 01AC / 01Af ERRoR CoDE 01AC / 01Af 1) SyMPToM: 01AC – Electro-magnet over current. 01AF – Electro-magnet disconnected. 2) SolUTIoN: 1) Check if the Electro-magnet is short circuited or open (Figure A). - If the resistance data shows a short / open ohms or is outside the range of 12.8 ~14.2 ohms, replace the Electro-magnet.

  • Page 28: Troubleshooting - Error 01B4

    CHAPTER 8: TRoUBlESHooTINg 8.9 TRoUBlESHooTINg - ERRoR 01B4 ERRoR CoDE 01B4 1) SyMPToM: 01B4 – Battery connection reverse protection. 2) SolUTIoN: 1) Check the battery wire connection between the battery and LCB (Figure A). 2) Check the battery voltage (Figure B). - If there is no data on voltage, replace the battery - If there is data on voltage, replace the LCB fIgURE A...

  • Page 29: Troubleshooting - No Resistance

    CHAPTER 8: TRoUBlESHooTINg 8.10 TRoUBlESHooTINg - No RESISTANCE ISSUES No RESISTANCE ISSUES 1) SyMPToM: No resistance. 2) SolUTIoN: 1) Check the resistance wire connection between the ECB and LCB (Figure A). 2) Check if the resistance is open (Figure B). - If there is no data on resistance, replace the ECB.

  • Page 30: Troubleshooting - Heart Rate Issues

    An ohm reading of less than 1 should be received. If it is higher, replace the HR grip wiring. 3) Perform a continuity check on the console (See Service Bulletin - Continuity Test on Matrix Bikes). a. Once the console continuity is confirmed, perform a continuity check on the HR board ground wire. With a multi meter set for ohms, place one prong on the HR board ground wire (Figure D), and the other on the console ground wire.

  • Page 31: Troubleshooting - No Power To The Console

    CHAPTER 8: TRoUBlESHooTINg 8.12 TRoUBlESHooTINg - No PoWER To THE CoNSolE PoWER SWITCH IS oN, BUT THE CoNSolE HAS No DISPlAy PoSSIBlE CAUSES: 1) The unit is not getting power from the outlet. 2) The LCB is not getting power from the power receptacle. 3 &...

  • Page 32: Troubleshooting - Keypad Issues

    CHAPTER 8: TRoUBlESHooTINg 8.13 TRoUBlESHooTINg - KEyPAD ISSUES All oR SoME of THE fUNCTIoN KEyS Do NoT RESPoND PoSSIBlE CAUSES: 1) The keypad connection ribbon cable has not been plugged in correctly. 2) The keypad is damaged. 3) The UCB is damaged. SolUTIoN: 1) Perform a keypad test in Service Mode: a.

  • Page 33: Chapter 9: Part Replacement Guide

    CHAPTER 9: PART REPlACEMENT gUIDE 9.1 CoNSolE REPlACEMENT 1) Remove the 4 screws holding the console to the frame (Figure A). fIgURE A 2) Disconnect the console cable and HR connections from the defective console and remove the console (Figure B). fIgURE B 3) Reinstall the wire connections to the new console.

  • Page 34: Cup Holder Replacement

    CHAPTER 9: PART REPlACEMENT gUIDE 9.2 CUP HolDER REPlACEMENT 1) Remove the 4 screws holding the cup holder to the console mast (Figure A). fIgURE A 2) Remove the cup holder (Figure B). fIgURE B 3) Reverse Steps 1-2 to install a new cup holder.

  • Page 35: Handlebar Replacement

    CHAPTER 9: PART REPlACEMENT gUIDE 9.3 HANDlEBAR REPlACEMENT 1) Remove the cup holder as outlined in Section 9.2. 2) Remove the 4 screws holding the heart rate handlebar to the console mast being careful to support the handlebar (Figure A). 3) Carefully pull the wires from the console mast until the connectors are showing, and then disconnect the 2 wires from the handlebar and remove the defective handlebar (Figure B).

  • Page 36: Handlebar Service

    CHAPTER 9: PART REPlACEMENT gUIDE 9.4 HANDlEBAR SERVICE 1) All items on the handlebar are removed using a Phillips screwdriver from the underside of the bar. 2) Once the screws are removed, lift the part carefully, then disconnect any wire connections to fully remove the part. This includes any resistance buttons and heart rate grip plates (Figures A - D).

  • Page 37: Console Keypad / Overlay Replacement

    CHAPTER 9: PART REPlACEMENT gUIDE 9.5 CoNSolE KEyPAD / oVERlAy REPlACEMENT note: The instructions below are for console overlays / keypads replacement, but the procedure is the same regardless of where the overlay / keypad is. 1) Turn off power and disconnect the cord from the machine. 2) Remove the console as outlined in Section 9.1.
  • Page 38 CHAPTER 9: PART REPlACEMENT gUIDE 9.5 CoNSolE KEyPAD / oVERlAy REPlACEMENT - CoNTINUED 7) Peel part of the protective film from the back of the overlay (Figure E). 8) Push the overlay ribbon cable through the hole in the console and plug it in (Figure F). fIgURE E fIgURE f 9) Match the overlay to the cutout on the console (Figure G).

  • Page 39: Pedal Replacement

    2) Remove the pedal (Figure B). fIgURE B 3) Reverse Steps 1-2 to install a new pedal. note: Be sure to tighten the pedal as much as possible onto the crank with a commercial pedal wrench (available from Matrix - part # ZMS4001254).

  • Page 40: Crank Axle Set Replacement

    CHAPTER 9: PART REPlACEMENT gUIDE 9.7 CRANK AxlE SET REPlACEMENT 1) Remove the bolt that holds the crank to the drive axle set (Figure A). fIgURE A 2) The crank can be removed (Figure B). fIgURE B 3) Reverse Steps 1-2 to install a new crank axle set. note: Torque the bolt removed in Step 1 to 80 N-m / 800 kgf-cm. 4) Test the bike as outlined in Section 9.20.

  • Page 41: Front Shrouds Replacement

    CHAPTER 9: PART REPlACEMENT gUIDE 9.8 fRoNT SHRoUDS REPlACEMENT 1) Remove the 2 screws that hold the silver cover to the frame (Figure A). 2) Remove the silver cover (Figure B). fIgURE A fIgURE B 3) Remove the 2 screws that hold the grey cover to the frame (Figure C). 4) Remove the black cover (Figure D).

  • Page 42: Side Covers Replacement

    CHAPTER 9: PART REPlACEMENT gUIDE 9.9 SIDE CoVERS REPlACEMENT 1) Remove the pedals as outlined in Section 9.6. 2) Remove the crank as outlined in Section 9.7. 3) Remove the front shroud as outlined in Section 9.8. 4) Remove the 9 screws holding the left side cover in place (Figure A). 5) Remove the 6 screws holding the right side cover in place (Figure B).

  • Page 43: Console Mast Replacement

    CHAPTER 9: PART REPlACEMENT gUIDE 9.10 CoNSolE MAST REMoVAl 1) Remove the console as outlined in Section 9.1. 2) Remove the cup holder as outlined in Section 9.2. 3) Remove the handlebars as outlined in Section 9.3. 4) Remove the front shroud as outlined in Section 9.8. 5) Remove the 4 screws holding the console mast to the frame (Figure A).

  • Page 44: Seat Pad Replacement

    CHAPTER 9: PART REPlACEMENT gUIDE 9.11 SEAT PAD REPlACEMENT 1) Remove the 4 screws holding the seat pad to the seat post (Figure A). fIgURE A 2) Lift the seat pad away from the seat post (Figure B). fIgURE B 3) Reverse Steps 1-2 to install a new seat pad.

  • Page 45: Seat Post Replacement

    CHAPTER 9: PART REPlACEMENT gUIDE 9.12 SEAT PoST SET REPlACEMENT 1) Remove the side covers as outlined in Section 9.8. 2) Remove the 4 screws that hold the seat post set to the frame (Figures A & B). fIgURE A fIgURE B 3) Remove the seat post set (Figure C).

  • Page 46: Lower Control Board Replacement

    CHAPTER 9: PART REPlACEMENT gUIDE 9.13 loWER CoNTRol BoARD REPlACEMENT 1) Remove the front shrouds as outlined in Section 9.8. 2) Disconnect the 5 wire connections to the lower board (Figure A). 3) Remove the 2 screws holding the lower board to the frame (Figure B), and remove the lower board. fIgURE A fIgURE B 4) Reverse Steps 1-3 to install a new lower board.

  • Page 47: Battery Replacement

    CHAPTER 9: PART REPlACEMENT gUIDE 9.14 BATTERy REPlACEMENT 1) Remove the front shrouds as outlined in Section 9.8. 2) Remove the LCB as outlined in Section 9.13. 3) Disconnect the 2 wires from the battery (Figure A). fIgURE A 4) Disconnect the 2 cable ties from the battery bracket (Figure B). 5) Remove the battery (Figure C).

  • Page 48: Drive Belt Replacement

    CHAPTER 9: PART REPlACEMENT gUIDE 9.15 DRIVE BElT REPlACEMENT 1) Remove the side covers as outlined in Section 9.9 (Figure A). 2) Using a hook or loop of wire, remove the spring from the frame (Figure B). The tensioner should now pivot away from the drive belt. fIgURE A fIgURE B 3) Remove the drive belt (Figure C).

  • Page 49: Generator Replacement

    CHAPTER 9: PART REPlACEMENT gUIDE 9.16 gENERAToR REPlACEMENT 1) Remove the pedals as outlined in Section 9.6. 2) Remove the cranks as outlined in Section 9.7. 3) Remove the side covers as outlined in Section 9.9. 4) Remove the drive belt as outlined in Section 9.15. 5) Cut the cable tie and disconnect the generator with ECB wire from the LCB (Figures A &...

  • Page 50: Rear Stabilizer Replacement

    CHAPTER 9: PART REPlACEMENT gUIDE 9.17 REAR STABIlIzER REPlACEMENT 1) Remove the 2 screws holding the black cover to the rear stabilizer (Figure A). 2) Remove the black cover (Figure B). fIgURE A fIgURE B 3) Remove the 6 screws holding the rear stabilizer to the frame (Figure C). 4) Remove the rear stabilizer (Figure D).

  • Page 51: Front Stabilizer Replacement

    CHAPTER 9: PART REPlACEMENT gUIDE 9.18 fRoNT STABIlIzER REPlACEMENT 1) Remove the 4 screws holding the rear stabilizer to the frame (Figures A & B). . fIgURE A fIgURE B 2) Remove the front stabilizer (Figure C). fIgURE C 3) Reverse Steps 1-2 to install new front side covers.

  • Page 52: Drive Axle Set Replacement

    CHAPTER 9: PART REPlACEMENT gUIDE CHAPTER 9: PART REPlACEMENT gUIDE 9.19 DRIVE AxlE SET REPlACEMENT note: a matrix special tool is needed to correctly replace a drive axle. order part # 1000323981 from matrix cts at 866-693-4863 ext 3. 1) Turn off the power and disconnect the cord from the machine.
  • Page 53 CHAPTER 9: PART REPlACEMENT gUIDE 9.19 DRIVE AxlE SET REPlACEMENT - CoNTINUED 9) Slide the drive axle assembly into the frame from the right side. Install the bearing cap portion of the tool into the left side of the frame (Figure 10) Mount the other tool from Figure F behind the bearing cap portion of the tool.
  • Page 54 CHAPTER 9: PART REPlACEMENT gUIDE 9.19 DRIVE AxlE SET REPlACEMENT - CoNTINUED 15) Remove the tools, then insert the bearing into the hole in the frame on the left side (Figure M). 16) Again use the M10 x 100L x 1.25P screw with a nut to attach the tool to the drive axle (Figure N). fIgURE M fIgURE N 17) Turn the screw until it is close into the drive axle (Figure O).
  • Page 55 CHAPTER 9: PART REPlACEMENT gUIDE 9.19 DRIVE AxlE SET REPlACEMENT - CoNTINUED 21) Use a screwdriver to remove the iron plate from the drive axle (Figures S & T). fIgURE S fIgURE T 22) Rotate the drive axle to make sure that the motion is smooth and that there is no wobbling to one side (Figures U). fIgURE U 23) Re-install the belts as outlined in Section 9.15.

  • Page 56: Testing The Bike

    Press ENTER on Machine Type and make sure it is set for U5x-05. e. If Machine Type is not set for U5x-05, change to U5x-05 using the UP or DOWN LEVEL key and press ENTER to save. f. Press and hold the STOP key for 3-5 seconds to return to normal function.

  • Page 57: Chapter 10: Bike Specifications And Assembly Guide

    CHAPTER 10: BIKE SPECIfICATIoNS AND ASSEMBly gUIDE 10.1 U5x-05 BIKE SPECIfICATIoNS U5x UPRIGHT Features CONTACT & TELEMETRIC HR SENSORS HANDLEBAR DESIGN FULL RACING STYLE WITH ELBOW SUPPORT INTEGRATED ARM RESTS THUMB SWITCH CONTROLS resistance sYstem TECHNOLOGY JID BRUSHLESS GENERATOR SELF POWERED - POWERED 100-125 V, 60 HZ...

  • Page 58: Assembly Instructions

    CHAPTER 10: BIKE SPECIfICATIoNS AND ASSEMBly gUIDE 10.2 ASSEMBly INSTRUCTIoNS AfTER THESE ASSEMBly STEPS ARE CoMPlETE, BE SURE To SETUP AND TEST THE UNIT AS oUTlINED IN SECTIoN 9.19. STEP 1 yElloW HARDWARE BAgS PART TyPE DESCRIPTIoN SOCKET HEAD BOLT M8X25L FLAT WASHER φ8.2xφ16.0x2.0T...
  • Page 59 CHAPTER 10: BIKE SPECIfICATIoNS AND ASSEMBly gUIDE 10.2 ASSEMBly INSTRUCTIoNS - CoNTINUED STEP 2 BlACK HARDWARE BAg PART TyPE DESCRIPTIoN SOCKET HEAD BOLT M8X20L PHILLIP HEAD BOLT M5X12L Open BlACK HARDWARE BAg. Attach the REAR fRAME HANDlE (3) to the MAIN fRAME (2) using 2 BolTS (C). Attach the REAR fRAME CoVER (4) to the MAIN fRAME (2) using 2 BolTS (D).
  • Page 60 CHAPTER 10: BIKE SPECIfICATIoNS AND ASSEMBly gUIDE 10.2 ASSEMBly INSTRUCTIoNS - CoNTINUED STEP 3 gREEN HARDWARE BAg PART TyPE DESCRIPTIoN PHILLIP HEAD BOLT M5X12L Open gREEN HARDWARE BAg. Attach the fRoNT SHRoUD CoVER (7) to the MAIN fRAME (2) using 2 BolTS (f). Attach the STEP PlATE (8) to the MAIN fRAME (2) using 2 BolTS (f).
  • Page 61 CHAPTER 10: BIKE SPECIfICATIoNS AND ASSEMBly gUIDE 10.2 ASSEMBly INSTRUCTIoNS - CoNTINUED STEP 4 WHITE HARDWARE BAg PART TyPE DESCRIPTIoN SOCKET HEAD BOLT M8X20L Open WHITE HARDWARE BAg. Attach the PUlSE gRIPS HANDlEBARS (9) to the CoNSolE MAST (6) using 4 BolTS (C).
  • Page 62 CHAPTER 10: BIKE SPECIfICATIoNS AND ASSEMBly gUIDE 10.2 ASSEMBly INSTRUCTIoNS - CoNTINUED STEP 5 PURPlE HARDWARE BAg PART TyPE DESCRIPTIoN SOCKET HEAD BOLT M8X20L SPRING WASHER φ8.5xφ18.0x2.0T Open gREEN HARDWARE BAg. Attach the SEAT (12) to the SEAT PoST (13) using 4 BolTS (C) and 4 SPRINg WASHERS (g).
  • Page 63 CHAPTER 10: BIKE SPECIfICATIoNS AND ASSEMBly gUIDE 10.2 ASSEMBly INSTRUCTIoNS - CoNTINUED FINAL ASSEMBLY...

  • Page 64: Adjusting The Pedal Straps And Seat

    CHAPTER 10: BIKE SPECIfICATIoNS AND ASSEMBly gUIDE 10.3 ADjUSTINg THE PEDAl STRAPS AND SEAT aDjustinG tHe PeDal straPs The straps are designed to fit your individual foot size and should be adjusted tight enough to keep your foot from slipping. The pedals include spring loaded clips for easy adjustment.

  • Page 65: Leveling The Bike

    CHAPTER 10: BIKE SPECIfICATIoNS AND ASSEMBly gUIDE 10.4 lEVElINg THE BIKE stabiliZinG tHe matriX u5X-05 biKe After positioning the bike in its intended location, check its stability by attempting to shake it side to side. Shaking or wobbling indicates that your bike needs to be leveled.

  • Page 66: Tv Bracket Installation Instructions

    10.5 TV BRACKET INSTAllATIoN INSTRUCTIoNS The Matrix Upright bike is capable of having a MYE Entertainment or Web Ready (PCTV) television installed using an integrated bracket. Follow the instructions below to install the TV and TV bracket, and the instructions located in the TV owner's manual to program the television.
  • Page 67 CHAPTER 10: BIKE SPECIfICATIoNS AND ASSEMBly gUIDE 10.5 TV BRACKET INSTAllATIoN INSTRUCTIoNS - CoNTINUED 6) Run the white end from the Y cable through the headphone jack hole in the console plastic, and plug it into the headphone jack sent with the TV bracket set (Figure G).
  • Page 68 CHAPTER 10: BIKE SPECIfICATIoNS AND ASSEMBly gUIDE 10.5 TV BRACKET INSTAllATIoN INSTRUCTIoNS - CoNTINUED 12) Press the entertainment keypad / overlay into the cut out in the console plastic (Figure M). 13) Plug the ribbon cable into the pins on the UCB (Figure N). Make sure that the pins and ribbon cable are correctly aligned with no pins open on the UCB.
  • Page 69 19) Re-attach the console back to the front using the bottom 6 screws removed in Step 2. note: Be sure to route the wiring so that it is not pinched by the bracket or plastic when installing the top 2 screws (Figure U). The small cover with the Matrix logo that makes up the top of the rear console cover is no longer used with a TV bracket.
  • Page 70 CHAPTER 10: BIKE SPECIfICATIoNS AND ASSEMBly gUIDE 10.5 TV BRACKET INSTAllATIoN INSTRUCTIoNS - CoNTINUED 25) If installing a PCTV, plug the net wire into the back of the TV (Figure Z). note: The net wire is not used if installing a MYE TV, and should be hidden by the plastic covers.

  • Page 71: Chapter 11: Software Upgrade Guide

    1. Create a file on the USB flash drive which will be used. The folders should be MATRIX\FW\UCB (create a folder called MATRIX, then a folder in MATRIX called FW, then a folder in FW called UCB). Or you can put USB flash drive into the console and press ENTER, 9, 0, 0, 1, ENTER on the keypad and the USB will create the folders (Figure A) 2.
  • Page 72 NoTES...
  • Page 73 MATRIx fITN ES S Sy S TE MS C o R P. 1610 LANDM ARK DR I VE C OTTA GE G R OV E WI 535 27 U S A TOLL FREE 866.693.4863 ww w.m atr i xfi tn es s . co m FA X 60 8.8 39 .1 717...
