This LCD monitor is designed for use with a flexible arm. To mount the
monitor to a flexible arm:
. Follow the instructions on how to Remove Monitor Stand for Mounting
to remove the stand.

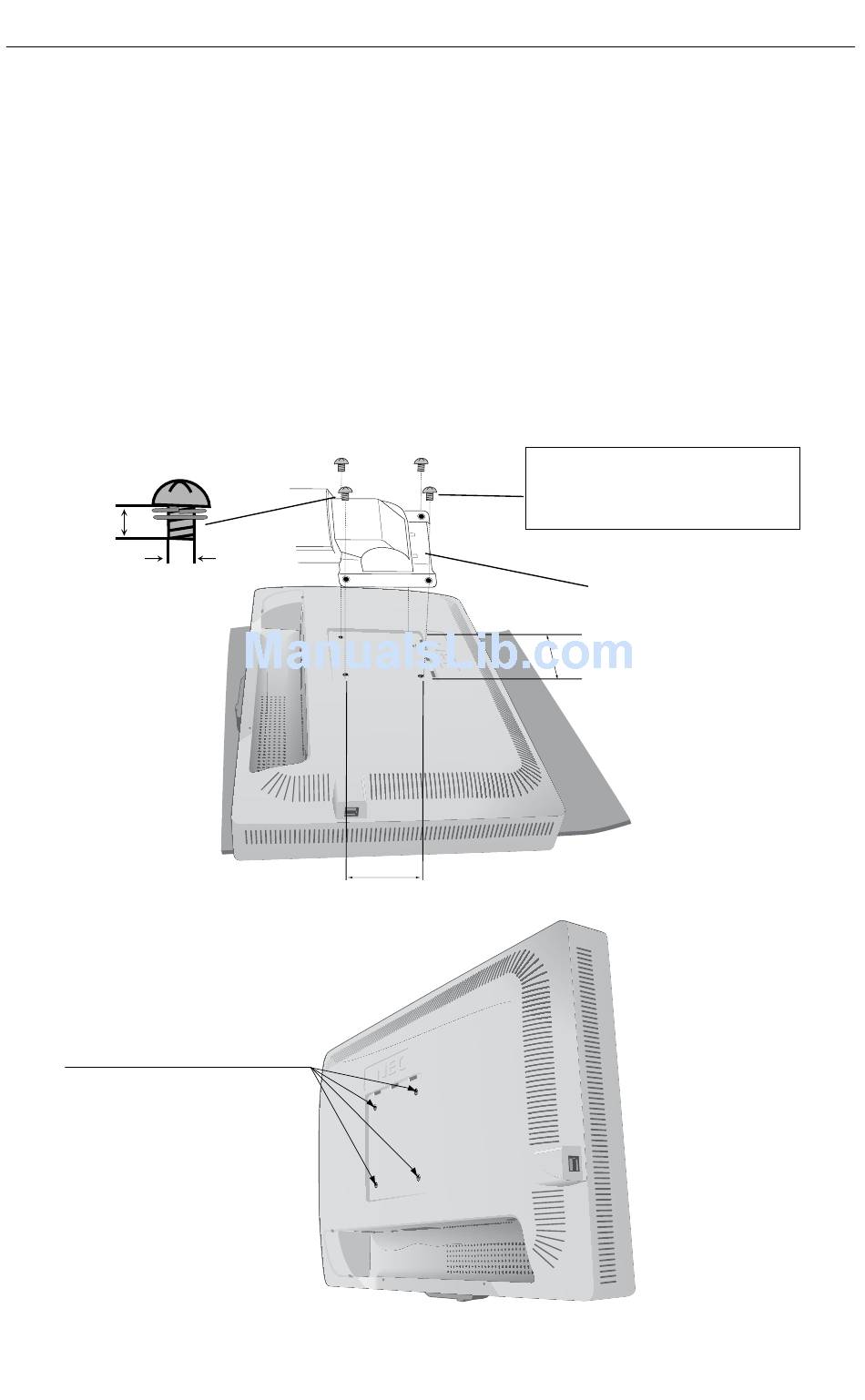

2. Use the 4 screws from the stand to attach the arm to the monitor
(Figure F.).
NOTE: The LCD monitor should only be used with an approved arm
(e.g. GS mark). To meet the safety requirements, the monitor must be
mounted to an arm which guaranties the necessary stability under
consideration of the weight of the monitor.
2mm
M4
4 x 2mm with lock
washer and flat washer
Figure F.
4 Screws (4M)
(Max Depth: 4 mm)

Flexible Arm Installation

00mm
9
NOTE: Please use the screws (4pcs)
that were removed from stand
when mounting flexible arm.
Thickness of Bracket (Arm)
2.0~3.2mm
00mm
Weight of LCD assembly:
8.3 kg MAX
