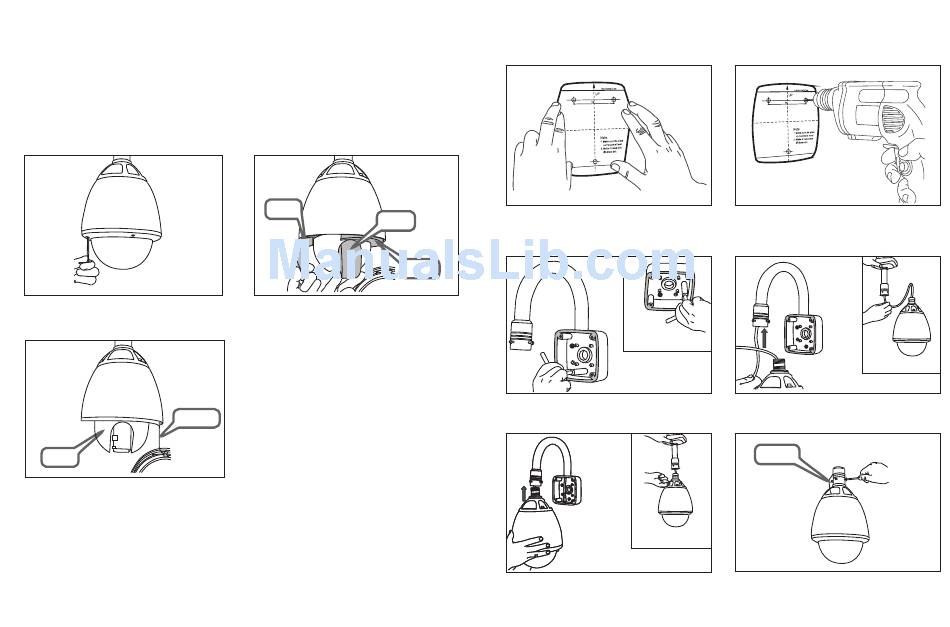

Configure, fix and wire

Before proceeding with installation, the speed dome foam packing
pieces must be removed. Remove the outer dome cover with the tool
supplied and carefully remove the foam packing pieces. When
handling the dome cover, always wear the gloves supplied to avoid
getting fingerprints on the outer dome cover.
1. Remove the foam packing pieces
1. Wearing the gloves and using the supplied
tool, remove the outer dome cover.
Lanyard
Cover
3. Carefully unclip the black inner dome
2. Reassemble the speed dome
Refit the black inner dome cover and outer dome cover. If the
lanyard safety wire was removed, it must be refitted before the dome
cover is fixed.
Foam
Foam
Foam
2. Remove the foam pieces from the camera
module.
3. Fix the bracket
1. Fix the supplied mounting template, taking
account of any pipework, cables, overhangs
etc. that may obstruct the bracket once fitted.
Pendent option
3. Remove the junction box cover. Using the
supplied bolts and tool, firmly fix the bracket.
Pendent option
5. Bring the speed dome up to the bracket.
4
2. After making suitable checks for buried
pipes and cables, drill fixing holes suitable for
the bolts supplied with the speed dome.
Pendent option
4. Feed the speed dome cable through the
bracket.
Lanyard
6. Tighten the three screws to fix the speed
dome and ensure the lanyard safety chain is
properly connected.
