1.4 REAR VIEW

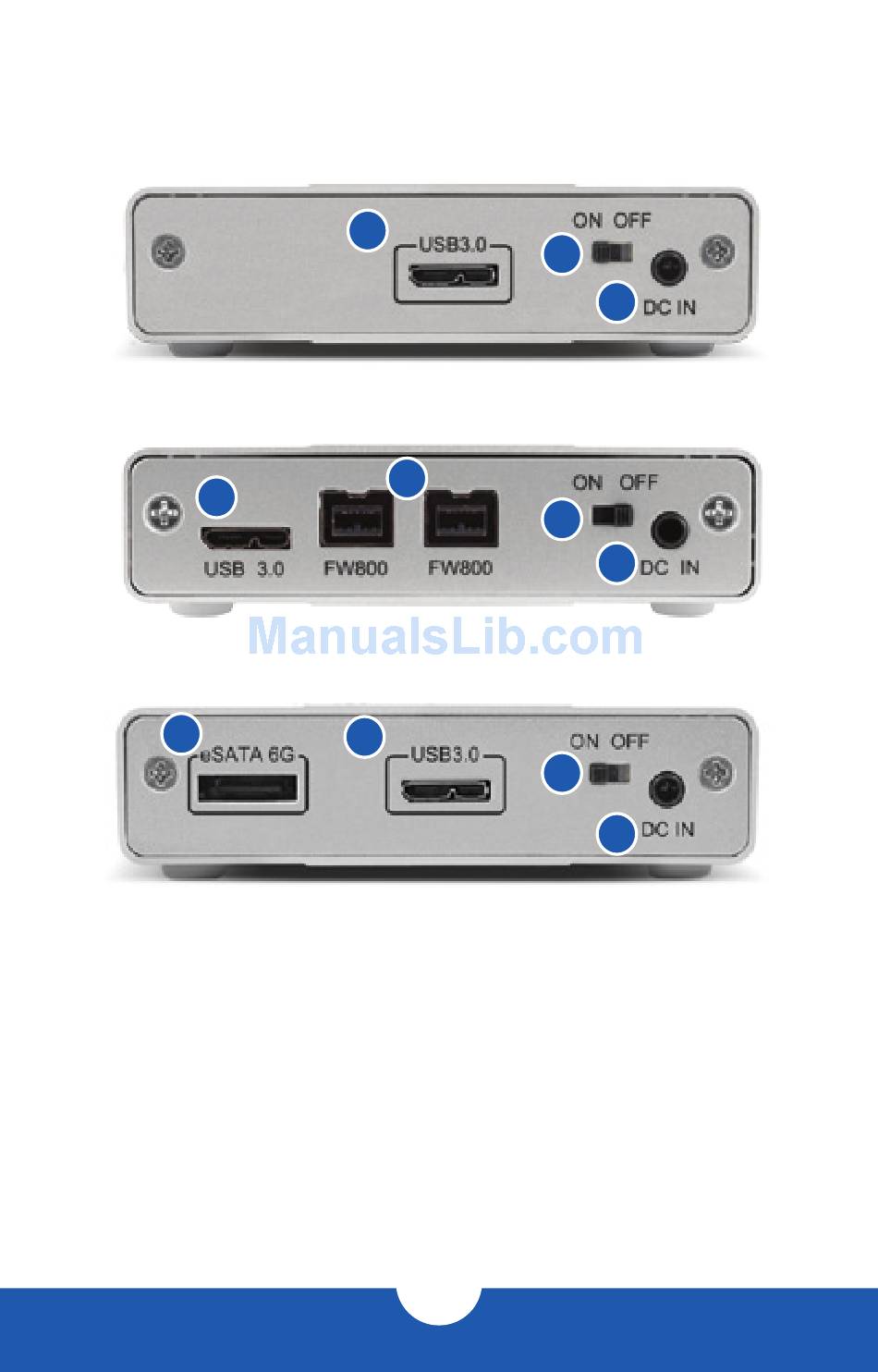

The Mercury Elite Pro mini comes in three port configurations
USB 3.0
USB 3.0 / Firewire 800
USB 3.0 / eSATA
3

1.4. 1 Rear Features

1. USB 3.0 port — Attach the included USB 3.0 (Standard-A to Micro-B) cable here.
2. FireWire 800 ports — Attach the included FireWire 800 cable here. Use the other
FireWire 800 port to daisy-chain other FireWire 800 devices. NOTE: Any device daisy-
chained device must use its own power supply. The Mercury Elite Pro mini cannot
bus-power other devices.
3. eSATA port — Attach the included eSATA cable here. NOTE: The connector is keyed
to use one specific orientation. If the connector does not go in smoothly, do not force
it. Flip it over and re-insert it in the port.
4. On/off switch — Turn on and off the Mercury Elite Pro mini here.
5. Power input — Connect the optional 5V power adapter here (sold separately).
