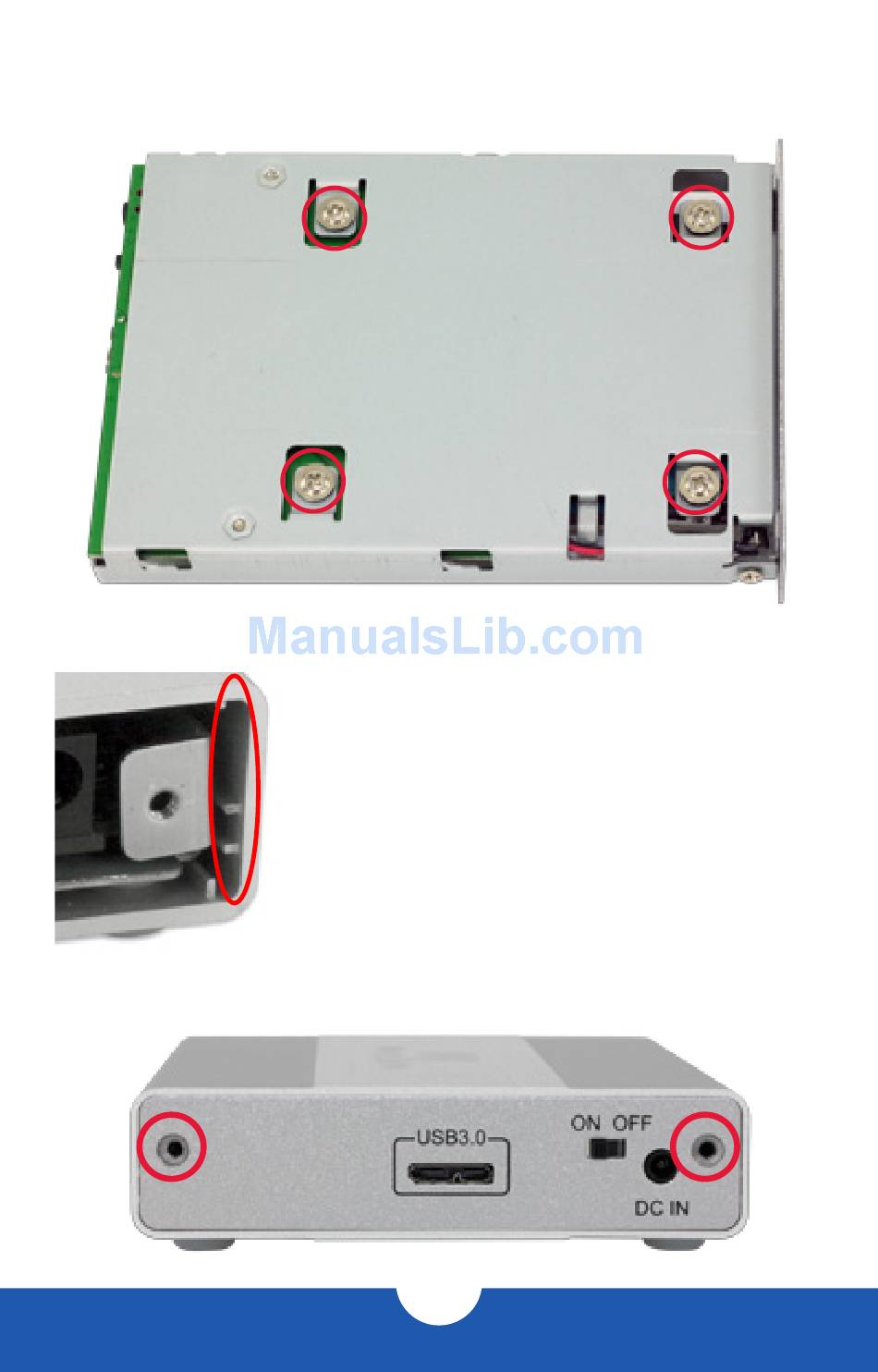

7. Using a Phillips screwdriver, insert the four included screws into the screw holes to
fasten the drive to the inner chassis (shown below). When this is done, turn the inner
chassis back over.
9. Using a Phillips screwdriver, attach the back plate as shown to complete the assembly.
OWC MERCURY ELITE PRO MINI
8. Slide the inner chassis back into the outer enclosure.
Note that the inner chassis can slide in either end of the
outer enclosure, but the rails on one end of the outer chas-
sis are notched, as shown to the left. This allows the back
plate to sit flush when attached.
7
DEvICE SETUP
