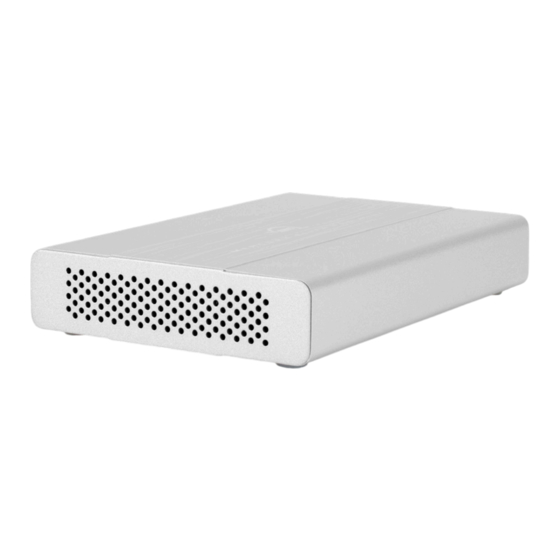

OWC Mercury Elite Pro Mini Assembly Manual & User Manual
Hide thumbs
Also See for Mercury Elite Pro Mini:
- Assembly manual (28 pages) ,
- Assembly manual & user manual (24 pages) ,
- Quick start manual (10 pages)
Related Manuals for OWC Mercury Elite Pro Mini
Summary of Contents for OWC Mercury Elite Pro Mini
- Page 1 Assembly Manual & User Guide Up to 540MB/s Bus Powered USB 3.1 Gen 2 USB 3.1 Gen 1 eSATA Mac & Windows (Type-C) (micro-B)
-
Page 2: Table Of Contents
1.4 Rear View ................3 1.5 Usage Notes ................3 Device Setup 2.1 Quick Start ................4 2.2 Assembly ................4 Support Resources 3.1 Troubleshooting ..............7 3.2 About Data Backup ...............7 3.3 Online Resources ..............7 3.4 Contacting Technical Support ..........7 OWC Mercury Elite Pro mini Contents... -
Page 3: Introduction
The images and descriptions may vary slightly between this manual and the unit shipped. Functions and features may change depending on the firmware version. The latest product details and warranty information can be found on the product web page. OWC’s Limited Warranty is not transferable and subject to limitations. OWC Mercury Elite Pro mini... - Page 4 General Use Precautions - Read this guide carefully before using the OWC Mercury Elite Pro mini - Do not place objects on top of the device. - To avoid damage, do not expose the device to temperatures outside the following ranges: Environmental (Operating) - Temperature (°F): 32°...
-
Page 5: Rear View
- Even if the optional 5V power adapter is not connected, the ON/OFF switch must be in the “ON” position to use the Mercury Elite Pro mini. - For the safe removal of your drive and to ensure that no data is lost, always eject or unmount the corresponding disk(s) from your operating system before powering off. -
Page 6: Device Setup
2.1 Quick Start Follow the steps below to use the OWC Drive Guide utility to format your Mercury Elite Pro mini for Mac. If you installed your own drives, please use the formatting method you are most familiar with or use our recommended formatting tips: www.owcdigital.com/format... - Page 7 7. To affix the drive to the inner chassis, insert the four screws (included) into the screw holes, then fasten them using a Phillips driver. When this is done, turn over the inner chassis. OWC Mercury Elite Pro mini Device Setup...
- Page 8 Step 3, otherwise the back plate will not sit flush with the enclosure. 9. Seat the back plate as shown and use a Phillips driver to re- affix the two screws that you removed in Step 1. This completes the assembly process. OWC Mercury Elite Pro mini Device Setup...
-
Page 9: Support Resources
To ensure that your files are protected and to prevent data loss, we strongly suggest that you keep two copies of your data: one copy on your Mercury Elite Pro mini and a second copy on either your internal drive or another storage medium, such as an optical backup, or on another external storage unit. - Page 10 Warranty: The OWC Mercury Elite Pro mini has a 3 Year OWC Limited Warranty if it was bundled with a drive. Mercury Elite Pro mini enclosures that do not ship with drives have a 1 Year OWC Limited Warranty. For up-to-date product...
