Nuvico SD-z35 Instruction Manual

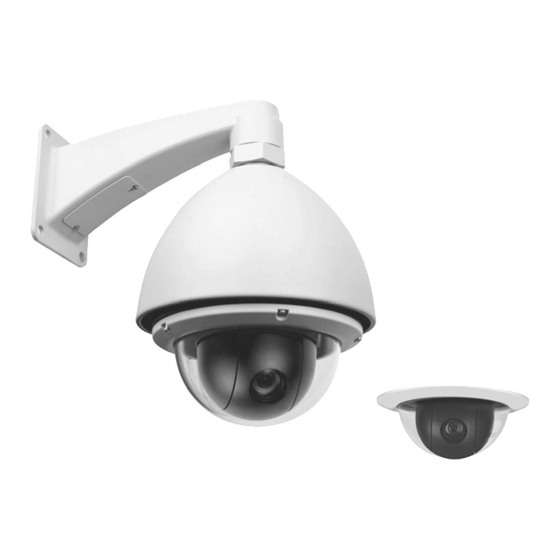

Sd series ptz speed dome cameras
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
0
PTZ SPEED DOME CAMERAS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD-z35 and is the answer not in the manual?

Questions and answers

Related Manuals for Nuvico SD-z35

Summary of Contents for Nuvico SD-z35

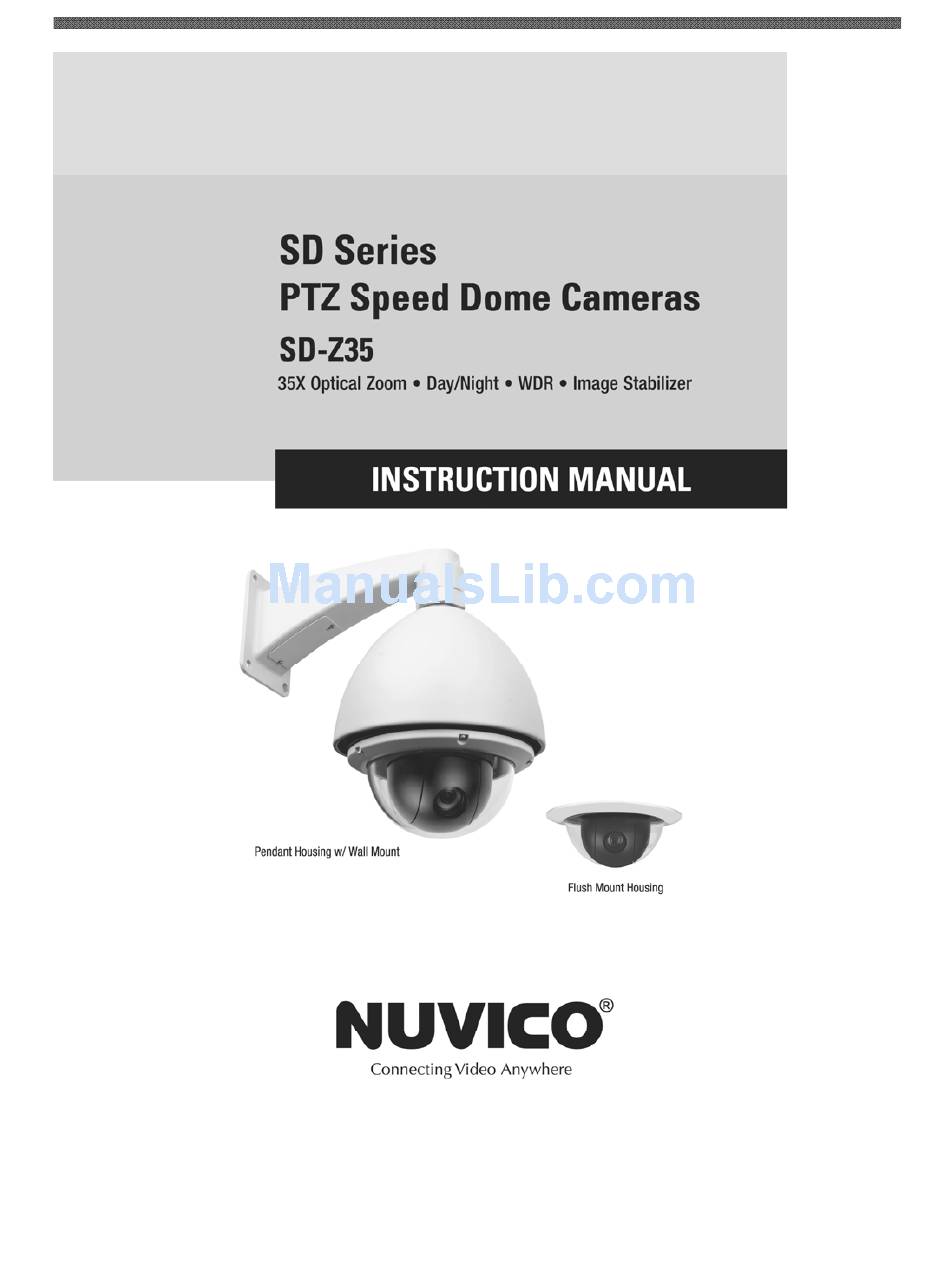

  • Page 1 PTZ SPEED DOME CAMERAS...

  • Page 2: Content Verification

    Before installing the controller, please make sure that the following items are included in the box: 1. Speed Dome Camera 2. Pendant Housing & Wall Mount 3. Instruction Manual If any of these materials are missing, please contact the vendor or NUVICO customer help desk immediately. PTZ SPEED DOME CAMERAS...

  • Page 3: Disclaimer

    NUVICO. • NUVICO makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the Speed Dome Cameras, peripheral devices, or unapproved/unsupported devices.

  • Page 4: Warning And Caution

    WARNING AND CAUTION WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...

  • Page 5: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.

  • Page 6: Important Safeguards

    IMPORTANT SAFEGUARDS 1. Read these instructions. 2. Heed all warnings. 3. Follow all instructions. 4. Do not use this equipment near water. 5. Clean only with dry cloth. 6. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

  • Page 7: Table Of Contents

    TABLE OF CONTENTS DISCLAIMER........................2 WARNING AND CAUTION..................... 3 FCC COMPLIANCE STATEMENT ................. 4 CE COMPLIANCE STATEMENT ................... 4 IMPORTANT SAFEGUARDS ..................5 I. INTRODUCTION......................8 Features ..............................8 II. INSTALLATION AND CONFIGURATION ..............9 2.1 Typical System Configuration ......................9 2.2 Basic Configuration of Speed Dome Camera System ..............
  • Page 8 3.4.6 SPECIAL (MENU CAMERA SPECIAL) ........................39 3.4.6.1 BACK LIGHT (MENU CAMERA SPECIAL BACK LIGHT)................39 3.4.6.2 SHARPENSS (MENU CAMERA SPECIAL SHARPNESS) ................39 3.4.6.3 DIGITAL ZOOM (MENU CAMERA SPECIAL DIGITAL ZOOM) ..............39 3.4.6.4 PROGRESSIVE (MENU CAMERA SPECIAL PROGRESSIVE MODE) ..............39 3.4.7 CAMERA DEFAULT (MENU => CAMERA =>CAMERA DEFAULT) ................39 3.5 SETUP (MENU =>...

  • Page 9: Introduction

    I. INTRODUCTION Features The Speed Dome Camera features a high resolution EX-View HAD CCD imager for enhanced lowlight sensitivity. User friendly, on-screen pull-down menus and short-cuts make it easy to setup and program functions. System information aides troubleshooting by displaying the hardware and software version of the camera’s firmware version, baud rate, and protocol.

  • Page 10: Installation And Configuration

    II. INSTALLATION AND CONFIGURATION 2.1 Typical System Configuration Additional Speed Dome joystick controllers and a variety of external switching devices such as multiplexers (MUXes) and Digital Video Recorders (DVRs) may be incorporated to accommodate the needs from a small to a large surveillance/security system. Figure 1 illustrates sample installation.

  • Page 11: Basic Configuration Of Speed Dome Camera System

    2.2 Basic Configuration of Speed Dome Camera System Figure 2 - Basic Installation Diagram PTZ SPEED DOME CAMERAS PTZ SPEED DOME CAMERAS...

  • Page 12: Connecting The Speed Dome Directly Into The Dvr

    2.3 Connecting the Speed Dome directly into the DVR • Locate the RS485 + & - conductor wire from the Speed Dome Camera. • Connect the + & - into the Tx+ & Tx- ports of the DVR. Tx+ & Tx- ports can be found in the rear part of the DVR.

  • Page 13: Connecting The Speed Dome Into The Controller Via J-Box

    2.4 Connecting the Speed Dome into the Controller via J-box Figure 4 - Camera into Controller PTZ SPEED DOME CAMERAS...

  • Page 14: Connecting Both Speed Dome And Dvr Via J-Box

    2.5 Connecting Both Speed Dome and DVR via J-box Figure 5 - Connecting Camera & DVR into Controller PTZ SPEED DOME CAMERAS...
  • Page 15 The dome camera must be installed by qualified service personnel. Before installing the dome camera system, this instruction manual must be read thoroughly and understood fully. Dome cameras must be set up properly before starting the installation. This involves properly setting configuration switches. Figure 6 shows the location of these switches.

  • Page 16: Principle Of Termination

    2.6 Principle of Termination Every device that is connected at the end of the communication data line must be terminated by either the DIP switch setting or an appropriate device such as a termination jumper to prevent potential control signal errors. See Figure 7 for termination switch settings and Figure 8 for examples of devices requiring termination.
  • Page 17 Figure 8 - Termination Diagram PTZ SPEED DOME CAMERAS...

  • Page 18: Dome Camera Address (Id)

    2.7 Dome Camera Address (ID) Each dome camera must have a unique address (ID). Identical IDs on the same line may damage the control circuit caused by an electrical short. When installing multiple dome cameras or a DVR, it is recommended that the dome camera ID’s be identical to the camera port of the DVR.

  • Page 19: Setting Protocols

    2.8 Setting Protocols A Speed Dome camera is capable of negotiating with multiple protocols if the communication speed is matched (same baud rate i.e., 9600 bps). See Figure 10 for the appropriate protocol switch settings. Note: Consult service personnel if a dome camera is installed with a device other than a recommended Speed Dome Controller.

  • Page 20: Connections

    2.9 Connections • How to Connect RS485 The dome camera has a built-in RS-485/422 receiver so that it can be controlled remotely by an external control device such as a joystick controller or a DVR. RS-485/422: Connect the TXA (Tx+) and TXB (Tx-) of the RS485/422 control devices (KBD, DVR…) to RXA(RX+), RXB(RX-) of the dome camera.

  • Page 21: Mounting The Dome Camera

    3.0 Mounting the Dome Camera Once all DIP switches are set properly and all external connections are made, the dome camera can be mounted. The Speed Dome camera is designed to mount on a structural body supporting loads up to 5 Kg. See Figure 11. YELLOW STICKER YELLOW STICKER Left Hook...

  • Page 22: Power On And Boot-Up Sequence

    3.1 Power on and Boot-up Sequence When the power is applied to the dome camera, it will start the boot-up sequence. When boot-up is done, the following information is displayed on the monitor screen. RAM TEST CHECK NO. : OK! CHECK AAAA : OK! CHECK 5555 : OK! SD SERIES...

  • Page 23: Program & Operation

    III. PROGRAM & OPERATION Dome Camera Selection Prior to start programming or operating a dome camera, please make sure that both the camera and the joystick controller are communicating. In order for changes to take effect for a camera, particular camera’s ID must be selected on the controller. Example: Pressing 1 , 6 and CAM key sequentially will select dome camera 16.

  • Page 24: Home Function (Menu =>Functions => Home Function)

    Select the FUNCTIONS and then move the joystick to the right to access FUNCTIONS menu. FUNCTIONS HOME FUNCTION PRESET PATTERN SCAN TOUR EXIT 3.1.1 HOME FUNCTION (MENU =>FUNCTIONS => HOME FUNCTION) After HOME FUNCTION item has been selected, follow the directions below to set HOME function.

  • Page 25: Preset (Menu => Functions => Preset Shortcut:prst)

    6. Select Function Number by pulling the Joystick down, and twist the Joystick to the CCW/CW (or turn right/left). The executable function number will be scrolled. If selected function is not programmed, it won’t change. Go to setup function first. 7.
  • Page 26 PRESET 01/31 NO. F I B W TITLE 001 A A F O xxxxxxxxxxxxxxxx 002 M M O F ---------------- 003 - - - - ---------------- 004 - - - - ---------------- 005 - - - - ---------------- 006 - - - - ---------------- 007 - - - - ---------------- 008 - - - - ---------------- PREV...

  • Page 27: Pattern (Menu => Functions => Patterns Or Shortcut: Ptrn)

    SHORTCUT TO PROGRAMMING PRESETS. Select direction of the camera, zoom and focus to be programmed, then press No. (1~248), and then press SHFT, PRST subsequently. The current view will be stored to the selected preset number if position is empty. If selected preset number is not empty, “PRESET EXISTING”...

  • Page 28: Scan (Menu => Functions => Scan Or Shortcut: Scan)

    5. Scroll down to the Save and Exit option and move the Joystick to the right to save and exit. 6. Naming the Pattern can be done by twisting the Joystick. Rotate the handle clockwise or counterclockwise to scroll through the alphanumeric characters, move the handle to right or left to select next or previous space.
  • Page 29 Follow the steps below to program Scans. 1. Press the SCAN key to enter Auto Scan menu directly. (Or MENU => FUNCTIONS => SCAN). 2. Select an Auto Scan number by moving the Joystick left or right. 3. Twist the Joystick to enter the title by scrolling through the alphanumeric characters and move the handle to the right or left to move to the next space.

  • Page 30: Tour (Or Menu => Functions => Tour, Shortcut: Tour)

    MENU => FUNCTIONS => TOUR, ShortCut: TOUR) 3.1.5 TOUR (or There are 8 programmable Tours. Each Tour consists of up to 8 Preset positions, Patterns, Scans or other Tours. Using second-level Tours, it can be expanded up to 56 functions in a single Tour. However tours in the second level Tour will be ignored when called by the first level Tour.
  • Page 31 Follow the steps below to program the Tours: 1. Press MENU => FUNCTIONS => TOUR, Short Cut: TOUR MENU to display the main menu on the monitor. No. + SHFT+TOUR will open directly Tour No. 2. Choose an empty location of function by moving the Joystick up or down. 3.

  • Page 32: Alarm (Menu => Alarm)

    3.2 ALARM (MENU => ALARM) MAIN MENU FUNCTIONS ALARM SCREEN CAMERA SETUP EXIT Highlight ALARM in the main menu and move the joystick to the right to access ALARM setup. ALARM SETUP NO FUNC PRI OUT HLD LATCH 01 P01 OFF OFF 001 02 048 OFF OFF 001...

  • Page 33: Screen

    1. Press Menu to display the main menu on the monitor. Select the Alarm option by moving the Joystick up/down and then move to the right to enter the detail menu. 2. Select the alarm input number by moving the Joystick up or down and select the column to setup.

  • Page 34: Language (Menu => Screen => Language)

    3.3.1 LANGUAGE (MENU => SCREEN => LANGUAGE) Moving the joystick handle to the right to select LANGUAGE options. LANGUAGE SETUP LANGUAGE ENGLISH SAVE AND EXIT Preferred language will be scrolled by moving the joystick to the right on LANGUAGE ENGLISH. 3.3.2 PRIVACY ZONE (MENU =>...

  • Page 35: North Direction (Menu => Screen => North Direction)

    1. Select the Privacy Zone option by moving Joystick Up or Down and move the joystick to right to enter the detail menu. 2. Select the privacy zone number by moving the Joystick up or down. 3. To enter the zone name, rotate the handle clockwise or counterclockwise. Select alphanumeric characters by rotating the handle.

  • Page 36: Camera Title (Menu => Screen => Camera Title)

    1. Press MENU => SCREEN => ZONE TITLE to display zone title menu on the monitor. 2. Select the zone number by moving the Joystick up or down. Select Start, End or number column to be set by moving the handle to the right or left. The selected column will be highlighted.

  • Page 37: Camera (Menu => Camera)

    ZONE TITLE: turn on or off the zone title display. NORTH DIRECTION: turn on or off the azimuth direction display. DOME POSITION: turn on or off the coordinates display. DOME ID: turn on or off the dome ID display. ZOOM MAGNIFICATION: turn on or off the current zoom magnification level display. FAN DETECTION: turn on or off the fan icon display.

  • Page 38: Wb (White Balance) (Menu => Camera => Wb Control)

    3.4.2 WB (white balance) (MENU => CAMERA => WB CONTROL) WB SETUP MODE AUTO R GAIN : B GAIN : EXIT MODE AUTO / MANUAL RGAIN 0 ~ 255 BGAIN 0 ~ 255 RGAIN / BGAIN modes are controllable only in MANUAL Mode Moving the Joystick to the right or left to change.

  • Page 39: Night Shot Menu (Menu => Camera =>Night Shot)

    3.4.4 NIGHT SHOT MENU (MENU => CAMERA =>NIGHT SHOT) The NIGHT SHOT option removes the IR Cut filter of the camera and makes the camera sensitive to near infrared. If NIGHT SHOT mode of the selected camera is set to Manual, 10+ ON will enable the NIGHT SHOT mode, 10+ OFF will turn off the NIGHT SHOT mode.

  • Page 40: Special

    3.4.6 SPECIAL (MENU CAMERA SPECIAL) SPECIAL MENU BACK LIGHT : OFF SHARPNESSS : 5 HZ DIGITAL ZOOM : OFF PROGRESSIVE MODE : ON EXIT 3.4.6.1 BACK LIGHT (MENU CAMERA SPECIAL BACK LIGHT) Objects in front of bright backgrounds will be clearer with BLC ON. 3.4.6.2 SHARPENSS (MENU CAMERA SPECIAL...

  • Page 41: Setup (Menu => Setup)

    3.5 SETUP (MENU => SETUP) CONFIGURATION MENU FLIP : ON/OFF SPEED : FAST PANNING RANGE TILT OVER ANGLE CALIBRATION LINE LOCK CONTROL FACTORY DEFAULT ERASE DATA SYSTEM INFORMATION EXIT 3.5.1 FLIP (MENU => SETUP => FLIP) When the Speed Dome camera is mounted on a ceiling, it can track a moving target in a path directly below the camera: ON - When the camera reaches the moving object directly above the floor, the dome camera tracks the object smoothly with a digitally corrected image.

  • Page 42: Tilt Over Angle (Menu => Setup => Tilt Over Angle)

    3.5.4 TILT OVER ANGLE (MENU => SETUP => TILT OVER ANGLE) This option is used to set the limit of the horizontal view angle so that the trim ring or ceiling does not obstruct the horizontal image when zooming out (wide angle). ON: In some installations it is desirable for the dome camera to be able to see above the horizon.

  • Page 43: Line Lock (Menu => Setup => Line Lock)

    3.5.6 LINE LOCK (MENU => SETUP => LINE LOCK) LINE LOCK SETUP MODE INTERNAL PHASE (0~255) EXIT MODE INTERNAL / EXTERNAL Adjusts phase of picture with other PHASE 0~255 cameras in EXTERNAL mode. EXIT (ESC TO EXIT) 3.5.7 FACTORY DEFAULT (MENU => SETUP => FACTORY DEFAULT) FACTORY DEFAULT ARE YOU SURE : (Y/N) YES : ENTER OR MENU KEY...

  • Page 44: System Information (Menu => Setup => Erase Data)

    3.5.9 SYSTEM INFORMATION (MENU => SETUP => ERASE DATA) SYSTEM INFORMATION CAMERA TYPE : XXXXXXX H/W VERSION : V1.00 ROM VERSION : V1.00E PROTOCOL : EZ BUADRATE : 9600BPS EXIT This screen shows information of the dome camera for service or trouble shooting PTZ SPEED DOME CAMERAS...

  • Page 45: Appendix A - Specifications

    APPENDIX A — SPECIFICATIONS Lens Camera(SD-Z18N/SD-Z18P) Image Sensor 1/4" EX-view Progressive Scan CCD (Sony) NTSC : 768x494 Approx. 380K pixels Picture elements PAL : 752x582 Approx. 440K pixels Horizontal Resolution 520 / 520 lines(NTSC/PAL) 35x optical zoom with auto focus Lens 12x digital zoom F1.4 to F4.2, f=3.4mm to 119mm...
  • Page 46 Flip Rotate 180° at bottom of tilt Autoscan 16 auto scan include vector scan/1 Auto Pan Preset Position 248 positions with camera status (16-character title) Tour 8 tours Pattern 4 patterns, 240 second On-Screen Display Displays camera ID and area name on screen Environment Operating temperature 0°C to 50°C (32°F to 122°F)

  • Page 47: Appendix B - Troubleshooting

    Appendix B — Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual. Isolate the problem from the equipments in the system and refer to the equipment manual for further information. Problem Solution Verify that power is connected to all components in the system.

  • Page 48: Glossary

    Glossary ALARM ACTIONS The assigned responses of the dome camera when there is input status change. The dome may call Presets for each of the eight inputs. The dome reports the alarm states to the Keyboard controller for processing. AREA TITLE It is the name of the horizontal sector from a certain start point to end point of the selected dome.
  • Page 49 INPUT DEVICES External devices that provide information about the condition of system components that connect to the inputs on the dome camera. Typical input devices include door contacts, motion detectors and smoke detectors. IR MODE A feature of the camera that permits manual or automatic switching between color and IR (black-and-white) operation.
  • Page 50 WHITE BALANCE Adjustments in the color hue (red and blue) gains for a camera so that true white appears white in the image. It is normally compensated for by the automatic gain control. In some lighting conditions, you may need to manually adjust the red and blue settings for optimal viewing.
  • Page 51 Notes PTZ SPEED DOME CAMERAS...
  • Page 52 Notes PTZ SPEED DOME CAMERAS...
  • Page 53 Notes PTZ SPEED DOME CAMERAS...
  • Page 54 Notes PTZ SPEED DOME CAMERAS...
  • Page 55 Notes PTZ SPEED DOME CAMERAS...
  • Page 56 PTZ SPEED DOME CAMERAS...
