OpenEye OE-C8213 Quick Start Manual

CONNECTIONS

24vAC / PoE+
1 2
4
3

PRODUCT FEATURES

Camera
Maximum Resolution
2048x1536
Frame Rate at
30FPS - H.264/H.265
Maximum Resolution
Total Streams Quad Streaming
ONVIF Profile S / G / T
Day/Night True Day/Night
Wide Dynamic Range True WDR
Liberty Lake, WA, USA
509.232.5261
openeye.net
For network and PoE+
RJ-45 1 1
connections
Power supply to camera for
Power (24vAC) 2 2
non-PoE installations
Alarm and RS-485
I/O Connections 3 3
I/O connections
To restore the camera to
factory defaults:
1. Disconnect power for 30
seconds.
Reset Button 4 4
2. Reconnect power and
wait 30 seconds.
3. Press the reset button
with a proper tool for 20
seconds.
Supports up to 128GB
microSD card for Edge
storage.
MicroSD Card Slot
(under dome)
Do not add or remove the
microSD card when the
camera is powered on.
Environmental and Power

Power

25.4W
Consumption
Input
802.3at PoE+ / AC 24V ± 10%
Voltage
Operating
-40°~122°F (-40°~50°C )
Temperature
IP Rating IP66
Impact Rating IK10
Copyright ©2021 OpenEye.
All Rights Reserved. Information contained in this
document is subject to change without prior notice.
OpenEye does its best to provide accurate information but
cannot be held responsible for typos or mistakes.
QUICK START GUIDE

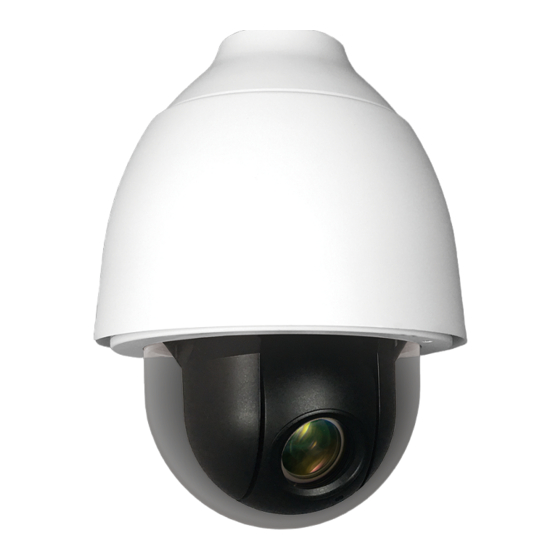

OE-C8213 | 3MP IP PTZ Dome Camera
This quick start guide provides only basic information on the camera's settings
and operation for initial installation. Please read the user manual for optimal
camera configurations.
36832AH
