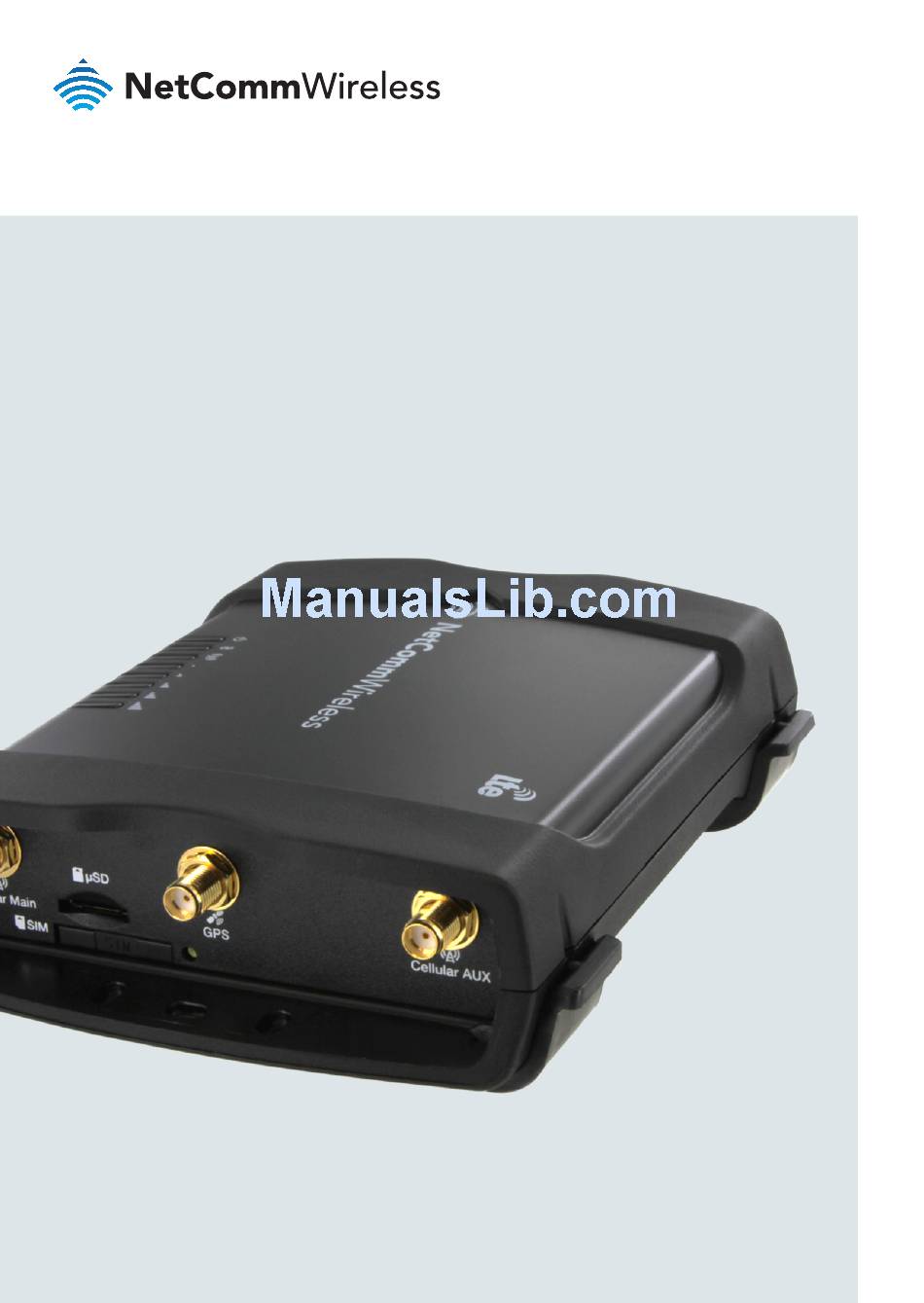

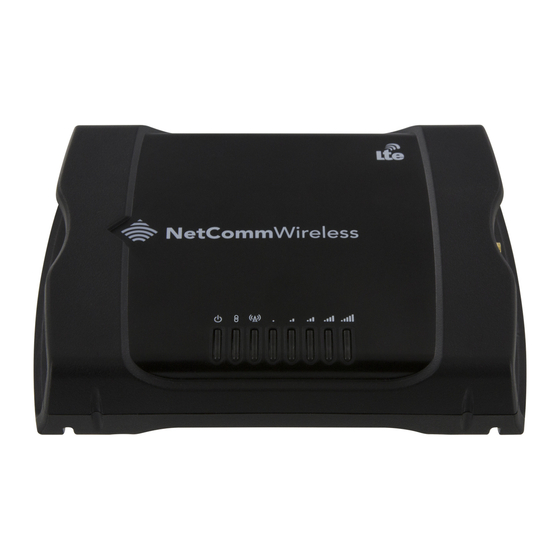

- Page 1 Quick Start Guide 4G M2M Router NTC-140-02...
-
Page 2: Package Contents
This quick start guide is designed to get you up and running quickly with your new NTC-140-02 router. More advanced set up instructions are provided in the user guide which can be opened by clicking on the Help tab on the Web-UI, or can be downloaded from http://www.netcommwireless.com/product/m2m/ntc-140... -
Page 3: Device Overview
NTC-140-02 - 4G M2M Router Device overview LAN/WAN µSD Cellular Main Cellular AUX ITEM DESCRIPTION 3G/4G antenna connectors SMA female connector for 3G/4G antennas. GPS antenna connector SMA female connector for GPS antenna. SIM card slot Insert SIM card here. - Page 4 LAN/WAN ITEM DESCRIPTION Mini USB 2.0 Provides connectivity for optional external storage or a USB Ethernet OTG port dongle. Supplies up to 0.5A to connected device. Reset button Press and hold for less than 5 seconds to reboot to normal mode. The LEDs are green and extinguish in sequence to indicate that the router will reboot normally if the button is released during this period.
-
Page 5: Overview Of Led Indicators
NTC-140-02 - 4G M2M Router Overview of LED indicators NAME COLOR STATE DESCRIPTION ICON Power Power off Double flash Powering up Power on Power on in recovery mode Slow flashing Hardware error, such as SIM not inserted. GPS/ GPS function disabled... -
Page 6: Power Supply Cable
Power supply cable The included power supply cable has colour-coded breakout wires which can be terminated to provide power, ignition detection and input/output functionality. The picture below outlines the polarity and functions of the wires. Power Ground (−) Ignition... -
Page 7: Installing Your Device
Cellular AUX Step 2: Attach the antennas The NTC-140-02 router is shipped with caps on the LTE and GPS antenna sockets. To attach the supplied antennas, first remove the antenna socket caps from the Main and Auxiliary antenna sockets by turning them in an anti-clockwise... - Page 8 Step 3: Connect the power and Ethernet cables Connect the included power supply cable to the Molex Mini-Fit™ receptacle and then connect the green and white breakout wires to the ignition and I/O connections as required. Connect the Power (red) and the Ground (black) wires to your power source.
-
Page 9: Step 5: Unlock The Sim Card
NTC-140-02 - 4G M2M Router Admin account Allows updates to general settings. To access the Admin account, use these login details. http://192.168.1.1 or http://my.router Username admin Password admin Enter the username and password for the admin or root manager account and click Log in. -
Page 10: Step 6: Connect To The Internet
Step 6: Connect to the Internet If the SIM Status is OK, the NTC-140-02 router automatically attempts to connect to the Internet by detecting the correct APN and connection details. If automatic configuration was unsuccessful, you must manually enter the connection details. -
Page 11: Step 7: Mount The Router
When selecting a location to mount the NTC-140-02 router, keep in mind that it features high performance antennas designed to provide optimum signal strength in a wide range of environments. You can check the signal strength by observing the colour and number of LEDs illuminated on the front of the device. -
Page 12: Mounting Your Device
Depending on your individual setup, you may need certain components to mount your device correctly, such as additional fasteners and screwdrivers for specific wall or rail mounting. Mounting options The NetComm Wireless NTC-140-02 router can be installed quickly and easily in a variety of locations. MOUNT TYPE DESCRIPTION... - Page 13 NTC-140-02 - 4G M2M Router Wall mount DIN Rail mounting bracket V Bend allows you to snap the DIN bracket onto the middle of a DIN rail rather than sliding it onto the end. Wall Mounted via DIN Rail Bracket...
-
Page 14: Configuring Multiple Devices
Configuring multiple devices To apply your advanced configuration settings to more than one NTC-140-02 router, follow these simple steps. Step 1 Back up your router’s configuration Log in to the web configuration interface, click on the System menu, select System configuration and click on Settings backup and restore. - Page 15 From the Restore saved settings section, click on Choose a file and select the backup configuration file on your computer. Click Restore to copy the settings to the new NTC-140-02 router. The router will apply these settings and inform you it will reboot - click on OK.
- Page 16 Safety and product care Please refer to the user guide for safety and product care information. NETCOMM WIRELESS LIMITED ABN 85 002 490 486 Head Office, 18-20 Orion Road Lane Cove, Sydney, NSW 2066, Australia +61 2 8205 3888 +61 2 9424 2010 m2msales@netcommwireless.com...
