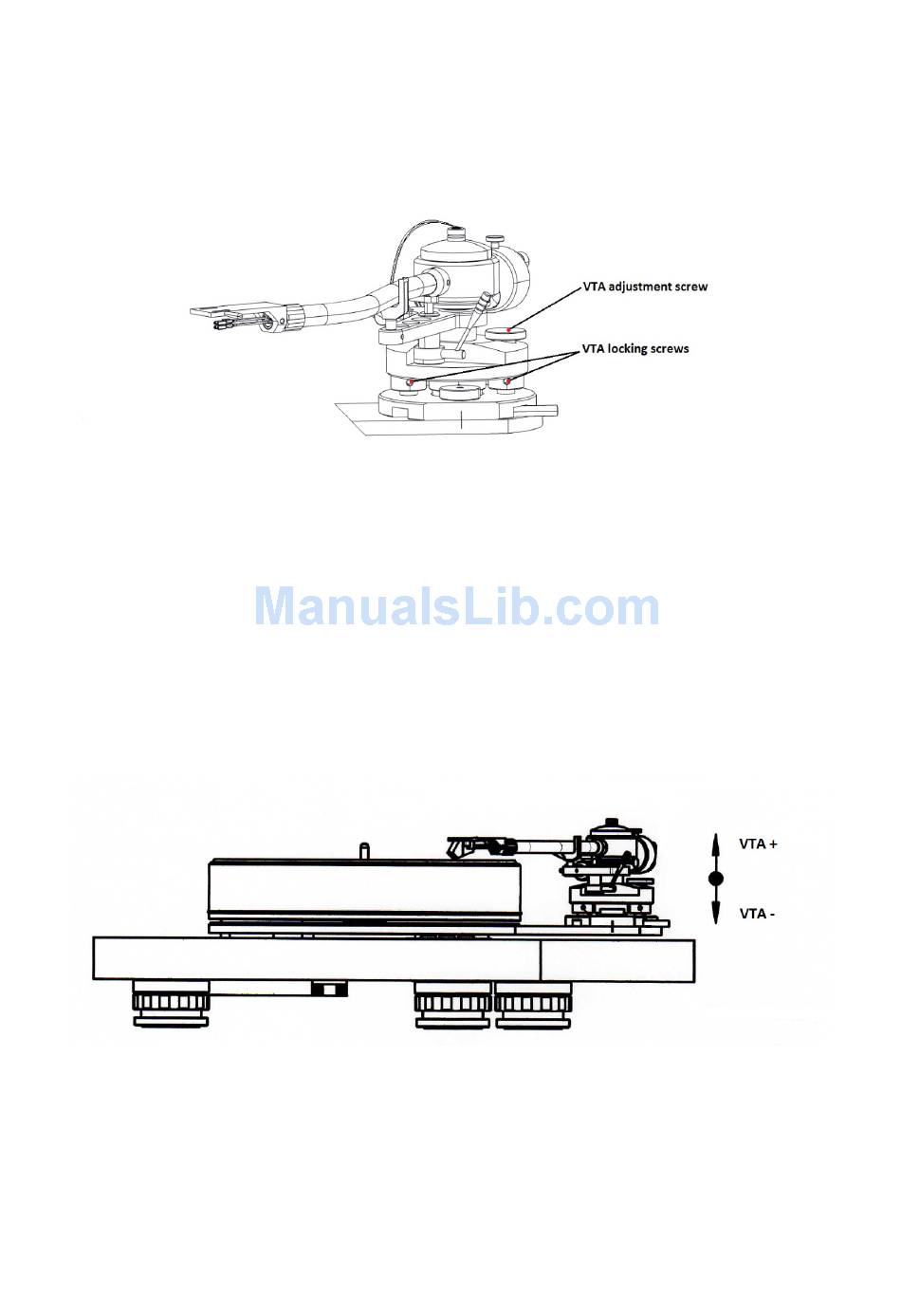

4. Vertical tracking angle adjustment (VTA)

Put a record on the platter. When the needle is lowered into the record groove and the tonearm is not resting
on the tonearm rest, the tube of the tonearm should be parallel to the surface of the record. If it is not, loosen
both VTA locking screws in the tonearm base just enough to allow vertical movement of the arm pillar without
force. By turning VTA adjustment screw set the correct vertical tracing angle. Carefully retighten VTA locking
screws without applying excessive force which would deform the arm pillar.
14
© Pro-Ject Audio Systems · Pro-Ject SIGNATURE 10 · Revision 2015.07.07
