Vitek TRANSCENDENT VTC-TNB4LPRN Quick Start Manual

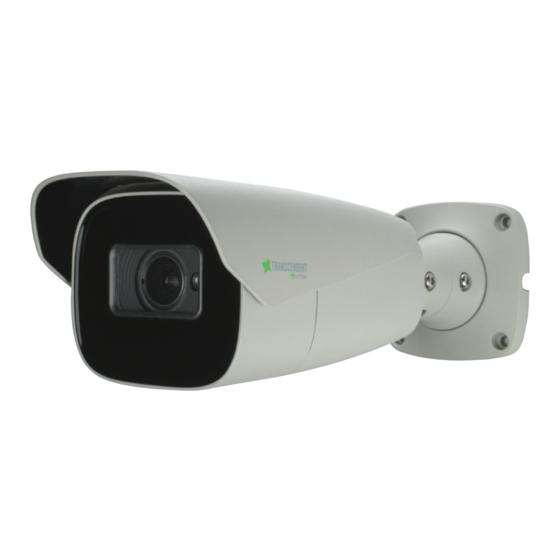

4 megapixel license plate recognition wdr ip motorized bullet camera
Hide thumbs Also See for TRANSCENDENT VTC-TNB4LPRN:
Table of Contents

Advertisement

Quick Links

Download this manual

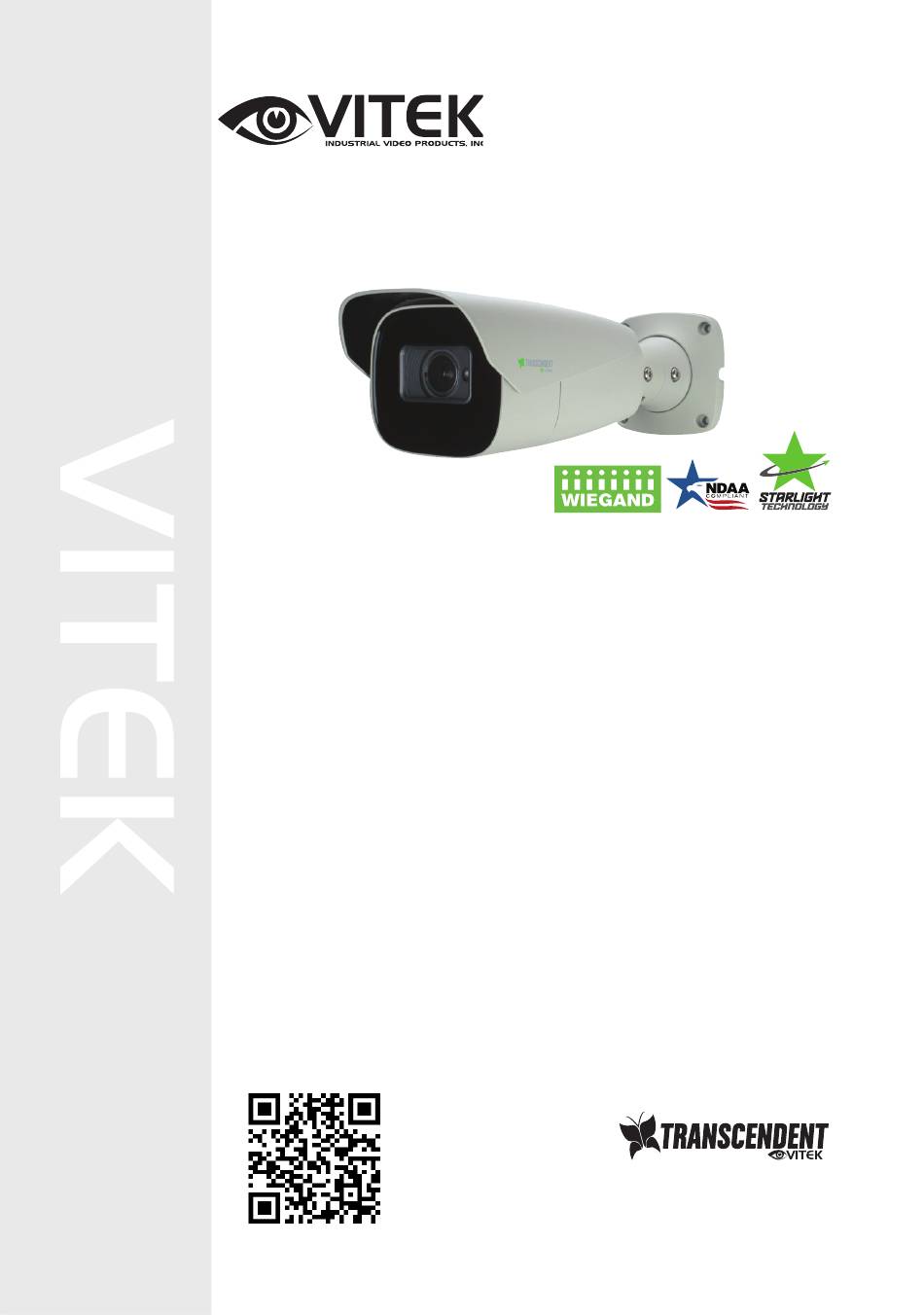

QUICK START GUIDE
FEATURES:
•
1/1.8" 4 MegaPixel Progressive Scan CMOS Sensor
•
Advanced Starlight Technology Offers Dramatically Higher Sensitivity to Light Producing
Color Images in Very Dark & Night Scenes
•
Up to 30fps live view @ 4 MegaPixel (2592 × 1520)
•
8~32mm @F1.6 Motorized Varifocal Lens
•
Matrix IR (up to 325' IR Range)
•
True Wide Dynamic Range (120dB)
•
True Mechanical Day / Night function by ICR
•
XD-DNR (3D & 2D-DNR) Noise Reduction
•
Intelligent Analytics: License Plate Recognition, Vehicle Type Detection, Video Exception
•
10,000 Vehicle Plate Database
•
0-75m/h (120km/h) Capture Speed (Dependant on Installation)
•
Overlay Options: Time, Location, License Plate Information
•
Triple Streaming: H.265+ / H.265 / H.264+ / H.264 / MJPEG
•
1 Ch. Audio In + 1 Ch. Audio Out*
•
1 Ch. Alarm In + 1 Ch. Alarm Out, 1 Ch. CVBS
•
Supports Wiegand Protocol for Advanced Access Control Integrations
•
Remote Viewing via VMS, Web Browsers, and iOS & Android Apps
•
MicroSD Card Slot for Local Recording (256GB)
•
IP67 Weather Resistance
•
Wall Mount Included, Optional Mounts: Junction Box VT-TJB01
[See Additional Mounting Options on pg. 12]
•
12VDC / 24VAC [Dual Voltage] & PoE (Power over Ethernet) Operation Options
[See Power Supply Options on pg. 13]
•
3-Year Warranty
*Please research local, state and federal laws regarding audio surveillance.
VTC-TNB4LPRN
4 MegaPixel License Plate
Recognition WDR IP Motorized
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series
Bullet Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRANSCENDENT VTC-TNB4LPRN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitek TRANSCENDENT VTC-TNB4LPRN

Summary of Contents for Vitek TRANSCENDENT VTC-TNB4LPRN

  • Page 1 VTC-TNB4LPRN Transcendent Series 4 MegaPixel License Plate Recognition WDR IP Motorized Bullet Camera QUICK START GUIDE FEATURES: • 1/1.8” 4 MegaPixel Progressive Scan CMOS Sensor • Advanced Starlight Technology Offers Dramatically Higher Sensitivity to Light Producing Color Images in Very Dark & Night Scenes •...

  • Page 2: Components And Accessories

    Components and Accessories Anchors Hex Wrench Overview * The weather resistant security cap is necessary for outdoor installation. * If PoE is used to power the camera, 12VDC/24VAC power supply is not required. [SEE PG. 13 FOR LIST OF SUGGESTED POWER SUPPLIES FOR THIS MODEL] * Press and hold the reset button for over 10 seconds to restore factory settings.

  • Page 3: Cable Connections

    Cable Connections First connect the weather resistant cap to an ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE, also connect the power cable to an approved 12VDC power supply. weather resistant cap Weather Resistant Network Coupler 1.

  • Page 4: Installation

    Connecting Alarm Input / Output Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: Install the MicroSD Card...
  • Page 5 1. Attach the drill template to the place where you want to install the camera, then drill 4 screw .2” 2.54” holes and 1 cable hole (if you want to route the cables through the mounting base) according to the drill template. 2.54”...
  • Page 6 3. Loosen the screws to adjust the viewing angle of the camera. After that, tighten the screws. Before adjustment, view the image of the camera on a monitor. 4. Press the T or W button to obtain an optimum image 5.

  • Page 7: Lan Configuration

    LAN Configuration Switch Network Cable Network Cable MENU IP Camera Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2.
  • Page 8 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.

  • Page 9: Wan Configuration

    2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download an Active X control. 3. After downloading the Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example.
  • Page 10 DETAILED SPECIFICATIONS: VTC-TNB4LRPN Image Sensor 1/1/8” 4.0 Megapixel Progressive Scan CMOS Image Size 4 MegaPixel (2560 × 1520) Electronic Shutter Manual or Auto, Manual: 1 / 1 s ~ 1 / 100000s Resolution 4 MP (2592 × 1520) / 3 MP (2304 × 1296) / 1080P (1920 × 1080) / 720P (1280 × 720) / D1/CIF (480 × 240) Min.
  • Page 11 DETAILED SPECIFICATIONS CONT’D: VTC-TNB4LPRN Storage Built-in microSD Card Slot - up to 256GB, Network Remote Storage Reset Alarm 1CH Alarm Input, 1CH Alarm Output RS485 Wiegand YES - Supports Wiegand Protocol for Advanced Access Control Integrations [In or Out Configurable] Remote Viewing VMS / Web Browser / Mobile (iOS/Android) Supported Browsers...
  • Page 12 SUGGESTED ACCESSORIES AND RELATED PRODUCTS FOR VTC-TNB4LPRN VT-TJB01 Optional Junction Box VT-TCNMT VT-TPLMT Transcendent Universal Transcendent Universal Pole Mount (reqs. VT-TJB01) Corner Mount (reqs. VT-TJB01) 6.43” 8.47”...
  • Page 13 SUGGESTED ACCESSORIES AND RELATED PRODUCTS FOR VTC-TNB4LPRN Power Supplies for VTC-TNB4LRPN VT-12VDC-2000S - Slim Case 12VDC Transformer 2 AMP - UL Listed VT-24VAC/50 - 24VAC Linear Transformer 50VA - UL Listed VT-1205A-D4B - 4 Output 12VDC Power Center w/Optional Backup Battery - 5 AMP - UL Listed VT-1210A-D9B - 9 Output 12VDC Power Center w/Optional Backup Battery - 10 AMP - UL Listed VT-1230A-D18 - 18 Output 12VDC Power Center - 30 AMP - UL Listed VT-2410A-A9 - 9 Output 24VAC Power Center - 10 AMP - UL Listed...
  • Page 14 FOR VTC-TNB4LPRN ALSO CONSIDER THESE OTHER GREAT TRANSCENDENT IP PRODUCTS! VITEK Network Video Recorders Supporting up to 12MP Resolution & Real Time Video! Pair with VITEK Transcendent Series NDAA Compliant Network Recorders with Built-in PoE and Gen IV. Advanced A.I. Including Face Detection, Target Counting, and Other Fully Programmable Analytics.
  • Page 15 Also Consider Vitek NDAA Compliant Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps Transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.

  • Page 16: Limited Product Warranty

    LIMITED PRODUCT WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
