QUICK START GUIDE
FEATURES
• 1/3" Megapixel Progressive Scan CMOS image sensor
• Up to 30fps live view
• Motorized 3.3-12mm (VTC-TNT2HR4M2 ) & 3.6mm or 2.8mm
Fixed Iris (VTC-TNT2HR3F2 & VTC-TNT2HR4F2) Lens Options
• 2 High Power Infrared LED's
• 120dB Super Wide Dynamic Range (WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (2D-DNR & 3D-DNR) Noise Reduction
• On Board Motion Detection
• H.265/H.264/MJPEG Triple Streaming
• Secondary Video Output (CVBS)
• Remote Viewing via CMS, Internet Explorer, and iOS & Android
Apps
• Minimal Latency with up to 10 simultaneous user connections
• ONVIF Compliant
• IP66 Weather Resistance
• Optional Junction Box Mount Available (VT-TJB01)
• 12VDC & PoE (Power over Ethernet) Operation
VTC-TNT2HR3F2
VTC-TNT2HR4F2
VTC-TNT2HR4M2

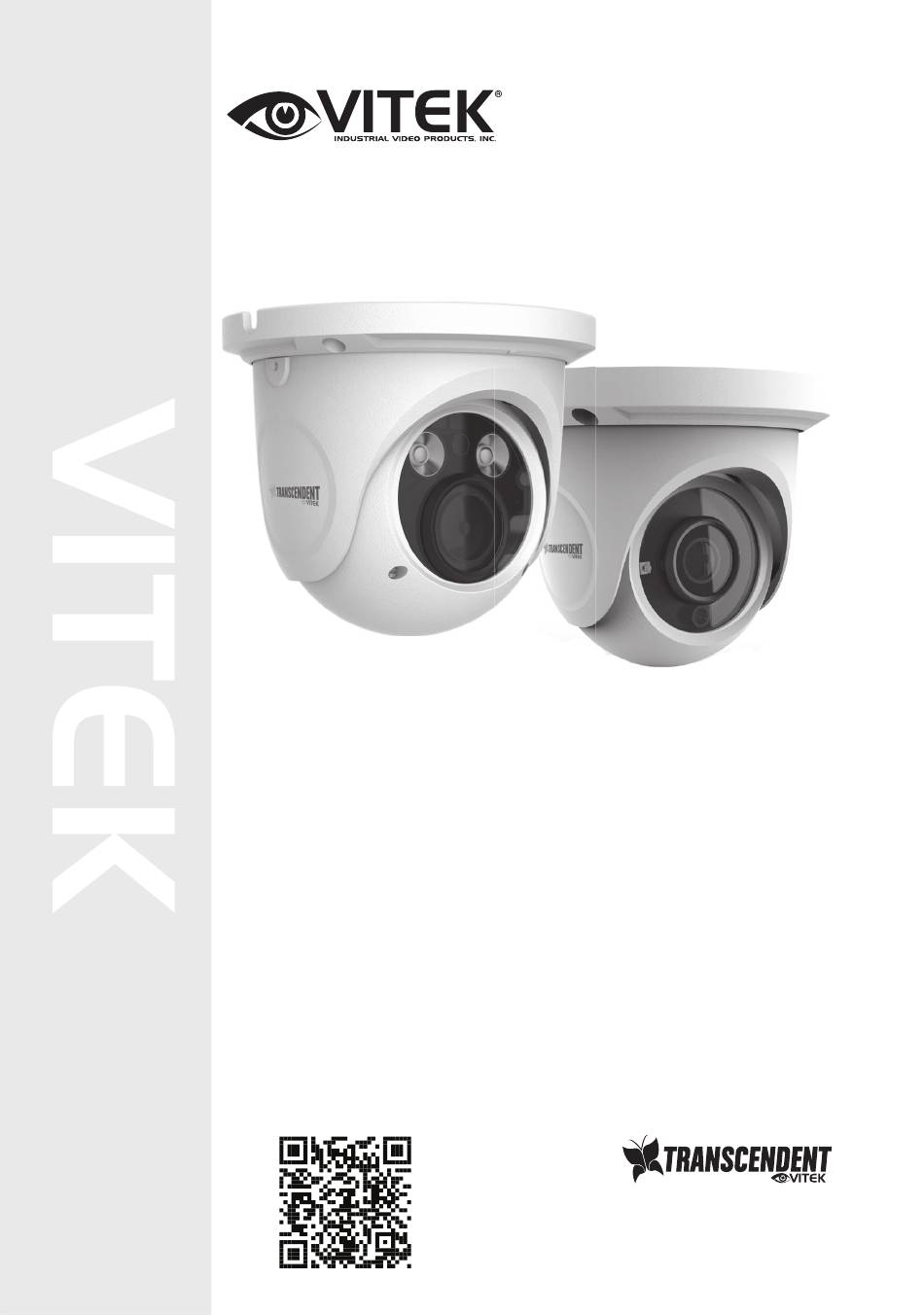

3.0 & 4.0 Megapixel Indoor/
Outdoor WDR IP IR Cameras
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Advertisement
Related Manuals for Vitek VTC-TNT2HR3F2
Summary of Contents for Vitek VTC-TNT2HR3F2
- Page 1 • 1/3” Megapixel Progressive Scan CMOS image sensor • Up to 30fps live view • Motorized 3.3-12mm (VTC-TNT2HR4M2 ) & 3.6mm or 2.8mm Fixed Iris (VTC-TNT2HR3F2 & VTC-TNT2HR4F2) Lens Options • 2 High Power Infrared LED’s • 120dB Super Wide Dynamic Range (WDR) •...
-
Page 2: Components And Accessories
Components and Accessories Camera Drill Template Quick Guide Rubber Plug Screws Waterproof Cap Hex Wrench Overview This camera series supports both fixed and varifocal lenses. Please note that the zoom and focus features mentioned below are not features of the fixed lens version. - Page 3 Network Cable & Power Connections First connect the Waterproof Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE, also connect the power Cable to an approved 12VDC Power Supply. Network Cable 12VDC Optional 12VDC Power Connection.
-
Page 4: Installation
Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1. Attach the drill template to the place where you want to install the camera, then drill 3 screw holes and 1 cable hole (if you want to route the... - Page 5 Installation 4. Tighten the lock screw to secure the viewing angle adjustments. Lock Screw 5. Carefully remove the protective film from the lens to complete the installation.
-
Page 6: Lan Configuration
LAN Configuration The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. 1. Attach the drill template to the place where you want to install the camera, then drill 3 screw holes and 1 cable hole (if you want to route the cables through the mounting base) according to the drill template Accessing the Camera Using the IP-Tool... - Page 7 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control automatically. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
-
Page 8: Wan Configuration
2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control automatical- 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example.
