Icom IC-T70A Service Manual page 23

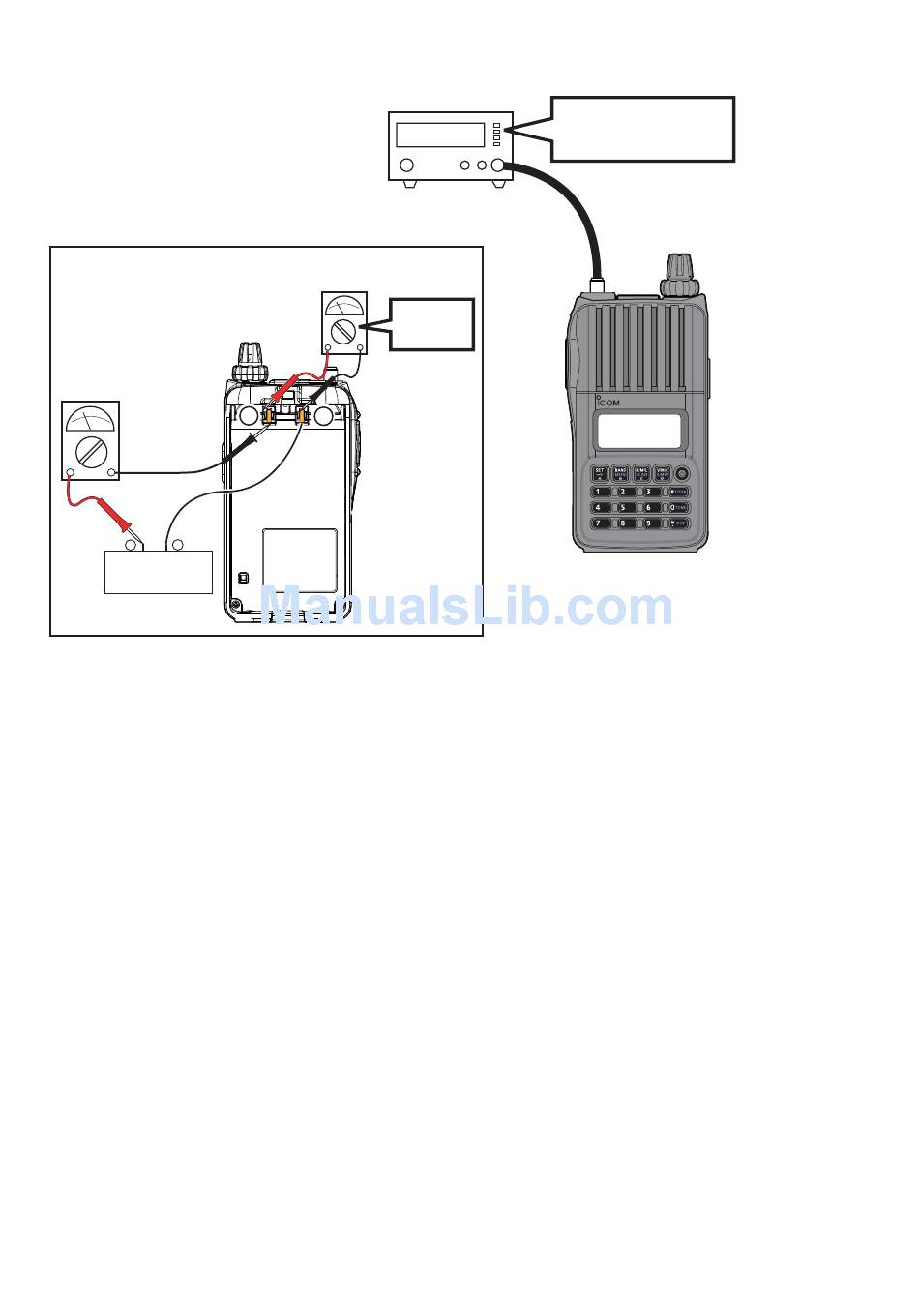

¤ CONNECTION
STANDARD SIGNAL GENERATOR
(0.1 – 600 MHz)
SETTING;
Modulation : 1 kHz
Deviation : ±3.5 kHz
• POWER SUPPLY
VOLTAGE METER
"7.2 V"
+
−
AMMETER
+
–
+ −
+ –
DC power supply
6–10 V/3 A
5 - 12
