5-3 FREQUENCY ADJUSTMENTS

1) Select an adjustment item using [VOL].
2) Set or modify the adjustment value as specifi ed using [DIAL], then push [BAND] to store the adjustment value.
ADJUSTMENT
REFERENCE 1 • Frequency: Displayed
FREQUENCY • Transmitting

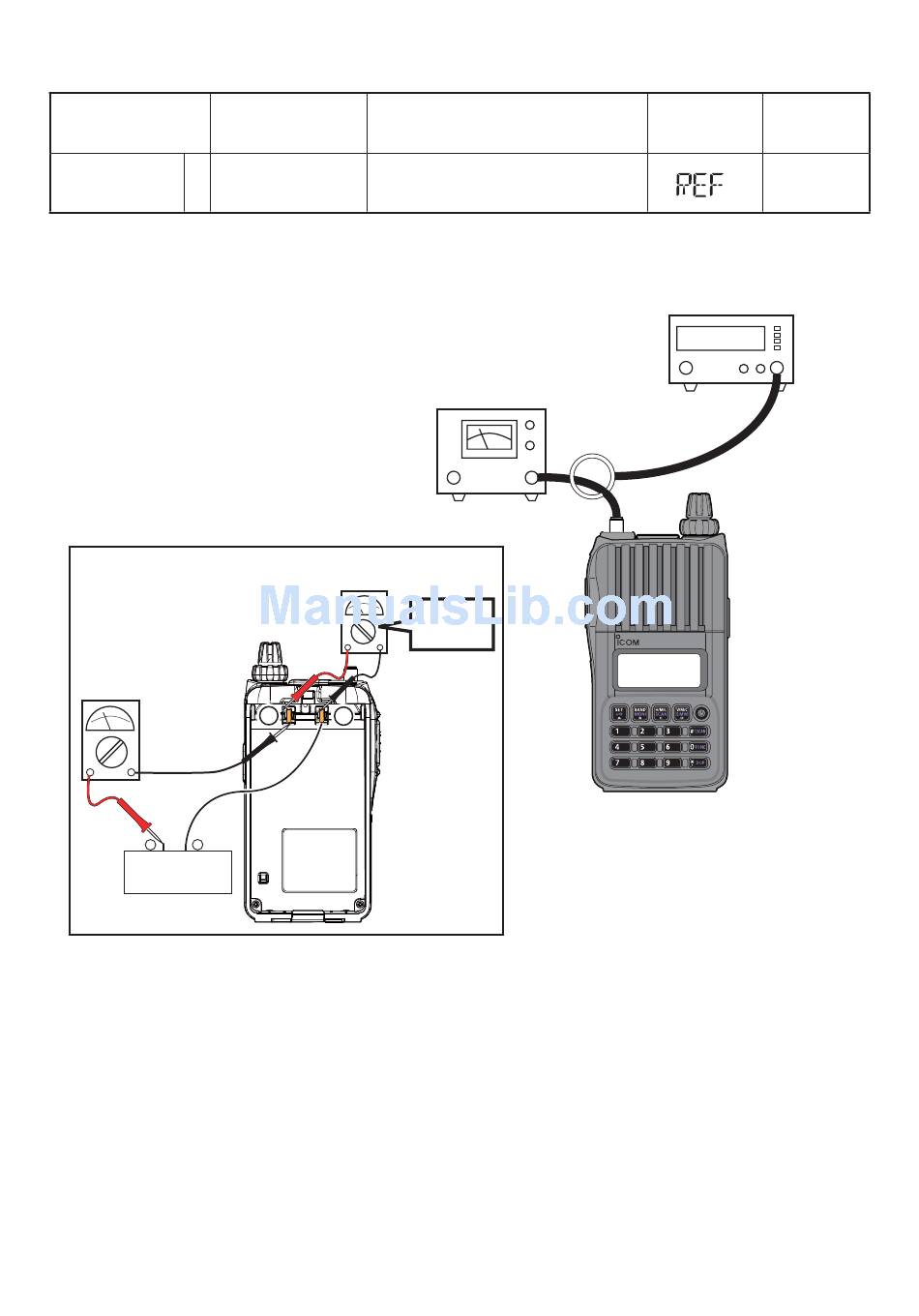

¤ CONNECTION
• POWER SUPPLY
AMMETER
+ −
+ –
DC power supply
6–10 V/3 A
TRANSCEIVER'S
CONDITION
• Loosely couple a frequency counter to the
antenna connector.
VOLTAGE METER
+
−
+
–
OPERATION
RF POWER METER
(10 W/50 Ω)
(Loose Coupling)
"7.2 V"
5 - 7
ADJUST-
MENT VALUE
ITEM
Displayed
frequency
(±200 Hz)
FREQUENCY COUNTER
(0.1–600 MHz)
