5-4 MODURATION ADJUSTMENTS (Continued)
1) Select an adjustment item using [VOL].
2) Set or modify the adjustment value as specifi ed using [DIAL], then push [BAND] to store the adjustment value.
ADJUSTMENT
FM (Narrow) 1 • Frequency: Displayed
DEVIATION • Transmitting
VHF (Low band)
VHF (High band) 2 • Frequency: Displayed
• Transmitting
UHF ( Low band) 3 • Frequency: Displayed
• Transmitting
UHF (High band) 4 • Frequency: Displayed
• Transmitting
VHF (Low band) 5 • Frequency: Displayed
• Transmitting
VHF (High band) 6 • Frequency: Displayed
• Transmitting
UHF ( Low band) 7 • Frequency: Displayed
• Transmitting
UHF (High band) 8 • Frequency: Displayed
• Transmitting

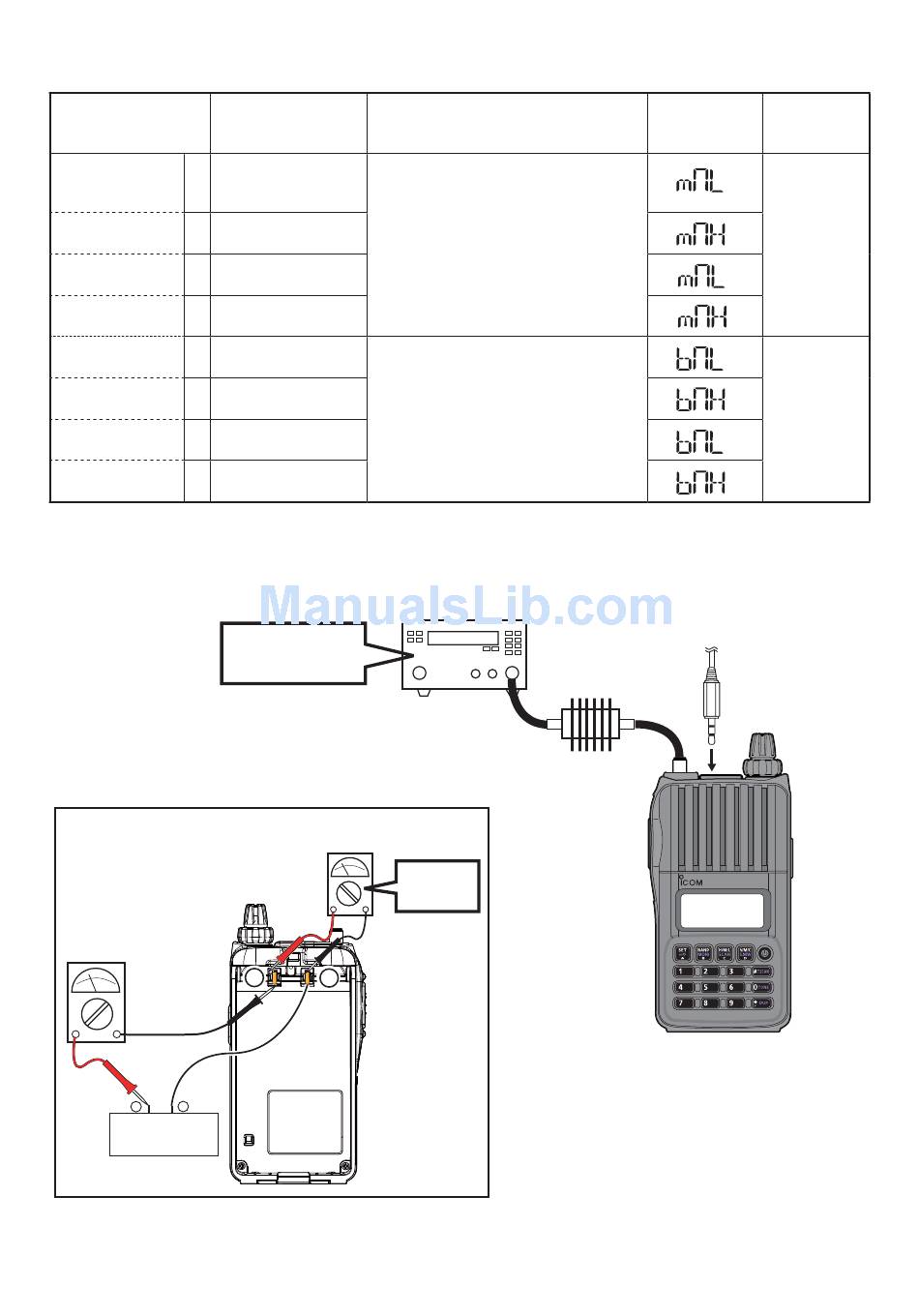

¤ CONNECTION
• POWER SUPPLY
AMMETER
+
−
+
–
DC power supply
6–10 V/3 A
TRANSCEIVER'S
CONDITION
1) Connect a modulation analyzer to
the antenna connector through an
attenuator, and set it as;
2) Connect an audio generator to the JIG
cable #2 and set it as;
• Set the audio generator as;
MODULATION ANALYZER
SETTING
HPF : OFF
LPF : 20 kHz
VOLTAGE METER
+ −
+
–
OPERATION
HPF : OFF
LPF : 20 kHz
Frequency : 1 kHz
Level : 150 mVrms
Level : OFF
(30 – 600 MHz)
ATTENUATOR
(30 dB/10 W)
"7.2 V"
5 - 9
ADJUST-
MENT VALUE
ITEM
±2.0 to ±2.2
kHz
Minimum level
JIG CABLE #2
(See the page 5 -1.)
To [MIC]
