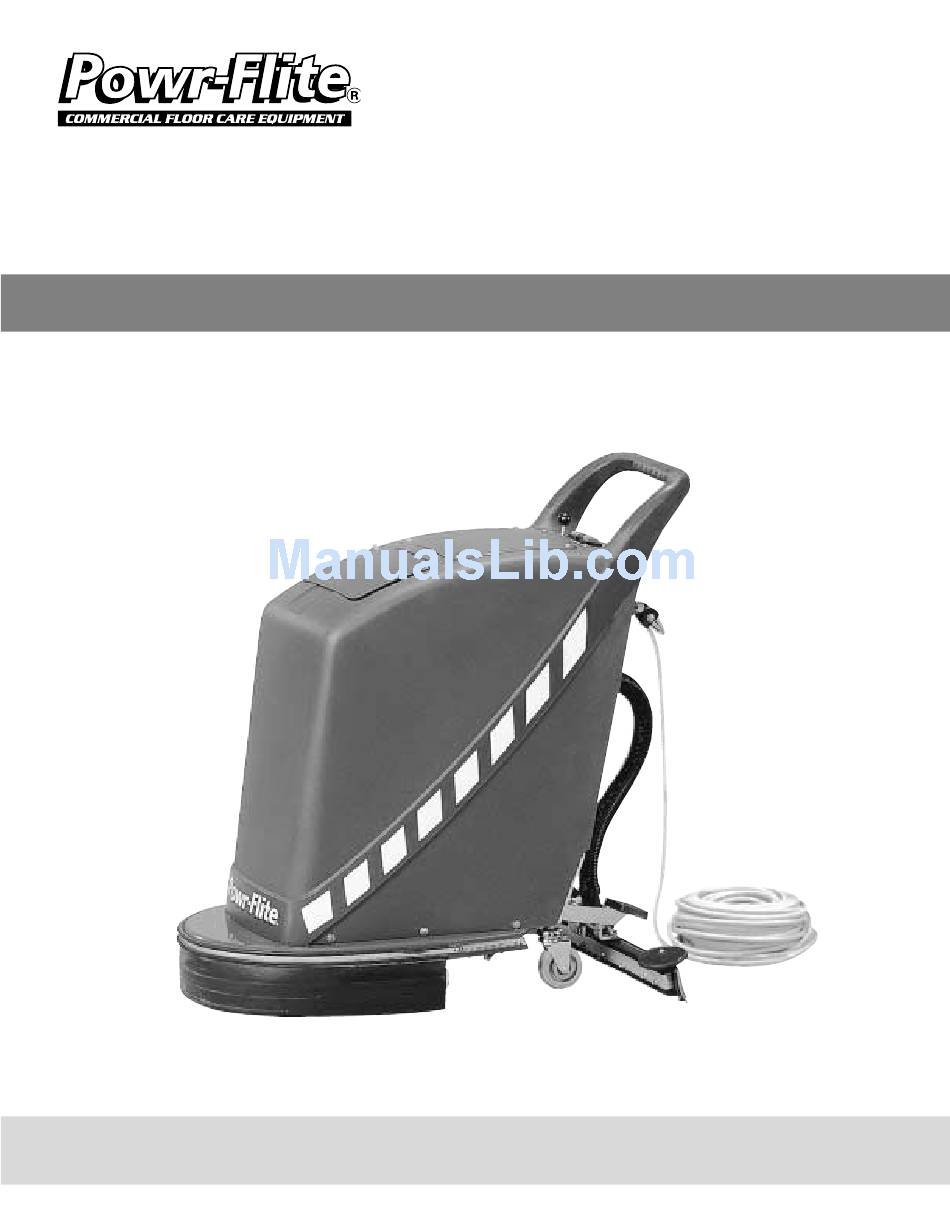

- Page 1 Predator Automatic Scrubber 16 OPERATORS MANUAL AND PARTS LIST Model PAS16 WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. PAS200...
-
Page 2: This Machine

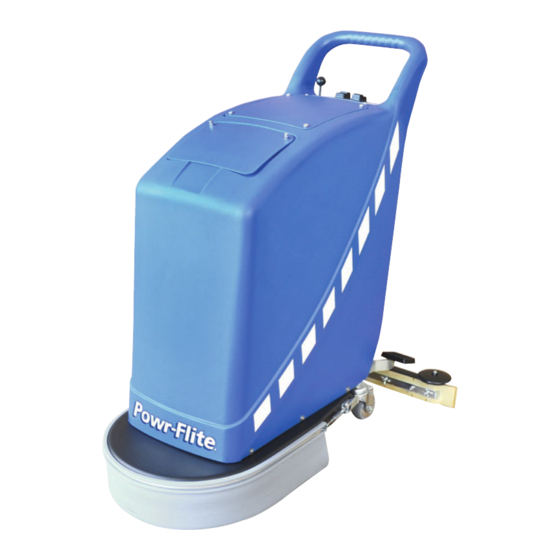

POWR-FLITE PREDATOR AUTOMATIC SCRUBBER 16 This manual refers to a cord electric automatic floor scrubber. Designed to be simple, easy to operate and safe, with maneuver- ability. Routine maintenance has been simplified and reduced to the minimum to keep equipment on the job. -
Page 3: Important Safety Instructions
® Your new Powr-Flite Electric Auto Scrubber will afford you many years of trouble-free operating satisfaction provided it is given ® proper care. Prior to packaging, your Powr-Flite Auto Scrubber was inspected by a Quality Control Technician. UNCRATING ® Your Powr-Flite Electric Auto Scrubber was protectively packed to prevent damage in shipment. -
Page 4: Technical Characteristics
POWR-FLITE ® PREDATOR™ 16 AUTO SCRUBBER MODEL PAS16 Technical Specifications ......U.S. Standard ..............Metric Area per hour ........15,000 sq. feet ..............1425 sq. meters Solution Tank . -
Page 5: General Operation
GENERAL OPERATION 120 Volt 60 Hz Solution Tank: The solution tank is located under the lid, at not settle there. To do this, remove the plug of the drain hose the front of the machine, with the filling-funnel M1 in an acces- M2, which is kept in position by a simple spring clip, and sible position for easy re-filling. - Page 6 Particularly dirty floors: Certain floors or areas may require special attention and, in some cases, cleaning twice. Go over the NOTE: The PAS16 is intended for use with 120V/60Hz cycle floor quickly the first time, with the squeegee raised and the brush grounded circuit.
- Page 7 GENERAL OPERATION tion without squeegee and vacuum then return to area after a min- clearing the brush or drive block and slide brush or imum of 5 minutes and remove the suspended dirt, finish and driver out from under the housing. solution.
-
Page 8: Parts List
PARTS LIST Pos Part No. Description Pos Part No. Description Pos Part No. Description 500.158 Washer PAS128 Bumper 410.001 Cover 410.013 Screw, Stainless PAS18 Spring Handle PAS260 Cover PAS197 Screw 6mm PAS32 Tie Rod 410.003 Housing PAS311 Cover Nut 6mm PAS127 Caster PAS311... - Page 9 PARTS LIST Pos Part No. Description Pos Part No. Description Pos Part No. Description PAS314 Solution Tank 410.058 Bracket 430.072 Screw PAS3 Screen PAS167 Screw 8mm PAS5 Coupling Half PAS11 Knob 430.117 Nut 8mm 430.072 Screw 410.044 430.117 Nut 8mm 430.071 Washer 410.045...
- Page 10 PARTS LIST Serial numbers at or below 05-9703684 have lever squeegee adjustment Pos Part No. Description Pos Part No. Description Pos Part No. Description PAS15 Strap 500.223 Ring-nut 430.204 Outer Bar 1972 Vac Motor PAS34 Adjusting Screw 410.139 Pedal PAS102 Gasket Motor PAS191 Clamp, Hose...
-
Page 11: Electrical Diagram
ELECTRICAL DIAGRAM LITE BLUE BROWN LITE BROWN BLUE BROWN BLUE BLUE BROWN LITE BLUE GREEN/YELLOW BRUSH MOTOR MOTOR Pos Part No. Description Pos Part No. Description Pos Part No. Description 181 M1400 14/3, 75' Cord 184 1972 Suction Motor 187 PAS309 Connecting Board 183 PAS125 Switch... - Page 12 A Tacony Company 3101 Wichita Court • Ft. Worth, TX 76140-1710...
