OPERATOR'S MANUAL & PARTS LIST

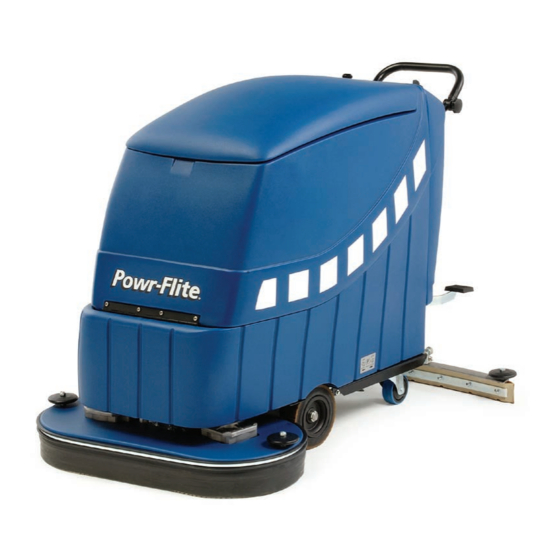

Predator Automatic Scrubber
Models PAS28-DX, PAS32-DXBC
WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL
COMPLETELY BEFORE OPERATING THIS EQUIPMENT.
©
Tacony, Inc., All rights reserved
Save These Instructions
PAS300A 8/2015
Advertisement
Related Manuals for Powr-Flite PAS28-DX
Summary of Contents for Powr-Flite PAS28-DX
- Page 1 OPERATOR’S MANUAL & PARTS LIST Predator Automatic Scrubber Models PAS28-DX, PAS32-DXBC WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. © Tacony, Inc., All rights reserved Save These Instructions PAS300A 8/2015...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS All operators must read, understand and practice the following safety instructions. They will be repeated occasionally throughout this manual, and additional cautions may be added for specific cases. • CAUTION: Operators must read and understand this manual •... - Page 3 - By Pass suction motor for liquids; - Ergonomic control panel with protected switches; Powr-Flite declines all responsibility for damage of any kind resulting from - Nylon drying blade with para rubber wiper. imprudent use by expert or inexpert personnel who have not operated the machine in accordance with this manual.
- Page 4 Dry the machine with a cloth. DO NOT SMOKE, LIGHT FLAMES OR MAKE SPARKS. Powr-Flite is not responsible for the disposal or production of products Recharge the batteries in a well-ventilated area and with the cover fixed in necessary for its operation;...
- Page 5 The remaining para rubber strips must wipe the floor with a certain amount of pressure; after the first few hours of operation the rubber - On specific request, Powr-Flite will pack the machines appropriately wipers adapt themselves to the inclinations and the drying action improves.
- Page 6 WARNING: objects lying on the floor can be thrown at high speed by the Installing and recharging the batteries: The batteries are located in the appropriate compartment underneath the cover; apply a coating of brushes, endangering people and/or property. grease (e.g. Vaseline) to the terminals; connect the batteries as shown in the attached diagram;...
- Page 7 WARNING: Batteries: Check the electrolyte level and top up with distilled water if This machine is designed to work in closed industrial environments on drops below the level of the battery elements. Keep the batteries clean and level floors or on inclines no steeper than 2%. Do not use inflammable dry with anti-static cloths.
- Page 8 REF# PART# DESCRIPTION REF# PART# DESCRIPTION REF# PART# DESCRIPTION 701.001 BACK FRAME PAS227 SUPPORT 850.310 701.002 SCREW 701.019 LEVER PAS176 700.003 SUPPORT PAS511 PEDAL PAS176 701.004 SCREW 701.021 SCREW PAS915 STOP PAS176 850.310 701.039 BRACKET 430.065 SCREW 710.093 WASHER PAS176 PAS208 WASHER 701.024...
- Page 9 REF# PART# DESCRIPTION REF# PART# DESCRIPTION REF# PART# DESCRIPTION PAS4 MOTOR REDUCER CT77 SCREW STRATA-GRIT .060 DIA. 46 GRIT PAS964 CONCRETE, FITS PAS32DX PAS924 701.118 SCREW PAS1 BUFFER WHEEL PAS6A SUPPORT WITH SPRING 15” UNION MIX BRUSH, FITS PAS615 PAS32DX 701.103 PAS510 701.104...
- Page 10 REF# PART# DESCRIPTION REF# PART# DESCRIPTION REF# PART# DESCRIPTION 410.105.1 TIE ROD 700.047.2 LEVER 500.068 SUPPORT PAS146 WASHER PAS63 TIE ROD PIN 500.094 FLOAT LEVEL 700.101.1 SCREEN PAS223 SCREW PAS103 SEAL 430.065 SCREW 700.262 FRONT STRIP PAS80 PIPE 701.204 REINFORCE 650.209 FRONT BLADE PAS324...
- Page 11 REF# PART# DESCRIPTION REF# PART# DESCRIPTION REF# PART# DESCRIPTION 710.168 SCREW 700.138 HINGE 430.056 SCREW PAS936 SCREW PAS83 QUICK CONNECTOR 700.160 HOOK PAS1 BUFFER WHEEL PAS288 PIPE PAS11 KNOB PAS937 PAS82 T - CONNECTOR PAS512 PAS310 SCREW PAS288 PIPE X9278 PANEL PAS959 PLIT PIN...
- Page 12 REF# PART# DESCRIPTION REF# PART# DESCRIPTION REF# PART# DESCRIPTION PAS335 BELLOW 710.040 WASHER 701.422 701.028 700.174 LEVER 701.423 SCREW 701.027 WASHER 710.041 SCREW PAS510 PAS122 HOOK PAS188 WASHER 701.425 WASHER PAS465 SCREW PAS183 SUPPORT PAS56 MICRO SWITCH 701.405 REINFORCE PAS176 PAS508 SPACER 701.406...
- Page 13 REF# PART# DESCRIPTION REF# PART# DESCRIPTION REF# PART# DESCRIPTION 701.500 MOTOR DIFFERENTIAL 710.040 WASHER PAS356 RING 710.040 WASHER PAS259 PAS491 SEEGER RING 701.503 LEVER 701.512 SCREW PAS298 WHEEL PAS518 SWIVEL WHEEL PAS285 BEARING 510.246 RING 701.016 SCREW PAS283 SEAL PAS358 RING NUT PAS176 701.115...
- Page 14 611 (°) 612 (°) 601 (°) 602 (°) REF# PART# DESCRIPTION REF# PART# DESCRIPTION REF# PART# DESCRIPTION PAS86 PAS59R CONNECTION 701.621 SCREW PAS119 FUSE 430.299 SCREW PAS295 REVERSE BUTTON PAS294 ELECTRONIC CARD 430.297 WASHER PAS54 SWITCH PAS118 FUSE 430.296 PAS54 SWITCH PAS117 FUSE...
- Page 15 - 14 -...
-
Page 16: Troubleshooting
TROUBLESHOOTING TROUBLES POSSIBLE REASON REMEDIES Charge the battery The machine doesn’t move The battery is low Check every element of it only if you own the right instrument The connector of the traction motor is disconnected or oxidized Check the connector Defective handle microswitch (walk behind machine) Check the microswitch and change it Motor carbons oxidized or consumed... - Page 18 A Tacony Company 3101 Wichita Court • Ft. Worth, TX 76140-1755...
