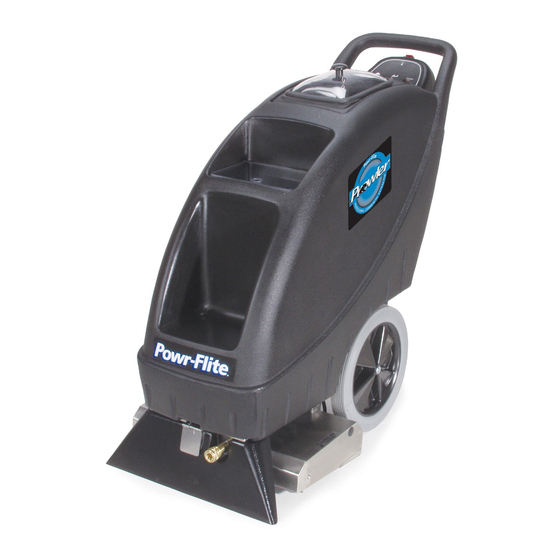

Self-Contained Carpet Extractor
OPERATORS MANUAL AND PARTS LIST
Model PFX900S
OPERATING INSTRUCTIONS
COMMERCIAL AND HOUSEHOLD
SELF CONTAINED EXTRACTOR
A Tacony Company
3101 Wichita Court • Fort Worth,TX 76140
1.800.880.2913
WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY
BEFORE OPERATING THIS EQUIPMENT.
X8686
1/06
Advertisement
Table of Contents
Related Manuals for Powr-Flite PFX900S
Summary of Contents for Powr-Flite PFX900S
- Page 1 Self-Contained Carpet Extractor OPERATORS MANUAL AND PARTS LIST Model PFX900S OPERATING INSTRUCTIONS COMMERCIAL AND HOUSEHOLD SELF CONTAINED EXTRACTOR A Tacony Company 3101 Wichita Court • Fort Worth,TX 76140 1.800.880.2913 WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT.
- Page 3 READ ALL INSTRUCTIONS BEFORE USING! Congratulations on purchasing a Powr-Flite self-contained If damage is discovered, immediately notify the transporta- extractor. Given proper care, this product will afford you tion company that delivered your extractor. As a shipper, many years of trouble-free operation. All parts have we are unable to report claims for concealed damage.
-
Page 4: Grounding Instructions
GROUNDING INSTRUCTIONS DANGER : Improper use of the grounding plug can result in a risk of electric shock. GROUNDING INSTRUCTIONS This extractor must be properly grounded. If it should malfunction or breakdown, grounding provides a path of least resis- tance for electrical current to reduce the risk of electric shock. This machine is equipped with 1 or 2 pigtail cords having an equipment-grounding conductor and grounding plug. - Page 5 Powr-Flite®. may be present. DO NOT pull or carry by cord, use cord as a handle, 15) DO NOT use where oxygen or anesthetics are used.
- Page 6 – 5 –...
- Page 7 GENERAL INSTRUCTIONS PRE-OPERATION INSTRUCTIONS for PFX900S NOTE: (color fastness) Before using carpet cleaning chemicals, test on an inconspicuous part of the carpet for color fastness. Place the solution on a small piece of clean white material or tissue, then rub the carpet vigorously. Excessive amounts of dye showing on the material would indicate that the colors are not fast, and should not be wet cleaned.
- Page 8 GENERAL INSTRUCTIONS STORAGE WHEN CLEANING IS FINISHED: 1) Connect the drain solution hose (gray hose with brass connector) to the solution fitting at the front of the machine and place the other end at drain. Turn on the PUMP switch. This will pump the remaining Tank drain hose solution into the waste tank for easy drainage.
- Page 9 SELF-CONTAINED EXTRACTOR PFX900S PARTS Recovery Dome Control Panel Solution Tank Pump – 8 –...
- Page 10 Brush Housing Recovery Tank Manifold Brush Motor Base Solution Fitting Vacuum Shoe Brush – 9 –...
- Page 11 SELF-CONTAINED EXTRACTOR PFX900S PARTS ref# order# description ref# order# description 7DL003 clamp BRUSH HOUSING : 7AT003 X9015 brush housing weldment hose barb X8542 hose, solution 7BF008 X8237 X9004 brush drive belt X8858 washer X9003 bridge rectifier X8211 bolt X8055 strain relief...
- Page 12 1 year from date of purchase on parts and workmanship. In case you as our customer, YEARS on One Piece meet any trouble with your machine, contact your Powr-Flite® representative who will be Housing happy to be of service to you and will take care of the warranty settlement.
