OPERATOR'S MANUAL & PARTS LIST
Automatic Scrubber
Model PAS20E
WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL
COMPLETELY BEFORE OPERATING THIS EQUIPMENT.
©
Tacony, Inc., All rights reserved
PAS20E-Man 4/2016
Save These Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the PAS20E and is the answer not in the manual?

Questions and answers

Related Manuals for Powr-Flite PAS20E

Summary of Contents for Powr-Flite PAS20E

  • Page 1 OPERATOR’S MANUAL & PARTS LIST Automatic Scrubber Model PAS20E WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. © Tacony, Inc., All rights reserved PAS20E-Man 4/2016 Save These Instructions...

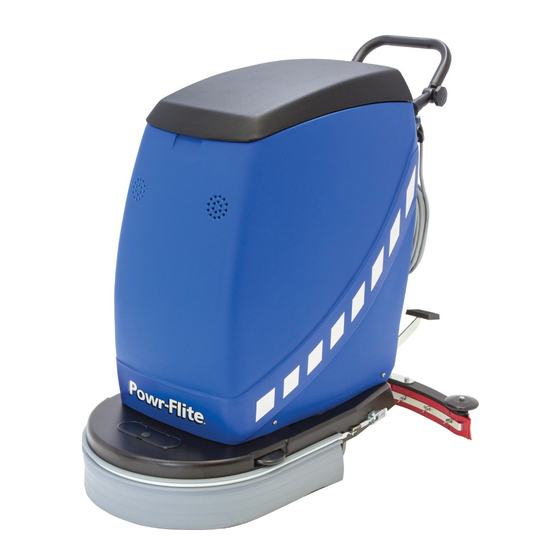

  • Page 2 POWR-FLITE PREDATOR AUTOMATIC SCRUBBER 20 This manual refers to a cord electric automatic floor scrubber. Designed to be simple, easy to operate and safe, with maneuverability. Routine maintenance has been simplified and reduced to the minimum to keep equipment on the job.

  • Page 3: Important Safety Instructions

    Powr-Flite Predator 20 Electric Auto Scrubber Your new Powr-Flite ® Electric Auto Scrubber will afford you many years of trouble-free operating satisfaction provided it is given proper care. Prior to packaging, your Powr-Flite ® Auto Scrubber was inspected by a Quality Control Technician. UNCRATING Your Powr-Flite Electric Auto Scrubber was protectively packed to prevent damage in shipment.

  • Page 4: Technical Characteristics

    TECHNICAL CHARACTERISTICS POWR-FLITE PREDATOR™ 20 AUTO SCRUBBER MODEL PAS20E ® Technical Specifications ........U.S. Standard Metric Area per hour ............15,000 sq. feet 1425 sq. meters Solution Tank ............17 gallons 30 liters Recovery Tank ............17 gallons 30 liters Cleaning Width (brush).........20 inches 500 mm Squeegee Width .............32 inches...

  • Page 5: General Operation

    GENERAL OPERATION Solution Tank: The solution tank is located under the lid, does not settle there. To do this, remove the plug of the drain at the front of the machine, with the filling-funnel M1 in an hose M2, which is kept in position by a simple spring clip, and accessible position for easy re-filling.
  • Page 6 GENERAL OPERATION STOP START The area to be scrubbed: Debris and grit must be swept up Then: before starting the scubbing operation to avoid vacuum line • Press switches M7 and M8. blockage and to permit the detergent to perform efficiently. •...
  • Page 7 GENERAL OPERATION minimum of 5 minutes and remove the suspended dirt, finish and • Release the brush pedal (M9) to lower the brush drive solution. motor on to the brush/pad driver. • Turn the brush motor on by depressing the brush switch Squeegee: Every week, check the blades of the squeegee and (M7).
  • Page 8 PARTS LIST - 8 -...
  • Page 9 PARTS LIST REF# PART# DESCRIPTION PAS275 COVER 501.002.1 FUNNEL 501.003.1 HOUSING PAS800 FRAME 501.052 BUMPER STRIP PAS2BA SPLASH GUARD 501.013 FRAME BRACE PAS167 SCREW 430.015 WASHER 430.016 SCREW PAS1 BUMPER WHEEL 503.012 CONTROL PANEL PAS153 SCREW PAS109 HINGE 430.323.2 HANDLE 501.022 CROSS MEMBER PAS337...
  • Page 10 PARTS LIST - 10 -...
  • Page 11 PARTS LIST REF# PART# DESCRIPTION 501.087.1 TANK 501.086 PLATE ER320 WASHER PAS147 M6 BOLT PA53 FILTER PAS296 HOSE FITTING 430.066.E MOTOR REDUCER 501.090 PLATE ER320 WASHER PAS162 SCREW M16 x 12 PAS24 COUPLING PAS23 SPIN ON CLUTCH PLATE PAS111 COUPLING SCREW 5/16-20 x 1-3/8 500.171 BRUSH 500.171.1...
  • Page 12 PARTS LIST (°) (°) (°) (°) (°)
  • Page 13 PARTS LIST REF# PART# DESCRIPTION REF# PART# DESCRIPTION PAS116 CREPE RUBBER (°) PAS17 COMPLETE FLOAT LEVER PAS196 OUTER BAR PAS15 MOTOR LOCK RING PAS197 M6 X 45 HEX HEAD SCREW PAS808 SUCTION MOTOR PAS191A HOSE CLAMP PAS330 SLEEVE PAS194 SQUEGEE BODY PAS102 GASKET MOTOR PAS266...

  • Page 14: Electrical Diagram

    PARTS LIST REF# PART# DESCRIPTION PAS243 SCREW STAINLESS 503.231 SUPPORT 350.168 WHEEL 503.233 PAS321 RIGHT SUPPORT PAS207 NUT FOR CASTER - SET, 1-LARGE + 1-SMALL 431.249 WASHER PAS51A CASTOR, SWIVEL ELECTRICAL DIAGRAM REF# PART# DESCRIPTION PAS56 MICRO SWITCH 430.318.2 MICRO SWITCH COVER PAS125 SWITCH 410.188...
  • Page 15 Blue Black MICRO SWITCH ON / OFF BRUSH SUCTION Thermal Brown Blue Yellow-green Yellow-green Blue Blue Yellow-green FILTER Brown Black Black Blue Blue White Blue Yellow-green Brown - 13 -...
