OPERATOR'S MANUAL

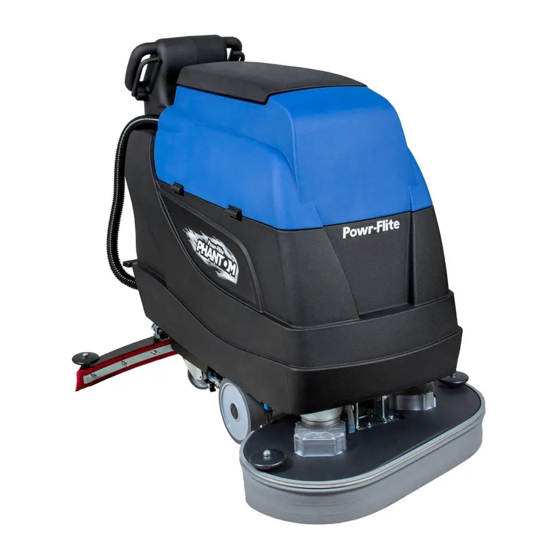

Phantom Automatic Scrubber
Model: PFS28
WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL
COMPLETELY BEFORE OPERATING THIS EQUIPMENT.
©
Tacony Corporation, All rights reserved
Save These Instructions
PFS28-MAN 03/2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the Phantom PFS28 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Powr-Flite Phantom PFS28

Summary of Contents for Powr-Flite Phantom PFS28

  • Page 1 OPERATOR’S MANUAL Phantom Automatic Scrubber Model: PFS28 WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. © Tacony Corporation, All rights reserved Save These Instructions PFS28-MAN 03/2021...

  • Page 2: Technical Specifications

    The customer must make sure that the operators have read or are aware of the contents of this manual and that they adhere strictly to the indications listed. The manufacturer does not accept any responsibility for damage caused to persons and/or property, or to the equipment itself if the conditions described below are not respected.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS All operators must read, understand and practice the following safety instructions. They will be repeated occasionally throughout this manual, and additional cautions may be added for specific cases. • CAUTION: Operators must read and understand • CAUTION: Make sure the charger has turned this manual completely before operating this off before disconnecting it from the batteries.
  • Page 4 PHANTOM AUTOMATIC SCRUBBER This manual refers to a battery powered automatic floor scrubber. Designed to be simple, easy to operate and safe, with maneuverability and automatic variable electronic drive. Routine maintenance has been simplified and reduced to the minimum to keep equipment on the job. The floor cleaner is intended for cleaning and washing level floors in closed spaces using appropriate detergents.
  • Page 5 Do not leave the cleaner unattended particularly if children are present. Refrain from smoking, lighting fires or provoking sparks. Do not use flammable liquids or chemicals with this cleaner. Ensure that the instruction manual and warnings are always on hand and are legible. Replace any torn or missing pages.

  • Page 6: Safety Instructions

    NOTE: WHEN THE MACHINE IS NOT USED, IT MUST BE TAKEN IN A DRY ENVIRONMENT Batteries disposal. Open the recovery tank disconnect the plug of the battery themselves. Remove the screws that hold the cable to the batteries and remove them one at a time. For the disposal of the batteries refer to a disposal center;...
  • Page 7 Recharging the batteries: The operation must be done in an appropriate room with sufficient air recycling. Use the cable supplied to connect to the mains supply, normally 120 V 60 Hz; make sure that the supply voltage is the same as indicated on the battery charger itself. The charger will begin to charge the batteries.
  • Page 8 Turn the key switch to position ON (I). In this position the machine can already move backward and forward as described below. Next press button (control panel) then button (brush). At this point the water dosage and vacuum will start automatically. If desired, they can be switched off individually with (water) and (vacuum ) buttons.
  • Page 9 Battery Level Water Monitor Switch Brush Recovery Switch Tank Full Indicator Vacuum Main Panel Switch Power Control Switch Forward/ Reverse Switch Speed Control...
  • Page 10 WARNING: This operation must be performed using protective gloves to protect yourself from contact with dangerous solutions. Squeegee Assembly: Inspect and clean the squeegee assembly weekly and make sure to restore it to its working condition. If the drying action is not perfect after cleaning the squeegee assembly, remove and replace any worn rubber blades.
  • Page 11 Recovery tank: weekly clean it as follows: switch off the machine, switch off the voltage, open the dirty water tank. Remove the suction motor cover M99 (page 9) . Then remove the suction motor: the filter and the net will be cleaned underneath. Drain the dirty water from the M2 (page 7) pipe.
  • Page 12 For warranty information go to www.Powr-Flite.com A Tacony Company 3101 Wichita Court • Fort Worth, TX 76140-1755 1-800-880-2913 • Fax: 1-817-551-0719 PFS28-MAN 03/2021...
