OPERATOR'S MANUAL & PARTS LIST

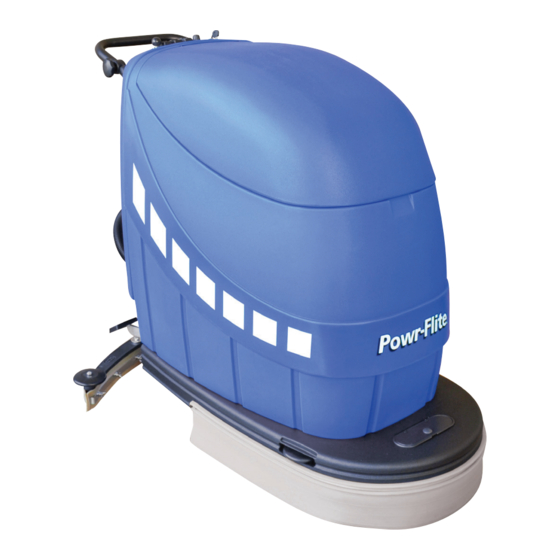

Predator Automatic Scrubber 20
Model PAS20DX
WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL
COMPLETELY BEFORE OPERATING THIS EQUIPMENT.
©
Tacony, Inc., All rights reserved
X8796 8/2015
Save These Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the PAS20DX and is the answer not in the manual?

Questions and answers

Summary of Contents for Powr-Flite PAS20DX

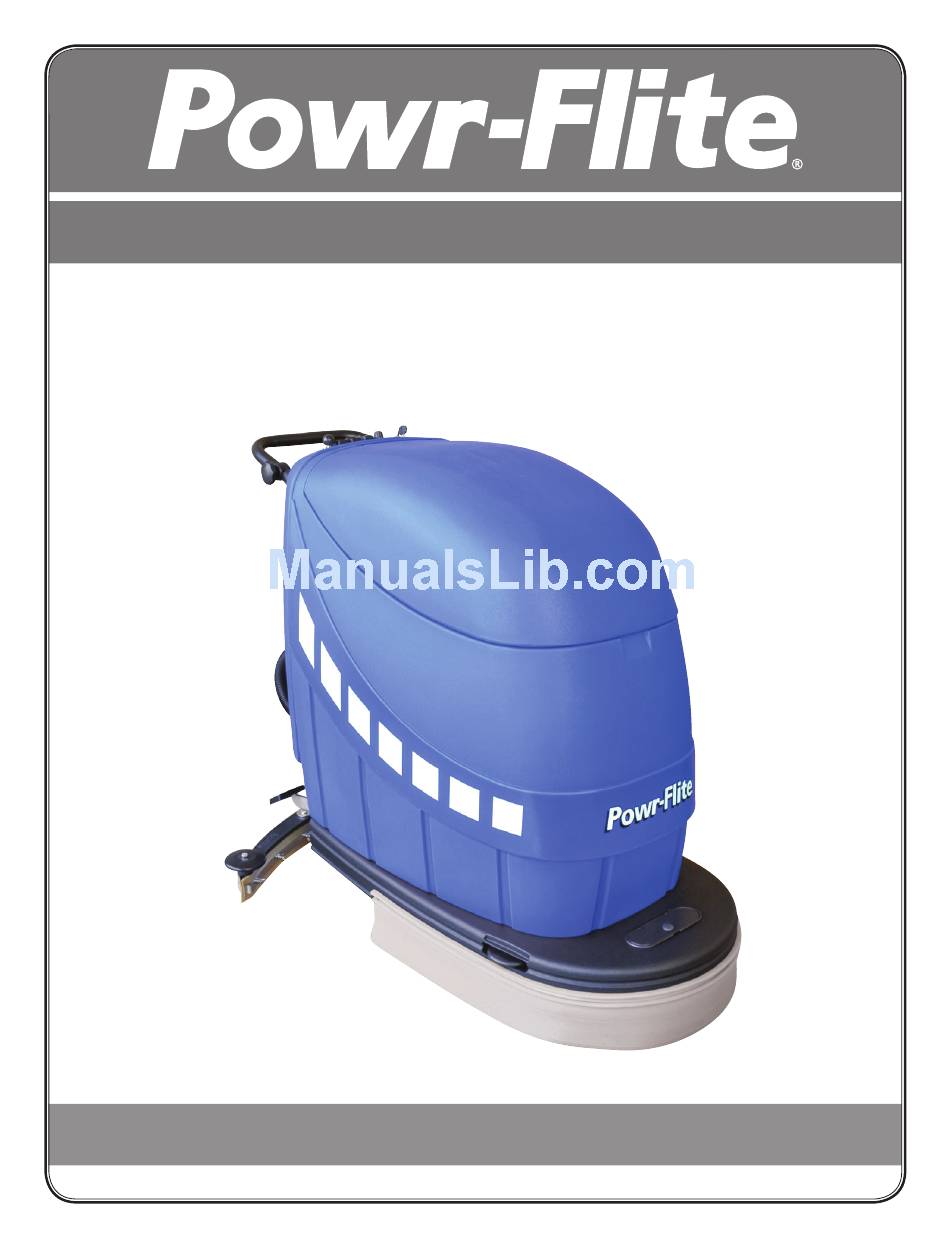

  • Page 1 OPERATOR’S MANUAL & PARTS LIST Predator Automatic Scrubber 20 Model PAS20DX WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. © Tacony, Inc., All rights reserved X8796 8/2015 Save These Instructions...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS All operators must read, understand and practice the following safety instructions. They will be repeated occasionally throughout this manual, and additional cautions may be added for specific cases. • CAUTION: Operators must read and understand this manual •...
  • Page 3 POWR-FLITE PREDATOR AUTOMATIC SCRUBBER 20 This manual refers to a battery powered automatic floor scrubber. Designed to be simple, easy to operate and safe, with maneuverability and automatic variable electronic drive. Routine maintenance has been simplified and reduced to the minimum to keep equipment on the job.
  • Page 4 The installation must be carried out in accordance with clothing. Remove any metal object. the laws in force in the country where it is installed; Powr-Flite is not responsible for equipment upstream of the cleaner. Do not rest metal tools or equipment of any type on the batteries.
  • Page 5 Dry the machine with a cloth. which is suitable for the weight of the various components. Powr-Flite is not responsible for the disposal or production - Transport (especially by road) must be carried out with of products necessary for its operation; e.g. batteries, deter- in the correct way and with the adequate means so as to gents, etc.;...
  • Page 6 Squeegee Blade: The floor squeegee serves to finish the drying On specific request, Powr-Flite will pack the machines appropri- ately but this does not eliminate the above safety notes. operation and it is very important to ensure it is in the correct position: lower the squeegee to its working position using the foot pedal M3;...
  • Page 7 assembly, remove and replace any worn rubber blades. connect to the mains supply, make sure that the supply voltage is the same as indicated on the battery charger itself. To charge the batteries connect the connector M5, which comes directly from Brush: The brush must be kept in working order;...
  • Page 8 REF# PART# DESCRIPTION PAS462 COVER 510.002 SUCTION MOTOR COVER 510.003 CHEST 510.007 CHEST PAS921 SPLASH GUARD PAS157 WASHER PAS223 SCREW 510.011 YOKE PAS167 SCREW PAS188 WASHER PAS466 CAGE NUT 510.300 FRAME PAS1 BUFFER WHEEL PAS274 PLATE PAS493 CONTROL PANEL PAS153 SCREW 510.020 HINGE...
  • Page 9 REF# PART# DESCRIPTION PAS3 FILTER PAS296 HOSE FITTING REDUCER PAS4 MOTOR 510.083 PLATE ER320 WASHER PAS162 SCREW PAS101 TANG PAS5 COUPLING PAS2039 PIPE SUPPORT PAS6 FLANGE DX PAS8 POLY BRUSH PAS132 STRATA GRIT BRUSH PAS95 SCRUB GRIT II PAS109 PAD DRIVER PAS135 POWR-SCUFF PAS111...
  • Page 10 REF# PART# DESCRIPTION (°) PAS17 COMPLETE FLOAT LEVEL PAS15 LOCK RING MOTOR PAS330 SLEEVE 1995BS VACUUM MOTOR PAS102 SEAL PAS457A TIE ROD PAS458A PAS107 SPONGE 500.068 SUPPORT 500.094 FLOAT PAS103 SEAL 510.150.1 TANK (°)145 505.604 SCREW (°)146 505.604 SCREW (°)147 PAS457A FRONT RUBBER (°)148...
  • Page 11 REF# PART# DESCRIPTION 430.236.2 WHEEL PAS351 TANG 510.237 MOTOR 500.204 SWIVEL CASTOR 850.033 NUT CLIP PAS167 SCREW PAS188 WASHER PAS176 PAS167 SCREW PAS491 RING PAS356 RING PAS491 BEARING 501.246 SEAL PAS276 MOTOR AMER 510.237.M MOTOR MOVIM. - 10 -...
  • Page 13 REF# PART# DESCRIPTION PAS52N BATTERY PILOT LIGHT PAS53NS KEY SWITCH PAS54 BRUSH SWITCH PAS54 SUCTION SWITCH PAS55 POTENTIOMETER PAS56 MICRO SWITCH PAS57 BRUSH REMOTE CONTROL PAS57 SUCTION REMOTE CONTROL PAS117 FUSE PAS119 FUSE PAS118 FUSE 510.237 MOTOR PAS4 REDUCER MOTOR 1924 SUCTION MOTOR PAS59R...
  • Page 14 TROUBLESHOOTING TROUBLES POSSIBLE REASON REMEDIES Charge the battery The machine doesn’t move The battery is low Check every element of it only if you own the right instrument The connector of the traction motor is disconnected or oxidized Check the connector Defective handle microswitch (walk behind machine) Check the microswitch and change it Motor carbons oxidized or consumed...
  • Page 16 A Tacony Company 3101 Wichita Court • Ft. Worth, TX 76140-1755...
