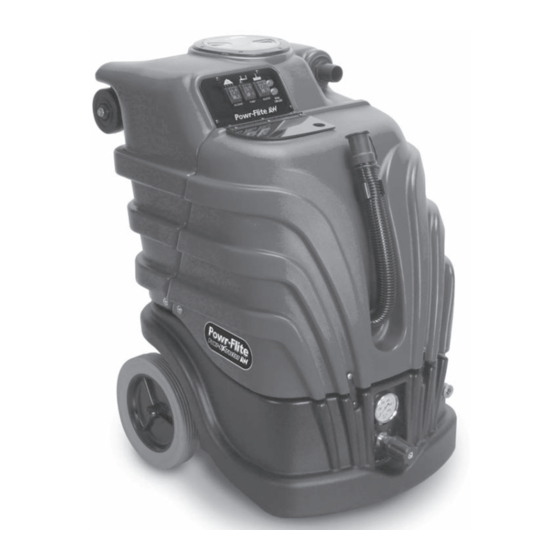

- Page 1 OPERATOR’S MANUAL & PARTS LIST Midsize Extractor Model PFX1080AW & PFX1085EAW SERIES WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. © Tacony, Inc., All rights reserved PFX1080AW-Man 1/2016 Save These Instructions...
-
Page 2: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS IMPORTANT SAFETY PRECAUTIONS To reduce the risk of fire, electric shock, or injury WARNING!: WARNING WARNING To avoid electric To avoid fire, DO NOT shock, DO NOT use with a flammable expose to rain. or combustible liquid Store Indoors. -
Page 3: Grounding Instructions
GROUNDING INSTRUCTIONS DANGER : Improper use of the grounding plug can result in a risk of electric shock. GROUNDING INSTRUCTIONS This extractor must be properly grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electric shock. This machine is equipped with 1 or 2 pigtail cords having an equipment-grounding conductor and grounding plug. - Page 4 General instructions for PFX1080 series Extractors Congratulations on your purchase of a Powr-Flite extractor. You are now equipped to handle any and all commercial carpet cleaning jobs. Shipping and Damage This equipment is thoroughly inspected, tested, and packaged to provide equipment in good operating condition. It is beyond our control after the equipment is turned over to a freight carrier.
-
Page 5: Maintenance
Maintenance 6. Never lift the machine by pressure regulator (on heated model). To receive reliable service from this equipment, regular daily maintenance is a required. 7. Do not allow the unit to freeze! 1. Keep the equipment clean, both inside and out. 8. -
Page 6: Storage Of Equipment
Storage of Equipment 1. Store extractor indoors in dry area. 2. Recovery and solution tank should be empty and clean when the extractor is not in use. 3. Leave the recovery lid and drain hose open to air out the recovery tank. - Page 7 PFX1080AW BASE ASSEMBLY PFX1080AW P Arts PFX1080AW BASE ASSEMBLY ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. 10/-24 ALL THREAD 72000A NUT 8-32 KEPS X8256 WASHER 5/16 SAE FLAT ZINC X8218 NUT 10-32 KEPS 7BF008 1/4” QUICK DISCONNECT NUT PUSH 1/2”...
- Page 8 PFX1080AW solution tank assembly PFX1080AW P Arts PFX1080AW SOLUTION TANK ASSEMBLY ITEM DESCRIPTION PART NO. SCREW 1/4-20X1/2 PHIL PAN 7BS003-BLK SCREW 1/4-20X1/2 PHIL PAN 7BS003 FITTING NYLON ELBOW 90 DEG. PX15 CLAMP, DISCHARGE VALVE X9448 HINGE SOLUTION TANK LID X9450...
- Page 9 PFX1080AW P Arts PFX1080AW recovery tank assembly PFX1080AW RECOVERY TANK ASSEMBLY ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. 5/16-18 x 18.75 ALL THREAD X9452 LID SCREW-IN PX103 WASHER 1/4 FLAT USS ZINC X8235 NUT CAP 5/16-18 ZP 72148A COUPLER PLASTIC...
- Page 10 PFX1085EAW P Arts W BASE ASSEMBLY PFX1085EAW BASE ASSEMBLY ITEM DESCRIPTION PART NO. 10/-24 ALL THREAD 72000A WASHER 5/16 SAE FLAT ZINC X8218 1/4” QUICK DISCONNECT AXLE REAR MID SIZE X9463 NUT 8-32 LOCK W/NYLON INSERT X8260 BOLT 1/4-20X 1” X8211 CASTER, 4”...
- Page 11 PFX1085EAW P Arts PFX1085EAW solution tank assembly PFX1085EAW SOLUTION TANK ASSEMBLY ITEM DESCRIPTION PART NO. 1/4-20 X 1/2 HEX CAP SCREW 7BS003-BLK 1/4-20 X 3/4 HEX CAP SCREW 7BS003 1/4” 90 DEGREE STREET ELBOW PC49 CLAMP, DISCHARGE VALVE X9448 HINGE SOLUTION TANK X9450 LID, SOLUTION TANK X9451...
- Page 12 PFX1085EAW P Arts PFX1085EAW recovery tank assembly PFX1085EAW RECOVERY TANK ASSEMBLY ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. LID SCREW-IN PX103 5/16-18 x 18.75 ALL THREAD X9452 NUT CAP 5/16-18 ZP 72148A WASHER 1/4 FLAT USS ZINC X8235 MID SIZE EXTRACTOR RECOVERY TANK X1051BLUE COUPLER PLASTIC PX63...
- Page 13 roubLEshooting ELECTRICAL SYSTEM Foam/dirty solution 1. Foam from carpet by- 1. Use additional coming out of vacuum passing water shutoff. defoamer. PROBLEM POSSIBLE CAUSE SOLUTION exhaust port. 2. Elbow in vacuum tank 2. The elbow should be No electrical power. 1.
-
Page 14: Warranty
3 years on heater, 1 year on pump, 2 years on vac motor, and parts and workmanship. In case you as our customer, meet any trouble with your machine, contact your Powr-Flite representative who will be happy to be of service to you and will take care of the warranty settlement.
