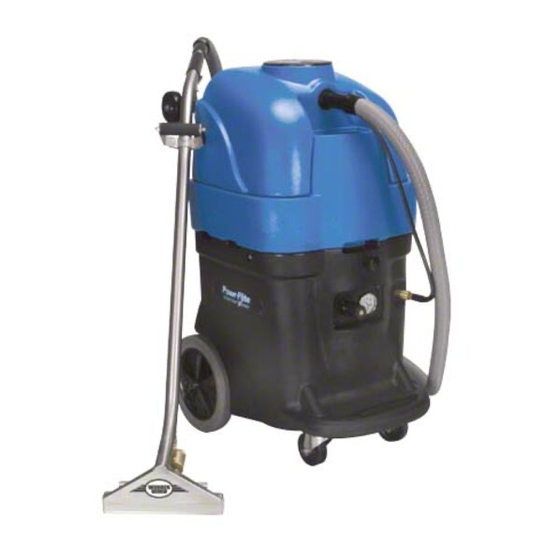

Upright extractor

Advertisement

Upright Extractor
OPERATORS MANUAL AND PARTS LIST
Model PFX1380 SERIES
WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL
COMPLETELY BEFORE OPERATING THIS EQUIPMENT.
PFX1380-Man 1/2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PFX1380 SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Powr-Flite PFX1380 SERIES

  • Page 1 Upright Extractor OPERATORS MANUAL AND PARTS LIST Model PFX1380 SERIES WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. PFX1380-Man 1/2009...
  • Page 2: Important Safety Precautions

    Powr-Flite. be present. 5) DO NOT handle plug or appliance with wet hands.
  • Page 3: Grounding Instructions

    GROUNDING INSTRUCTIONS DANGER : Improper use of the grounding plug can result in a risk of electric shock. GROUNDING INSTRUCTIONS This extractor must be properly grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electric shock.
  • Page 4 General instructions for PFX1380 series Extractors Congratulations on your purchase of a Powr-Flite extractor. You are now equipped to handle any and al commercial carpet cleaning jobs. Shipping and Damage This equipment is thoroughly inspected, tested, and packaged to provide equipment in good operating condition.
  • Page 5: Maintenance

    Maintenance Never lift the machine by the drain hose. Do not allow the unit to freeze! To receive reliable service from this equipment, regular daily maintenance is a required. The equipment was not designed to be used outdoors or in the rain. Keep the equipment clean, both inside and out.
  • Page 6: Storage Of Equipment

    Storage of Equipment Warnings 1. Store extractor indoors in dry area. 1. Do not break off or pull the grounding prong on the plug. 2. Recovery and solution tank should be empty and clean when the extractor is not in use. 2.
  • Page 7 MODEL PFX1380 SERIES CARPET EXTRACTOR PARTS PFX1380 recovery tank assembly * remove on in models without a heater and remove one in models with only one vacuum motor ** For models with a heater only *** For PFX1350-CN+ and PFX1350-100H+ only...
  • Page 8 MODEL PFX1380 SERIES CARPET EXTRACTOR PARTS PFX1380 base assembly...
  • Page 9 MODEL PFX1380 SERIES CARPET EXTRACTOR PARTS PFX1380 base assembly ref# order# description ref# order# description 72620AB 72490A housing, base, black screw, 5/16-18 x 5/8, cap screw w/ hex socket 72633A axle 72387A screw, #8 x 5/8, black, tap phil, pan head...
  • Page 10: Troubleshooting Information

    Troubleshooting Information ELECTRICAL SYSTEM Foam/dirty solution 1. Foam from carpet by- 1. Use additional coming out of vacuum passing water shutoff. defoamer. PROBLEM POSSIBLE CAUSE SOLUTION exhaust port. 2. Elbow in vacuum tank 2. The elbow should be No electrical power. 1.
  • Page 12: Warranty

    1 year on pump, vac motor, and parts and workmanship. In case you as our customer, meet any trouble with your machine, contact your Powr-Flite representative who will be happy to be of service to you and will take care of the warranty settlement.
