Connecting the device

Please observe the safety information in
CE conformance and optimum picture quality are guaranteed only if
you use the data cables supplied.
► Switch off the monitor and the computer.
► Disconnect the power plug from the computer.
Connecting cables to the monitor
The data cables supplied have two 15-pin D-SUB connectors or two 24-pin DVI
connectors for connection to the monitor and to the computer.
Information on the computer connections and interfaces is contained in the
operating manual for the computer.
2

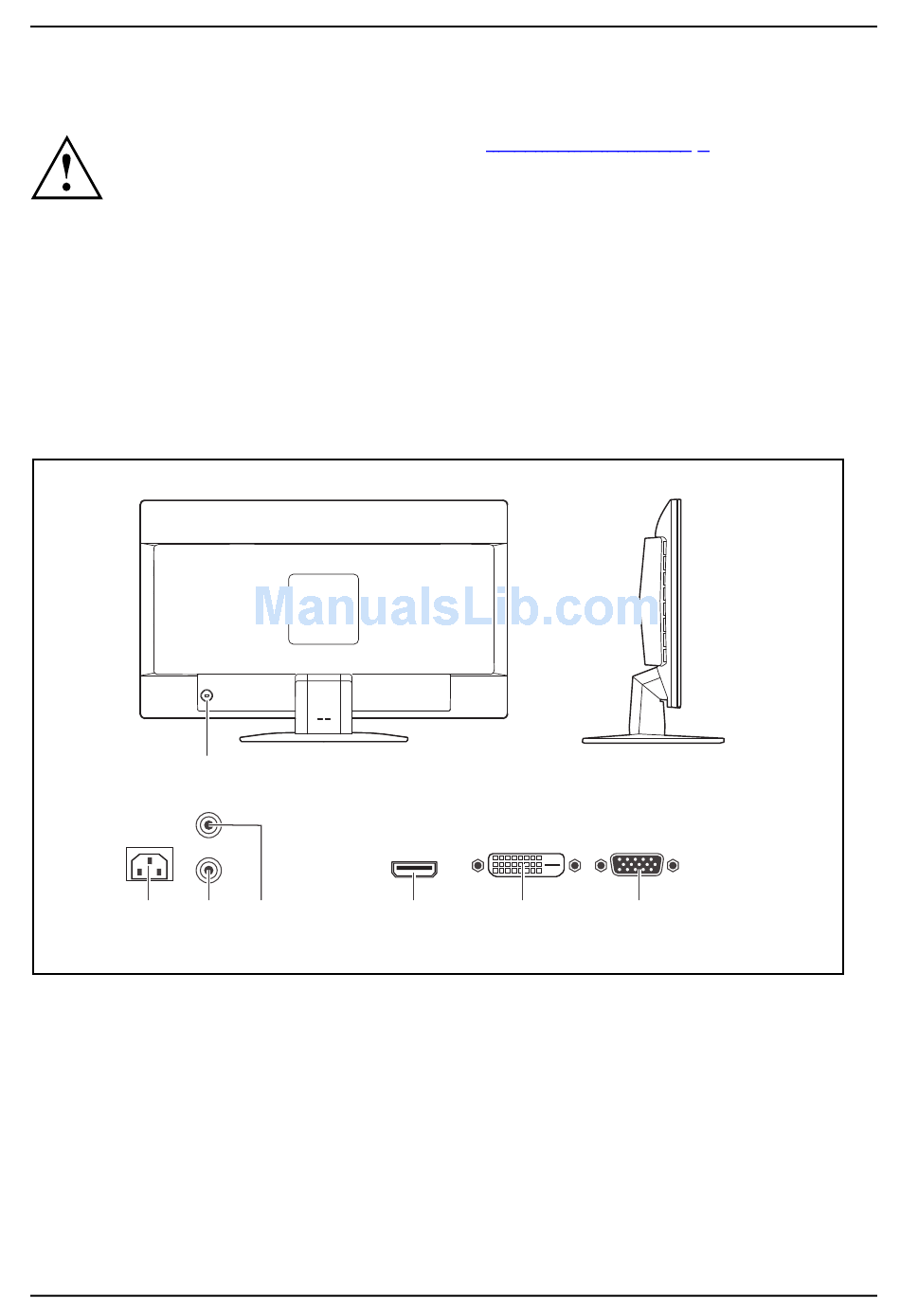

1 = Security slot for Security Lock
2 = Power connector
3 = AUDIO-IN socket
4 = AUDIO-OUT socket
► Select the appropriate data cable for your computer.
Fujitsu
1
3
4
"Important notes", Page
5
6
5 = HDMI socket
6 = DVI-D socket (DVI)
7 = D-SUB socket (VGA)
Getting started
7.
7
17
