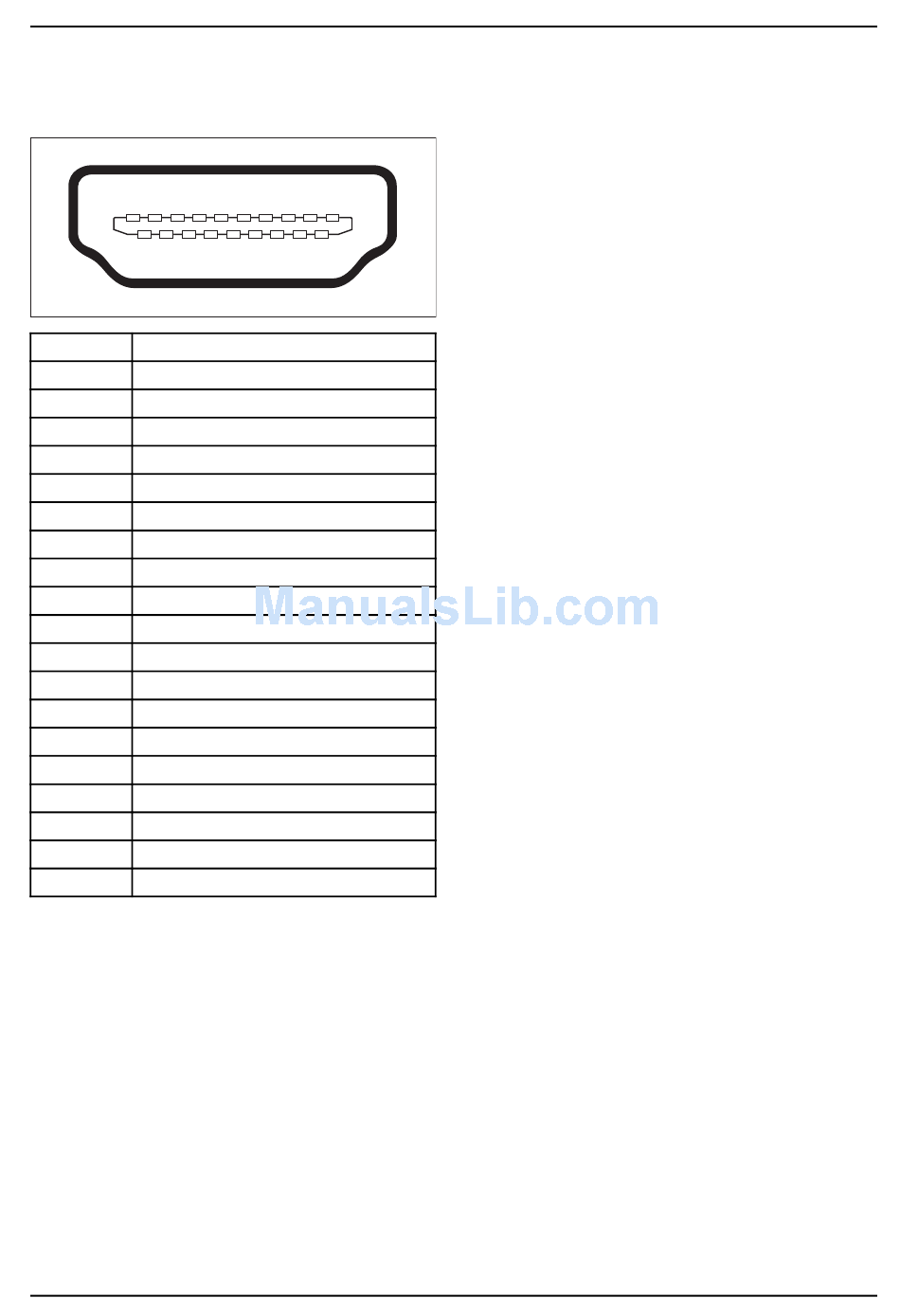

HDMI port
19
17
15
13
18
16
14
Pin
Meaning
1
TMDS Data2+
2
TMDS Data2 Shield
3
TMDS Data2–
4
TMDS Data1+
5
TMDS Data1 Shield
6
TMDS Data1–
7
TMDS Data0+
8
TMDS Data0 Shield
9
TMDS Data0–
10
TMDS Clock+
11
TMDS Clock Shield
12
TMDS Clock–
13
CEC
14
N.C.
15
SCL
16
SDA
17
DDC/CEC Ground
18
+5 V Power
19
Hot plug detect
Fujitsu
11
9
7
5
3
1
12
10
8
6
4
2
Technical specification
