Installation and Operating Instructions
Read this entire manual before you install and use your new room heater. If this room
heater is not properly installed, a house fire may result. To reduce the risk of fire, follow
the installation instructions. Failure to follow instructions may result in property damage,
bodily injury, or even death.
Contact local building officials about restrictions and installation/inspection-requirements
in your area.
MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS
E-Mail: stoves@morsoe.com · Website: www.morsoe.com
1011 Highway 52 West - Portland TN - 37148 - USA

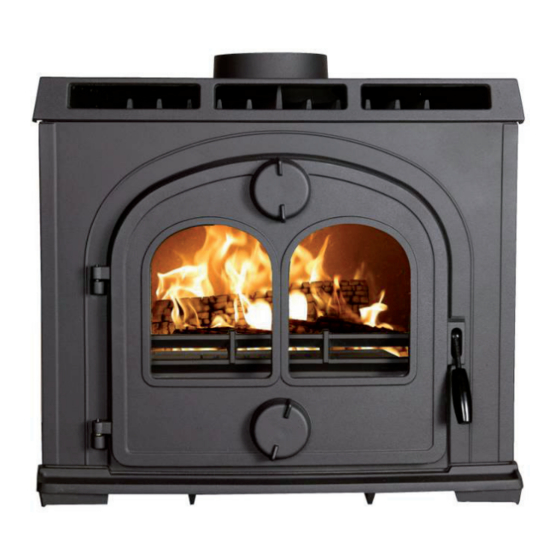

1710 Insert
For use in North America
Save these instructions
Distributed by: MORSO US LLC
Advertisement
Table of Contents
Related Manuals for Morso 1710 Insert
Summary of Contents for Morso 1710 Insert
- Page 1 Installation and Operating Instructions 1710 Insert For use in North America Read this entire manual before you install and use your new room heater. If this room heater is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions. Failure to follow instructions may result in property damage, bodily injury, or even death. Contact local building officials about restrictions and installation/inspection-requirements in your area. Save these instructions MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS E-Mail: stoves@morsoe.com · Website: www.morsoe.com Distributed by: MORSO US LLC 1011 Highway 52 West - Portland TN - 37148 - USA...
- Page 2 We congratulate you on your choice of a Morsø stove. Morsø has been producing some of the world’s best stoves since 1853. If you follow this installation- and operating instruction carefully, we can assure you many years of warmth and pleasure. Optional Accessories A wide range of accessories (such as handling gloves, fireside tools, glass cleaner and heatproof paint) are available for use with your Morsø stove. They help with day-to-day running and maintenance. Contact your Morsø dealer for more information. The Morsø...
-
Page 3: Table Of Contents
CONTENTS: 1.0 Installation of your Morsø stove Checking loose parts in the stove The chimney / flue system Flue Connection Connection to existing chimney Positioning the stove 2.0 Operation Before you start firing Lighting and loading intervals 3.0 Maintenance Exterior maintenance Internal maintenance Cleaning the Stove and the Flue Leaving the stove for extended periods Parts diagram Parts list... -
Page 4: Installation Of Your Morsø Stove
1.0 Installation of your Morsø stove Installation of woodburning stoves must be safe and legal. If your Morsø stove is not installed correctly, it may cause a house fire. To reduce the risk of fire, the installation instructions must be followed carefully. Contact the local building officials about restrictions and installation inspection in your area. Before you start installing your stove, make sure that: - The stove and chimney connection are placed far enough from combustible materials to meet all clearance requirements. - The floor protection must be adequate and must be made correctly according to the re- quirements. - Page 5 Dismantling the steel-box b. Lift the lower baffleplate a bit and hold a. Lift and remove the front grate. in that position. Carefully lift and remove the two side bricks. d. Remove the lower baffleplate c. Remove the firebrick from the back- wall e.
- Page 6 material until the bottom becomes horizontal. It is an advantage to fasten the box by two screws drilled through the bottom -3 cm. from the corners of the back. Figure : The connection between the insert and the chimney is made by a dia. 55 mm. fluecollar, which is fasten in the smoke pipe socket by the enclosed selfcutting screws (spoil in the boring dia.
-
Page 7: The Chimney / Flue System
1.2 The chimney / flue system Note that the flue system must be independently secured and must not rely on the stove for support. The stove must not be connected to a chimney flue serving any other appliance. (Several flues may run up a single chimney stack; use one flueway per appliance). Use a residential type masonry or listed type HT factory-built chimney. High Temperature (H.T.) Chimney Standard UL-103-1985 (2100º F.) for the USA, and High Temperature (650ºC) Standard ULC S-629 for Canada. The internal dimensions of the chimney connector and chimney must not be less than 6 inches diameter (or equivalent cross section), and should not be significantly larger than this. -
Page 8: Flue Connection
1.3 Flue Connection The stove is supplied from the factory with a flue collar fitted to the top plate. The flue collar is from the factory prepared for fitting the enlosed 6 inche adapter. Use a 4 MSG black or blue chimney connector or listed double wall chimney connector. Refer to local codes and the chimney manufacturer’s instructions for precautions required for passing a chimney through a combustible wall or ceiling. -
Page 10: Positioning The Stove 0
1.5 Positioning the stove IN CASE THE MORSØ 70 INSERT, AS EXSPECTED, IS NOT USED AS A INSERT IN AN NON-COMBUSTIBLE CHIMNEY FOLLOWING RULES APPLY Distance to walls and lintel When the stove is positioned near combustible materials, observe all current local and national building regulations with regards to clearances. Whatever regulations apply to your area, do not in any case install the stove within 8 inches of combustible materials around the sides or 6 inches above the top of the stove (fireplace installations require greater clearances above the stove - see below in the clearance chart). - Page 11 Do NOT install in a mobile home Distance to furniture The recommended minimum distance from stove to furniture is 30 inches. Note that some furniture is more easily affected by heat and may need to be moved to a greater distance. This is your responsibility. In addition other combustible materials, away from the stove. In general, a distance of 30 inches must be maintained between the stove and moveable combustible item such as drying clothes, newspapers, firewood etc.
-
Page 12: Operation
2.0 Operation 2.1 Before you start firing For Use with Solid Wood Fuel Only. Do Not Overfire, If Heater or Chimney Connector Glows You Are Overfiring. Inspect and Clean Chimney Frequently. Under Certain Conditions of use creosote buildup may occur rapidly. Because of risk of smoke and flame spillage, operate only with door fully closed. Caution: Hot while in operation. Keep children, clothing and furniture away. Contact may cause skin burns. Do not use chemicals or fluids to start the fire. Do not burn garbage or flammable fluids. Do not use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter or fluid or similar liquids to start or freshen up a fire in this heater. Keep all such liquids away from the heater while it is in use. Choosing your fuel All types of natural wood can be burned on your stove, but they must be well-seasoned and dry. Once the wood is cut to length, it should be split down middle - to suit the dimensions given below - to allow moisture to evaporate. -
Page 13: Lighting And Loading Intervals 3
n principle Your stove has four air supplies: Primary air is controlled by the upper air controler of the door. The air eventually washes at high speed down the back face of the door glass. This super-heated air helps with the combustion of volatile gases produced by the fire. - Page 14 4. After the paper/fire lighters have 3. Fully open the upper air controler so caught fire, leave the fire door ajar about that the primary air supply can enter the inch, so that the chimney draws well firebox After 5-0 minutes the chimney draft 6.
- Page 15 A new charge of wood can be added 9. Once the new fuel has taken, adjust the by repeating steps 6 & 7. primary air amount to the desired setting; optimal combustion will continue until glowing embers are produced. Do not for any reason attempt to increase the firing of your heater by altering the air control adjustment range outlined in these directions.
-
Page 16: Maintenance 6
Draft conditions If smoke or fumes come out of your stove when lightning up and reloading, or if the fire simply will not respond, a poor draft is almost certainly to blame. (In a very few cases, there may be insufficient fresh air getting into the room - see installation advice above). Take advice from your stove supplier on how best to upgrade your flue system to improve draft. - Page 17 Reasons for dirty glass · Fuel too wet · Logs too large or not split · Combustion temperatures too low Replace broken glass immediately. Do not operate your stove if the glass in the door is damaged. If you need to replace the glass, it should be replaced with the high temperature ceramic class supplied by Morsø, contact your Morsø dealer. Installing the glass Never install the glass when the stove is in function. . Lift the door off its hinges an place face-down on a sheet of cardboards or other non- abrasieve fabric.
-
Page 18: Cleaning The Stove And The Flue 8
6. Finally, give each of the bolts an extra half turn or so. The glass should held tight enough by that cleaning will not dislodge it. Do not over-tighten the bolts as this may put excessive pressure on the glass, resulting in cracking - important! To reduce the risk of breaking the glass, avoid striking the glass or slamming the door. - Page 19 A good routine is to clean the flue after each heating season in any case, and inspect prior to the season to ensure that bird’s nests or other blockages have not ocurred during the off season. Ash disposal Empty the ashpan on a daily basis or as needed. Ash allowed to build up towards the underside of the grate will trap heat and could cause premature failure of the grate.
-
Page 20: Leaving The Stove For Extended Periods 0
If you do experience a chimney fire, act promptly and: Close the air control. Get everyone out of the house. Call the Fire Department. Annual maintenance Before the heating season, perform a thorough cleaning, inspection and repair: Thoroughly clean the chimney and chimney connector. Inspect the chimney for damage and deterioration. Replace weak sections of prefabricated chimney. -
Page 21: Parts Diagram
3.5 Parts diagram for the model Morsø 1710 Insert... -
Page 22: Parts List
3.6 Parts list for the model Morsø 1710 Insert Pos.No. Parts Door 44603 Front grate 44600 Air Conductor 446300 Attachment for front grate 446400 Draft Reducer 446300 Base plate 4470 Front frame 447000 Air grate 4470600 Top plate 4470700 Intermediate frame 4470800 Flue collar 4470900 Lower side plate right 447000 Lower side plate left 44700... - Page 23 3.6 Parts list for the model Morsø 1710 Insert Pos.No. Parts Screw Washer Screw Screw Bolt Bolt Bolt Washer Washer Adapter for handle 75406 Glass 7907 Glass fitting 790743 Tightening tape 79074500 Stone side 7909600 Stone bag 7909300 Lower stone baffle 7909400 Upper stone baffle 7909500 Handle 798300 Clasp - w/o handle 797000 Screw...
- Page 24 Morsø Jernstøberi A/S - 0..007 - 77000...
