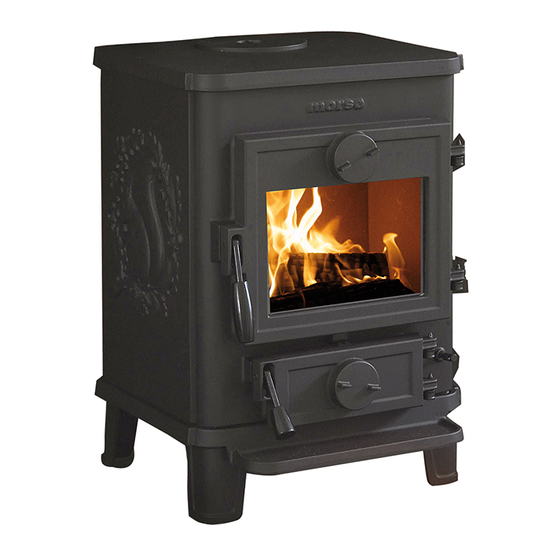

Morso 1410 Supplementary Installation & Operation Instructions
Hide thumbs
Also See for 1410:
- Installation and operating instructions manual (24 pages) ,
- Assembly and user instructions manual (12 pages) ,
- Installation and operating instructions manual (20 pages)
Advertisement

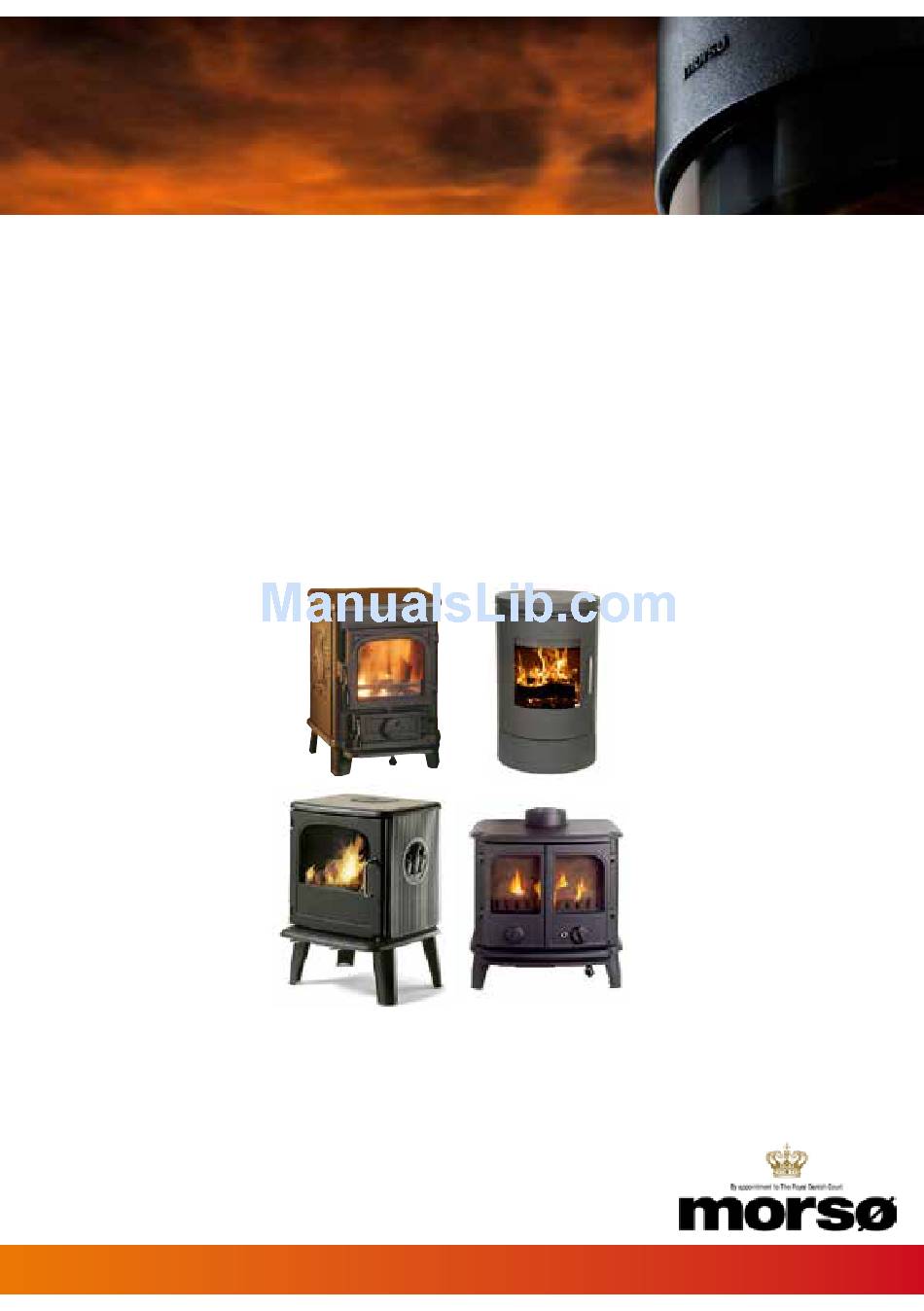

Supplementary Installation &
Operation instructions
for UK Market
For use Morsø UK Stoves
EN 13 240 & HETAS Ltd.
Distributed by: Morsø UK
Valley Drive · Swift Valley · Rugby, Warks CV21 1TW · England
MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS
MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS
E-Mail: stoves@morsoe.com · Website: www.morsoe.com
E-Mail: stoves@morsoe.com · Website: www.morsoe.com
www.morsoe.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Morso 1410
Summary of Contents for Morso 1410
- Page 1 Supplementary Installation & Operation instructions for UK Market For use Morsø UK Stoves EN 13 240 & HETAS Ltd. Distributed by: Morsø UK Valley Drive · Swift Valley · Rugby, Warks CV21 1TW · England MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS MORSØ...
-
Page 2: Health And Safety Precautions
Adequate facilities must be available for loading, unloading and site handling. Stove weights including packaging Weight Weight Weight Model Weight Model N° Model N° Model N° Weight kg Model N° N° 1410 3410 7470 S10-40 Ø6 1412 3440 7940 S11-70 Ø8 1430 3610 7943... -
Page 3: Fire Cement
Smoke Control Area in the UK unless the stove is approved to do so. The nominal heat outputs for the various stoves are as follows: Nominal Heat Output Model Nominal Heat Output Gross Eff Model Gross N° Eff % N° Eff % Eff % 1410 69,2 7943 71,9 1412 74.6 67,9 7948 71,9 1430 64,6 7970 71,9... - Page 4 Prefactory Work and Safety Checks There must not be an extractor fan fitted in the same room as the stove as this can cause the stove to emit fumes into the room. Chimney NOTE: A chimney height of not less than 4.5 metres measured vertically from the outlet of the stove to the top of the chimney should be satisfactory.
-
Page 5: Combustion Air Supply
Hearth The hearth should be able to accommodate the weight of the stove and its chimney if the chim- ney is not independently supported. The weight of the stove is indicated in the brochure. The stove should always be installed on a non-combustible hearth of a size and construction that is in accordance with the provisions of the current Building Regulations Approved Docu- ment J. -
Page 6: Important Notes
Supplementary Operating Instructions for use with Morsø UK stoves PLEASE READ THE INSTRUCTION MANUAL AND THESE SUPPLEMENTARY INSTRUC- TIONS CAREFULLY BEFORE USING THE STOVE. Warning Note Properly installed, operated and maintained this stove will not emit fumes into the dwelling. Occasional fumes from de ashing and re fuelling may occur. - Page 7 For pure wood burning stoves and multi fuel stoves operating with wood, please refer to the main installation and operating manual. User Operating Instructions - Solid Smokeless Fuels (If appropriate*) Model Model N° Fuel Model N° Fuel Fuel N° 1410 Multi-fuel 3142* Multi-fuel 7443 Wood only 1412 Multi-fuel 3410* Multi-fuel...
- Page 8 Model N° Fuel Model N° Fuel Model N° Fuel 8140 Wood only S11-40 Multi-fuel S81-90 Multi-fuel 8141 Wood only S11-42 Multi-fuel Ø4 Multi-fuel 8142 Wood only S11-43 Multi-fuel Ø6 Multi-fuel 8147 Wood only S11-90 Multi-fuel Ø8 Multi-fuel S10-40 Wood only S50-40 Wood only S10-70...
- Page 9 Controlling the burning rate When operating the stove with solid fuels the combustion air supply should be predominantly controlled by the primary air intake. The primary air on many of the stoves is controlled by an air spinner on the ash door or on the bottom of the main door. In the case of the Morsø Owl 3410, 3440 and the Ø...
-
Page 10: Cleaning And Maintenance
Cleaning and Maintenance Please see “Routine Stove Maintenance” contained in the main instruction manual. Trouble shooting, tips & hints Glass discolouration Check that: • If wood burning, the moisture content is not too high. • If wood burning, the logs are not oversized (logs greater than 100mm diameter should be split). - Page 11 Sealing kit for doors and bogy parts with adhesive 62904300 • Self adhesive ladder gasket for glass 2mtr x 8mm 62903800 • Glass kit 1410 inc gasket, clips & screws 62904000 • Glass kit 1440 inc gasket, clips & screws 62904100 •...
- Page 12 Morsø Jernstøberi A/S - 10.01.2014 - 72002900 MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS E-Mail: stoves@morsoe.com · Website: www.morsoe.com www.morsoe.com...
