Summary of Contents for Morso 1440B

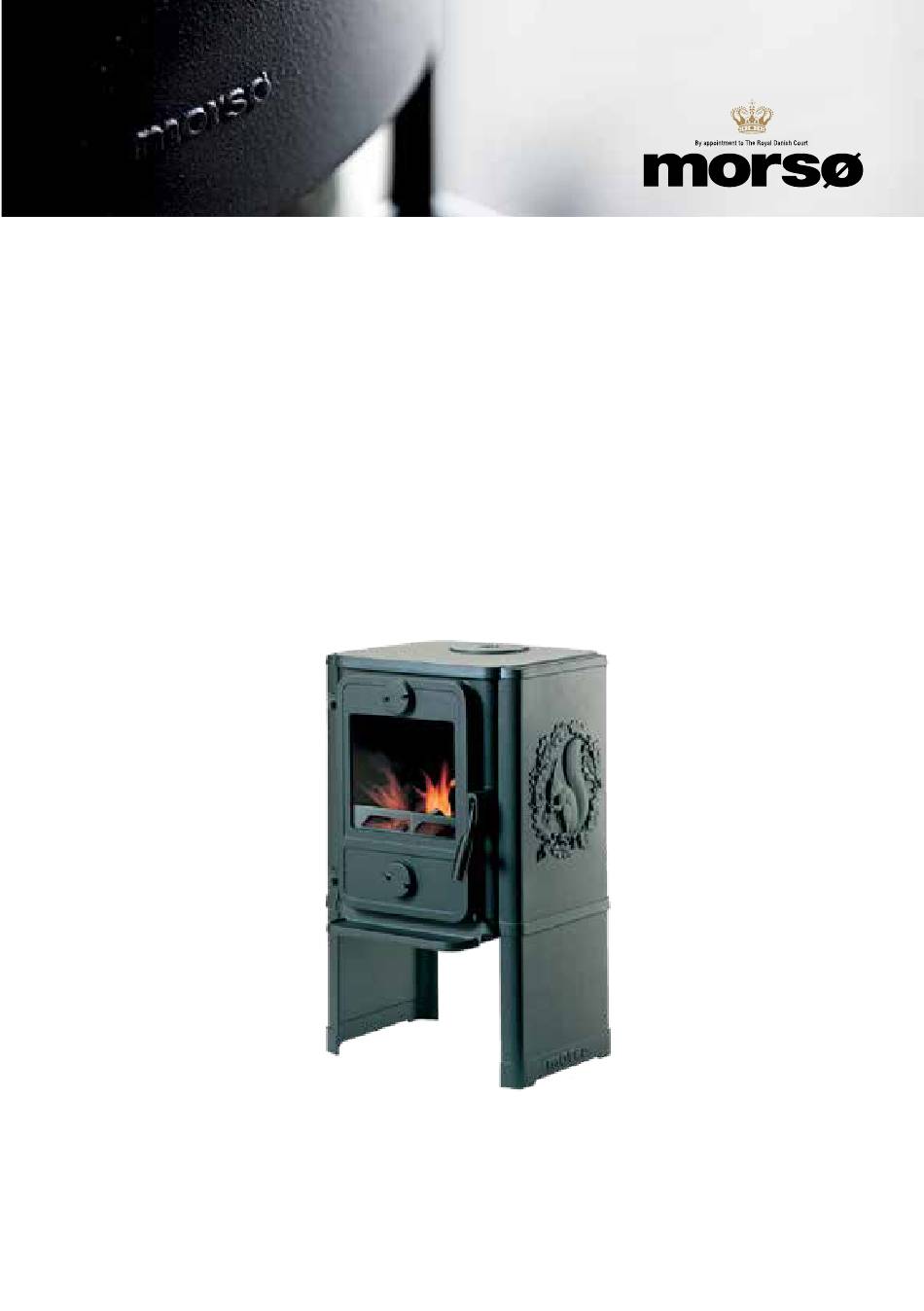

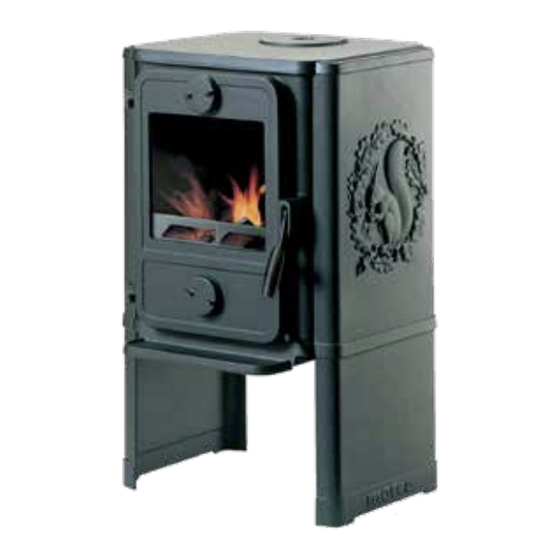

- Page 1 Installation and Operating Instructions Morsø 1440B For use in North America Save these instructions MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS E-Mail: stoves@morsoe.com · Website: www.morsoe.com...
-
Page 2: Table Of Contents
The Morsø 1440B squirrel have been certified by PFS TECO. The test standards are UL-1482- 2011 (R2015)for the United States and ULC-S627-00 for Canada. Certified &... -
Page 3: Installation Of Your Morsø Stove
1.2 The chimney / flue system 1.0 Installation of your Morsø stove Note that the flue system must be independently secured and must not rely on the stove for support. The installation must conform standard CAN/CSA-B365, Installation Code For The stove must not be connected to a chimney flue serving any other appliance. Solid-Fuel-Burning Appliances and Equipment (Several flues may run up a single chimney stack;... -
Page 4: Flue Connection
1.3 Flue Connection The stove is supplied from the factory with a flue collar fitted to the top plate and a round blanking plate blocking off the rear flue exit (behind the rear shield plate). The flue collar is from the factory prepared for fitting the enlosed 6 inche adapter. Use a 24 MSG black or blue chimney connector or listed double wall chimney connector. -
Page 5: Positioning The Stove
1.5 Positioning the stove Distance to walls and lintel When the stove is positioned near combustible materials, observe all current local and na- tional building regulations with regards to clearances. Distances may need to be increased if the materials are sensitive to heat. Note also that wall paper and other decorative materials may become detached with the effects of heat and care should be taken to ensure that they do not fall towards the stove in such an event. -
Page 6: Operation
Distance to furniture 2.0 Operation The recommended minimum distance from stove to furniture is 30 inches. Note that some furniture is more easily affected by heat and may need to be moved to a greater distance. This is your responsibility. 2.1 Before you start firing In addition other combustible materials, away from the stove. -
Page 7: Lighting & Loading Intervals
In principle Your stove has two air supplies: Primary air is controlled by the upper air controler of the door. The air eventually washes at high speed down the back face of the door glass. This super-heated air helps with the combustion of volatile gases produced by the fire. -
Page 8: Maintenance
The maximum recommended weight of wood fuel per load is 2 kg/h/5.5Ibs (approx 3 split 3.0 Maintenance logs). Under normal firing, the average flue temperature in the stove pipe, measured 20 cm above When perfoming maintenance on your stove, always protect yourself, using safety goggles the stove, is approx. -
Page 9: Cleaning The Stove & The Flue
1. Lift the door off the hinges and place it face down on a sheet of cardboard or other non- Ceramic Gasket abrasive fabric. The gasket around the perimeter of the door may harden over a period of time. It should be replaced if it becomes difficult to close the door or if air starts to leak in around the perim- 2. -
Page 10: Leaving The Stove For Extended Periods
3.5 Parts diagram for model Morsø 1440B Clean the chimney connector disconnecting the sections, taking them outside, and remov- ing any deposits with a stiff wire brush. Reinstall the connetor sections after cleaning, being sure to secure the joints between individual sections with sheet metal screws. -
Page 11: Parts List
3.6 Parts list for model Morsø 1440B 3.6 Parts list for model Morsø 1440B Pos. No. Parts Pos. No. Parts Rear plate, inside 34145100 Cotter pin 791868 Base plate 44145521 Cotter pin 791869 Side plate w. squirrel 541423 Air slider washer... - Page 12 Guarantee Product Registration MORSØ 10 YEAR GUARANTEE CERTIFICATE Behind every Morsø stove is more than 160 years of dedicated stove design and manufacturing experi- ence. Quality control has always been at the heart of the production process and detailed measures have been put into place at all key stages of the build.
- Page 13 IMPORTANT! How to heat safely for the environ- ment and yourself! • Use only dry wood Use only dry (max. 20% moisture content) and untreated wood. The fuel must be split and 8 - 12 cm thick. • Light Light with dry kindling (use 1 - 2 kg). Leave the door ajar and stay close to the stove during the lighting phase.
