Summary of Contents for Horizon Hobby UMX FPV RADIAN

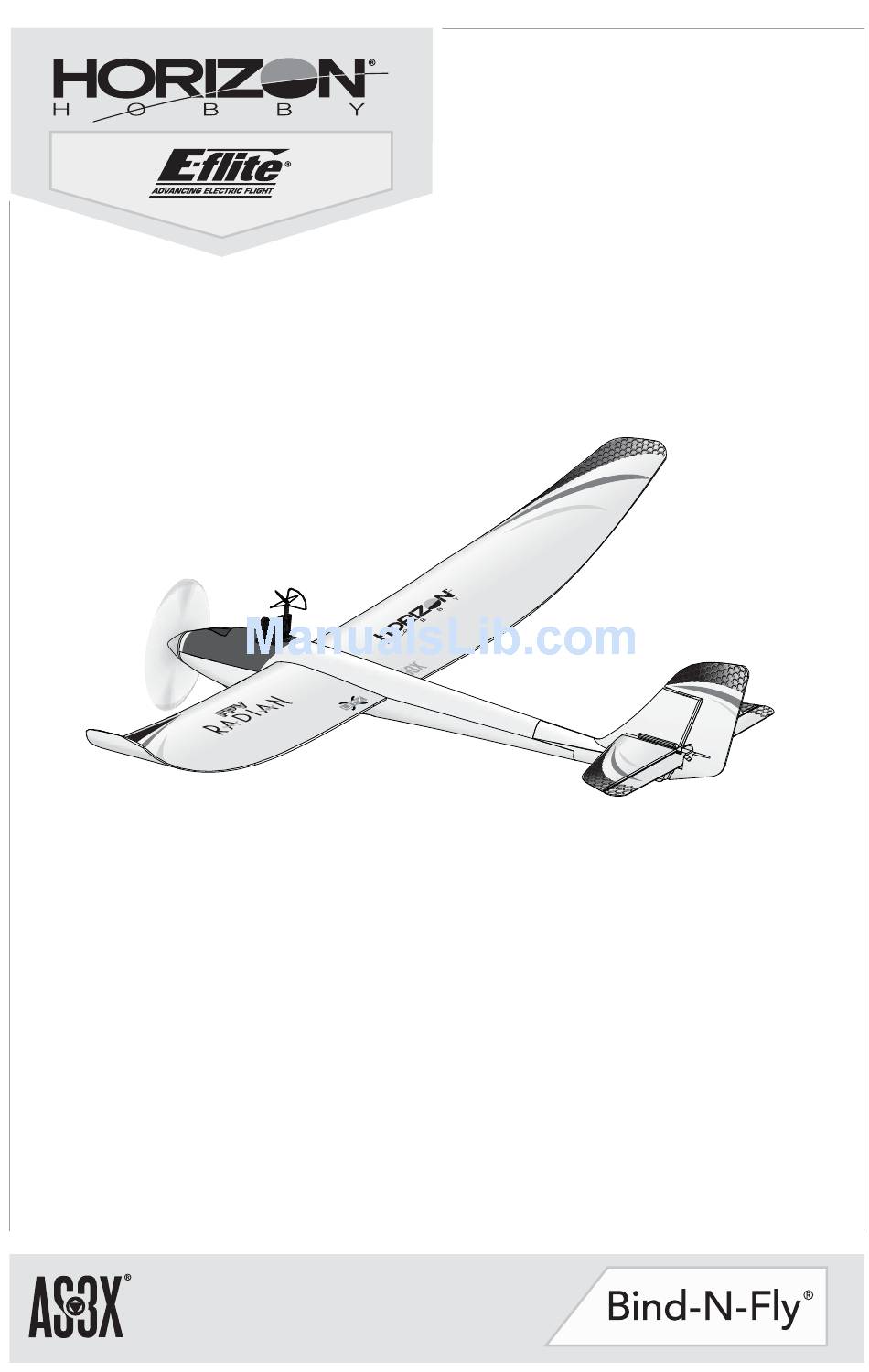

- Page 1 ® ™ FPV RADIAN Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
-
Page 2: Safety Precautions And Warnings
Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury. -
Page 3: Table Of Contents
Table of Contents Prefl ight Checklist ..........4 First Person View (FPV) System instructions ..12 Charger Warnings ..........4 Caring for the Video Transmitter Antenna ....12 Battery Charging ............5 Ultra Micro FPV Troubleshooting ......12 Wing Installation ............5 Flying Tips and Repairs ........13 Transmitter and Receiver Binding ......6 Flying Tips Continued ...........14 Flight Battery Installation and ESC Arming....7... -
Page 4: Prefl Ight Checklist
Prefl ight Checklist 1. Charge fl ight battery. 7. Perform AS3X Control Direction Test with aircraft. 2. Fully assemble aircraft. 8. Set dual rates. 3. Install fl ight battery in aircraft (once it has been fully charged). 9. Adjust center of gravity. 4. -
Page 5: Battery Charging
Battery Charging LED Indications CHARGING ......(Solid Red) MAX CHARGE ........(off) SOLID RED LED –Charging USB Li-Po LED OFF Charger –Charge Complete DC Input:5.0V 350mA DC Output:4.2V 300mA EFLC1008 CAUTION: Never exceed the recommended charge rate. CAUTION: Charge only batteries that are cool SOLID RED LED to the touch and are not damaged. -
Page 6: Transmitter And Receiver Binding
Transmitter and Receiver Binding Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifi er) ™ code of a single specifi c transmitter. You need to ‘bind’ your chosen Spektrum DSM2/DSMX technology equipped aircraft transmitter to the receiver for proper operation. Any full range Spektrum DSM2/DSMX transmitter can bind to the DSM2/DSMX receiver. -
Page 7: Flight Battery Installation And Esc Arming
Flight Battery Installation and ESC Arming Lower throttle and Arming the ESC also occurs after binding as throttle trim to previously described, but subsequent connection lowest settings. of a fl ight battery requires the following steps. It is normal for linear servos to make noise. Noise Power ON the is not an indication of a faulty servo. -
Page 8: Center Of Gravity (Cg)
Center of Gravity (CG) The CG location is 29mm back from the leading edge at the wing root. This CG location has been determined with the included 1S 150mAh 3.7V Li-Po battery installed towards the rear of the battery cavity located on the bottom of the aircraft. -
Page 9: Control Direction Tests Continued
Control Direction Tests Continued Aircraft AS3X Reaction Movement ® AS3X Control Direction Test This test ensures that the ® AS3X control system is functioning properly. 1. Advance the throttle to 25% to activate the AS3X system. 2. Fully lower the throttle. -
Page 10: Control Centering
Control Centering Before the fi rst fl ights, or in the event of an accident, make sure the fl ight control surfaces are centered. Adjust the linkages mechanically if the control surfaces are not centered. Use of the transmitter sub-trims may not correctly center the aircraft control surfaces due to the mechanical limits of linear servos. -
Page 11: First Person View (Fpv) Camera Installation
First Person View (FPV) Camera Installation 1. Carefully pull the receiver’s FPV power connector out of the hole of the aircraft’s canopy. 2. Align the wire colors and connect the FPV power connector to the camera unit. 3. Connect a flight battery to the aircraft, then remove the lens cap and test the FPV system. -
Page 12: First Person View (Fpv) System Instructions
First Person View (FPV) System instructions Using the Ultra Micro FPV System NOTICE: We do not recommend using the ultra micro FPV system in low light. Consult local laws and ordinances before operating FPV equipment. In some areas, FPV operation may be limited or prohibited. -
Page 13: Flying Tips And Repairs
Flying Tips and Repairs We recommend fl ying your aircraft outside in calm With practice, you will fi nd it easier to locate and conditions. Always avoid fl ying near houses, trees, anticipate the movement of thermals. Although wires and buildings. You should also be careful to thermals cannot be seen, you can see dust, insects avoid fl... -
Page 14: Flying Tips Continued
Flying Tips Continued Low Voltage Cutoff (LVC) Repairs Low Voltage Cutoff (LVC) pulses the power to the Repair the aircraft using foam-compatible CA motor when the voltage gets low. When the motor (cyanoacrylate adhesive) or clear tape. Only use power pulses, land the aircraft immediately and foam-compatible CA, as other types of glue can recharge the fl... -
Page 15: Power Components Service
Power Components Service CAUTION: DO NOT handle propeller parts while the fl ight battery is connected. Personal injury could result. Disassembly 1. Disconnect the camera, then the battery from the ESC/receiver. 2. Carefully cut the tape and/or decals on the side of the fuselage to remove the top half of the fuselage. -
Page 16: Troubleshooting Guide
Troubleshooting Guide AS3X Problem Possible Cause Solution Control surfaces not at Control surfaces may not have been Center control surfaces mechanically by neutral position when mechanically centered from factory adjusting the U-bends on control linkages transmitter controls are Aircraft was moved after the fl ight battery Disconnect and reconnect the fl... -
Page 17: Troubleshooting Guide (Continued)
What this Warranty Covers (vi) Product not compliant with applicable technical regulations. Horizon Hobby, LLC (“Horizon”) warrants to the original purchaser that the product purchased (the “Product”) will OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON be free from defects in materials and workmanship at the MAKES NO OTHER WARRANTY OR REPRESENTATION, AND date of purchase. - Page 18 exclusive remedy shall be that Horizon will, at its option, you will be asked to provide your complete name, street either (i) service, or (ii) replace, any Product determined address, email address and phone number where you can by Horizon to be defective. Horizon reserves the right to be reached during business hours.
-
Page 19: Warranty And Service Information
Compliance Information for the European Union EU Compliance Statement: Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the R&TTE and EMC Directive. -
Page 20: Replacement Parts
130 x trasparente 130 x EFLU6702 Clear 130 x 70mm: Klapppropeller 70mm : UMX FPV 70mm: UMX FPV UMX FPV Radian transp. 130 x70mm Radian Radian Main Wing: Ultra Ultra Micro Radian: Aile : Ultra Micro Ala Principale: Ultra... -
Page 21: Optional Parts And Accessories
– Optional Parts and Accessories – – Optionale Bauteile und Zubehörteile – – Pièces optionnelles et accessoires – – Pezzi opzionali e accessori – Part # • Nummer Description Beschreibung Description Descrizione Numéro • Codice Hook and Loop Set Parkzone: Klettband Ultras Micros Set fascette a PKZ1039... - Page 22 © 2015 Horizon Hobby, LLC. E-fl ite, Radian, AS3X, UMX, DSM, DSM2, DSMX, ModelMatch, Bind-N-Fly, Celectra and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
