User's Guide
P/N 067049-001
Sabre 1552

Laser Scanner

Advertisement

Table of Contents
loading

Related Manuals for Intermec Sabre 1552

Summary of Contents for Intermec Sabre 1552

  • Page 1: Laser Scanner

    User’s Guide P/N 067049-001 Sabre 1552 Laser Scanner...
  • Page 2 U.S. media supplies ordering information: 1-800-227-9947 Canadian service and technical support: 1-800-688-7043 Canadian media supplies ordering information: 1-800-268-6936 Outside U.S. and Canada: Contact your local Intermec service supplier. The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and/or...

  • Page 3: Table Of Contents

    1233* 1233* FranklinGothic Helv Condensed Contents Overview of the Sabre 1552 Laser Scanner 5 Unpacking the Sabre 1552 Laser Scanner 6 Understanding the Scanner Features 8 Light 8 Beeps 8 Electrical Rating 9 Associating the Sabre 1552 to the MicroBar 9745...

  • Page 5: Overview Of The Sabre 1552 Laser Scanner

    39 Overview of the Sabre 1552 Laser Scanner The Intermec Sabre 1552 laser scanner delivers quick, effortless bar code scanning. The following table lists the different scanner configurations, giving the optics and radio frequency (RF) configurations by country.

  • Page 6: Unpacking The Sabre 1552 Laser Scanner

    Mexico, and Spain. Configurations are continually being added to this list; consequently, some of the most recent additions may not be shown here. Contact your local Intermec representative for a current list. Unpacking the Sabre 1552 Laser Scanner Your 1552 laser scanner was thoroughly tested and inspected before it was shipped from the factory.

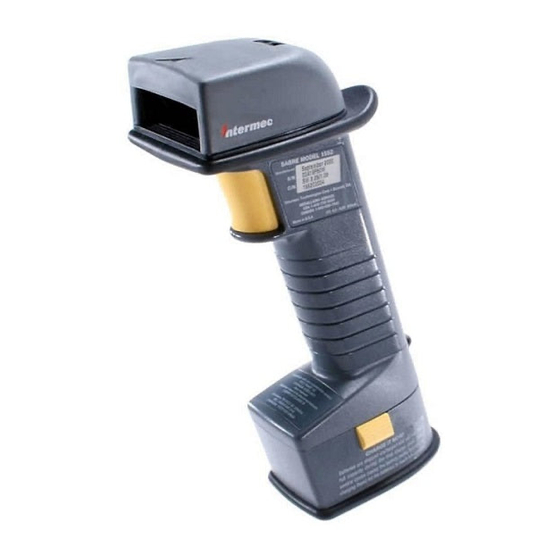

  • Page 7 39 Sabre 1552 Laser Scanner Light Scan window Trigger Battery pack Battery clip pack 1552QRG.005...

  • Page 8: Understanding The Scanner Features

    c o d e 39 Understanding the Scanner Features Please acquaint yourself with these important parts of the scanner before continuing. Light The light indicates the status of the scanner and battery pack. Color Description Yellow The device is scanning. Flashing The battery pack charge is low.

  • Page 9: Electrical Rating

    To associate the scanner to the base station 1. Connect the MicroBar 9745 base station to your network. For help, see the Sabre 1552 Laser Scanner and MicroBar 9745 Base Station System Manual (Part No. 067670). 2. Install the battery pack in the scanner. The scanner emits a single beep.
  • Page 10 c o d e 39 Associating the Scanner to the Base Station Association bar code 1552QRG.004 After a 3 to 4 second pause, the scanner will beep once and the green light on the base station will flash. If the scanner beeps three times after 3 to 4 seconds, the scanner did not associate to the base.

  • Page 11: Operating The Sabre 1552 Laser Scanner

    39 Operating the Sabre 1552 Laser Scanner Before you start scanning, make sure: • The power to the reader/terminal is on • The scanner is associated to the base station • All cable connections from the base station are secure To scan bar codes 1.

  • Page 12: Configuring The Marker Beam

    c o d e 39 2. If you did not get a good read, adjust the scanner distance from the bar code and the position of the laser beam to make sure you scan every bar and space. *HI* *HI* INCORRECT CORRECT 155XQRG.006...

  • Page 13: Troubleshooting The Sabre 1552 Laser Scanner

    Make sure the bar code is free of dirt and grime. Then scan at a slight angle or pitch to the bar code (see “Operating the Sabre 1552 Laser Scanner” earlier in this guide). Try adjusting the scanning distance.
  • Page 14 (for example: !#$%). Scanner does not Scan at a slight angle or pitch to the bar code read “shiny” bar (see “Operating the Sabre 1552 Laser codes. Scanner” earlier in this guide). The green light is The scanner is not communicating with the flashing and the MicroBar 9745 base station.

  • Page 15: Maintaining The Sabre 1552 Laser Scanner

    If you continue to encounter problems with your scanner, contact your local Intermec representative. Maintaining the Sabre 1552 Laser Scanner Water or grime on the window of the scanner will distort the laser beam and impair performance. Moving from one temperature extreme to another causes condensation to form on the optical surfaces that affects scanner performance.

  • Page 16: Accessories For The Scanner

    39 Accessories for the Scanner These accessories are available for your 1552 scanner. To order an accessory or the Sabre 1552 Laser Scanner and MicroBar 9745 Base Station System Manual (Part No. 067670), call your local Intermec representative.
  • Page 17 c o d e 39 Accessories (continued) 2-Bay Charge Strip Part No. 067255 You can use the charge strip to charge two NiCad and NiMH battery packs. 6-Bay Charge Strip Part No. 067254 You can use the charge strip to charge six NiCad and NiMH battery packs.
  • Page 18 c o d e 39...
