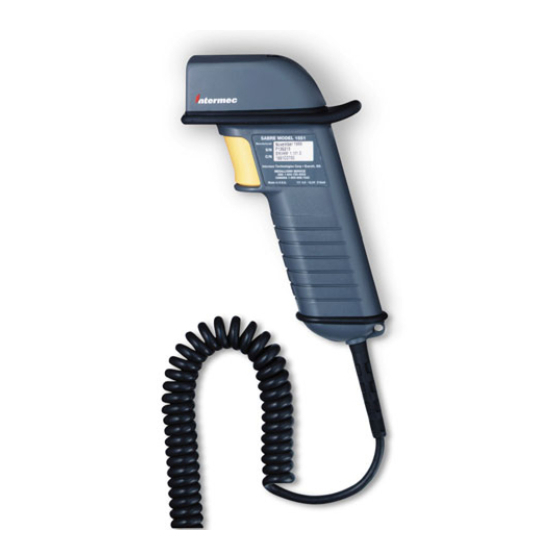

Getting Started Guide
Hand-held Scanner
Guía de Iniciación
Guide de Démarrage
Anleitung für Einsteiger
P/N 3-600049-01
Sabre 1551
Guida Introduttiva
Guia de Iniciação

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sabre 1551 and is the answer not in the manual?

Questions and answers

Summary of Contents for Intermec Sabre 1551

  • Page 1 Getting Started Guide Sabre 1551 Hand-held Scanner Guía de Iniciación Guida Introduttiva Guide de Démarrage Guia de Iniciação Anleitung für Einsteiger P/N 3-600049-01...
  • Page 2 Introduction Use this Getting Started Guide to set up the Sabre 1551E laser scanner for most terminal connections and symbologies. If necessary, use the EasySet setup software or Installa- tion Manual for additional configuration possibilities and terminal connections. Do not use this guide with the Sabre 1551A, B, or C.
  • Page 3: Keyboard Wedge

    Keyboard wedge (for PC) Ê System power OFF Ë Connect cables Din/mini-Din adaptor cable power supply (normally not required) Ì System power ON Í Select keyboard QWERTY English QWERTZ German PC wedge cable P/N 3-604037-00 Î AZERTY French QWERTZ Swiss / French QWERTY Swedish / Finnish QWERTY Norwegian QWERTY Spanish...
  • Page 4 System power OFF Ë Ë Connect cables Standard RS-232 C cable P/N 3-604032-00 Ì Ì Scanner power ON Í Í System power ON Î Î Read this code (standard RS-232 C PC serial port compatible) 9600 baud, 7 data bits, even parity, 2 stop bits postamble = carriage return + line feed Ï...
  • Page 5: Wand Emulation

    Connect cable Wand emulation cable P/N 3-606031-00 Ì System power ON Í Wand emulation Digital wand emulation Analog wand emulation - Intermec interface, white high Symbology Ê Disable all symbologies Ë Select symbology Code 39 Code 128 / EAN 128...
  • Page 6: Test Symbology

    Test symbology Default setup Full setup with EasySet Ê System power OFF Ë Connect RS-232 C cable (P/N 3-604032-00) Ì Scanner power ON Í System power ON EasySet setup Î Read this code Ï Start EasySet software...
  • Page 7: Laser Warnings

    Laser warnings The Sabre 1551 has a maximum laser output of 1mW at 630-680 nm and complies with the following safety standards: USA: CDRH - Class II Laser Product (CFR 21 Subpart J) IEC 825-1 EN 60825-1 - Class 2 Laser Product (all Sabre 1551 models except 0601) IEC 825-1 EN 60825-1 - Class 3A Laser Product (Sabre 1551 0601) CAUTION –...
  • Page 8: Regulatory Statements

    In order to maintain compliance with the FCC Rules, the I/O cables that interconnect between the device and any peripheral (such as a reader) must be as specified by Intermec. This device is UL listed (UL 1950/C22.2 No. 950) for safety when powered by a host system or by one of the following external Intermec power supplies: P/N 0-302029-01 ~120V, 60 Hz.
