Polycom RealPresence EduCart 500 Setting Up page 5

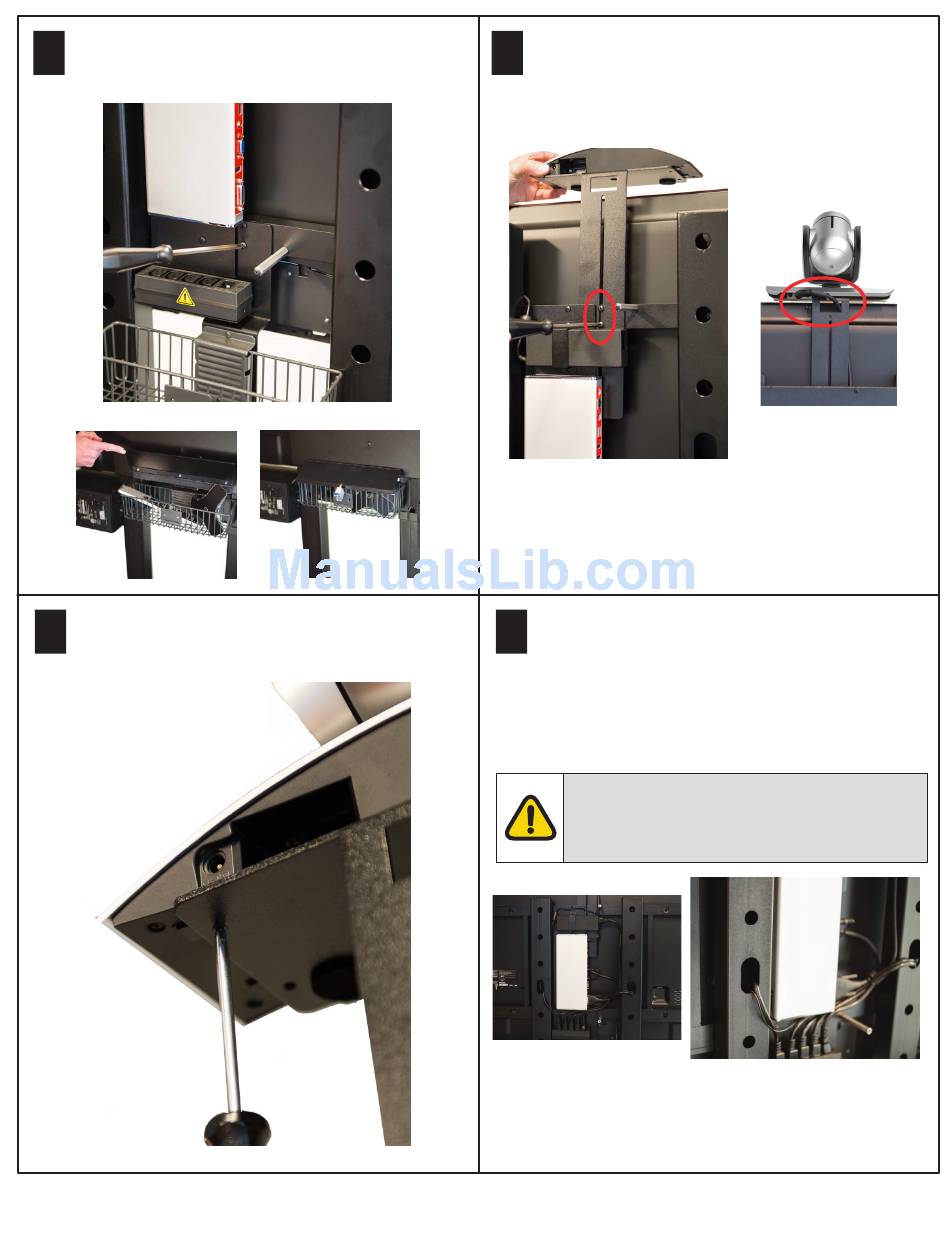

Attach the storage basket to the bottom of the H
13
bracket under the power bar using the two screws
removed in step 2.
Attach the EagleEye IV camera to the camera
14
mounting bracket using four M3 x 6mm Phillips
flat head screws.
Setting up the Polycom® RealPresence® EduCart
Loosen the two screws on the camera bracket
15
and lower the camera shelf to the top of the
display. Tighten the screws. Route the camera
cable behind the camera bracket and through
the hole.
Attach and route the cables. Run the power cord
16
from the power bar, down the adjacent pole, and
exit the cord end at the hole at the bottom of the
pole. Run an ethernet cable the same way. Store
excess cable with the cable wrap bracket at the
bottom of the cart base.Refer to the wiring
diagram at the end of this document for details.
Only EduCart 500 components should be
plugged into the power outlet block. Do not
power any other electrical equipment from this
power outlet.
