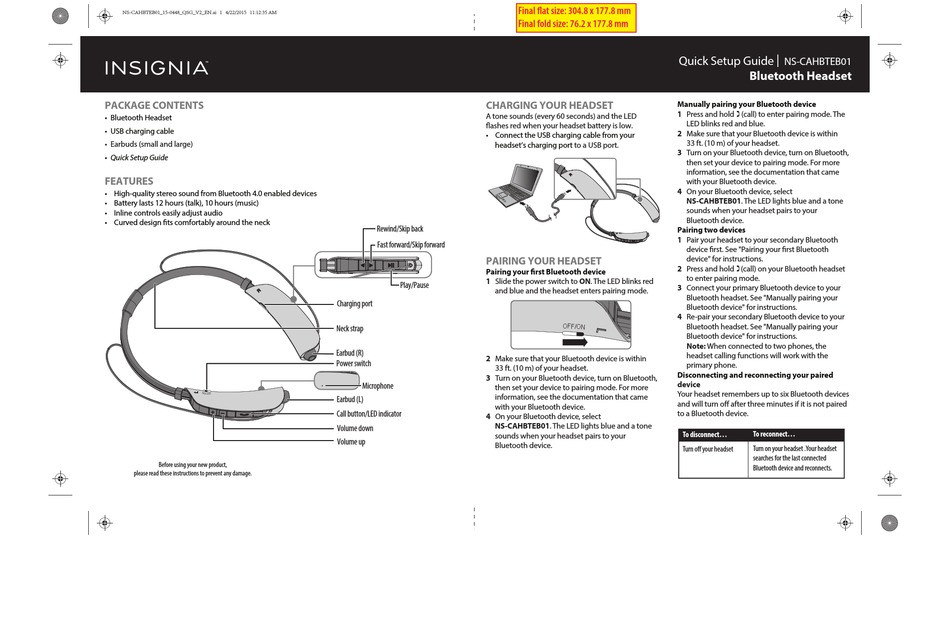

Insignia NS-CAHBTEB01 Quick Setup Manual

NS-CAHBTEB01_15-0448_QSG_V2_EN.ai 1 4/22/2015 11:12:35 AM NS-CAHBTEB01_15-0448_QSG_V2_EN.ai 1 4/22/2015 11:12:35 AM
PACKAGE CONTENTS
• Bluetooth Headset
• USB charging cable
• Earbuds (small and large)
• Quick Setup Guide
FEATURES
• High-quality stereo sound from Bluetooth 4.0 enabled devices
• Battery lasts 12 hours (talk), 10 hours (music)
• Inline controls easily adjust audio
• Curved design fits comfortably around the neck
Before using your new product,
please read these instructions to prevent any damage.
V2
FINAL
FOR PRINT
CHARGING YOUR HEADSET
A tone sounds (every 60 seconds) and the LED
flashes red when your headset battery is low.
• Connect the USB charging cable from your
headset's charging port
Rewind/Skip back
Fast forward/Skip forward
PAIRING YOUR HEADSET
Pairing your first Bluetooth device
1 Slide the power switch to ON. The LED blinks red
Play/Pause
and blue and the headset enters pairing mode.
Charging port
Neck strap
Earbud (R)
2 Make sure that your Bluetooth device is within
Power switch
33 ft. (10 m) of your headset.
3 Turn on your Bluetooth device, turn on Bluetooth,
Microphone
then set your device to pairing mode. For more
information, see the documentation that came
Earbud (L)
with your Bluetooth device.
Call button/LED indicator
4 On your Bluetooth device, select
NS-CAHBTEB01. The LED lights blue and a tone
Volume down
sounds when your headset pairs to your
Volume up
Bluetooth device.
Final flat size: 304.8 x 177.8 mm
Final fold size: 76.2 x 177.8 mm
Quick Setup Guide |
Manually pairing your Bluetooth device
1 Press and hold  (call) to enter pairing mode. The
LED blinks red and blue.
2 Make sure that your Bluetooth device is within
33 ft. (10 m) of your headset.
to a USB port.
3 Turn on your Bluetooth device, turn on Bluetooth,
then set your device to pairing mode. For more
information, see the documentation that came
with your Bluetooth device.
4 On your Bluetooth device, select
NS-CAHBTEB01. The LED lights blue and a tone
sounds when your headset pairs to your
Bluetooth device.
Pairing two devices
1 Pair your headset to your secondary Bluetooth
device first. See "Pairing your first Bluetooth
device" for instructions.
2 Press and hold  (call) on your Bluetooth headset
to enter pairing mode.
3 Connect your primary Bluetooth device to your
Bluetooth headset. See "Manually pairing your
Bluetooth device" for instructions.
4 Re-pair your secondary Bluetooth device to your
Bluetooth headset. See "Manually pairing your
Bluetooth device" for instructions.
Note: When connected to two phones, the
headset calling functions will work with the
primary phone.
Disconnecting and reconnecting your paired
device
Your headset remembers up to six Bluetooth devices
and will turn off after three minutes if it is not paired
to a Bluetooth device.
To disconnect...
Turn off your headset
NS-CAHBTEB01
Bluetooth Headset
To reconnect...
Turn on your headset .Your headset
searches for the last connected
Bluetooth device and reconnects.
