Insignia NS-CAHBTEB02-BLK Quick Setup Manual

QUICK SETUP GUIDE

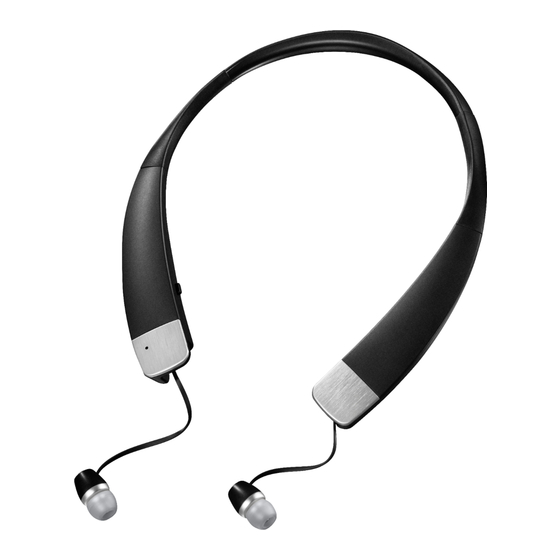

Bluetooth In-Ear
Headphones
NS-CAHBTEB02-BLK / NS-CAHBTEB02-BLK-C
PACKAGE CONTENTS
• Bluetooth in-ear headphones • USB charging cable
• Two additional pairs of earbuds in small and large sizes • Quick Setup Guide
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, enter your model in the search box, then press ENTER. Next to Features, click Support & Downloads,
then next to User Guide, click the language you want.
FEATURES
• Volume control • Voice prompts and easy pairing
• Listen to music and talk on the phone wirelessly • High quality sound
• Music playback: 10 hours • Vibration prompt for incoming calls
• Echo cancellation and noise suppression
Before using your new product, please read these instructions to prevent any damage.
BLUETOOTH BASIC INDICATION
# DESCRIPTION FUNCTION
Bluetooth function indication
1 Indicator LED Shows current status of the headphones.
ACTION
2 Volume Up / Press to increase the volume.
Power on
Next Track Press and hold for one second to skip to the next track.
Power off
3 (Power/Talk / Pairing mode
Press to turn on your stereo headphones.
Play / Pause / If you receive a phone call, press to talk.
Pairing) button Press to pair your headphones with a Bluetooth enabled Play/Pause
device.
Volume Up/Down
4 Volume Down / Press to decrease the volume.
Next Track/Previous Track
Previous Track Press and hold for one second to skip to the previous
Incoming call
track.
Answer call
5 Microphone Allows you to talk on the telephone.
Reject call
6 Earbud Allows the headphones to fit comfortably in your ear.
Redial
Reset device list
7 Retraction button Press to retract the cord.
8 Micro USB port Plug the micro USB connector into this port to charge your
CHARGING YOUR STEREO HEADPHONES
headphones.
• When the red indicator LED blinks three times every minute and the voice prompt says "battery low", the battery is low. To charge the battery,
9 Earbud Allows the headphones to fit comfortably in your ear. plug the charging cable into your computer and into the micro USB port on your headphones. The red LED turns on to indicate that the battery is
charging and turns off when fully charged.
10 Retraction button Press to retract the cord.
OPERATION LED INDICATION SOUND
Press and hold more than two seconds Blue LED lights for 1.5 seconds "power on"
Press and hold more than three seconds Red LED lights for 1.5 seconds "power off"
Press and hold more than four seconds in power Blue and red LED blinking alternately Two short beeps
off mode
Press and release button LED off
Press and release / button Two high beeps for
maximum volume
Press and hold / button LED off
LED off Rings and vibrates
every two seconds
Press and release when a call is incoming LED off One long beep
Press and hold when a call is incoming LED off Two long beeps
Double press LED off Two short beeps
Long press button more than five seconds LED off Vibrates for two
seconds
USING YOUR STEREO HEADPHONES
Turning your stereo headphones on and off
1 Place the headphones around your neck.
2 Press and hold the button more than two seconds. The LED blinks blue (when turned on) or red (when turned off) and the voice prompt
says "Power on" or "Power off".
PAIRING YOUR STEREO HEADPHONES
Notes:
• Range is 33 feet (10 meters)
• Supports easy pairing
• Prompts you by saying "Your device is connected, " when connected
• Supports a battery indicator icon on an iOS device
Pairing with a cell phone or MP3 player
1 With your stereo headphones turned off, press and hold for four seconds. The blue and red LEDs blink alternately.
2 On your phone or MP3 player, select INSIGNIA NS-CAHBTEB02 from the list of discovered devices, then enter the password 0000 (four zeros)
(if required) to pair your headphones.
For more information on pairing Bluetooth devices to your cell phone or MP3 player, see the device' s documentation.
Note: After the headphones have been successfully paired with the cell phone or MP3 player, the headphones will automatically reconnect to the phone or MP3 player.
Pairing with a computer running Windows
Note: Before you pair the headphones with the computer, make sure that the computer is equipped with Bluetooth. Refer to the computer' s documentation or
contact the computer manufacturer for more information. If your computer is not Bluetooth compatible, install a Bluetooth USB adapter (dongle).
1 Turn on Bluetooth on the computer. For instructions, see the computer' s documentation or contact the computer manufacturer.
2 Double-click the Bluetooth icon in the system tray, then click Add a device (Add Wireless Device using Windows Vista).
3 With the headphones turned off, press and hold for four seconds. The LED blinks blue and red alternately. Pairing mode is activated.
4 Double-click the INSIGNIA NS-CAHBTEB02 icon on the computer or highlight the icon, then click Next.
Note: If you are unable to locate the INSIGNIA NS-CAHBTEB02 icon, click the Search Again button.
