Insignia NS-CAHBTEB02-BLK / BLK-C - Bluetooth In-Ear Headphones Quick Setup

PACKAGE CONTENTS

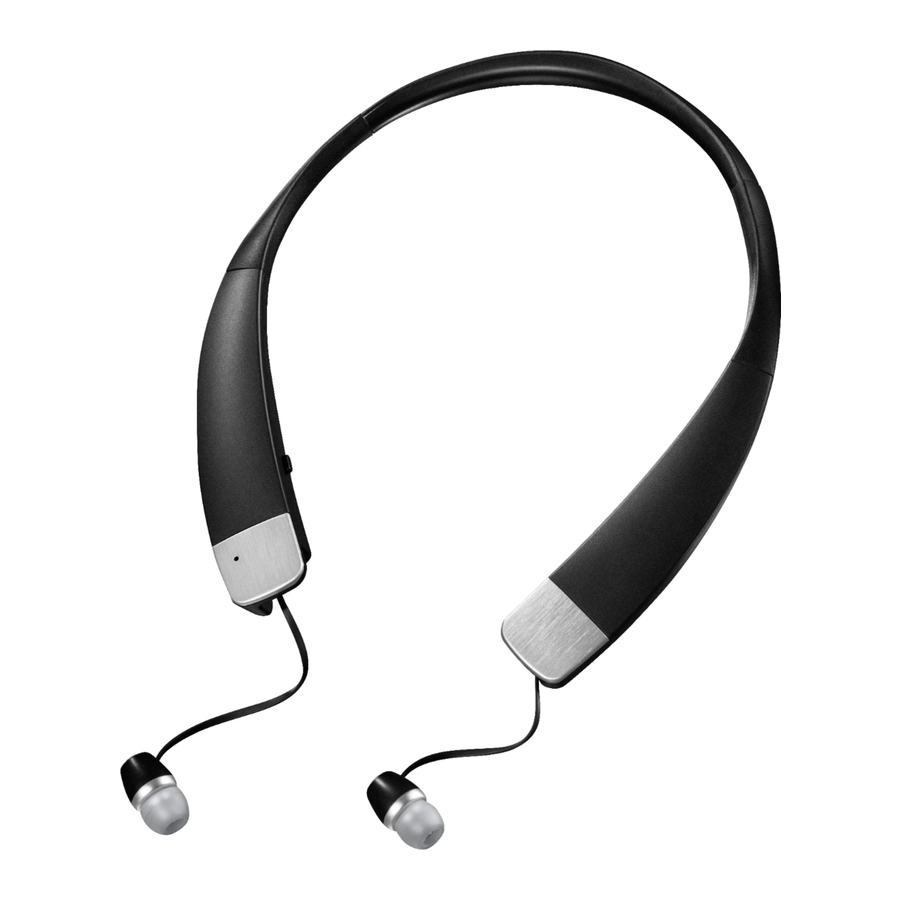

• Bluetooth in-ear headphones
• Two additional pairs of earbuds in small and large sizes
• USB charging cable
• Quick Setup Guide

Before using your new product, please read these instructions to prevent any damage.

FEATURES

• Volume control
• Listen to music and talk on the phone wirelessly
• Music playback: 10 hours
• Echo cancellation and noise suppression
• Voice prompts and easy pairing
• High quality sound
• Vibration prompt for incoming calls

FUNCTION DESCRIPTION

BLUETOOTH BASIC INDICATION

Bluetooth function indication

CHARGING YOUR STEREO HEADPHONES

• When the red indicator LED blinks three times every minute and the voice prompt says "battery low", the battery is low. To charge the battery, plug the charging cable into your computer and into the micro USB port on your headphones. The red LED turns on to indicate that the battery is charging and turns off when fully charged.

USING YOUR STEREO HEADPHONES

Turning your stereo headphones on and off

1. Place the headphones around your neck.
2. Press and hold the button more than two seconds. The LED blinks blue (when turned on) or red (when turned off) and the voice prompt says "Power on" or "Power off".

PAIRING YOUR STEREO HEADPHONES

Notes:

• Range is 33 feet (10 meters)
• Supports easy pairing
• Prompts you by saying "Your device is connected," when connected
• Supports a battery indicator icon on an iOS device

Pairing with a cell phone or MP3 player

1. With your stereo headphones turned off, press and hold for four seconds. The blue and red LEDs blink alternately.
2. On your phone or MP3 player, select INSIGNIA NS-CAHBTEB02 from the list of discovered devices, then enter the password 0000 (four zeros) (if required) to pair your headphones.

For more information on pairing Bluetooth devices to your cell phone or MP3 player, see the device's documentation.

Note: After the headphones have been successfully paired with the cell phone or MP3 player, the headphones will automatically reconnect to the phone or MP3 player.

Pairing with a computer running Windows
Note: Before you pair the headphones with the computer, make sure that the computer is equipped with Bluetooth. Refer to the computer's documentation or contact the computer manufacturer for more information. If your computer is not Bluetooth compatible, install a Bluetooth USB adapter (dongle).

1. Turn on Bluetooth on the computer. For instructions, see the computer's documentation or contact the computer manufacturer.
2. Double-click the Bluetooth icon in the system tray, then click Add a device (Add Wireless Device using Windows Vista).
3. With the headphones turned off, press and hold for four seconds. The LED blinks blue and red alternately. Pairing mode is activated.
4. Double-click the INSIGNIA NS-CAHBTEB02 icon on the computer or highlight the icon, then click Next.
   Note: If you are unable to locate the INSIGNIA NS-CAHBTEB02 icon, click the Search Again button.
5. If required, enter 0000 (four zeros) in the Bluetooth security code field, then click Next.
6. After the headphones have been paired, click Close.
   Note: To make these headphones your default playback device, refer to your User Guide.

Pairing with a Mac computer
Note: Before you pair the headphones with the computer, make sure that the computer is Bluetooth compatible. Refer to the computer's documentation or contact the computer manufacturer for more information. If your computer is not Bluetooth compatible, install a Bluetooth USB adapter (dongle).

1. Turn on Bluetooth on the computer. For instructions, see the computer's documentation or contact the computer manufacturer.
2. Click the Bluetooth status menu.
3. Click Set up Bluetooth Device. The Bluetooth Setup Assistant opens.
4. Click Continue.
5. Select Headset as the device type, then click Continue.
6. With the headphones turned off, press and holdfor four seconds. The LED blinks blue and red alternately. Pairing mode is activated.
7. Select INSIGNIA NS-CAHBTEB02, then click Continue. The computer gathers information.
8. Click Continue.
9. Enter 0000 (four zeros) into the Passkey field, then click Continue.
10. Click Quit to finish.
    Note: To use the headphones, they must be selected as the default input and output device on the computer.
11. Click System Preferences, then click Sound.
12. Under Input, select INSIGNIA NS-CAHBTEB02, then under Output, select INSIGNIA NS-CAHBTEB02. For more information on using your headphones with Skype, refer to your User Guide.

RESETTING YOUR STEREO HEADPHONES

• To reset your headphones, with your stereo headphones turned off, press and hold the power button for five seconds.
• Press and hold the power button for five seconds. Your headphones vibrate for two seconds and enter pairing mode.

SPECIFICATIONS

TROUBLESHOOTING

• Reset your BT headphone
• Plug in the micro USB cable for charging

ONE-YEAR LIMITED WARRANTY

Visit www.insigniaproducts.com for details.

CONTACT INSIGNIA:
1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico)
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2018 Best Buy. All rights reserved.
Made in China
