Insignia NS-CAHBTSPORT, NS-CAHBTSPORT-C -Manual

PACKAGE CONTENTS

• Bluetooth Sport Headphones
• USB charging cable
• Extra S/L earbuds
• Quick Setup Guide

FEATURES

• Bluetooth 4.1
• Up to eight hours battery life for music playback
• In-line control, built-in mic
• MicroUSB charging

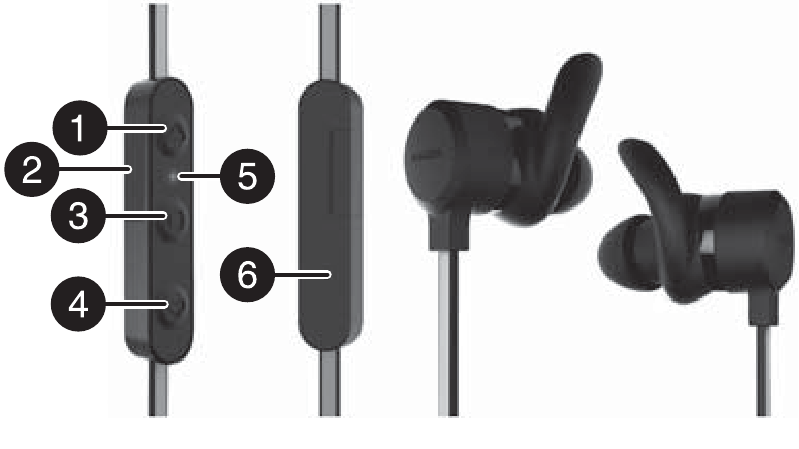

#	DESCRIPTION	FUNCTION
1	Volume Up Next Track	Press to increase the volume. In playback mode, press and hold to skip to the next track.
2	Micro USB port	Plug the micro USB connector into this port to charge your earbuds.
3	Multi-function button (MFB) (Power/Talk/Play/ Pause/Pairing)	Press to turn on your earbuds. If you receive a phone call, press to talk. Press to turn off your earbuds.
4	Volume Down Previous Track	Press to decrease the volume. In playback mode, press and hold to skip to the previous track.
5	Indicator LED	Shows current status of the earbuds.
6	Microphone	Allows you to talk on the telephone.

CHANGING YOUR EARBUDS

1. Grip the earbud in one hand and the ear tip in the other, then twist and pull to remove the ear tip from the ear bud. Repeat for the other ear bud.
2. Select the correct size ear tips for your ears.

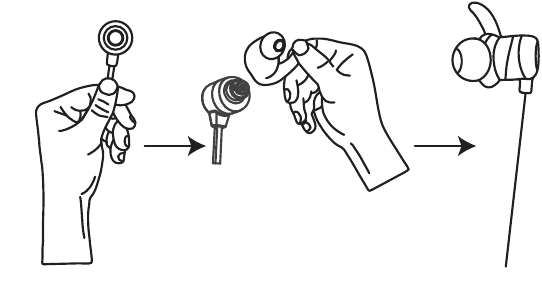

3. Still holding the ear bud in one hand, place the new ear tip over the ear bud and press together until joined. Repeat for the other ear bud.

4. Place the assembled ear bud in your ear and turn clockwise until comfortable.

Before using your new product, please read these instructions to prevent any damage.

CHARGING YOUR HEADPHONES

• The red indicator LED blinks three times a minute when the battery is low. To charge the battery, plug the microUSB charging cable into your computer and into the microUSB port on your earbuds. The red LED turns on to indicate that the battery is charging and turns off when fully charged.

USING YOUR HEADPHONES

Turning your earbuds on and off

1. Place the earbud cable around your neck. The inline control falls naturally in front of your right shoulder.
2. Press and hold the MFB for three seconds. The LED blinks blue (when turned on) or red (when turned off) and the voice prompt says "Power on", or "Power off."

BLUETOOTH BASIC INDICATION

ACTION	OPERATION	LED INDICATION	SOUND
Power on	Press and hold the MFB more than two seconds	Blue LED on 1.5 seconds	"power on"
Power off	Press and hold the MFB more than three seconds	Red LED on 1.5 seconds	"power off"
Pairing mode	Press and hold the MFB more than four seconds in power off mode	Blue and red LED blinking alternately	Two short beeps
Play/Pause	Press and release the MFB
Volume Up/Down	Press and release button		Two high beeps for maximum volume.
Next Track/ Previous Track	Press and hold button
Incoming call		Blue LED blinks three times every five seconds when a call is received	Ring tones
Answer call	Press and release the MFB when a call is incoming		One short beep
Reject call	Press and hold the MFB when a call is incoming		Two long beeps
Redial	Double press the MFB		Two short beeps
Reset device list	Press and hold the MFB more than 10 seconds in power off mode	Red LED flashes 10 times when reset to default

PAIRING YOUR HEADPHONES

Notes:

• Range is 33 feet (10 meters)
• Supports easy pairing
• Prompts you by saying "Your Device is Connected," when connected
• Supports a battery indicator icon on an iOS device

Pairing with a cell phone or MP3 player

1. With your earbuds turned off, press and hold the MFB for four seconds. The blue and red LEDs blink alternately.
2. On your phone or MP3 player, select NS-CAHBTSPORT from the list of discovered devices, then enter the password 0000 (four zeros) (if required) to pair your earbuds.
   For more information on pairing Bluetooth devices to your cell phone or MP3 player, see the device's documentation.

Note: After the earbuds have been successfully paired with the cell phone or MP3 player, the earbuds will automatically reconnect to the phone or MP3 player.

Pairing with a computer running Windows

Note: Before you pair the earbuds with the computer, make sure that the computer is equipped with Bluetooth. Refer to the computer's documentation or contact the computer manufacturer for more information. If your computer is not Bluetooth compatible, install a Bluetooth USB adapter (dongle).

1. Turn on Bluetooth on the computer. For instructions, see the computer's documentation or contact the computer manufacturer.
2. Double-click the Bluetooth icon in the system tray, then click Add a device (Add Wireless Device using Windows Vista).
3. With the earbuds turned off, press and hold the MFB for four seconds. The LED blinks blue and red alternately. Pairing mode is activated.
4. Double-click the NS-CAHBTSPORT icon on the computer or highlight the icon, then click Next.

   Note: If you are unable to locate the NS-CAHBTSPORT icon, click the Search Again button.
5. If required, enter 0000 (four zeros) in the Bluetooth security code field, then click Next.
6. After the earbuds have been paired, click Close.

Pairing with a Mac computer

Note: Before you pair the headphones with the computer, make sure that the computer is Bluetooth compatible. Refer to the computer's documentation or contact the computer manufacturer for more information. If your computer is not Bluetooth compatible, install a Bluetooth USB adapter (dongle).

1. Turn on Bluetooth on the computer. For instructions, see the computer's documentation or contact the computer manufacturer.
2. Click the Bluetooth status menu.
3. Click Set up Bluetooth Device. The Bluetooth Setup Assistant opens.
4. Click Continue.
5. Select Headset as the device type, then click Continue.
6. With the earbuds turned off, press and hold the MFB for four seconds. The LED blinks blue and red alternately. Pairing mode is activated.
7. Select NS-CAHBTSPORT, then click Continue. The computer gathers information.
8. Click Continue.
9. Enter 0000 (four zeros) into the Passkey field, then click Continue.
10. Click Quit to finish.

    Note: To use the earbuds, they must be selected as the default input and output device on the computer.
11. Click System Preferences, then click Sound.
12. Under Input, select NS-CAHBTSPORT, then under Output, select NS-CAHBTSPORT.

RESETTING YOUR HEADPHONES

• To reset your earbuds, with your earbuds turned off, press and hold the MFB for 10 seconds.

SPECIFICATIONS

TROUBLESHOOTING

• Reset your Bluetooth headphone
• Plug microUSB cable for charging

LEGAL NOTICES

FCC statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution:


Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, maybe cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different form that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

RSS-Gen & RSS-247 Statement:
This device complies with Industry Canada licence exempt RSS standard(s).
Operation is subject to the following two conditions:

1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired operation of the device.

RSS-102 Statement:
This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled environment.

ONE-YEAR LIMITED WARRANTY

Visit www.insigniaproducts.com for details.

CONTACT INSIGNIA

1-877-467-4289 (U.S. and Canada)
01-800-926-3000 (Mexico)
www.insigniaproducts.com

INSIGNIA is a trademark of Best Buy and its affiliated companies, Distributed by Best Buy Purchasing, LLC, 7601 Penn Ave South, Richfield, MN 55423 U.S.A., ©2016 Best Buy. All rights reserved. Made in China
