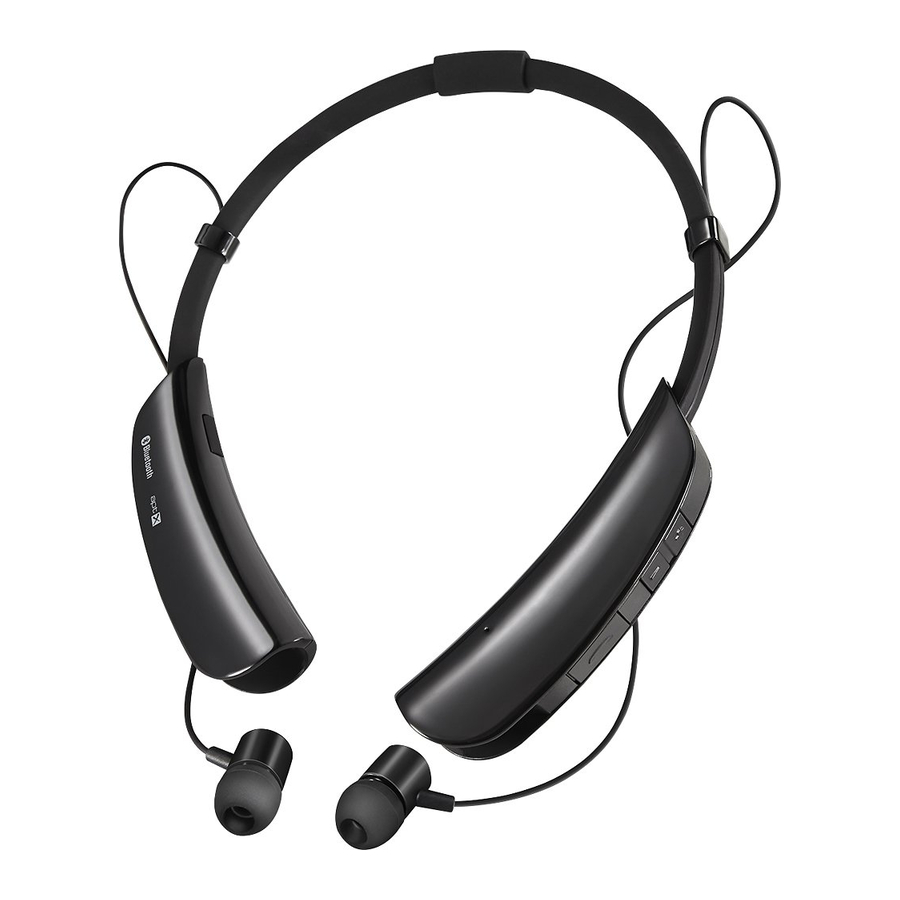

INSIGNIA NS-CAHBTEB01/-B/-C/-B-C - Bluetooth Headset Manual

PACKAGE CONTENTS

• Bluetooth Headset
• USB charging cable
• Earbuds (small and large)
• Quick Setup Guide

FEATURES

• High-quality stereo sound from Bluetooth 4.0 enabled devices
• Battery lasts 12 hours (talk), 10 hours (music)
• Inline controls easily adjust audio
• Curved design fits comfortably around the neck

CHARGING YOUR HEADSET

A tone sounds (every 60 seconds) and the LED flashes red when your headset battery is low.

• Set power switch to OFF before charging.
• Connect the USB charging cable from your headset's charging port to a USB port.


PAIRING YOUR HEADSET

Pairing your first Bluetooth device

1. Slide the power switch to ON. The LED blinks red and blue and the headset enters pairing mode.

2. Make sure that your Bluetooth device is within 33 ft. (10 m) of your headset.
3. Turn on your Bluetooth device, turn on Bluetooth, then set your device to pairing mode. For more information, see the documentation that came with your Bluetooth device.
4. On your Bluetooth device, select NS-CAHBTEB01. The LED lights blue and a tone sounds when your headset pairs to your Bluetooth device.

Manually pairing your Bluetooth device

1. Press and hold (call) to enter pairing mode. The LED blinks red and blue.
2. Make sure that your Bluetooth device is within 33 ft. (10 m) of your headset.
3. Turn on your Bluetooth device, turn on Bluetooth, then set your device to pairing mode.
4. On your Bluetooth device, select NS-CAHBTEB01. The LED lights blue and a tone sounds when your headset pairs to your Bluetooth device.

Pairing two devices

1. Pair your headset to your secondary Bluetooth device first. See "Pairing your first Bluetooth device" for instructions.
2. Press and hold ( (call) on your Bluetooth headset to enter pairing mode.
3. Connect your primary Bluetooth device to your Bluetooth headset. See "Manually pairing your Bluetooth device" for instructions.
4. Re-pair your secondary Bluetooth device to your Bluetooth headset. See "Manually pairing your Bluetooth device" for instructions.
   Note: When connected to two phones, the headset calling functions will work with the primary phone.

Disconnecting and reconnecting your paired device

Your headset remembers up to six Bluetooth devices and will turn off after three minutes if it is not paired to a Bluetooth device.

Note: If a device does not automatically reconnect, you may need to reselect "NS-CAHBTEB01" on your Bluetooth device.

WEARING YOUR HEADSET

USING YOUR HEADSET

Making phone calls

Note: When your headset is connected to two Bluetooth devices, calling functions work with the primary Bluetooth device (the one that is connected second or made the last outgoing call).

• To make a call, use your phone's controls, then select the headset as the audio source.
• To redial the last number on your primary phone, press (call) twice.
• To answer an incoming call, press (call).
  Note: Your headset vibrates when there is an incoming call.
• To switch audio between your headset and phone, use your phone's controls.
• To reject an incoming call, press and hold (call) for two seconds.
• To end a call, press (call) one time.

Call waiting

• To switch to an incoming call, press (call) twice while speaking on an active call.
• To switch between two active calls, press (call) twice.
• To end both calls, press (call).

Begin playback on your Bluetooth device

• To play audio, press .
• To skip to the next track, press .
• To skip to the previous track, press .
• To fast forward, press and hold .
• To rewind, press and hold .

SPECIFICATIONS

• Average charging time: 1.5 - 2 hours
• Operating time: Talk - 12 hours / Music - 10 hours
• Working distance: Up to 33 ft. (10 m)
• Battery: Lithium 200mAh/3.7V

SAFETY INFORMATION/CAUTION

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

TROUBLESHOOTING

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Conect the equipment into an outlet on a circuit different form that to which the receiver is connected.
• Consul the dealer or an experienced radio/TV technician for help.

Industry Canada Compliance

IC Statement

This device complies with Industry Canada's licence exempt RSSs. Operation is subject to the following two conditions:

1. This device may not cause interference; and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

ONE YEAR WARRANTY

Visit www.insigniaproducts.com for details.

CONTACT INSIGNIA

1-877-467-4289 (U.S. and Canada)
01-800-926-3000 (Mexico)
www.insigniaproducts.com

INSIGNIA is a trademark of Best Buy and its affiliated companies
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2016 Best Buy. All rights reserved.
Made in China
